Faucet Kit: 1/2 in. Comp x 3/8 in. Comp 1/4 Turn Angle Valve with 16 in. Braided Connector and Flange

Questions & Answers
$12.47
  • Angle valve compatible with Copper
  • 100% leak tested to ensure reliable, leak-free performance
  • Easy to remove handle
  • View More Details
Store
0 in stock
caret

Product Details

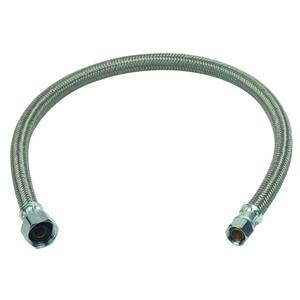

BrassCraft Faucet 1/4-Turn Supply Kit has everything that you need to install the hot or cold water to your faucet. Components include: (1) 1/2 in. Nominal Compression inlet x 3/8 in. O.D. Compression outlet 1/4-turn angle valve, (1) 3/8 in. O.D. Compression inlet x 1/2 in. FIP outlet x 16 in. length braided water connector and (1) shallow flange. The water shut-off valve has an angle body which is most often used to connect to a water pipe that enters the room from the wall. The valve features BrassCraft's G2 1/4-turn technology which means with a 90 degree turn of the valve handle, you are able control the flow of water to your plumbing fixture. This 1/4-turn operation allows you to maintain, repair or replace your fixture without shutting off the water to the entire home. The flexible braided polymer connector features a high tenacity, multi-filament yarn, protected by a special polymer coating for optimum corrosion resistance and durability. The braided polymer fibers are also designed to bend freely without kinking or crimping. This connector features BrassCraft's tough PVC inner hose to resist attack by chlorine, chloramines and other corrosive elements.
  • Kit includes: (1) 1/2 in. nominal compression x 3/8 in. O.D. compression 1/4 turn angle valve, (1) 3/8 in. O.D. compression x 1/2 in. FIP x 16 in. braided connector and (1) shallow escutcheon
  • Valve compatible with copper and PEX pipe (PEX installs require a stainless steel tube insert)
  • Smooth, on/off flow control with a 90 degree turn of the handle
  • 1-piece shut-off mechanism ensures smooth operation without freeze-ups even after long periods without use
  • Braided connector bends freely without kinking or crimping, installation is easier, especially in cramped quarters
  • Tough PVC inner hose resists attack by chlorine, chloramines and other corrosive elements
  • External corrosion resistance to common household, tile and glass cleaners
  • Precise 8-sided crimp ensures reliable nut-to-hose connections
  • Use to hookup cold or hot water supply
  • For use in potable water distribution systems in accessible locations only
  • Temperature rating: 40° to 140° F; intermittent to 180° F
  • Pressure rating: 125 psi maximum
  • No-lead certified
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1
  • Designed, machined and assembled in the USA
