ProCoat 1/2 in. MIP x 3/4 in. FIP Angle Ball Valve x 48 in. Stainless Steel Gas Connector 5/8 in. O.D. (106,000 BTU)
How to Get It
Product Overview

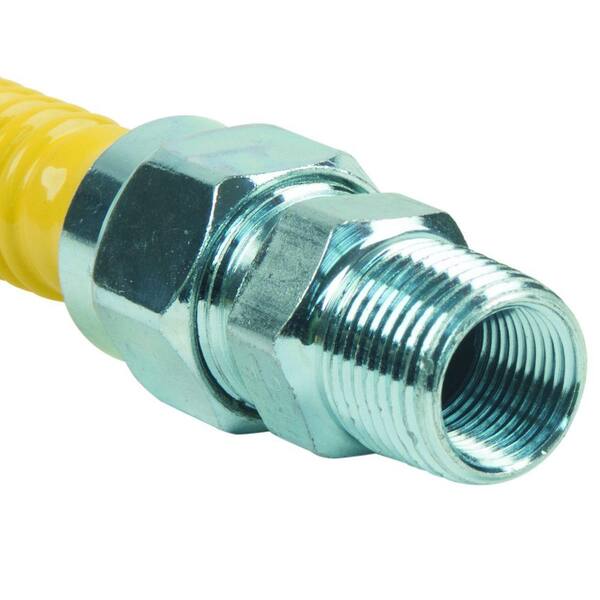

BrassCraft's ProCoat stainless steel gas connector is engineered with added safety in mind. The proprietary polymer coating is designed to withstand prolonged exposure to harsh household chemicals, UV rays and salt. ProCoat is applied to the corrugated stainless steel connector using advanced powder-coat technology. Unlike conventional dipped or sprayed coatings, the ProCoat coating is baked directly onto the connector surface at high temperatures to provide a uniform coating over the entire length of the connector. The coating is applied only after the connector has been 100% leak tested, prior to nut and fitting assembly. This process results in the most complete corrosion resistance available.
- 1/2 in. I.D. (5/8 in. O.D.) corrugated stainless steel with corrosion resistant coating
- Includes: 1/2 in. MIP steel fitting and 3/4 in. FIP inlet brass angle gas ball valve
- ProCoat coating corrosion resistant to harsh chemicals as well as UV rays and salt
- Use with natural and LP (propane) gases
- 100% leak tested
- Approved for indoor and outdoor use
- Temperature rating: -40° to 125°F
- Pressure rating: 1/2 psi maximum
- CSA certified
- California residents
Compare Similar Gas Fittings & Connectors
 |  |  | |
| Brand | BrassCraft | BrassCraft | BrassCraft |
| Name | ProCoat 3/4 in. MIP x 3/4 in. FIP Angle Ball Valve x 48 in. Stainless Steel Gas Connector 5/8 in. O.D. (106,000 BTU) | ProCoat 1/2 in. MIP x 3/4 in. FIP Angle Ball Valve x 48 in. Stainless Steel Gas Connector 5/8 in. O.D. (106,000 BTU) | ProCoat 3/4 in. FIP x 3/4 in. MIP x 24 in. Stainless Steel Gas Connector 7/8 in. OD (290,900 BTU) |
| Price | $3651 | $4128 | $4172 |
| Ratings | (0) | (0) | (46) |
| Product Length (in.) | 48.980 in | 48.980 in | 24 in |
| Product Height (in.) | 48.98 | 48.98 | 14.25 |
| View Product | View Product | View Product |
Specifications
Dimensions
| Inner diameter (in.) | 0.5 | Outer diameter (in.) | 0.625 |
|---|---|---|---|
| Product Depth (in.) | 2.25 | Product Height (in.) | 48.98 |
| Product Length (in.) | 48.980 in | Product Width (in.) | 2 |
Details
| Connection type | FIP x MIP | Gas Vent Pipe and Fittings Accessory Type | Gas Appliance Connector |
|---|---|---|---|
| Inner material | Stainless steel | Maximum Pressure (psi) | .5 |
| Maximum Working Temperature (F) | 125 | Minimum working temperature (F) | -40 |
| Outer Material | Other | Product Weight (lb.) | 1.4978 lb |
| Returnable | 90-Day |
Warranty / Certifications
| Certifications and Listings | CSA Listed | Manufacturer Warranty | Limited Manufacturer Warranty |
|---|
