Internet # 205204447

Model # SWB07-18N

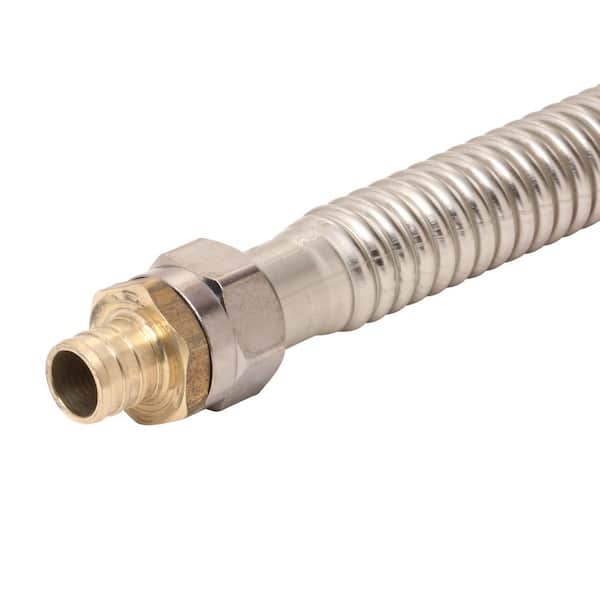

ProCoat 3/4 in. FIP x 3/4 in. PEX Barb x 18 in. Coated Stainless Steel Water Heater Connector (3/4 in. I.D.)

  • Compatible with electric or gas water heaters or softeners
  • Features unique ProCoat clear coat to resist corrosion
  • Withstands a working pressure of 125 PSI for reliable use
  • View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

BrassCraft ProCoat stainless steel connectors deliver outstanding flexibility with advanced corrosion resistance, both inside and outside. BrassCraft's patented integrated dielectric sleeve isolates dissimilar metals within the waterway, where galvanic and electrolytic corrosion have their greatest potential. This separation provides complete protection against galvanic corrosion that can deteriorate the connector and cause leaks. In addition, the integrated dielectric sleeve eliminates the need to install an additional dielectric union, reducing time and installation costs. The corrugated stainless steel delivers superior flexibility over copper and braided stainless steel without kinking or flattening for a quick and simple installation. The stainless steel core is protected from corrosion and deterioration with BrassCraft's exclusive ProCoat clear coat that provides protection from harsh cleaning and plumbing repair chemicals.
  • Coated stainless steel tube 3/4 in. I.D. x 18 in. L
  • End connections: 3/4 in. FIP x 3/4 in. PEX barb
  • Use only as a water connection for electric or gas water heaters and softeners
  • Corrugated stainless steel, delivers superior flexibility without kinking or flattening
  • Full flow, maximum performance with a 3/4 in. internal diameter
  • Exclusive ProCoat clear coat, provides superior corrosion resistance to deterioration from harsh external chemicals, UV rays and salt
  • Integrated dielectric sleeve isolates dissimilar metals within the waterway to help protect the connector from internal corrosion
  • Integrated dielectric sleeve eliminates need to install an additional dielectric union
  • Pliable nitrile rubber washer requires less torque to seal especially on rough nipple surfaces
  • 100% leak tested
  • Temperature rating: 40° to 180° F (NSF61 maximum 82° C)
  • Pressure rating: 125 psi maximum
  • Designed, machined and assembled in the USA
  • CSA and IAPMO certified
  • No-lead certified
  • Return Policy
  • California residents

Additional Resources

From the Manufacturer



Dimensions: H 0.75 in, W 0.75 in, D 18 in


Product Depth (in.)18 inProduct Height (in.)0.75 in
Product Length (in.)18 inProduct Width (in.)0.75 in


ApplicationWater HeaterCompatible Brand/ModelFits Most Brands
Finish FamilySilver MetallicFor Use WithElectric Tank, Gas Tank
MaterialCoated Stainless SteelPack Size1
Product Weight (lb.)0.485 lbReturnable90-Day

Warranty / Certifications

Manufacturer WarrantyLimited Manufacturer Warranty
