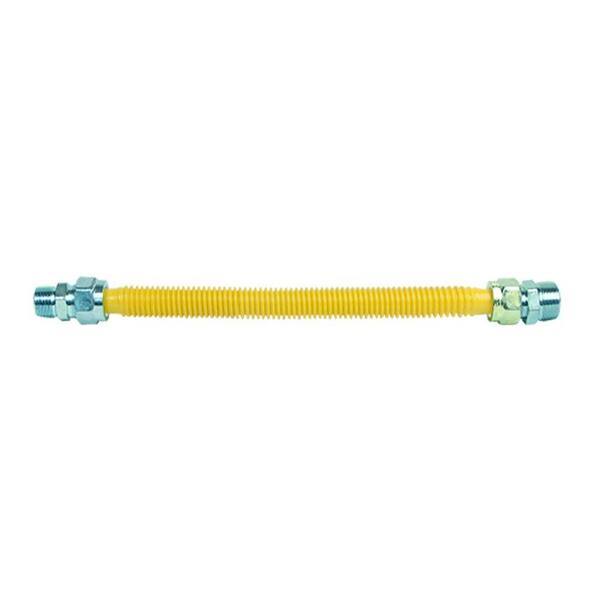

ProCoat 3/4 in. MIP x 1/2 in. MIP x 12 in. Stainless Steel Gas Connector 5/8 in. O.D. (180,000 BTU)
Product Overview
BrassCraft’s ProCoat stainless steel gas connector is engineered with added safety in mind. The proprietary polymer coating is designed to withstand prolonged exposure to harsh household chemicals, UV rays and salt. ProCoat is applied to the corrugated stainless steel connector using advanced powder-coat technology. Unlike conventional dipped or sprayed coatings, the ProCoat coating is baked directly onto the connector surface at high temperatures to provide a uniform coating over the entire length of the connector. The coating is applied only after the connector has been 100% leak tested, prior to nut and fitting assembly. This process results in the most complete corrosion resistance available.
- 1/2 in. I.D. (5/8 in. O.D.) corrugated stainless steel with corrosion resistant coating
- Steel fittings included: 3/4 in. MIP (tapped 1/2 in. FIP) and 1/2 in. MIP
- ProCoat coating corrosion resistant to harsh chemicals as well as UV rays and salt
- Use with natural and LP (propane) gases
- 100% leak tested
- Approved for indoor and outdoor use
- Temperature rating: -40° to 150°F
- Pressure rating: 1/2 psi maximum
- CSA certified
- California residents
Product Overview
BrassCraft’s ProCoat stainless steel gas connector is engineered with added safety in mind. The proprietary polymer coating is designed to withstand prolonged exposure to harsh household chemicals, UV rays and salt. ProCoat is applied to the corrugated stainless steel connector using advanced powder-coat technology. Unlike conventional dipped or sprayed coatings, the ProCoat coating is baked directly onto the connector surface at high temperatures to provide a uniform coating over the entire length of the connector. The coating is applied only after the connector has been 100% leak tested, prior to nut and fitting assembly. This process results in the most complete corrosion resistance available.
Compare Similar Gas Fittings & Connectors
 |  |  |  | |
| Brand | BrassCraft | BrassCraft | BrassCraft | BrassCraft |
| Name | ProCoat 3/4 in. MIP x 3/4 in. MIP x 12 in. Stainless Steel Gas Connector 5/8 in. O.D. (180,000 BTU) | ProCoat 3/4 in. MIP x 1/2 in. MIP x 12 in. Stainless Steel Gas Connector 5/8 in. O.D. (180,000 BTU) | ProCoat 3/4 in. FIP x 3/4 in. MIP x 12 in. Stainless Steel Gas Connector 5/8 in. O.D. (180,000 BTU) | ProCoat 3/4 in. FIP x 3/4 in. FIP x 12 in. Stainless Steel Gas Connector 3/4 in. I.D. (290,900 BTU) |
| Price | $1556 | $1580 | $1659 | $3128 |
| Ratings | (0) | (0) | (0) | (1) |
| View Product | View Product | View Product | View Product |
Compare Similar Gas Fittings & Connectors
| | | | |
| Brand | BrassCraft | BrassCraft | BrassCraft | BrassCraft |
| Name | ProCoat 3/4 in. MIP x 3/4 in. MIP x 12 in. Stainless Steel Gas Connector 5/8 in. O.D. (180,000 BTU) | ProCoat 3/4 in. MIP x 1/2 in. MIP x 12 in. Stainless Steel Gas Connector 5/8 in. O.D. (180,000 BTU) | ProCoat 3/4 in. FIP x 3/4 in. MIP x 12 in. Stainless Steel Gas Connector 5/8 in. O.D. (180,000 BTU) | ProCoat 3/4 in. FIP x 3/4 in. FIP x 12 in. Stainless Steel Gas Connector 3/4 in. I.D. (290,900 BTU) |
| Price | $1556 | $1580 | $1659 | $3128 |
| Ratings | (0) | (0) | (0) | (1) |
| View Product | View Product | View Product | View Product |
Specifications
Dimensions
Inner diameter (in.)
0.5
Outer diameter (in.)
0.625
Product Depth (in.)
1.125
Product Height (in.)
12.86
Product Length (in.)
12.860 in
Product Width (in.)
1.125
Details
Connection type
MIP x MIP
Gas Vent Pipe and Fittings Accessory Type
Gas Appliance Connector
Inner material
Stainless steel
Maximum Pressure (psi)
.5
Maximum Working Temperature (F)
150
Minimum working temperature (F)
-40
Outer Material
Other
Product Weight (lb.)
0.7400 lb
Returnable
180-Day
Warranty / Certifications
Certifications and Listings
CSA Listed
Manufacturer Warranty
Limited Manufacturer Warranty
