Model # 509

Internet #100662371

Store SO SKU #1000312695

Broan 180 CFM Through-the-Wall Exhaust Fan
0026715022892

Broan

180 CFM Through-the-Wall Exhaust Fan

  • Eliminate humidity, tobacco smoke and cooking odors
  • Ventilates larger spaces up to 225 sq. ft.
  • Easy to install and built-in damper reduces back drafts
$7328 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

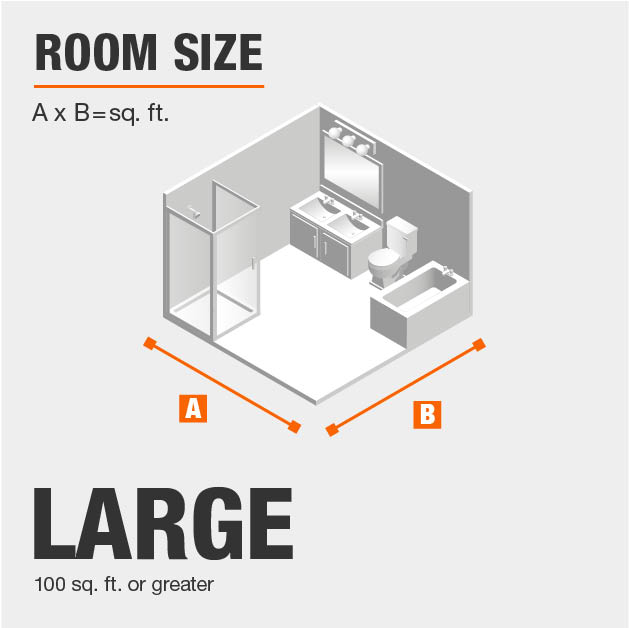

Room Size
Sones Level
CFM
  • Eliminate humidity, tobacco smoke and cooking odors
  • Ventilates larger spaces up to 225 sq. ft.
  • Easy to install and built-in damper reduces back drafts
The Broan 180 CFM Direct-Discharge Exhaust Fan features a permanently lubricated motor with twist-lock installation. The fan can be adjusted to fit walls from 4-1/2 in. to 9-1/2 in. thick and the white polymeric grille can be painted to match your decor. Use this fan to help eliminate humidity from laundry rooms, tobacco smoke from recreation rooms and workshops and cooking fumes from kitchens.
  • Motor pulls 180 CFM at 6.5 sones to help eliminate humidity, tobacco smoke and cooking fumes
  • Motor is permanently lubricated for durability
  • Ventilates areas up to 160 sq. ft. for use in kitchens, laundry rooms, recreation rooms and workshops
  • 3/8 in. Dia sleeve
  • UL listed
  • Direct discharge
  • UL listed and HVI-2100 certified for safety
  • 1-year limited manufacturer warranty
  • Pick the best air filters for your home. Check out our Buying Guide for helpful tips.

Product Overview

  • Eliminate humidity, tobacco smoke and cooking odors
  • Ventilates larger spaces up to 225 sq. ft.
  • Easy to install and built-in damper reduces back drafts
Model #: 509
Internet #: 100662371

The Broan 180 CFM Direct-Discharge Exhaust Fan features a permanently lubricated motor with twist-lock installation. The fan can be adjusted to fit walls from 4-1/2 in. to 9-1/2 in. thick and the white polymeric grille can be painted to match your decor. Use this fan to help eliminate humidity from laundry rooms, tobacco smoke from recreation rooms and workshops and cooking fumes from kitchens.

  • Motor pulls 180 CFM at 6.5 sones to help eliminate humidity, tobacco smoke and cooking fumes
  • Motor is permanently lubricated for durability
  • Ventilates areas up to 160 sq. ft. for use in kitchens, laundry rooms, recreation rooms and workshops
  • 3/8 in. Dia sleeve
  • UL listed
  • Direct discharge
  • UL listed and HVI-2100 certified for safety
  • 1-year limited manufacturer warranty
  • Pick the best air filters for your home. Check out our Buying Guide for helpful tips.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Price
$61.82 /each
$73.28 /each
$76.86 /each
$79.98 /each
$89.97 /each
$106.08 /each
$112.26 /each
$126.68 /each
$134.76 /each
Name 180 CFM Through-the-Wall Exhaust Fan with On/Off Switch 180 CFM Through-the-Wall Exhaust Fan LoProfile 80 CFM Ceiling/Wall Exhaust Bath Fan with 4 in. Oval or 3 in. Round Duct, ENERGY STAR InVent Series 80 CFM Ceiling Bathroom Exhaust Fan InVent Series Heavy Duty 80 CFM Ceiling Exhaust Bath Fan with Metal Grille 470 CFM Wall Chain-Operated Exhaust Bath Fan 270 CFM Through-the-Wall Exhaust Fan 180 CFM Room-to-Room Exhaust Fan 380 CFM Room-to-Room Exhaust Fan
Brand Broan Broan NuTone NuTone NuTone Broan Broan Broan Broan
Ratings (81) (92) (54) (52) (36) (38) (72) (8) (8)
Housing Length (in.) 8.375 8.375 10.5 9.25 9.25 10.375 10.375 6.25 6
Maximum Room Size (sq. ft.) 160 160 70 75 75 425 240 160 340
Housing Width (in.) 8.375 8.375 11.375 10 10 10.375 10.375 11.5 11.5
Features No Additional Features No Additional Features No Additional Features Roomside Installation Roomside Installation No Additional Features No Additional Features Roomside Installation Roomside Installation
View Product View Product View Product View Product View Product View Product View Product View Product View Product

Specifications

Dimensions

Housing Length (in.)
8.375
Housing Width (in.)
8.375
Maximum Room Size (sq. ft.)
160
Product Height (in.)
1
Product Length (in.)
13.5
Product Width (in.)
13.5

Details

Air Volume (CFM)
180
Amperage (amps)
1.5
Color/Finish
White
Duct Compatible Sizes
No Duct Required
Fan Sound Level (Sones)
6.5
Features
No Additional Features
Grill Shape
Square
Housing Material
Galvanized Steel
Included
No Additional Items Included
Installation Type
Wall
Mount Type
Surface Mount
Product Weight (lb.)
13lb
Returnable
90-Day
Room Size
Large Room Fan
Voltage (volts)
120
Wattage (watts)
0

Warranty / Certifications

Certifications and Listings
1-UL Listed,HVI Certified
Manufacturer Warranty
Limited 1 year

Specifications

Dimensions

Housing Length (in.)
8.375
Housing Width (in.)
8.375
Maximum Room Size (sq. ft.)
160
Product Height (in.)
1
Product Length (in.)
13.5
Product Width (in.)
13.5

Details

Air Volume (CFM)
180
Amperage (amps)
1.5
Color/Finish
White
Duct Compatible Sizes
No Duct Required
Fan Sound Level (Sones)
6.5
Features
No Additional Features
Grill Shape
Square
Housing Material
Galvanized Steel
Included
No Additional Items Included
Installation Type
Wall
Mount Type
Surface Mount
Product Weight (lb.)
13lb
Returnable
90-Day
Room Size
Large Room Fan
Voltage (volts)
120
Wattage (watts)
0

Warranty / Certifications

Certifications and Listings
1-UL Listed,HVI Certified
Manufacturer Warranty
Limited 1 year

Questions & Answers

Will fan work in log home?

I live in a real log cabin. Just want to know if it will work in a unlevel wall situation.
Asked by: Heather
Yes, it should work fine, you have to be creative in installing it in a log cabin.
Answered by: y227
Date published: 2018-07-15

I need just only tha back black portion, can you sale it?

Asked by: Ed
It only comes with the cover as a complete system. I need to replace the whole thing, but still deciding whether I want to do that or get rid of it.
Answered by: mec301
Date published: 2018-06-15

Can the black exterior portion be painted with exterior latex paint? Can the white interior cove...

Can the black exterior portion be painted with exterior latex paint? Can the white interior cover plate be painted with latex paint?
Asked by: Chris
We would only recommend that you keep the product in the currant color. If you have any questions, just contact our Technical Support Department at 800-637-1453. Thank you.
Answered by: NuToneCustomerSupport
Date published: 2017-09-29

What size is face plate. Thank you

What size is face plate. Thank you
Asked by: Kat
12 by 12 8nches
Answered by: Alex
Date published: 2018-01-03
  • y_2018, m_8, d_14, h_4CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_56
  • loc_, sid_100662371, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 111ms
  • QUESTIONS, PRODUCT

Customer Reviews

180 CFM Through-the-Wall Exhaust Fan is rated 4.3 out of 5 by 92.
Rated 4 out of 5 by from Great for kitchen Moved into a new house without a vent fan in the kitchen. I have non standard cabinet spacing and a window above the cook top. This was a great solution. I purchased the 9.5" washable grease filter also from HD online. I had a friend install it in about 1/2 day. There are no instructions for a stucco install so he cut a round hole same as the inside and installed firring strips with toggle bolts, then attached the vent to it with deck screws.. He had to use wide strips of wood or the fan duct would close too much and seal off the wire opening. He then connected to a nearby switch for an overhead light using a stacked switch on the right side. Eventually I will paint exteriror the same color as the stucco so it will not be quite the eyesore. The only reason I gave it 3 stars is that it is noisy. It does move a lot of air which is what I needed it for so I can live with it. Better than a greasy smelly kitchen.
Date published: 2015-02-20
Rated 5 out of 5 by from It was easy to install. Draws allot of air out of the bathroom. Even though it has only been inst... It was easy to install. Draws allot of air out of the bathroom. Even though it has only been installed just under a month we are very happy with it.
Date published: 2018-07-11
Rated 4 out of 5 by from Sorry, but it didn't fit. I wish to see products... Sorry, but it didn't fit. I wish to see products on display. It would save a lot of packing and shipping expenses.
Date published: 2018-06-19
Rated 5 out of 5 by from The exhaust fan was exactly as advertised and was a... The exhaust fan was exactly as advertised and was a straight forward install
Date published: 2018-07-31
Rated 4 out of 5 by from Worked to replace what would have been a stove exhaust fan installed in the 50's when the house w... Worked to replace what would have been a stove exhaust fan installed in the 50's when the house was built. I am happy. It was difficult to find an electrician to install the fan initially, and that did cost me way more than the fan. However, I think it probably works better than a recirculating fan and was worth the cost of the electrician. Since the hole through the wall was already pre-existing from the prior exhaust fan, it was less expensive to install than a newer vented exhaust, and since I was on a tight budget, that's great. It is a little loud when running, but exhausts the air really quickly when turned on.
Date published: 2018-03-15
Rated 5 out of 5 by from Easy Install, Quiet, Great Value Delivered on time, install and instructions a breeze. Unit seems very sturdy all the way around. As one reviewer mentioned the fan blades are plastic and not metal like the original 25 year old fan I was replacing. Not a show-stopper for me. The only questions I had prior to purchase involved whether there was a damper of any kind to form an air brake. Fellow reviewers helped answer that when I submitted the question on-line. And yes, for all those wondering there is a spring loaded damper that is hinged at the bottom of the outside metal shroud. One end of the spring is attached and centered on the inside of the shroud midway up and the other end attached and centered on the inside of the damper door. When the fan is turned on there is enough air pressure produced to force the damper open thereby expanding the spring. When unit is turned off and air pressure negated the spring has enough tension to pull the damper shut. This unit also requires a switch to be purchased separately to turn on/off but does come pre-wired with a small j-box and the pigtails necessary to wire as you like,
Date published: 2015-09-20
Rated 5 out of 5 by from easy to install and realy works this is one of those old style,round exhaust fans that work,.installation was easy,had it done in 1/2 a day start to finish. seems to be of good quality.
Date published: 2013-05-28
Rated 4 out of 5 by from Good A bit noisy but does an excellent job of clearing dampness from the bathroom. I probably could have used a smaller model but otherwise, no complaints.
Date published: 2013-07-23
