- Designed with a perimeter-lit LED, casting a wider light pattern
- Energy Star certified to provide energy efficient operation
- For ventilation use in bathrooms up to 90 sq. ft.
- View More Details
Product Details
The NuTone 100 CFM Ceiling Exhaust Bath Fan with Soft Surround LED Light is designed with innovative lighting technology for an attractive and low profile design. The full-perimeter LED lighting enables a wider spread of light throughout the room. It's the perfect, quiet upgrade for your current bathroom fan light.
- 100 CFM for strong air movement
- 1.5 sones for quiet operation
- Plug-in permanently lubricated motor is engineered for continuous operation
- For use in rooms up to 90 sq. ft.
- Bright 9-Watt integrated LED for energy efficiency
- UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only)
- Pre-located mounting holes for quick, accurate installation
- For any questions regarding product features, installation, or specifications, please call our Technical Services Dept. at 800-637-1453, Monday-Friday, 8:00 am – 7:00 pm EST.
- Return Policy
Additional Resources
From the Manufacturer
Specifications
Questions & Answers
39Questions
Q:Does home depot carry the grill as of today for replacement
by|Aug 16, 2019
1 Answer
Q:is this item subject to backorder before 6/1 sale expiration
by|Apr 29, 2018
3 Answers
Q:Is there a mounting bracket available for this model?
by|Apr 5, 2018
3 Answers
Q:What is the cost for new replacement bulb .
by|Apr 3, 2018
2 Answers
Showing 1-4 of 39
Apr 3, 2018
Very energy efficient unit with good lighting and quiet exhaust for a small bathroom.
Very energy efficient unit with good lighting and quiet exhaust for a small bathroom.
by
Apr 3, 2018
Easy to install works great looks good very bright also quiet
Easy to install works great looks good very bright also quiet
by
Mar 8, 2017
very happy with this fan. easy to install here is a picture
very happy with this fan. easy to install here is a picture
by
Feb 21, 2017
The fan seems powerful, but the feature that I really like is the light. It is bright enough to ...
The fan seems powerful, but the feature that I really like is the light. It is bright enough to light up the whole shower. I wired the fan and the light separately so they can be used independently, but they can be wired together to both turn on simultaneously if that is how your wiring is already set up. It would have been nice to have a gasket included to seal around the unit where it is placed in the ceiling. I had access to the attic, so I installed the unit from above, but it would have been relatively simple to replace an old unit with this one from below.
by
Feb 9, 2016
Love this little guy!
First and foremost, this fan is QUIET and the light is BRIGHT! It is sleek, small, unobtrusive and modern. There is no hum or vibration with the fan; just the whoosh of the air being sucked out.
.
While the light is plenty bright with 800 lumens, it is a cool 3000K white light. I myself would prefer it to be a warmer 2700K light.
.
Read the installation instructions CAREFULLY:
1) You need to remove the metal plate the fan is mounted on INSIDE the housing to install the housing. Be sure to only unscrew the 3 nuts on the plate and remove the entire unit intact. Do not remove the nuts holding the plastic fan housing, which are located right next to plate nuts.
2) The illustrations seem to indicate you can only install the unit with 1 side against the joist. You can use either side. Note though that the small screw that holds the wiring plate sticks through the housing on that one side, which could make it difficult to reinstall if that side is against the joist.
3) Be sure the housing screws are completely screwed into the joist. If not, they will interfere with the reinstall of the fan unit plate.
4) Be sure the wiring plate is fasten into the clips on the housing that hold it in place on each side of it. The wiring plate should slide into place as long as each side is in the housing clip. If not, it will interfere with the reinstall of the fan unit plate.
5) Note the 'step' on the white LED driver assembly. Again, the fan unit plate can get caught on it during the reinstall.
6) There is a single, one-liner in the instructions: "Both the fan and LED light can be put on one switch." There is no wiring diagram for this. For a novice DIY person, figuring this out could be daunting. Nor does it show you how to wire it to a non-Nutone/Broan switch for separate light and fan control.
by
Jan 14, 2015
Very Nice Upgrade
I've done a considerable amount of upgrades to my home since it was built four years ago but really never paid any attention to the bath exhaust fan. The fan that this one replaced is a name brand but it is one of the cheaper models.

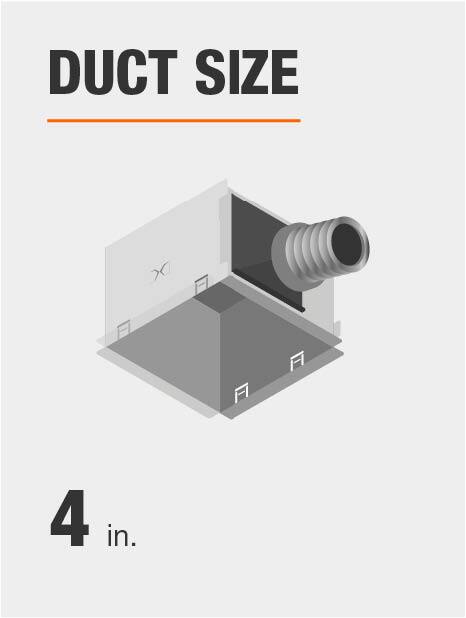

This NuTone 100 CFM Ceiling Exhaust Bath Fan was a very nice upgrade. The fan is simple but the ease of installation will depend on the home it's going in. I placed it in our master bath on the second floor of our home. The insulation in our attic is 16 inches high so it took some time. This fan requires a 4 inch duct which the old one didn't have. Uncovering the old duct, replacing it, then covering it back up with insulation was the longest step for me.
My old fan was 70 CFMs but surprisingly much louder than this one. I've replaced about 80% of the lights in my home with LED lights so this was a welcomed addition. The light from this fan is more than sufficient to shower by so there is no need to turn on the main light with four bulbs. Just to note, it is possible to operate the light and fan separately but that requires additional wiring and a special switch. At any rate I highly recommend this fan and plan to get another one for my kid's bathroom.
by
Jan 10, 2015
Bright light, quiet fan
I replaced an existing bathroom fan/light assembly with this one. There are no instructions for replacing an existing fixture, only for installing as a new fixture in either new construction or existing construction.
Installing in existing construction requires access from above and adjacent to a joist. It uses 4" ducting, so I had to replace my existing 3" duct. It must be installed in a ceiling - wall installation isn't permitted. The LED light is not dimmable.
The vents around the sides of the grill allowed rough edges of the drywall cuts to be seen, so I had to remove the grill and clean up the old cuts to conceal the edges.
Once installed I was pleased with how bright the light was and how quiet the fan was.
by
Jan 2, 2015
Love this fan
I replaced an exhaust fan in the bathroom which had no light with this
model. It really lights up the space and looks really nice. It even adds
light to the rest of the bathroom. The whole square around the
perimeter lights up. I am so glad I got this!
by
Dec 25, 2014
100 CFM CEILING EXHAUST BATH FAN WITH SOFT SURROUND LED LIGHT Bright light
100 CFM CEILING EXHAUST BATH FAN WITH SOFT SURROUND LED LIGHT. This unit has a very bright light and is extremely quite. Perfect for a small bath room.
by
Feb 7, 2019
5 Star Review
Rating provided by a verified purchaser
by
Compare Similar Bath Fans
 |  | Exclusive |  | |
| Brand | Broan-NuTone | Broan-NuTone | Broan-NuTone | Delta Breez |
| Name | 100 CFM Ceiling Exhaust Bath Fan with Soft Surround LED Light | 100 CFM Ceiling Bathroom Exhaust Fan with Light | Roomside Series Decorative White 80 CFM Ceiling Bathroom Exhaust Fan with Round LED Panel and Beveled Frame ENERGY STAR | Signature Series 110 CFM Ceiling Bathroom Exhaust Fan with Dimmable LED, Night Light and Adjustable CFM, ENERGY STAR |
| Price | $9499 | $12800 | $13700 | $21250 |
| Ratings | (105) | (184) | (592) | (184) |
| Air Volume (CFM) | 100 | 100 | 80 | 110,80 |
| Fan Sound Level (Sones) | 1.5 | 4.5 | 0.8 | 0.3,0.8 |
| Housing Width (in.) | 8.375 | 8.25 | 9.25 | 9.625 |
| Housing Length (in.) | 8.375 | 14.25 | 10 | 9.625 |
| Maximum Room Size (sq. ft.) | 90 | 95 | 75 | 110 |
| Features | Light | Light | Decorative,Light | Adjustable Fan Speed,Light,Nightlight |
| Grill Shape | Square | Rectangle | Round | Square |
| Installation Type | Ceiling | Ceiling | Ceiling | Ceiling,Wall |
| Mount Type | Recessed | Recessed | Recessed | Flush Mount,Semi-Flush Mount |
| Included | Light Bulb | No Additional Items Included | Hardware | Hardware,Light Bulb |
| THD SO SKU | 1008979381 | 1002478311 | ||
| View Product | View Product | View Product | View Product |
