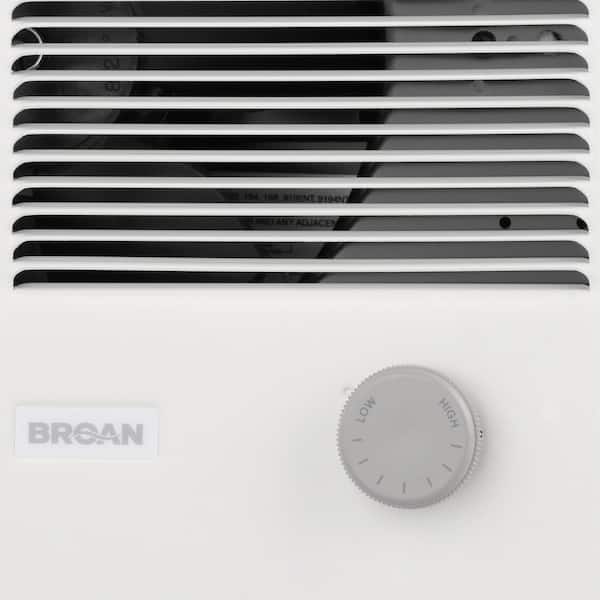

16-13/32 in. x 20-19/64 in. 4,000-Watt High-Capacity Wall Heater in White

$32800
Apply Now
$undefined.00 /mo* suggested payments with months* financingApply Now
  • Front-mounted thermostat offers simple, convenient control
  • Covers a 265-400 sq. ft. area
  • Quiet, reliable heat for quick room (including bathroom) warm up
  • View More Details
How to Get It

Frequently Bought Together

+
+
Price:
$32800

Product Overview

The 16-13/32 in. x 20-19/64 in. 4,000-Watt White High-Capacity Wall Heater is factory wired or 4000 watts at 240-Volt AC, but can be easily converted to half wattage, producing 1,500 watts at 208 VAC, 2,000 watts at 240 VAC or 3,000 watts at 208 VAC for versatile use. This wall heater includes an adjustable, built-in disc-type thermostat for temperature control and a steel-sheathed enclosed heating element for quick and quiet heat production. The fan also remains on as the element cools down to produce the most efficient use of the remaining warmth.
  • Factory wired for 4000-watt at 240-volt AC - easily converts to half-wattage
  • Efficient heating element provides heat quickly and quietly
  • Adjustable, built-in heavy-duty disc-type thermostat, can be operated by built-in adjustable thermostat or optional wall-mount thermostat (sold separately)
  • Manual reset overload protection
  • Heavy-duty, one-piece steel grille louvers direct air downward for even room heating
  • Durable white grille keeps its appearance after years of use even in high-traffic areas
  • Complete heater assembly can be easily removed from housing for cleaning
  • Internal fan delay prevents cold air delivery
  • UL listed for safety
  • For any questions regarding product features, installation, or specifications, please call our Technical Services Dept. at 800-637-1453, Monday-Friday, 8:00 am - 7:00 pm EST.
  • Click here for more information on Electronic Recycling Programs

Additional Resources

From the Manufacturer

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Electric Wall Heaters

16-13/32 in. x 20-19/64 in. 2,000-Watt High-Capacity Wall Heater in White
current product
16-13/32 in. x 20-19/64 in. 4,000-Watt High-Capacity Wall Heater in White
PAW 2250-Watt 7677 BTU Electric Wall Heater 240-Volt with Ultra Grill WhiteEFW Multi-Watt LG 240-Volt 4000-Watt Wall Heater in White
BrandBroan-NuToneBroan-NuToneKing ElectricKing Electric
Name16-13/32 in. x 20-19/64 in. 2,000-Watt High-Capacity Wall Heater in White16-13/32 in. x 20-19/64 in. 4,000-Watt High-Capacity Wall Heater in WhitePAW 2250-Watt 7677 BTU Electric Wall Heater 240-Volt with Ultra Grill WhiteEFW Multi-Watt LG 240-Volt 4000-Watt Wall Heater in White
Price
$27500
$32800
$32900
$40976
Ratings
(30)
(35)
(2)
(2)
Heater TypeUnventedUnventedFan HeatersFan Heaters
Voltage (volts)240 V240 V240 V240 V
Room Size (sq. ft.)350-500 350-500
Wattage (watts)2000 W4000 W2250 W4000 W
Heating Technology TypeForced AirForced AirForced AirForced Air
Fuel TypeElectricElectricElectricElectric
Area Heated (Sq. Ft.)200400225500
Heat rating (BTU/hour)6827 Btu/h13653 Btu/h7677 Btu/h13648 Btu/h
Indoor/OutdoorIndoorIndoorIndoorIndoor
Remote ControlNoNoNoNo
View ProductView ProductView ProductView Product

Specifications

Dimensions

Product Depth (in.)
5.5 in
Product Height (in.)
20.3 in
Product Width (in.)
16.4 in

Details

Accessories Included
No
ACLI Safety Plug
No
Amperage (amps)
16.67 A
Anti-freeze setting
No
Area Heated (Sq. Ft.)
400
Automatic shutoff
Yes
Color
White
Color Family
Whites
Fuel Type
Electric
Heat rating (BTU/hour)
13653 Btu/h
Heater Controls
Thermostat
Heater Type
Unvented
Heating Product Type
Electric Wall Heater
Heating Technology Type
Forced Air
Indoor/Outdoor
Indoor
Installation
Recessed
Number of Heat Settings
Variable
Oscillation
No
Pack Size
1
Product Weight (lb.)
19.8 lb
Remote Control
No
Returnable
90-Day
Thermostat
Yes
Timer Included
No
Voltage (volts)
240 V
Wattage (watts)
4000 W

Warranty / Certifications

Certifications and Listings
ANSI Certified,UL Listed
Manufacturer Warranty
1 Year - Limited

Questions & Answers

Typical questions asked about products:

  • Is the product durable?
  • Is the product easy to use?
  • What are the dimensions of the product?

Customer Reviews

  • 3.6
    out of 35 reviews
  • 55%recommend this product
Filter by:
Showing 1-10 of 35 reviews
Good Heater, Bad Paint
I purchased a Broan 198 heater about 2 years ago and installed it in a small room over my garage. The room is normally not heated, but when I am going to do some hobby work, I turn on the heater. It works very well at quickly heating up the space, and the fan if fairly quiet. My only disappointment is that the paint is peeling off of the grill (see attached pictures). If it is caused from the heat, I would think that it should have been heat proof paint.
by
Response from CustomerServiceBroanOct 24, 2016
We appreciate your comments regarding the model 198 wall heater. This is not something we regularly hear on this model. Please give our Technical Support team a call at 800-637-1453 so they can discuss this with you further. Thank you for your feedback and we look forward to speaking with you.
    • Recommended
    Limit trips
    I purchased two brand new 198 units and both of them have the same issue. If you set them above 70 they will trip on the first cycle. If you have the cover off they operate fine. I contacted technical support and they said perhaps the blower motor which is not the case, you can feel the air with the cover off 10 ft away. There is either a design flaw with the cover restricting airflow or the limit rating is too low. These were costly for me as well because I had new electric ran from the box for each unit on its own circuit.
    by
    Response from Broan-NutoneApr 12, 2022
    Hi Cia73, Thank you for your review of model 198. We are sorry to hear you have had such a disappointing experience. Since the issue is not the motor as previously suggested, please call our Technicians back at 800-637-1453 so that we can try to troubleshoot this issue further.
      Heater
      First heater had a defective fan and kept shutting off. This one seems fine and works consistently. Fan is still a bit loud but heating is good.
      by
      • Verified Purchase
      • Recommended
      by
        Great product!
        Works better than we expected. Toasty warm inside the workshop!
        by
        • Verified Purchase
        Easy to install but uses a lot of electrical power...
        Easy to install but uses a lot of electrical power to run
        by
        • Verified Purchase
        Great product
        Works awesome and fast. Had some issues at first in wiring, but it was because I failed to read the instructions. I relied on my previous electrical experience.
        by
        • Verified Purchase
        • Recommended
        Rating provided by a verified purchaser...
        Rating provided by a verified purchaser
        by
        • Verified Purchase
        Powerful solution for replacement of inefficient electric wall units. Hopefully will be more eff...
        Powerful solution for replacement of inefficient electric wall units. Hopefully will be more efficient than old but to soon to say.
        by
        • Verified Purchase
        • Recommended
        Has part failure every year.
        Built my house and framed the master bathroom wall and ran 220 power to accept this specific heater. When it works it works well and does a good job of heating the large bathroom. But as I stated it doesn't last long. I built the home in 2017. And it has gone out twice as of 2020. I live in Georgia and have central heat so it's not seeing much use unless it's just one of those really cold days, I'd say less than 20 hours of run time before the part fails. I give it 2 stars because when it works, it does a good job and so far Broan has been good about sending replacement parts. However, having the heater crap out and then having to change a part on a 220v appliance after a few hours of cumulative usage isn't for everyone.
        by
        Response from CustomerServiceBroanNov 18, 2020
        Thank you for your review of model 194. We are sorry to hear you have had such a frustrating experience with this model and are happy to hear our Technical Team has been able to assist you with these issues. Please reach out to us again at 800-637-1453 if we can be of any additional assistance.
          Showing 1-10 of 35 reviews
