Internet #206339701

Model #AERN110

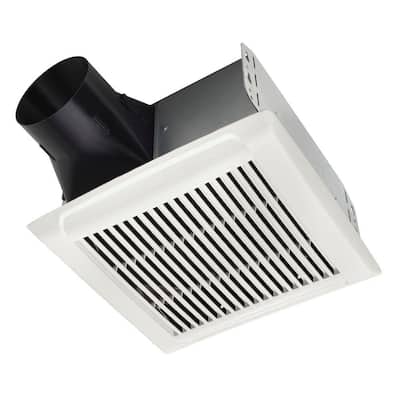

InVent Series 110 CFM Wall/Ceiling Installation Bathroom Exhaust Fan, ENERGY STAR*

  • NuTone energy efficient, quiet bathroom fan controls air quality
  • Powerful enough for rooms (including bathroom) up to 105 sq. ft.
  • Easy to install new / replace existing product from the roomside
  • See More Details

Frequently Bought Together

+
+
Price:
$11800

Product Overview

Room Size
Sones Level
CFM
Duct Size
Energy Star
Housing Width
Housing Length
Come home to a comfortable, relaxing bathroom environment with this ENERGY STAR certified bath vent fan. With a super-quiet sound rating of 1.0 sone, the NuTone InVent Series 110 CFM Ceiling Exhaust Bath Fan generates powerful air circulation with minimal background noise. NuTone InVent Series fans offer hassle-free room-side installation with no attic access needed, thanks to an EzDuct connector and foldable mounting ears.
  • 110 CFM, effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • 1.0 sones for ultra quiet performance, you might not notice it's on
  • EzDuct connector can be installed from the room side, with no attic access required
  • TrueSeal Damper technology reduces air leakage up to 50%
  • Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
  • ENERGY STAR certified ventilation fan
  • UL listed for use over tub or shower with a GFCI branch circuit (ceiling mount only)
  • UL listed and HVI-2100 Certified for safety
  • UL listed for use in insulated ceilings (type I.C.)
  • Powerful enough for rooms up to 100 sq. ft.
  • Brighter white grilles blend in to match most common ceiling paint
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Permanently lubricated AC motor engineered for continuous operation
  • UL listed for use in insulated ceilings (type I.C.)
  • 3-year limited manufacturer warranty
  • Comparable to Broan Model AER110
  • Click here to learn more about Eco Options and Energy Efficiency
  • Shop all Broan-NuTone Bathroom Exhaust Fans
  • For any questions regarding product features, installation, or specifications, please call our Technical Services Dept. at 800-637-1453, Monday-Friday, 8:00 am – 7:00 pm EST.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Bath Fans

Easy to Install 80 CFM Bathroom Exhaust Fan with LED Clean Cover, ENERGY STAR
current product
InVent Series 110 CFM Wall/Ceiling Installation Bathroom Exhaust Fan, ENERGY STAR*
WhisperThin Pick-A-Flow 80 or 100 CFM Exhaust Fan with LED Light Low Profile Ceiling or Wall and 4 in. Oval Duct AdapterWhisperChoice AutoPick-A-Flow 80/110 CFM Ceiling Bathroom Exhaust Fan with Motion/Humidity Sense and Flex-Z Fast Bracket
BrandBroan-NuToneBroan-NuTonePanasonicPanasonic
NameEasy to Install 80 CFM Bathroom Exhaust Fan with LED Clean Cover, ENERGY STARInVent Series 110 CFM Wall/Ceiling Installation Bathroom Exhaust Fan, ENERGY STAR*WhisperThin Pick-A-Flow 80 or 100 CFM Exhaust Fan with LED Light Low Profile Ceiling or Wall and 4 in. Oval Duct AdapterWhisperChoice AutoPick-A-Flow 80/110 CFM Ceiling Bathroom Exhaust Fan with Motion/Humidity Sense and Flex-Z Fast Bracket
Price
$9900
$11800
$14400
$16900
Ratings
(130)
(277)
(111)
(76)
Air Volume (CFM)80110100,80110,80
Fan Sound Level (Sones)0.81.00.5,1.10.3,0.4
Housing Width (in.)101010.2510.25
Housing Length (in.)9.259.2510.2510.25
Maximum Room Size (sq. ft.)75105100110
FeaturesLightRoomside InstallationAdjustable Fan Speed,Light,NightlightAdjustable Fan Speed,Humidity Sensing,Motion Sensing,Timer
Installation TypeCeilingCeiling,WallCeiling,WallCeiling
Grill ShapeSquareRectangleSquareSquare
IncludedNo Additional Items IncludedNo Additional Items IncludedHardware,Light Bulb,Nightlight BulbHardware
Mount TypeRecessedRecessedFlush MountFlush Mount
View ProductView ProductView ProductView Product

Specifications

Dimensions

Housing Length (in.)
9.25
Housing Width (in.)
10
Product Height (in.)
6.75
Product Length (in.)
11.5
Product Width (in.)
12.25

Details

Air Volume (CFM)
110
Amperage (amps)
0.3
Color/Finish
White
Duct Compatible Sizes
4 in
Fan Sound Level (Sones)
1.0
Features
Roomside Installation
Grill Shape
Rectangle
Housing Material
Galvanized Steel
Included
No Additional Items Included
Installation Type
Ceiling,Wall
Maximum Room Size (sq. ft.)
105
Mount Type
Recessed
Product Weight (lb.)
10
Returnable
180-Day
Room Size
Large Room Fan
Voltage (volts)
120
Wattage (watts)
23.4

Warranty / Certifications

Certifications and Listings
HVI Certified,UL Listed
Manufacturer Warranty
3 year limited

Questions & Answers

39Questions39Answers

What are the dimensions of this fan so I know it will fit into spot where old one comes out

Asked by Suzzie July 15, 2020
2
Answers

Cut out is 9 3/4" x 10" x 5 3/4 " Grill is 11 1/2 x 12 1/4" here is the pdf specs for further spes. https://images.homedepot-static.com/catalog/pdfImages/55/556f06bd-ca1f-4553-8a66-e665f49fc49a.pdf

what is the size opening for this fan?

Asked by Chris June 23, 2020
3
Answers

From the installation instructions it states that the opening is 9¾” (parallel to joist) by 10½” (perpendicular to joist).

To run this permanently at half speed, what resistance would be needed in-line (to avoid using a ...

Asked by AndSpenRob May 26, 2020
1
Answer

We are unable to provide the resistance needed to run the AERN110 fan at half speed. You can wire this fan to a solid state speed control to decrease the CFM. If you have further technical or installation questions, please contact our Broan-NuTone Technical Support Department at 1-800-637-1453 between 7:30 AM and 6:00 PM (CST) Monday-Friday.

Will this work with my existing 7" round opening in bathroom?

Asked by Cindy March 24, 2020
4
Answers

I have installed 4 of these and they work really well...are quite, and unobtrusive. You will need to recut the round opening to an approximate 10” x 9” rectangle.......Good luck

can this be wall mounted

Asked by dave February 27, 2020
5
Answers

Great item. Super quiet

Does the humidity sensor turn the fan on automatically when there is a certain amount of moisture...

Asked by KC February 13, 2020
4
Answers

Bought this and doesnt come with a humidity sensor.

Can this be installed in a small or medium room

Asked by Ma June 26, 2019
5
Answers

I installed mine in a 5x10 room where the shower is. works great

Just got a new exhaust fan installed 3 weeks ago and now have a problem with water condensation c...

Asked by Sage June 5, 2019
5
Answers

You can put a piece of paper or even toilet paper up the fan when it is running to verify it is removing air from the room. Also check to see that the exhaust hose connected to the fan above the ceiling is not clogged. There needs to be a minimum of 4 inch flexible "hose" connected from the fan to the exterior of the house, preferably through the roof...

I have a small bathroom and this fan is mounted in the center of the ceiling. I am still getting condensation on the

Asked by Joyce May 13, 2019
5
Answers

Moisture will condense on any cool surface regardless of exhaust fan. That is just physics. The Nutone fan will minimize it. Make sure you leave the fan running for 15-20 minutes afterwards to remove the moisture-laden air.

When it says duct connector must point up, does this mean you cannot run duct work from the fan d...

Asked by kj May 10, 2019
5
Answers

Hot, moisturized air wants to rise, so an upward flow to an attic and out the roof is the most efficient way. Not to say you can’t do what you want to do, but I do nott know how effective the fan will be at removing the humid air.

InVent Series 110 CFM Wall/Ceiling Installation Bathroom Exhaust Fan, ENERGY STAR* - page 2

Customer Reviews

  • 277 Customer Reviews
  • 4.4 out of 5 stars overall
85% of customers recommended.
Overall Ratings
5star-icon(173)
4star-icon(58)
3star-icon(26)
2star-icon(8)
1star-icon(12)
Sort By:
Replace an old 50 CFM fan. Had more trouble pulling the old one out than putting the new one in....
Replace an old 50 CFM fan. Had more trouble pulling the old one out than putting the new one in. Install was straight forward. Fan operation is quiet and does the job.
Was this helpful?
1
0
Nice fan, removes moisture, louder than we hoped.
Nice fan, removes moisture, louder than we hoped.
Was this helpful?
1
0
Nice looking, simple installation (self-installed) to replace existing fan (had to slightly enlar...
Nice looking, simple installation (self-installed) to replace existing fan (had to slightly enlarge hole; template comes on the box), and very quiet. The fans they replaced were horribly loud and didn't move much air. Used to cringe everytime we'd turn on the fan, now it's no big deal. Will be swapping two more with similar fans, but those will need integrated LED lights, otherwise would use these in a heartbeat.
Was this helpful?
2
0
Install was easy enough for a bathroom exhaust fan. Two biggest issues I see are that most people...
Quality :
2
Value :
2
Install was easy enough for a bathroom exhaust fan. Two biggest issues I see are that most people have no idea what size bent duct they have and it would be smart to include an adapter to reduce fro, 4” down to the standard 3” on most older homes. The second issue is for the noise, it seems to be as loud as the old 50cfm fan I replaced and sounds like it rattles a fair amount. Not sure how others say it’s quiet you know it’s on no question about it.
Was this helpful?
3
0
Response from NuToneCustomerSupportFebruary 4, 2019
The AERN110 ventilation fan is designed to be used with a 4" round duct size. We do not recommend reducing the duct size for this model. You will reduce the performance and increase the sound if you do so. You have found that your fan is louder than expected and if using a 3" round duct size, this could be the reason. You can also void your warranty by not following the installation instructions. We would recommend that you change out your duct work and your wall/roof cap to make it the appropriate size. You should find your performance more acceptable once this is done. We do provide ventilation fans that use a 3" round duct size if you are interested in keeping the same duct installed. Please contact our Technical Support for more assistance at 800-637-1453. We will be happy to try to help you more.
Great fan. Recommend.
I installed this without attic access as I cannot access the unit from my attic due to HVAC. I ripped out the old Broan 70CFM unit that sounded line a jet engine and was 8 years old. I cut the new hole to 10.5 x 9.75 inches. The template on the box was great! The new housing slipped right in. Instead of using the small drywall screws they give you to mount the unit, I used 2 large lag screws with large washers to make sure it really gripped and held the unit solidly. It was well worth it. I got the unit in, attached the three wires, attached the 4 inch duct with foil tape, and popped the motor in. Make sure to run the wire through the hole BEFORE you mount the unit permanently. I plugged the unit in, installed the cover, flipped the switch and smiled. Installed! Much quieter than my old unit and moves air well. Can you still hear it? Yes. But not bad at all. As long as your showers are not scalding hot like my kids are, it will work well for you. It moves air well. PS - Make sure you have some slack in terms of the wiring and make sure the duct work is lined up on the correct side before buying the fan. I took out my old one and inspected everything BEFORE going to buy the new one. You want to make ONE trip to Home Depot, not more. LOL. If I can install this, anyone can. From start to complete installation and cleanup, including the hour trip to HD, it took just over 4 hours. Tip - Make sure to put down a large tarp in the bathroom as drywall is going to get everywhere, especially if you have to cut it like I did. It made cleanup so much easier. And don’t forget a small ladder! Good luck. Just take your time and think ahead. Your install will go well.
Was this helpful?
5
0
Bathroom fan went out after a year. Might just be the wiring panel, my multimeter didn't show pow...
Bathroom fan went out after a year. Might just be the wiring panel, my multimeter didn't show power from the fan socket, but the testers didn't fit very well in the socket. Either way, it is annoying that it went out so soon.
Was this helpful?
1
0
Response from NuToneCustomerSupportMarch 14, 2018
We appreciate your comments on the AERN110 ventilation fan. This is very unusual for this fan to fail in such a short time. Please contact our Technical Support directly at 800-637-1453 so we can ask you some further questions. We will be happy to try to help you more. We thank you for your feedback and look forward to your call.
Over the years I've purchased several 110cfm bathroom exhaust fans. This Nutone fan is much quiet...
Over the years I've purchased several 110cfm bathroom exhaust fans. This Nutone fan is much quieter than a builder grade fan it's replacing, it's not as quiet as several of the others I purchased. .3 sones is better. It does pull a lot of air. Perfect for what I needed it for. The humidity problem is solved!
Was this helpful?
1
0
I purchased this product to replace a NuTone fan that had been installed some 30 years ago. This...
I purchased this product to replace a NuTone fan that had been installed some 30 years ago. This fan is indeed a bit quieter than the one that was replaced. Certainly not a whisper quiet fan, but perfectly acceptable for a bathroom. It works better than the fan it replaced and I am very happy with it. Since this was a retrofit installation, I did encounter a few issues that might be worth pointing out to others who are thinking of purchasing for this purpose. Reading the specifications, it looked like it was a similar size to the existing fan. I thought this might be a 10 minute replacement effort. Well, not quite. After removing the existing fan, I discovered that the old fan had the electrical and duct connection on the same side. The new fan has them on the opposite sides. This meant either the electrical connection or the exhaust ducting had to be re-routed. It was easier for me to re-route the ducting. I did have to cut out about a half inch of sheetrock to get the unit to fit. Not really an issue. I did make the mistake of mounting the unit on the edge of the opening. This left about a 2 inch gap on one side. I thought the fan cover would hide this opening. Turns out it didn’t, so I had to un-mount the unit and slide it over about an inch so the unit was centered in the opening. Notes: 1. Use screws to mount the unit to the joist. If it needs to be moved for any reason, it is much simpler to unscrew as opposed to pulling nails. 2. Center the unit in the opening. If there is an opening of an inch or so on each side, it may help with some of the other items below. I then installed the cover on the fan. Fairly simple to do, but the cover was oriented the wrong direction and thus didn’t cover the holes in the ceiling. The unit as shipped only allows for the cover to be installed in this one direction. It would be so much easier if it could be installed in either direction. To fix this, I had to create a mechanism to hold the cover in the opposite direction. I did this by drilling holes in the sides of the unit. I then used a #8 sheet metal screw, a #8 washer, a fender washer, another #8 washer, and a ¼” spacer. (The #8 washers prevent the screw and spacer from slipping through the hole in the fender washer. One could probably use a #10 sheet metal screw and not require the #8 washers). I screwed these into the just drilled holes and then installed the cover to make sure it was centered over the ceiling opening. This test fitting was done without the fan installed. To install the fan, these screws have to be removed so the unit can get installed. Then the screws can get installed again and the cover can be installed. Now, it might be better to use regular screws with nuts and lock washers *IF* there is space to get the lock washers and nuts on the outside of the unit (i.e. you can get your fingers in the space outside the unit to hold the nuts and lock washer). This would be a bit more stable, but the sheet metal screws seem to be working fine so far. For new installations I doubt these problems would arise. But it might be worth considering what might be needed when replacing with a unit in the future. Perhaps locating the electrical connections and vents such that there is slack and they would have enough slack to connect to all sides of the replacement unit. I would suggest that NuTone make it such that the cover could be installed in either direction. As a retrofit unit, it just makes sense to do so.
Was this helpful?
23
0
Nice fit
Quality :
4
Value :
5
Seeds Program Review
(What's this)
This fan assembley is a great product for retrofitting an old unit. The install was fast and easy for my application. The instructions are straight forward and easy to follow. Reading them is a must and will save you time and frustration. The parts fit and assemble well if your replacing similar size. Performance is nice much quieter then the unit it replaces along with clearing the room the room more efficiently. I did install a humidity switch at the fan level which turns the unit on and off quicker then mounting it at the switch level. This would be a nice add on option for any exhaust .
Was this helpful?
4
0
vary nice fan
Quality :
5
Value :
3
Seeds Program Review
(What's this)
After cutting a minimum size hole, I was able to maneuver it from below and get it into the place (do not install exhaust funnel you will do it last). I finally found that if I remove the connector from the body that hooks up to the hose it can be inserted from below, Just pull the flex hose out in the fan cavity and attach the fan exhaust with flaper to flex hose and push it back until snaps. Now that it's installed, I do enjoy this fan. The air exhaust is superior to what I had before and much quieter. It is an excellent fan. no wonder why is quiet it has squirrel cage fan blades.
Was this helpful?
10
0
Review this Product
Share your thoughts with other customers
