- 0.3 sones for ultra quiet operation
- 80 CFM reduces moisture to help prevent mildew
- Vents moisture in bathrooms up to 70 sq. ft.
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
Magic Apron Assistant is an AI virtual assistant. By proceeding, you consent to the recording and use of your information by The Home Depot (and authorized third parties). More information
Product Details
About This Product
Enjoy fast, easy installation with the NuTone ULTRA GREEN 80 CFM Fan. Now you can experience outstanding ventilating power that will quickly clear annoying steam and help prevent mold and mildew. Combine this with extremely quiet operation and energy efficiency in a product that can be retrofit installed entirely from the room side, and experience a relaxing, comfortable bathroom environment.
Highlights
- 80 CFM quickly reduces humidity to eliminate fogged mirrors
- ULTRASilent sound technology: at less than 0.3 sones, no ventilation fan is quieter
- ULTRASmart DC motor technology for energy efficiency almost 10 times greater than ENERGY STAR requirements
- Easily manages moisture in bathrooms up to 70 sq. ft.
- ULTRASmart control technology maintains power (CFM) in nearly every installation
- ULTRAQuick installation technology means ultra fast retrofits and new construction installations
- Unique telescoping mounting frame can be placed and fastened through drywall hole
- ENERGY STAR qualified to help lower utility bills
- UL listed for use over tubs/showers with GFCI circuit
- Retrofit installations can be done entirely from the room side; no attic access required
- Snap-in housing and blower make installation a breeze
- Wiring and ducting can be attached from inside housing
- Click here to learn more about Eco Options and Energy Efficiency
- For any questions regarding product features, installation, or specifications, please call our Technical Services Dept. at 800-637-1453, Monday-Friday, 8:00 am – 7:00 pm EST.
- Return Policy
Product Information
Additional Resources
Shop All Broan-NuToneSpecifications
Dimensions: H 8.625 in, W 14 in, L 13 in
Dimensions
Housing Length (in.) | 10.5 |
|---|---|
Housing Width (in.) | 11.375 |
Product Height (in.) | 8.625 in |
Product Length (in.) | 13 in |
Product Width (in.) | 14 in |
Details
Air Volume (CFM) | 80 |
|---|---|
Amperage (amps) | 0.1 |
Color/Finish | White |
Duct Compatible Sizes | 4 or 6 in |
Features | Roomside Installation |
Grill Shape | Rectangle |
Housing Material | Galvanized Steel |
Included | No Additional Items Included |
Installation Type | Ceiling |
Maximum Room Size (sq. ft.) | 70 |
Mount Type | Recessed |
Product Weight (lb.) | 12.0 lb |
Returnable | 90-Day |
Room Size | Small Room Fan |
Voltage (V) | 120 |
Warranty / Certifications
Certifications and Listings | HVI Certified, UL Listed |
|---|---|
Manufacturer Warranty | Limited 3 year |
Questions & Answers
My joists are spaced 15 inches apart. What is the maximum extension in inches of the mounting fr...
The mounting frame will extend out to 23" so it will even fit if your ceiling joists (or trusses) are 24" on center.

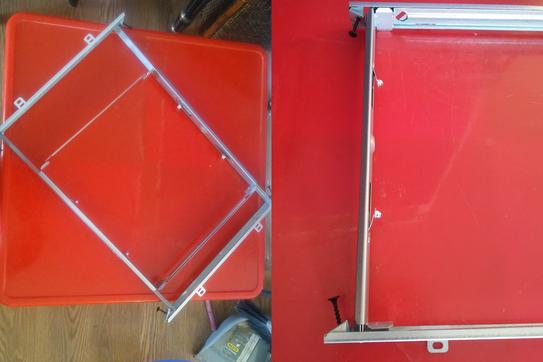

The telescoping mounting frame will extend up to 22-1/2" which is the distance between ceiling joist that are on 24" centers. Anything greater will require additional framing. I have included a picture showing the frame compressed and extended.
You can infinitely adjust the fan position between joists from 14" to 24" on center.
What is the amperage pulled of this product on 120 volts?
It pulls 0.2 amps.
http://www.nutone.com/common/productDigitalAssethandler.ashx?id=12aae6ed-e759-4bb7-bb66-fe5593d0caa4 /.3 Amp / 7.7 watts/ motor itself is a DC motor.
Can I install this in a side wall if it will fit in? I have a very steep and high vaulted ceilin...
This fan is designed for installation in ceilings only. You may want to contact our Technical Service Department at 888-336-6151 for assistance with your installation questions and with determining which fan will best meet your specific installation needs.
Not sure if you can from design specs but mechanically that should work.
it is a ceiling exhaust . having said that during installation i did not find any restrictions which could possibly stop anyone from installing it on a side wall . Direction... the least amount of bends in the duct the more the efficiencies you get . think also of moisture condensate and which surface will it fall on . . if on side wall , make sure the cuircuit is facing towards the ceiling so that condensate does not fall on it. .disclaimer .. I am not an electrician , get proper advice from certified personnel's . Consult before you do anything which the product is not designed for.
Does this have a built-in damper?
Yes, there is a damper in the duct connector.
Yes
yes has a built in damper . thin one. can be bend easily , make sure you handle carefully during installation
what is the diamention or size of this fan?
The housing dimensions are 10-1/2" x 11-3/8" x 7-5/8" and the grille measures 13" x 14".
It has an 11" by 12" opening in the ceiling and is about 8" deep (above the ceiling).

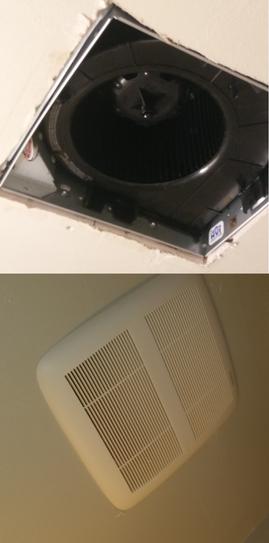

The installation instructions suggest a hole be cut 11" X 12". The actual size of the fan case is 10-1/2" X 11-1/8". I have included a photo of my installation. The hole is 11" X 12" and you can see the gap around the edges.
The product measures 10-1/2" x 11-3/8" x 7-5/8".
what is the duct size of this one?
It is designed for use with a 6 inch duct. However, you can also use a 4" duct if you use a 6" to 4" reducer.
It is designed for use with a 6 inch duct or 4" duct if you use a 6" to 4" reducer.
what is the duct size on this model bath fan (model #XN110, Internet #203620046)?
6 inch
It says that it can be used with 4 in or 6 in duct, although as I mentioned in my review I think that the 4 in duct would make the fan a bit noisier than using a 6 in duct. It does not come with an adapter.
Thanks for your question about the duct on the XN110. This is an Energy Starr rated unit and the sone level is quite low. The actual duct size is 6” diameter. If you have further question, just dial 888-336-3948 and our Customer Service Department can assist you. Thanks, again.
6" 6 inches... is recomended , can use reducers but will increase sound
