Internet #205773204

Model #15020C

15 Gal. 2.0 HP Ultra Quiet and Oil-Free Air Compressor

  • Operates at ultra-quiet 70 dBA
  • Largest & best selling quiet air compressor brand
  • Powerful and long life 2.0 hp motor/Pump
  • See More Details
$41908
Limit 5 per order
/box

Frequently Bought Together

+
+
Price:
$41908

Product Overview

This California Air Tools 15-gallon electric air compressor delivers reliable power and air flow with less maintenance and noise. Operating at an ultra-quiet 70 dBA, the powerful 2.0 HP (SP-9421) motor produces 1690 RPM, creating less noise and less wear. It is designed to increase duty cycle and allow for longer, continuous run times. Enabling of use in varying temperatures and on uneven terrains, the machine’s oil-free dual piston pump system is engineered for high performance and durability. The oil-free function extends the compressor’s life cycle to more than 3,000 hours before wear compared to comparable compressor’s 100 hours or fewer. You can start this compressor using fewer starting amps with the easy-start valve, which also releases a small amount of air from the pump to produce a no-load condition that allows the motor to spin freely. The included wheel kit permits easy movement around your jobsite, shop or garage.
  • California residents
  • Ultra quiet at only 70 dB
  • Oil-free pump a cleaner air for better tool operation, less maintenance and costs
  • Powerful 2.0 HP motor
  • 150 psi maximum pressure
  • Low amp draw - 14 amps
  • Easy start valve - for less starting amperage
  • 2 pressure control gauges
  • 1 universal 1/4 in. quick connector
  • Condor pressure switch
  • Thermal overload protector
  • 110-Volt/60 Hz
  • Large 15 Gal. steel air tank
  • Wheel kit for easy transporting
  • L (28 in.) x W (31 in.) x H (31 in.)
  • 90 lbs.
  • More continuous run time
  • Less heat which dissipates more efficiently
  • 1 year limited warranty
  • Need help? CLICK HERE to view our Air Compressor Buying Guide

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

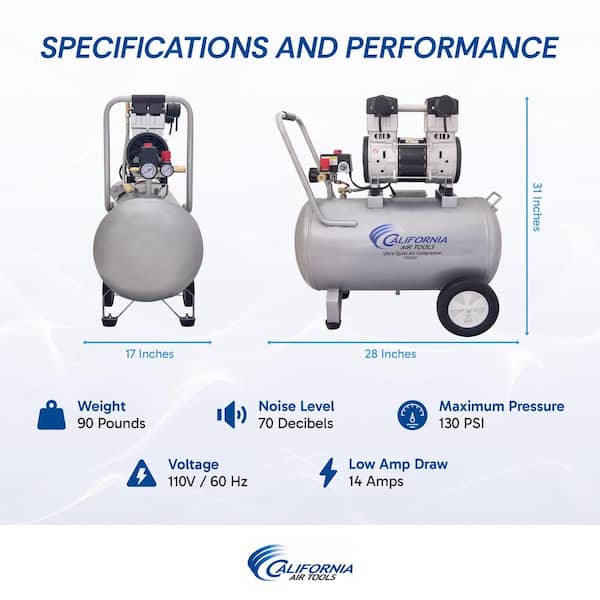

Specifications

Dimensions

Product Depth (in.)
28
Product Height (in.)
31
Product Width (in.)
31

Details

Air Delivery SCFM @ 40PSI
6.4
Air Delivery SCFM @ 90PSI
5.3
Amperage (amps)
14.0
Application Use
Air Brushing,Blow Cleaning,Bolting/Wrenching,Brad Nailing/Stapling,Cutting,Drilling,Finish Nailing,Framing Nailing,Hobby Nailing,Hobby Painting,Inflation,Roof Nailing,Sanding,Spraying,Surface Prep
Battery Amp Hours
No Battery
Battery/Charger
Tool Only
Charger Included
Charger Not Included
Compressor Tank Capacity (Gal.)
15 Gal.
Compressor Tank Capacity (Gallons)
15
Compressor Type
Framing & Roofing
Compressor Volume Rating
Quiet
Compressor/Air Tool Features
Automatic Start/Stop,Handle,Oil Free Compressor,Tank Pressure Gauge,Universal Quick Connectors,Wheels
Condition
New
Decibel Rating (Outdoor)
70 dBA
Horsepower (hp)
2 hp
Included
No additional components or accessories are included
Lubrication Type
Oil Free
Maximum Pressure (psi)
130
Number of Total Batteries Included
0
Portable
Yes
Power Source
Electric
Power Type
Corded Electric
Product Weight (lb.)
90
Reconditioned
No
Returnable
30-Day
Stage Count
Single Stage
Tank Material
Steel
Tank Style
Horizontal
Tools Product Type
Air Compressor
Voltage (v)
110v
Voltage (volts)
110

Warranty / Certifications

Certifications and Listings
UL Listed
Manufacturer Warranty
1 Year Limited Warranty

Questions & Answers

21Questions24Answers

Can this compressor handle a palm sander?

Asked by Bmac2480 September 1, 2020
1
Answer

Thank you for the interest in the California air Tools 15020C Ultra Quiet 2.0 hp Air Compressor. The 15020C produces 5.30 CFM @ 90 PSI. Please check the air requirement (CFM) of your air tools.

whats the tank made of

Asked by Al August 26, 2020
4
Answers

Cast Aluminum https://www.californiaairtools.com/

I'm opening a bicycle shop. Will this compressor be able to keep up with filling tubes all day? S...

Asked by Bikeguy October 30, 2019
5
Answers

I would think it would well for that. I seated car tires on nights and weekends with it.

What is the recommended hose size?

Asked by Joe June 10, 2018
2
Answers

All the fittings we bought for it were 1/4"

After I was sent a rebuild kit it finally works again but it doesn't auto shut off . How do you fix this?

Asked by MartinOcampo June 6, 2018
3
Answers

You might want to check to see if your drain plug is closed completely or if you have a leak in your hose. Also maybe a bad or burnt up relay switch.

How does this Powerful "NEW" 2.0 HP SP-9421 motor compare to the long lasting induction motors ...

Asked by camper November 2, 2017
2
Answers

Looks like this is an Induction Motor as well. In the parts breakout, there is no Commutator or Brushes. The California Air Tools site specifically says that the Ultra Quiet and Quiet Flow series of compressors use a 4-pole induction (brushless) motor. Ultra Quiet Series Link: http://www.californiaairtools.com/ultra-quiet-series-of-air-compressors/ Quiet Flow Series Link: http://www.californiaairtools.com/quiet-flow-series-of-air-compressors/

Does this air compressor have an induction motor?

Asked by camper November 1, 2017
2
Answers

According to the California Air Tools site, both the Ultra Quiet and Quiet Flow series compressors use an Induction Motor (I didn't look at their other series). Looking at the User Manual for the 2.0 HP SP-9421 Motor/Pump assembly, with a Parts Breakout, there are no Brushes shown. Unless I see anything that conflicts with that info, this appears to be an Induction Motor.

How wide, specs say 31" Its not that wide.

Asked by randy October 9, 2017
2
Answers

I knew that had to be a mistake. It's 16" wide at the axle which is the widest point. No guess, real measurement.

Is the tank ASME certified?

Asked by chuck August 6, 2017
2
Answers

Unfortunately I do not believe it is. That can be an issue pending on where it is used and for what use. I would call them to verify.

my brand new air comp. overheats after only 10 mins!! Is something wrong with it ??

Asked by CabinetGuy July 28, 2017
1
Answer

When air is compressed, it heats up. Also, the friction of the seals against the cylinder walls creates heat. These are normal conditions. The top plates with the cooling fins get very hot, very fast. Hot enough that you don't want to touch them. Absolutely normal.

15 Gal. 2.0 HP Ultra Quiet and Oil-Free Air Compressor - page 2

Customer Reviews

  • 97 Customer Reviews
  • 4.6 out of 5 stars overall
92% of customers recommended.
Overall Ratings
5star-icon(76)
4star-icon(12)
3star-icon(2)
2star-icon(2)
1star-icon(5)
Sort By:
Great compressor, building a 28x30 detached garage with it. Runs my nail gun, so quite, very hap...
Great compressor, building a 28x30 detached garage with it. Runs my nail gun, so quite, very happy with my purchase.
Was this helpful?
0
0
Very satisfied,Smooth quiet operation as described.I have a small tool sharpening service and nee...
Very satisfied,Smooth quiet operation as described.I have a small tool sharpening service and needed to bring down the noise level in my shop and this machine did the trick.Fit smartly under my work bench.Was shipped without the wheel kit,but I gave them a call and the problem was quickly resolved.AAA+++
Was this helpful?
0
0
Pros. Quiet, fills up quick, well built, holds pressure well Con. The only complaint I have is t...
Pros. Quiet, fills up quick, well built, holds pressure well Con. The only complaint I have is that while it is really quiet, in the beginning like I saw on all review videos, when it builds some pressure it starts to get noticeably louder. It's still not that bad compared to regular compressors but you hear it.
Was this helpful?
1
0
runs all my air tools in my mobile service van with no problems. I would definitely buy another.....
runs all my air tools in my mobile service van with no problems. I would definitely buy another.. I usually work around hundred feet from my service van and sometimes I have to walk up to it just to make sure that it's running.. unbelievable quiet compressor.. love it..
Was this helpful?
1
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
Very nice quiet unit, well made and does a good...
Very nice quiet unit, well made and does a good job.the only complaint I have is it seems to get alot of moisture in the line compared to my old compressor. I drain it often. I may have to buy a water separator for it.
Was this helpful?
0
0
Holy crap is this thing quiet compared to every other compressor I've used in my life. You can be...
Quality :
5
Value :
5
Holy crap is this thing quiet compared to every other compressor I've used in my life. You can be within a foot of this and not be any more uncomfortable than if you were running a microwave. Easily capable of taking inside a home and not blowing out any eardrums. As for the performance, I've used this for general tire filling and blowing out dirt, but also used it with my HVLP paint sprayer to prime up a large utility trailer, AND with a high-pressure gun used to spray bedliner on said trailer. Both times worked without fault, the built-in regular works perfectly. Kept up with my paint sprayer with no issue, and only had to stop for about 30 seconds every 5 minutes or so with the bedliner sprayer, which realistically should be used on a 30-gallon+ unit. Would purchase again, buy one for my brother and my mother, and highly recommend for anyone
Was this helpful?
0
0
Great product and quiet!
Great product and quiet!
Was this helpful?
0
0
Ontario
Perfect and quiet for a dental lab!
Customer review from homedepot.ca logo
I have been contemplating if this was "Ultra Quiet", so I purchased it knowing if it wasn't I would could return it. I needed it for my dental lab and it had to be quiet for patients not to hear it. I've owned dental air compressors in the past which are very expensive and this one was just as good!! I am impressed at how quiet it is, so far so good. I don't know about long term but it's been almost a month.
Was this helpful?
0
0
