20 Gal. 2.0 HP Ultra Quiet and Oil-Free Electric Air Compressor

$524.94
Limit 5 per order
Apply Now
Pay $474.94 after $50 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Designed as one of the quietest air compressors in the industry
  • Oil-Free Pump 3000 hours before service
  • Wheels for easy transporting
  • View More Details
icon
Free & Easy Returns In Store or Online
Return this item within 30 days of purchase. Read Return Policy

Product Details

About This Product

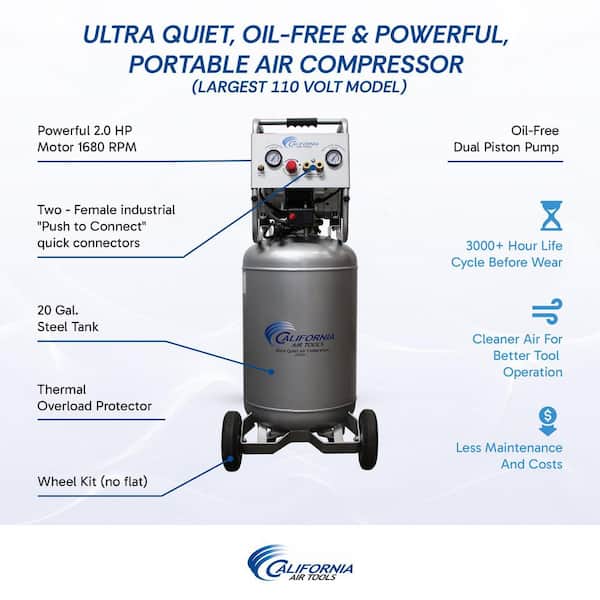

The California Air Tools 20020 Ultra Quiet and Oil-Free Air Compressor is designed to be 1 of the quietest 2.0 Hp air compressors in the industry having only 70 decibels of sound. The Powerful 2.0 HP motor operates at only 1680 RPM creating less noise and less wear. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times. The Oil-Free Dual Piston Pump System is engineered for high performance and durability. The Cat-20020 Air Compressor has an Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 500-hours or less. The Oil-Free pump allows for use in a variety of temperatures(cold starts) and uneven terrains (no oil in the pump). The Easy Start Valve feature allows for a easier start up using less starting amps. The Easy Start Valve releases a small amount of air from the pump at start up to produce a no-load condition allowing the motor to spin freely. This no-load start up requires less amps for a easier start up in cold temperatures. The large 20 Gal. Steel Air Tank is designed to store more air for higher demand air tools such as spray guns and sanders. Prefect for the shop or garage. The 2 (no flat) wheels and sturdy handle makes moving this air compressor very easy. Designed for the person looking for Power, Air Flow, Less Service and Maintenance with at Least 30% Less Noise.

Highlights

  • Ultra quiet at only 70 dB
  • Powerful 2.0 HP motor
  • Oil-free pump produces cleaner air for better tool operation, less maintenance and costs
  • 6.40 CFM at 40 psi, 5.30 CFM at 90 psi
  • 20 Gal. steel air tank with wheel kit makes it easy to move around
  • 125 psi maximum pressure
  • Low amp draw - 14 Amp
  • 2 pressure control gauges and 2 universal 1/4 in. quick connectors
  • Easy-start valve for less starting amperage
  • Thermal overload protector
  • Time to fill tank from empty to full - 4-minutes
  • 110-Volt/60 Hz
  • Recovery time from 95 psi to 125 psi in 1-minute
  • Less heat which dissipates more efficiently
  • 20 in. L x 20 in. W/D x 45 in. H - 114 lbs.
  • Comes complete with wheel kit and 2 air filters
  • Manufactured in Mexico
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 312624543

Model # 20020

Specifications

Dimensions: H 45 in, W 20 in, D 20 in

Dimensions

Product Depth (in.)

20 in

Product Height (in.)

45 in

Product Width (in.)

20 in

Details

Air Delivery SCFM @ 40PSI

6.4

Air Delivery SCFM @ 90PSI

5.3

Amperage (A)

14 A

Application Use

Air Brushing, Blow Cleaning, Bolting, Brad Nailing, Cutting, Drilling, Finish Nailing, Framing Nailing, Grinding, Hobby Nailing, Inflation, Roof Nailing, Sanding, Spraying, Stapling, Surface Prep, Trim, Wrenching

Battery Amp Hours

No Battery

Battery/Charger

Tool Only

Charger Included

Charger Not Included

Compressor Tank Capacity (gal.)

20 gal

Compressor Type

Industrial

Compressor Volume Rating

Quiet

Compressor/Air Tool Features

Automatic Start/Stop, Dual Control, Handle, Oil Free Compressor, Tank Pressure Gauge, Universal Quick Connectors, Wheels

Condition

New

Decibel Rating (Outdoor)

70 dBA

Horsepower (hp)

2 hp

Included

No additional components or accessories are included

Included in Combo

Compressor Only

Lubrication Type

Oil less

Maximum Pressure (PSI)

125 PSI

Number of Total Batteries Included

0

Portable

Yes

Power Source

Electric

Power Type

Corded Electric

Product Weight (lb.)

114 lb

Reconditioned

No

Returnable

30-Day

Stage Count

Single Stage

Tank Material

Steel

Tank Style

Vertical

Tools Product Type

Air Compressor

Voltage (V)

110 V

Voltage (v)

110v

Warranty / Certifications

Certifications and Listings

No Certifications or Listings

Manufacturer Warranty

1 Year Limited Warranty

Questions & Answers

21Questions
caret
Q:where is it made
by|Jul 5, 2024
1 Answer
Answer This Question

A:  The 20020 Series Air Compressors are manufactured in our Acolmon, Mexico factory. Further unit modifications are made by our Tecate, Mexico factory for 220 volt and Automatic drain models.

by|Jul 8, 2024
    caret
    Q:Can the compressor be laid on its side to take home from the store?
    by|Jun 5, 2024
    1 Answer
    Answer This Question

    A:  Yes, all of our compressors can be stored or laid on the side since they are oil-free. Thx!

    by|Jun 5, 2024
      caret
      Q:is it good for spraying accustic .
      by|Jan 29, 2024
      1 Answer
      Answer This Question

      A:  Yes, but depending on your nozzle tip size and particulate coating viscosity, you may need to limit spray bursts in intervals (i.e 90 sec to 2 mins at a time). NOTE: Some acoustic coatings are quite thick and normally require a large 4 hp (220 volt) air compressor to shoot them. The CAT-20020 is our largest and most powerful 110 volt model.

      by|Jan 29, 2024
        caret
        Q:What is the duty cycle of this compressor?
        by|Oct 22, 2023
        1 Answer
        Answer This Question

        A:  The 20020 (20 Gal, 2 Hp) air compressor has a duty cycle of 70/30 and is intended for intermittent air tooling usage when running at maximum PSI and CFM output (i.e. may run continuously at 2.1 cfm @90 PSI all day long, ....OR up to ~45 minutes at a time at 5.3 cfm @90 PSI). If running at maximum PSI and CFM levels, for example upwards of 1 hour max. continuously, then it is suggested to allow the motor pump to cool off for ~15 minutes, then you may repeat.

        by|Nov 28, 2023
          1 found this answer helpful
          Showing 1-4 of 21

          Customer Reviews

          4.5 out of 5

          • 4.5 out of 93 reviews
          • 74% recommend this product
          Filter by:
          Showing 1-10 of 93 reviews
          The air compressor works great but showed up damaged and bent!
          by
          • Verified Purchase
          The unit came damaged. The box was beat up with , two rolls of tape holding it together. The unit power switch got hit hard enough that it was pinching the wheel that was placed in between for shipment. The switchbox will not reassemble anymore and unit does not power on. I contacted Homedepot PRO and this unit cannot be picked up for return and I have to return to store. Furthering the inconvenience of buying this unit.
          by
          • Verified Purchase
          AMAZING!!
          Just picked up this compressor. Easy assembly of wheels & bumper pads. So far just tested a few pin & brad nails. But will be using several other tools with this. Can't believe how quiet this thing is. Fit & finish is high quality and overall a very attractive machine. My next DIY project, will involve framing & trim nailers, so I needed a quiet compressor as to not drive my neighborhood crazy with early morning work. This fits the bill! So far, I'm thrilled to have gotten this compressor. My others drove me nuts with their ear piercing noise.
          by
            • Recommended
            3 found this review helpful
            This is the best air compressor i got by far, its very quite you can have a peaceful conversation...
            This is the best air compressor i got by far, its very quite you can have a peaceful conversation right next to it with out raising your voice or having any issue hear the other person. fill up time takes about 4 min which isn't bad at all. the compressor came very nicely package and easy to assemble. I highly recommend this air compressor for anyone with a small shop or just for tinkering around in the garage.
            by
            • Verified Purchase
            • Recommended
            3 found this review helpful
            Excellent compressor. Very quiet (there is a little extra noise from the easy start bleed valve f...
            Excellent compressor. Very quiet (there is a little extra noise from the easy start bleed valve for about 30s.) Operates my air tools very well. If you need a basic home workhorse that uses minimal space, I highly recommend this compressor.
            by
            • Verified Purchase
            • Recommended
            2 found this review helpful
            Quiet and fills fast, unit is great Packaging is not good, I had to go to UPS to get it because the package was gone. Just a unit. Even had to load it in my truck myself, so much for free shipping. Other then horrible UPS delivery and very weak packing for a heavy unit its a good machine
            by
            • Verified Purchase
            It arrived having only 1 of the 2 wheels. Had to order a wheel from the manufacturer.
            by
            • Verified Purchase
            Other than the delivery issues - one person to unload by himself, and me chasing him down the road to help him off load it from his truck, the CAT compressor is as advertised.
            by
            • Verified Purchase
            by
            • Verified Purchase
            by
            • Verified Purchase
            Showing 1-10 of 93 reviews
