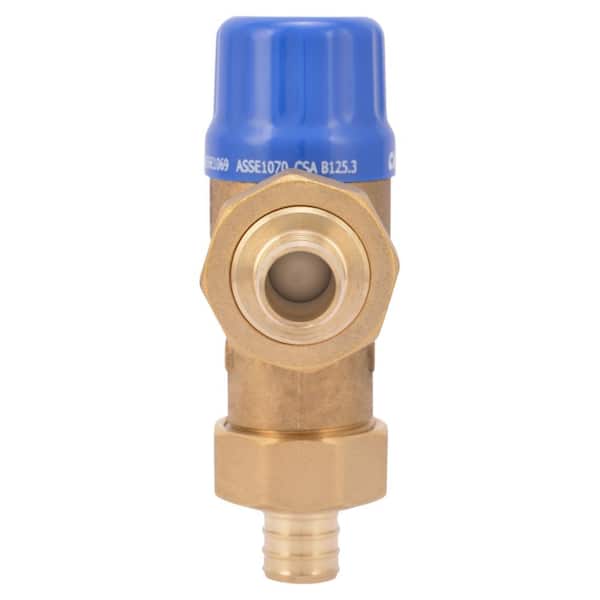

3/4 in. HG-110 PEX Barb Thermostatic Mixing Valve

$9580
  • Certified for distribution and point-of-use applications
  • Allows the water heater to be set at 140°F (60°C) or higher
  • Listed by IAPMO, CSA, and ASSE
  • See More Details
Store
0 in stock
Text to Me

Product Overview

The HG110-D, a triple-listed thermostatic mixing valve, delivers water at a safe 120°F (49°C) or lower from all outlets, while allowing the water heater to be set at a germ-killing 140°F (60°C) or higher which aids in preventing the growth of Legionella bacteria in the water heater. The higher tank temperature means that hot water demands can be satisfied longer. Robust, low complexity construction. Every valve is tested for performance prior to shipping. Adjustable and lockable mechanism minimizes unauthorized tampering with valve setting. Each valve is factory set and locked to a maximum 120°F (49°C). Adj. Outlet temperature range: 85-130°F (29-54°C).
  • Certified for distribution and point-of-use applications
  • Allows the water heater to be set at 140°F (60°C) or higher
  • Every valve is tested for performance prior to shipping
  • Robust, low complexity construction for superior reliability and improved user safety
  • Adjustable and lockable mechanism
  • Listed by IAPMO, CSA, and ASSE
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Mixing Valves

3/4 in. HG-110 Brass Thermostatic Mixing Valve with CPVC ends
current product
3/4 in. HG-110 PEX Barb Thermostatic Mixing Valve
3/4 in. SWT Brass LF TMV W/Integral Check Valve & Temp. Locking Handle for Low Temp Hydronic Heat & Water Distr. Systems3/4 in. Bronze Pressure Reducing Valve
BrandCash AcmeCash AcmeNIBCOZurn
Name3/4 in. HG-110 Brass Thermostatic Mixing Valve with CPVC ends3/4 in. HG-110 PEX Barb Thermostatic Mixing Valve3/4 in. SWT Brass LF TMV W/Integral Check Valve & Temp. Locking Handle for Low Temp Hydronic Heat & Water Distr. Systems3/4 in. Bronze Pressure Reducing Valve
Price
$8685
$9580
$9999
$16179
Ratings
(3)
(1)
(3)
(0)
ConnectionCPVC x CompBarb x Barb x BarbSweatFemale Comp
Inlet Diameter (In.)3/43/43/43/4
Compatible Pipe MaterialCPVCPEXMulti-PurposeMulti-Purpose
ApplicationPotable WaterPotable WaterHydroponics,Potable WaterPotable Water
MaterialBrassBrassBrassBronze
Outlet Diameter (In.)3/43/43/43/4
View ProductView ProductView ProductView Product

Specifications

Dimensions

Inlet Diameter (In.)
3/4
Outlet Diameter (In.)
3/4
Product Depth (in.)
5.20 in
Product Height (in.)
2.16 in
Product Length (in.)
5.20 in
Product Width (in.)
5.63 in

Details

Application
Potable Water
Compatible Pipe Material
PEX
Connection
Barb x Barb x Barb
Features
Adjustable,Lead Free
Indoor/Outdoor
Indoor
Material
Brass
Maximum Pressure (psi)
230
Maximum Working Temperature (F)
180
Number in Package
1
Pack Size
1
Product Weight (lb.)
1.74 lb
Returnable
90-Day
Valve Type
Thermostatic

Warranty / Certifications

Manufacturer Warranty
For warranty information on this product, please call our Internet Customer Service Center

Questions & Answers

Typical questions asked about products:

  • Is the product durable?
  • Is the product easy to use?
  • What are the dimensions of the product?

Customer Reviews

  • 5
    out of 2 reviews
  • 100% recommend this product
Filter by:
Showing 1-2 of 2 reviews
Cash Acme are solid built products and this 3/4 inch HG-110 Pex Barb thermostatic mixing valve is...
Cash Acme are solid built products and this 3/4 inch HG-110 Pex Barb thermostatic mixing valve is to the same high standards. Made from brass and built to last. It allows your water heater to be set to 140 degrees or higher which is beneficial in killing germs and specifically Legionella bacteria that might grow in the your water heater. Legionella bacteria is infamous for causing Legionnaires disease! The valve then delivers water at a safe 120 degrees maximum or lower temp if set at that. Can be set from 85-130 degrees. This mixing valve also allows your hot water heater to be set at a higher temperature which equals longer hot water supply to your outlets. Has a lockable mechanism to protect your temp setting for user safety. Quality made valve that I expect will give us years of use. We haven't installed it yet so I can't say how easy it is, but the instructions are easy to follow and it should be simple to do. We have crudy water so we will need to install a filter and check the valve every 6-12 months and flush it out if crud is building up. Easy maintenance will keep it performing as intended.
by Sammie
  • Recommended Product
Installed and performed as expected...
Installed and performed as expected
by HomeDepotCustomer
    Showing 1-2 of 2 reviews
