Celiera

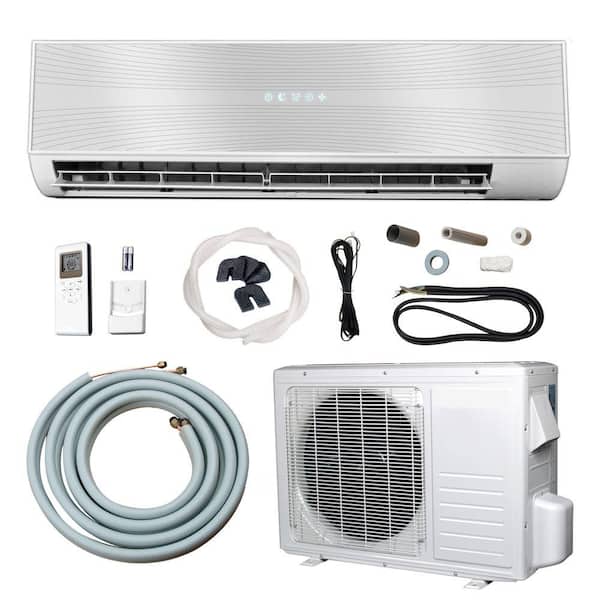

12,000 BTU (1 Ton) Ductless Mini Split Air Conditioner with Heat Pump - 110V/60Hz

  • Product sold without installation or permitting
  • Equipment should be sized/installed by a qualified professional
  • Installations must adhere to federal, state, and local codes
$ 1,484 44 /set
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

  • Product sold without installation or permitting
  • Equipment should be sized/installed by a qualified professional
  • Installations must adhere to federal, state, and local codes
No Ductwork? No Problem. Celiera Ductless (Duct-Free) Mini Split Air Conditioning Systems can be installed in virtually any location. Ductless Mini Split Air Conditioners are also referred to as Zone Systems. They cool the zone or areas in which they are installed. When the zone is in use, the mini split system can be turned on. When the zone is not in use, you can simply turn it off. This zone capability allows for substantial energy savings. Celiera systems provide high efficiency cooling during the hot summer months and are far more efficient and substantially more economical compared to conventional central air conditioning systems. Ductless Mini Split systems are comprised of two main components: 1) The outdoor unit (Condensing Unit), and 2) The indoor unit (Evaporator Unit). The installation is simple. The indoor unit hangs on a metal bracket (supplied) that attaches to the interior wall, much like a picture frame. A 3 in. hole is then drilled through the wall. The Line set and communication wires are passed through this hole and connect the indoor and outdoor unit together. The Main power is supplied to the outdoor unit. The indoor unit draws its power from the outdoor unit. The system is operated by a wireless remote control (supplied). Simply set the remote control to the desired temperature and the system maintains the desired temperature.
  • Area coverage: up to 540 sq. ft.
  • High efficiency 12,000 BTU (1 ton) cooling
  • Power requirements: 110-Volt/60Hz, single phase powered from the outdoor unit
  • Features independent dehumidification
  • High efficiency rating (SEER 13.0)
  • Refrigerant: pre-charged with environmentally-friendly R410A refrigerant
  • Complete system - includes indoor unit, outdoor unit, complete installation kit, insulated copper line set, remote control
  • Quick-install system cuts installation time in half - pre-wired indoor unit (25 ft. cable) with quick connection, pre-flared and flanged insulated copper line set kit
  • Indoor unit digital display of temperature (degrees Fahrenheit), functions and error messages
  • 3 fan speeds
  • Auto-restart - in case of power outage, the system restarts automatically to previous settings
  • Self diagnostic system - in case of malfunction, the indoor unit display shows error message codes
  • 24 hour start/stop timer
  • Multi-directional oscillating indoor unit louver
  • Indoor unit dual washable filters and particle filters
  • Advanced microprocessor controlled system for smart operation and advanced temperature monitoring
  • Multi-function digital wireless remote control includes wall-mount cradle
  • Corrosion resistant outdoor unit paint can withstand direct sunlight, rain, snow, and harsh environments
  • Equipment should be sized, selected and installed by a qualified professional to ensure proper installation, safe operation, adherence to federal, state and local codes and for valid warranty, see installation guide for more details
  • Recommended for professional purchase only
  • Which type of air conditioner is best for your home?
  • Find out more about installation:


  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Product Overview

  • Product sold without installation or permitting
  • Equipment should be sized/installed by a qualified professional
  • Installations must adhere to federal, state, and local codes
Model #: 35GWX
Internet #: 204307235

No Ductwork? No Problem. Celiera Ductless (Duct-Free) Mini Split Air Conditioning Systems can be installed in virtually any location. Ductless Mini Split Air Conditioners are also referred to as Zone Systems. They cool the zone or areas in which they are installed. When the zone is in use, the mini split system can be turned on. When the zone is not in use, you can simply turn it off. This zone capability allows for substantial energy savings. Celiera systems provide high efficiency cooling during the hot summer months and are far more efficient and substantially more economical compared to conventional central air conditioning systems. Ductless Mini Split systems are comprised of two main components: 1) The outdoor unit (Condensing Unit), and 2) The indoor unit (Evaporator Unit). The installation is simple. The indoor unit hangs on a metal bracket (supplied) that attaches to the interior wall, much like a picture frame. A 3 in. hole is then drilled through the wall. The Line set and communication wires are passed through this hole and connect the indoor and outdoor unit together. The Main power is supplied to the outdoor unit. The indoor unit draws its power from the outdoor unit. The system is operated by a wireless remote control (supplied). Simply set the remote control to the desired temperature and the system maintains the desired temperature.

  • Area coverage: up to 540 sq. ft.
  • High efficiency 12,000 BTU (1 ton) cooling
  • Power requirements: 110-Volt/60Hz, single phase powered from the outdoor unit
  • Features independent dehumidification
  • High efficiency rating (SEER 13.0)
  • Refrigerant: pre-charged with environmentally-friendly R410A refrigerant
  • Complete system - includes indoor unit, outdoor unit, complete installation kit, insulated copper line set, remote control
  • Quick-install system cuts installation time in half - pre-wired indoor unit (25 ft. cable) with quick connection, pre-flared and flanged insulated copper line set kit
  • Indoor unit digital display of temperature (degrees Fahrenheit), functions and error messages
  • 3 fan speeds
  • Auto-restart - in case of power outage, the system restarts automatically to previous settings
  • Self diagnostic system - in case of malfunction, the indoor unit display shows error message codes
  • 24 hour start/stop timer
  • Multi-directional oscillating indoor unit louver
  • Indoor unit dual washable filters and particle filters
  • Advanced microprocessor controlled system for smart operation and advanced temperature monitoring
  • Multi-function digital wireless remote control includes wall-mount cradle
  • Corrosion resistant outdoor unit paint can withstand direct sunlight, rain, snow, and harsh environments
  • Equipment should be sized, selected and installed by a qualified professional to ensure proper installation, safe operation, adherence to federal, state and local codes and for valid warranty, see installation guide for more details
  • Recommended for professional purchase only
  • Which type of air conditioner is best for your home?
  • Find out more about installation:


  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand Hessaire GREE Ramsond Celiera
Name 12,000 BTU 1.0 Ton 208/230V Ductless Mini Split Air Conditioner - Inverter, Heat Pump, Remote and 16 ft. Copper Line Set LIVO 12,000 BTU 1 Ton Ductless Mini Split Air Conditioner with Inverter, Heat, Remote 208-230V/60Hz 12,000 BTU 1+ Ton Ductless Mini Split Air Conditioner and Heat Pump - 220-Volt/60Hz 12,000 BTU (1 Ton) Ductless Mini Split Air Conditioner with Heat Pump - 110V/60Hz
Price
Was $799.00
$719.00
Save $80.00 (10%)
$799.00
Was $964.18
$867.76
Save $96.42 (10%)
$1,484.44 /set
Ratings (25) (32) (23) (11)
View Product View Product View Product View Product

Specifications

Dimensions

Air handler depth (in.)
8.75
Air handler height (in.)
11
Air handler width (in.)
35.25
Condenser depth (in.)
10.25
Condenser height (in.)
21.75
Condenser width (in.)
32.75

Details

Air Conditioner Product Type
Mini Split Unit
Air direction/circulation
2-way
Air handler weight (lb.)
25
Amperage (amps)
9.5
BTU Cooling Rating
12000 BTU
BTU Cooling Rating
12000.000
BTU Heat Rating
12000.000
BTU Heat Rating
12000 BTU
Color
White
Color Family
White
Color/Finish
White
Condenser weight (lb.)
75
Coverage Area (sq. ft.)
540
Decibel (Sound) Rating
34 dBA
Decibel Rating
34 dBA
Filter Type
Reusable
Included
Heater,Remote Control,Self-diagnostic tools
Mini Split Features
Automatic shutoff,Overload protection,Sleep setting,Timer
Minimum Outdoor Temperature (F)
5 F
Mount Location
Wall Mount
Number of Fan Speeds
3
Number of cool settings
17
Returnable
90-Day
Voltage (v)
110v
Voltage (volts)
110
Wattage (watts)
1050
Zone Capacity
Single Zone

Warranty / Certifications

Certifications and Listings
ETL Listed
Manufacturer Warranty
5 Year Parts Replacement; 7 Years Compressor Replacement; Labor Excluded.
Seasonal Energy Efficiency Ratio (SEER)
16.0

Specifications

Dimensions

Air handler depth (in.)
8.75
Air handler height (in.)
11
Air handler width (in.)
35.25
Condenser depth (in.)
10.25
Condenser height (in.)
21.75
Condenser width (in.)
32.75

Details

Air Conditioner Product Type
Mini Split Unit
Air direction/circulation
2-way
Air handler weight (lb.)
25
Amperage (amps)
9.5
BTU Cooling Rating
12000 BTU
BTU Cooling Rating
12000.000
BTU Heat Rating
12000.000
BTU Heat Rating
12000 BTU
Color
White
Color Family
White
Color/Finish
White
Condenser weight (lb.)
75
Coverage Area (sq. ft.)
540
Decibel (Sound) Rating
34 dBA
Decibel Rating
34 dBA
Filter Type
Reusable
Included
Heater,Remote Control,Self-diagnostic tools
Mini Split Features
Automatic shutoff,Overload protection,Sleep setting,Timer
Minimum Outdoor Temperature (F)
5 F
Mount Location
Wall Mount
Number of Fan Speeds
3
Number of cool settings
17
Returnable
90-Day
Voltage (v)
110v
Voltage (volts)
110
Wattage (watts)
1050
Zone Capacity
Single Zone

Warranty / Certifications

Certifications and Listings
ETL Listed
Manufacturer Warranty
5 Year Parts Replacement; 7 Years Compressor Replacement; Labor Excluded.
Seasonal Energy Efficiency Ratio (SEER)
16.0

Questions & Answers

Starting, or maximum amps for this unit?

Starting, or maximum amps for this unit?
Asked by: lake
Running Amp load is 10.8 amps in cool or heat mode.
Answered by: ramsondllc
Date published: 2019-01-15

What are the shipping dimensions and weight of this when purchased - I need to deliver this to a ...

What are the shipping dimensions and weight of this when purchased - I need to deliver this to a remote place.
Asked by: Todd
34"x12"x10" Indoor Unit and Weighs 22 lbs, 30"x20"x12" Outdoor Unit and weighs 62 lbs 18"x18" x3" Copper line set and weighs 12lbs.
Answered by: ramsondllc
Date published: 2018-12-10

Can I use 2 inside units

Asked by: Moe
The Ramsond 37GW2 or SEG is a single zone only .You will need to purchase a multi zone for multiple indoor connection
Answered by: ramsondllc
Date published: 2018-09-03

can this be installed by a do it yourselfer?

Asked by: landlord658
Theoretically it can if you're quite handy and understand basic electrical connections, but it will void the warranty.
Answered by: JC
Date published: 2018-09-28
