Internet #202018045

Model #PVC 07100 0200

Store SKU #987414

1-1/4 in. x 2 ft. PVC DWV Sch. 40 Pipe

  • Can be used in DWV and pressure applications
  • Features high-tensile and high-impact strength
  • Boasts excellent sound deadening qualities
  • See More Details

Frequently Bought Together

+
+
Price:
$298

Product Overview

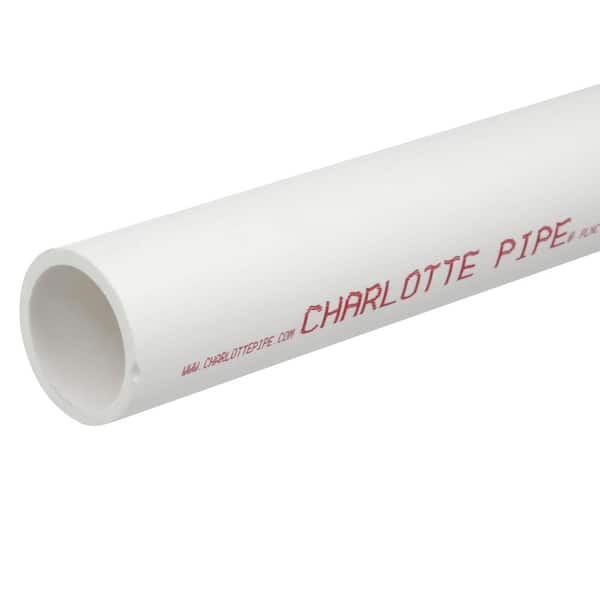

PVC Schedule 40 Pipe is dual marked and can be used in DWV and pressure applications. Gradual sloping fittings are used for DWV applications. Sharply angled pressure fittings must be used for pressure. PVC Schedule 40 is highly durable, with high tensile and impact strength. It is easy to install and has better sound deadening qualities than PVC Schedule 40 Foam Core and ABS Foam Core. Installation requires the use of primer and solvent cement.
  • California residents
  • Conforms to standards: ASTM D 1784, ASTM D 1785, ASTM D 2665 and NSF standards 14 and 61
  • PVC schedule 40 white pipe with red print that is dual marked for DWV and pressure applications
  • Maximum working temperature of 140°F
  • PVC schedule 40 is highly durable, with high tensile and impact strength
  • PVC schedule 40 pipe is used in irrigation, underground sprinkler systems, swim pools, outdoor applications and cold water supply lines
  • Require no special tools for cutting and to be installed with solvent cement

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar PVC Schedule 40 Pipe

1 in. x 24 in. PVC Sch. 40 Pipe
current product
1-1/4 in. x 2 ft. PVC DWV Sch. 40 Pipe
1-1/2 in. x 24 in. PVC Sch. 40 DWV Pipe
BrandVPCCharlotte PipeVPC
Name1 in. x 24 in. PVC Sch. 40 Pipe1-1/4 in. x 2 ft. PVC DWV Sch. 40 Pipe1-1/2 in. x 24 in. PVC Sch. 40 DWV Pipe
Price
$234
$298
/piece
$356
Ratings
(185)
(55)
(0)
Nominal Inside Pipe Diameter (In.)1"1-1/4"1-1/2"
Product Length (ft.)2 ft2 ft2 ft
End TypePlain EndPlain EndPlain End
ConnectivitySolvent CementedSolvent CementedSolvent Cemented
Pack Size111
Pipe FeaturesNo Additional FeaturesNo Additional FeaturesNo Additional Features
Schedule TypeSchedule 40Schedule 40Schedule 40
Actual inside diameter (in.)1.0331.381.592
Application Non-Potable Water
View ProductView ProductView Product

Specifications

Dimensions

Actual inside diameter (in.)
1.38
Actual outside diameter (in.)
1.66
Nominal Inside Pipe Diameter (In.)
1-1/4"
Pipe Wall Thickness (In.)
.140
Product Length (ft.)
2 ft

Details

Application
Non-Potable Water
Color Family
White
Color/Finish
White
Connectivity
Solvent Cemented
Core Type
Solid Core
End Type
Plain End
Material
PVC
Maximum Flow Rate (gallons per minute)
1
Maximum working pressure (psi)
370
Maximum Working Temperature (F)
140
Minimum working temperature (F)
32
Pack Size
1
Pipe Features
No Additional Features
Pipe or Fitting Product Type
Pipe & Tubing
Product Weight (lb.)
0.848
Returnable
180-Day
Schedule Type
Schedule 40

Warranty / Certifications

Certifications and Listings
NSF Listed
Manufacturer Warranty
Charlotte Pipe and Foundry Company (Charlotte Pipe) Products are warranted to be free from manufacturing defects and to conform to currently applicable ASTM standards for a period of five (5) years from date of delivery.

Questions & Answers

13Questions11Answers

what is inside width of a 1-1/4

Asked by dave June 11, 2020
2
Answers

The ID of this fitting is +/- 1.38 inches.

Does this pipe have a Matte finish or a gloss finish?

Asked by Froghead October 13, 2019
1
Answer

not sure that it's either. For additional information on our recommendations, please contact our Technical Services Department at 800-438-6091.

What is the inside diameter and outside diameter?

Asked by Linda May 6, 2019
1
Answer

The OD of this pipe is +/- 3.5 inches and the ID is +/- 3.061 inches. it may work for your project but please remember that Charlotte Pipe products are designed for plumbing applications only.

Is the 4 in. diameter the inside diameter or the overall diameter?

Asked by Jade April 2, 2019
1
Answer

the 4 in. represents the nominal size used in the description. The OD of this pipe is actually +/-4.5 inches and the ID is 4.026 +/- inches. For additional information on our recommendations, please contact our Technical Services Department at 800-438-6091.

Is it safe to use this pipe for chicken water feed?

Asked by James March 27, 2019
1
Answer

This pipe was designed to be used in a Drain Waste and Vent plumbing application. For additional information on our recommendations, please contact our Technical Services Department at 800-438-6091

Per ASTM standard 1-1/4" PVC schedule 40 pipe has 1.38" ID and 1.66" OD. How come it has 1.25" ID...

Asked by Slava March 8, 2019
1
Answer

Thanks for bring this to our attention. The both dimensions are wrong on the website and will be updated.

Can you cut to size in store?

Asked by Tom February 6, 2019
1
Answer

Yes, the pipe can be cut to size in the store.

Can I clue abs pipe to a pvc fitting?

Asked by LJC August 28, 2017
1
Answer

You can, but do not use primer on the ABS side. Primer is not recommend with ABS, however, is needed with PVC. Please check with the solvent cement manufacture to make sure that you have the correct cement.

will HD cut pipe for me

Asked by di September 19, 2016
1
Answer

Hello Di, it may vary from store to store but typically HD doesn't cut pipe.

Can I weld/glue schedule 40 1.25" pipe to SDR 21 1.25" pipe using schedule 40 fittings?

Asked by MJ July 7, 2016
1
Answer

Both SDR 21 and PVC SCH 40 1 1/4 inch pipe have the same OD (1.660), so the would couple up without any problem. However, there will be a significant difference with the inside diameter of the two as SCH 40 pipe has much thicker walls. This reduction of flow to the surface area, could have a negative impact to the flow characteristics of the piping system.
