- Designed for underground operation
- Tough PVC construction for enhanced durability
- Maximum working temperature: 140 degrees F
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
Magic Apron Assistant is an AI virtual assistant. By proceeding, you consent to the recording and use of your information by The Home Depot (and authorized third parties). More information
Product Details
About This Product
PVC Sch. 40 Pipe is dual marked and can be used in DWV and pressure applications. PVC Sch. 40 is highly durable, with high tensile and impact strength. It is easy to install and has better sound deadening qualities than PVC Sch. 40 Foam Core and ABS Foam Core. Installation requires the use of primer and solvent cement.
Highlights
- White pipe and fittings with red print
- Dual marked for DWV and pressure applications
- For use where systems will not exceed 140° F
- Gradual sloping fittings are used for DWV applications and sharply angled pressure fittings must be used for pressure
- Conforms to meet Standards: ASTM D 1784, ASTM D 1785, ASTM D 2665 and NSF STANDARD 14 AND NSF STANDARD 61
- Require no special tools for cutting and to be installed with solvent cement
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Specifications
Dimensions
Actual inside diameter (in.) | 4.026 |
|---|---|
Actual outside diameter (in.) | 4.5 |
Nominal Inside Pipe Diameter (In.) | 4" |
Product Height (in.) | 4.5 in |
Product Length (ft.) | 2 ft |
Product Width (in.) | 4.5 in |
Details
Application | Potable Water |
|---|---|
Color Family | White |
Connectivity | Solvent Cemented |
Core Type | Solid Core |
DWV | Dual Rated |
End Type | Plain End |
Maximum Flow Rate (gallons per minute) | 1 |
Maximum working pressure (psi) | 220 |
Maximum Working Temperature (F) | 140 |
Minimum working temperature (F) | 32 |
Pack Size | 1 |
Pipe Features | No Additional Features |
Pipe or Fitting Product Type | Pipe & Tubing |
Product Weight (lb.) | 4.274 lb |
PVC Type | Rigid PVC |
Returnable | 90-Day |
Schedule Type | Schedule 40 |
Warranty / Certifications
Certifications and Listings | NSF Listed |
|---|---|
Manufacturer Warranty | Charlotte Pipe and Foundry Company(Charlotte Pipe)Products are warranted to be free from manufacturing defects and to conform to currently applicable ASTM standards for a period of five (5) years from date of delivery. |
Questions & Answers
Will HD cut this for me?
Please reach out to your local Home Depot for the individual services offered at that location. Thank you!
For a 3“ x 2‘ what is the inner diameter?
The inside diameter of pipe and fittings can vary and is not closely controlled by the manufacturing standards like the outside diameter and wall thickness are. For recommendations for your specific project please contact our Technical Services Department at 800-438-6091. Thank you!
Item listed as 2" dia by 2 feet for $7.96. Why is the per ft listed at .33 at 24 feet?
Home Depot determines pricing for products in their stores and websites. This Q/A platform directs questions to the manufacturer of the product and we would recommend reaching out directly to the retailer for a resolution. Thank you!
I want to use 4” PVC to for gutters on a barn. Which type would be best for that—i.e. Schedule 40, DWV, etc?
Charlotte Pipe products are designed for plumbing applications and are used for a variety of projects ranging from irrigation, underground sprinkler systems, swimming pools, and outdoor applications. A gutter system would not be pressurized so DWV would be suitable. We recommend, however, that you contact our Technical Services Department at 800-438-6091 with more specifics on your project as they will be able to provide additional guidance and information.
There is no NSF 66 standard. Is this a typo, and should it be NSF 61?
You are correct, this is a typo and should be NSF 61. We will update this immediately. Thank you for bringing this to our attention.
When is Home Depot going to correct the I.D and O.D. details on this 2 foot pipe listing? It seems to be confusing customers for quite some time now.
Thank you for bringing this to our attention and we will update the information. For the 2-inch pipe, the OD is +/- 2.375 inches and the ID would be approximately 2.067 inches. For additional information, please contact our Technical Services Department at 800-438-6091.
How can the inside dia. be 2" and the outside dia. be 2" also? I need Actual ID please. TY
ID is 2.067 OD is 2.375 Min wall 0.154. For a better explanation and/or a recommendation, please contact our Technical Services Department at 800-438-6091.
what is the ID?
Super confusing as to sizes. Schedule 40 versus DWV. Does this pipe work with DWV fittings and schedule 40 fittings ??
DWV is for non-pressure applications only. Check national and local building codes for details.
For a better explanation and/or a recommendation, please contact our Technical Services Department at 800-438-6091.
Viewing 1-8 of 49
Customer Reviews
4.7 out of 5
Loading Recommendations
Compare Key Features
Product Snapshot | |
|---|---|
Built for long-lasting durability and high performance in DWV and pressure applications. | Ideal for customers who want durable, non-pressure DWV pipe, ensuring trouble-free service. |
Pipe Diameter | |
4 in. | 4 in. |
Pressure Rating | |
220 psi | 0 psi |
UV Resistance | |
Pipe Length | |
2 ft | 2 ft. |
Temperature Range | |
32°F to 140°F | 32°F to 140°F |
Related Products
4 in. x 2 ft. PVC Schedule 40 DWV Foam Core Pipe
PVC Schedule 40 Foam Core Pipe is for drain, waste and vent purposes only. It is used in gravity fed waste elimination systems. It is for Non-Pressure systems where temperatures will not exceed 140 degree F. PVC Schedule 40 Foam Core is lightweight, non-toxic and easy to install. It is coextruded and has a cellular core. Installation requires primer and solvent cement. PVC Sch. 40 Foam Core is used in DWV Applications. It is highly durable and with no rusting it offers years of trouble-free service.

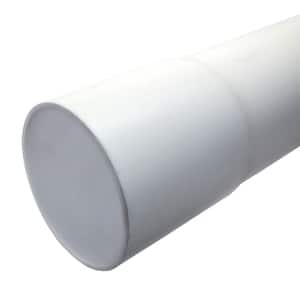

4 in. x 10 ft. Rigid PVC SDR35 Gravity Sewer Pipe White Belled End
