Internet #207135206

Model #LW YELLOW A_9

EZ-Set Torsion Conversion Kit for 9 ft. x 7 ft. Garage Doors 134 lbs. - 155 lbs.

  • Converts your torsion spring system into an easier installation
  • Not available for use on stock wind-load doors
  • OEM part
  • See More Details

Frequently Bought Together

+
+
Price:
$12108

Product Overview

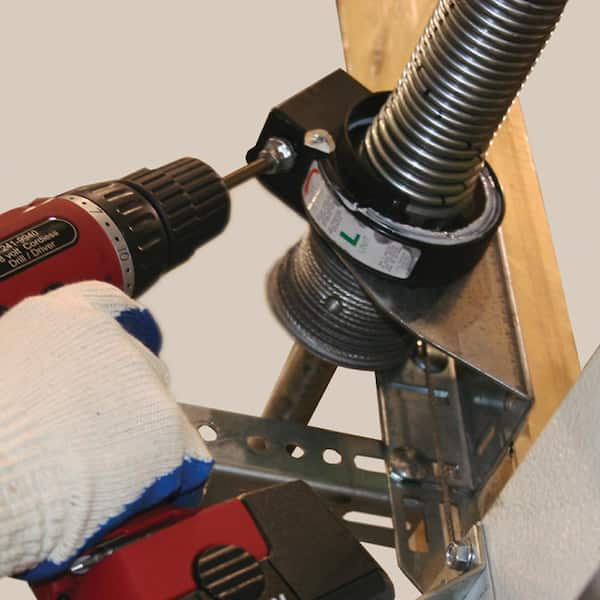

What was once a job exclusively for trained garage door professionals, Clopay's EZ-SET Torsion Spring System makes torsion spring installation faster and easier for the do-it-yourselfer. This OEM spring replacement system eliminates the difficult and dangerous manual winding process. There is no need to locate and prepare the center mounting pad with this system.
  • Kit for door size: 9 ft. x 7 ft.
  • Kit includes: EZ-set torsion spring, torsion tube and coupler, drums, cable assembly, EZ-set winding unit, EZ-set end bearing, mounting brackets, fasteners and instructions
  • Works on 7 ft. H door with standard lift 2 in. track and 12 in. radius horizontal track, do not use on doors with LHR track or doors using the double track LHR conversion kit
  • Headroom required for this kit is 12 in.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Inside Wire Diameter (in.)
1.3
Outside Wire Diameter (in.)
1.8
Spring Length
38
Wire Size (in.)
0.21

Details

Garage Door Part/Accessory Type
Garage Door Conversion Kit
Returnable
180-Day
Weight Capacity (lbs.)
155

Warranty / Certifications

Manufacturer Warranty
n/a

Questions & Answers

31Questions23Answers

How quickly does this ship from the vendor? The estimate for free shipping says mid April? Thanks...

Asked by Brian March 15, 2018
5
Answers

Ours came as promised no problem at sll

will this work on a 9ft.x6.5 door

Asked by red June 9, 2017
2
Answers

Yes it will.

Will this work on a 143 lb. 9 x 7 ft door?

Asked by Me March 24, 2017
2
Answers

Yes it will

what is lhr track with reference to garage door

Asked by keggerman February 22, 2019
2
Answers

I'm not sure what you mean?

Will this work on a Clopay Value series Classic Collection 9 ft. x 7 ft. Non-Insulated Garage Doo...

Asked by Brad June 3, 2018
2
Answers

Yes. It works fine with mine. But follow the directions CAREFULLY whatever door you have.

can I use this on a 9ft X 8ft door

Asked by JR May 12, 2018
2
Answers

No, this kit will not work for your project.

Can i use this with a wall mounted garage door opener?

Asked by John April 30, 2018
2
Answers

No, the product is not suitable for that application.

Would this work on a 10 foot wide by 7 foot high door? It’s an older wooden door.

Asked by Meestro June 20, 2018
2
Answers

No, the torsion bar is not long enough. It's 9' 4". You need a double door kit and cut the torsion bar to fit.

Will this conversion kit work with a Liftmaster 8500 wall mounted opener?

Asked by Ryan September 16, 2018
2
Answers

Unfortunately the wall mounted LiftMaster openers will not work with this spring conversion kit. The conversion kit is made to work with traditional overhead openers.

replacement spring

Asked by Dave October 26, 2018
2
Answers

Yes

EZ-Set Torsion Conversion Kit for 9 ft. x 7 ft. Garage Doors 134 lbs. - 155 lbs. - page 2

Customer Reviews

  • 55 Customer Reviews
  • 4.3 out of 5 stars overall
86% of customers recommended.
Overall Ratings
5star-icon(33)
4star-icon(14)
3star-icon(2)
2star-icon(2)
1star-icon(4)
Sort By:
This kit was technically a challenge to install because the installation manual did not contain a...
This kit was technically a challenge to install because the installation manual did not contain a couple key installation instructions that I later found helpful while reviewing YouTube videos of such. These key installation instructions not included; adjustment of the cable spool hangar bearing brackets and a couple of others deficiencies. The torsion tube for 11' or less doors still has quite a bit of sag in the center therefore these kits should also include the $2.00 plastic center support bracket. I had to call Clopay directly to have them send me one for free. Home Depot deadweight were going to charge me the $2.00 + $25.00 min shipping. Home Depot employees need training on Clopay products and services. What can one expect from minimum wage earners except cost the customer money and grief. Well, enough said.
Was this helpful?
2
0
After installing the torsion system I still feel that the center support should be included with ...
After installing the torsion system I still feel that the center support should be included with all systems. As you start winding up the torsion bar it flexes about an inch if the center support would have been provided a person would not see it. This item is provided with the 10' doors I feel that this item should be included in all kits.
Was this helpful?
3
0
Went up easy and work like it Said.
Went up easy and work like it Said.
Was this helpful?
0
0
This was the ONLY kit I could find.
Excellent support from Cloplay. Package came much faster than expected but I was missing a large plastic bag containing all the smaller parts. One phone call and they shipped the missing parts express. Overall, the kit has everything you would need to replace the two side mounted extension springs on a Coplay garage doors. It assumes you will be able to reuse the Flag Bracket and a side bracket that apparently come with their doors. My Overhead door had neither. Workaround: remove the old lift bracket bolted to the wall and replace it with a flag bracket (about six bucks each) and you need two from Home Depot .com. They don't carry the flag brackets in the store, so order with the kit to avoid additional shipping charges. And you will need a piece of perforated 14 gage strapping. If you need to cut it, consider buying two pieces at least 15 inches each or you can cut a 3 ft piece. Lots of people had trouble getting the spring tensioned. Pick up a can of spray lithium grease before the kit arrives. As soon as you have locked the spring, spray the spring with the grease. The spring is shipped dry and doesn't slide well. Worked fine after the quick lube job. Tighten the spring about half the required number of turns and then raise the door half way. Then tighten the rest of the way. That spreads the grease before you finish the tightening. Finally, the bar was too long for my door. The kit comes with two short bars that must be connected by a connector tube. Lots of bad stories about the way they want you to connect the tubes (self-threading bolt). People have had the head of the bolt break off. In may case the "self Threading bolt" stripped out, even with a pilot hole. Recommend you buy two 1 1/2 inch bolts with matching nuts and lock washers. Drill all the way through the connector holes and the inserted rod. If you need to shorten the rod, notice that all the important hardware is loaded on the left side of the bar, so you can either balance the bar by cutting off half the required amount from each side, or cut all of it from the right side. Remember to measure twice and cut once. Lots of YouTube videos showing the process.
Was this helpful?
0
0
Nova Scotia
Company Logo Review for EZ-Set Torsion Conversion
Customer review from homedepot.ca logo
Fairly easy to install experience with garage door operation is a necessity
Was this helpful?
0
0
Great product which was easy to assemble and the directions made it very smooth.
Great product which was easy to assemble and the directions made it very smooth.
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
Moncton
Good idea cheap made
Customer review from homedepot.ca logo
The transmission is plastic and the bold soft aluminum, so after 3 times charge and discharge the bold is round (1.set) or the plastic is broken ( 2.set) ...guess the set is made for one time charge only , but if you install it the first time it's not so easy. After all works it's great now.
Was this helpful?
0
0
Response from Clopay Customer CareOctober 28, 2020
Thank you for contacting us. Please reach out to Clopay at Reviews@clopay.com so we can help understand your issue and provide assistance. Thanks The Clopay Team ClopayGarageDoors
Everything was easy and worked out as it should...
Everything was easy and worked out as it should
Was this helpful?
0
0
Would not tension with our slipping!
First off the directions are terrible they are very confusing with a lack of systemic installation or replacement. I would not recommend this system as homeowner. I purchased this opener to replace one of may garage doors as a preventive maintenance for winter due to a failure in the winter that lead to my wife's vehicle being trapped in the garage when the torsion spring broke. If I could give this a negative number I would. The biggest problem I had was in tensioning the system from what I could understand of the instructions I locked the end of the spring and started to apply tension when I was getting close to the recommended load/ line/spaced for the calculation it cut loose. Thank the Good Lord I was not injured in the process but it was a good scare. I went back through the directions and double checked my work. At this point I had enough and have decided not a good decision to proceed. I will investigate another system that has more durability and easier to install with much better instructions!
Was this helpful?
0
0
Response from Clopay Customer CareOctober 5, 2020
BBNB - Thank you for contacting us. Please contact us at reviews@clopay.com so we can help understand the issues you are experiencing and provide assistance in correcting. We will also pass this along to our engineering team for review to ensure our instructions are as clear and informative as possible. Thanks, The Clopay Team ClopayGarageDoors
