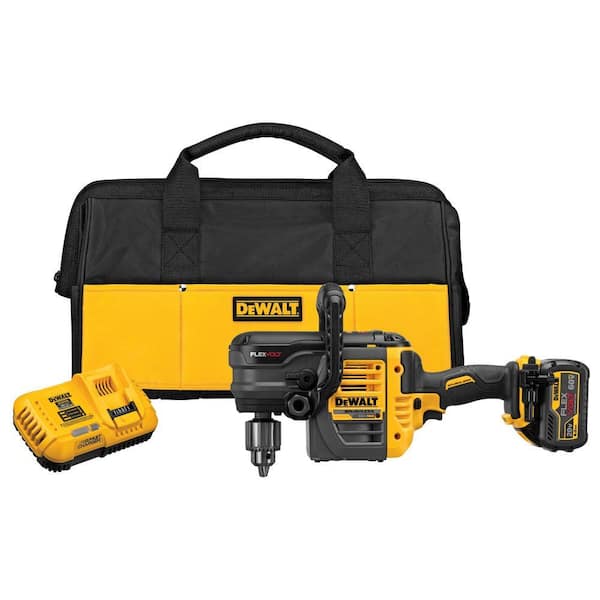

FLEXVOLT 60-Volt MAX Cordless Brushless 1/2 in. Stud & Joist Drill with E-Clutch & (1) FLEXVOLT 6.0Ah Battery
- Dual variable speed ranges (0-300 / 0-1250 RPM)
- E-clutch detects torque from a bind-up or stall and reduces speed
- Brushless motor provides optimal running power
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product
The DEWALT 60-Volt Max VSR Stud and Joist Drill with E-Clutch System features a 1/2 in. chuck and brushless motor that provides corded power in a cordless solution. Ideal for plumbers, electricians and HVAC installers who need to drill large diameter holes in wood. This drill provides exceptional power, control, durability, and runtime with its 60-volt brushless motor, mechanical and electrical clutches, and two variable-speed ranges. Equipped with the innovative bind-up control feature called E-Clutch system, this drill increases user control in bind-up/stall situations by sensing a stall during use and managing torque accordingly.
Highlights
- 60-volt brushless motor for increased power and runtime
- Power of a cord with cordless freedom
- Adjustable bail handle and 2-position side handle provide maximum leverage and control
- Two variable speed ranges (0-300 / 0-1250 RPM) to match appropriate speed to the application
- E-clutch is a perform and protect feature that detects reactionary torque caused by a bind-up or stall and reduces speed to a manageable level until control is regained
- Metal-gear housing for jobsite durability and increased reliability
- DEWALT perform and protect line of power tools is designed to provide a high level of one or more of the following: control, dust containment, or low vibration
- Ideal for use with spade bits, hole saws, self-feed bits and auger bits
- Includes battery, charger, bail handle and side handle
- More Options in the DEWALT 20V/FLEXVOLT Platform Here
- Click here for more information on Electronic Recycling Programs
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Specifications
Dimensions: H 11.25 in, W 12.25 in, D 20.25 in
Dimensions
Product Depth (in.) | 20.25 in |
|---|---|
Product Height (in.) | 11.25 in |
Product Width (in.) | 12.25 in |
Details
Battery Amp Hours | 2 Ah |
|---|---|
Battery Power Type | Lithium Ion |
Battery Voltage (V) | 60V |
Charger Included | Charger Included |
Chuck Size (In.) | 1/2 In. |
Chuck Type | Keyed |
Color Family | Yellow |
Cordless Tool Type | Right Angle Drill |
Cordless/Corded | Cordless |
Included | Charger, Tool Bag |
Maximum Speed (RPM) | 1250 RPM |
Motor Type | Brushless |
Number of Total Batteries Included | 1 |
Power Tool Features | Variable Speed |
Product Weight (lb.) | 21.8 lb |
Returnable | 90-Day |
Tools Product Type | Power Tool |
Torque (lb-in) | 0 In lbs |
Warranty / Certifications
Manufacturer Warranty | 3 Year Limited Warranty1 Year Free Service Contract90 Day Money Back Guarantee |
|---|
Questions & Answers
anyone ever use 6in earth auger with this drill
The DCD460B should work with the Auger bit.
What is the max hole size that you can drill
The maximum hole size is 1-1/2" for holes in metal larger than 1/2" we recommend using a hole saw.
Can I mix concrete in a 5 gallon bucket with this tool?
We don't recommend to use it for that purpose. Only for drilling.
What battery's can you use
The DCD460B uses 60V MAX* FLEXVOLT Batteries.
Hi Dean. Thank you for shopping at The Home Depot. You can use any of the 20V to 60V batteries for this unit. The larger amp hour batteries will give you longer performance. Please let us know if we can be of further assistance. Rick_HD_OC
What?s is it?s torque rating
There is not a specific torque rating. The overall power rating is 1631 Max Watts Out or (UWO)
What is the maximum airspeed velocity of an unladen swallow?
African or European Swallow?
The unit DCD460T2 has 2 variable speed ranges (0-300 / 0-1250 rpm) Thanks, Doris DEWALT Social Rep
How many MAX pounds of torque does this tool have? (not how many it will detect and adjust to)
Dewalt uses their own rating system and we do not have that spec. Mike
Hello Snow425 Thank you for your contact. We apologize for any trouble or inconvenience in finding information. The DCD460B has been measured at 140.0 Newton Meters (Nm), = 102.941 Foot Pounds Force (ft lbf) as a maximum. Best Regards Sherri C DEWALT
How many pounds of torque does a straw produce
Hello Sailor, Thank you for your contact. We apologize for any trouble or inconvenience in finding information. With the stud and joist drill, the eclutch will automatically detect and adjust to the torque needed for a job. Best Regards Sheri C DEWALT
