Internet #203293723

Model #18-900L

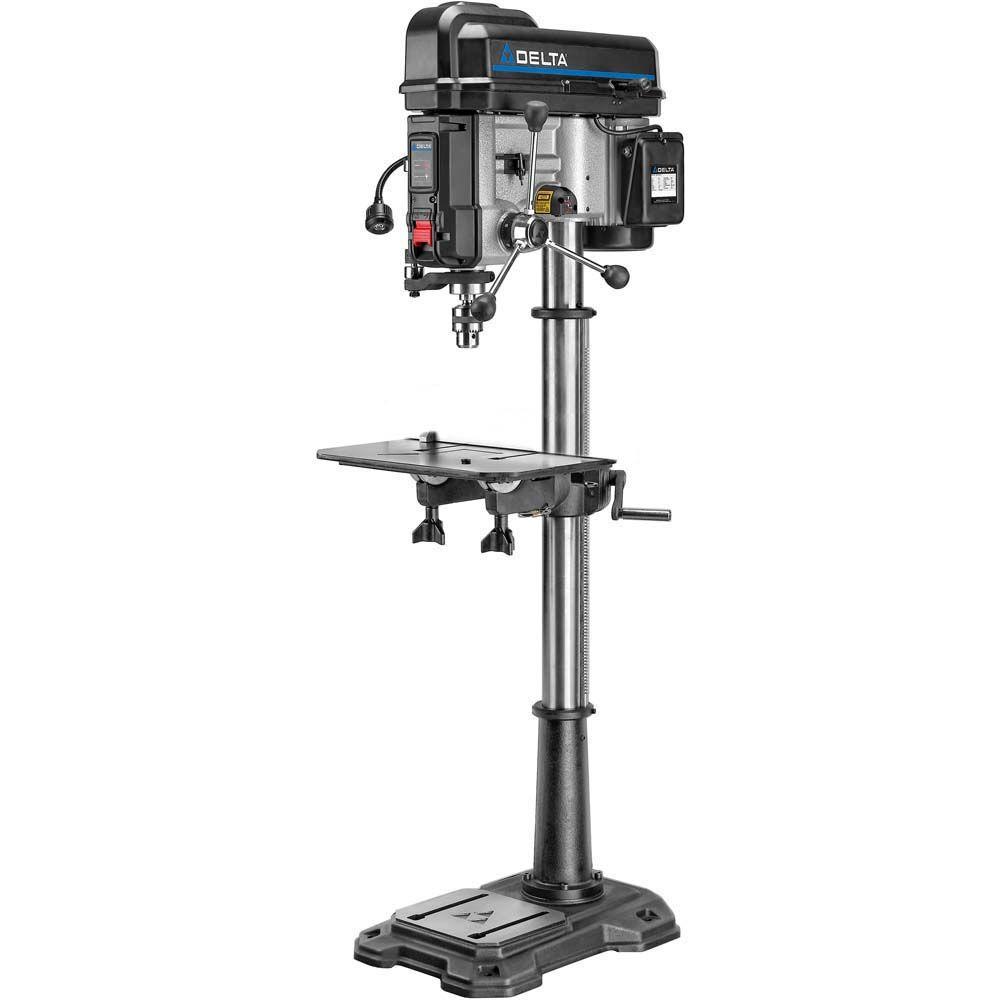

18 in. Floor Standing Drill Press with Worklight, Laser and 16-Speeds

  • Large 6 in. Quill Stroke for deeper drilling applications
  • Auto-Tensioning Belt Drive System allows for fast speed changes
  • LED Light and Laser projects a red crosshair on the work piece
  • See More Details

Frequently Bought Together

+
+
Price:
$137132

Product Overview

The Delta 18-900L 18 in. Laser Drill Press features a rugged design for professional use. Ideal for woodworking, it's designed to provide the accuracy and precision you need to get the job done right the first time. It boasts a heavy-duty motor for powerful performance and an auto-tensioning belt drive system for effortless speed changes. An LED lamp illuminates the work surface for enhanced visibility and adjustable laser lines intersect to mark where the drill bit will descend into your workpiece.
  • Auto-tensioning belt drive system allows for fast and easy speed changes while maximizing transmission efficiency with consistent belt tension and motor alignments
  • Full 6 in. quill stroke for deeper drilling applications and best-in-class capacity
  • Oversized woodworker's table with patented design bevels 0 degrees to 90 degrees left and right, tilts forward 0 degrees to 48 degrees, features T-slots for clamping and a removable center insert for through-table drilling
  • Micro-adjustable depth stops and independent depth scale allows the user to zero the scale and set up for repetitive drilling, quickly and easily
  • Flexible LED light illuminates the work surface for enhanced visibility
  • 16 speed settings (170 RPM to 3000 RPM) to match output with desired application
  • 20 in. x 14 in. table provides a large working area
  • 3/4 HP motor for the toughest jobs
  • Meets CSA Listing quality and safety standards
  • Protected by a 5-year limited warranty

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Drill Presses

current product
18 in. Floor Standing Drill Press with Worklight, Laser and 16-Speeds

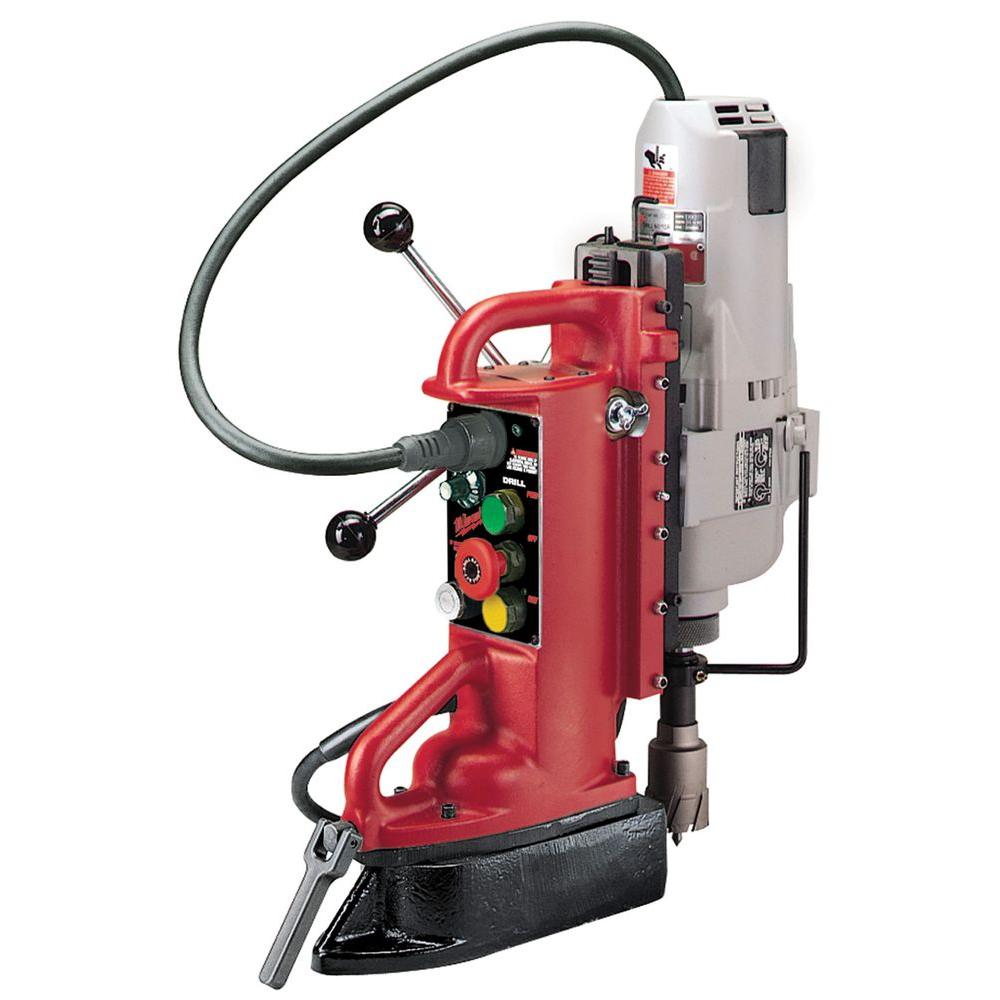

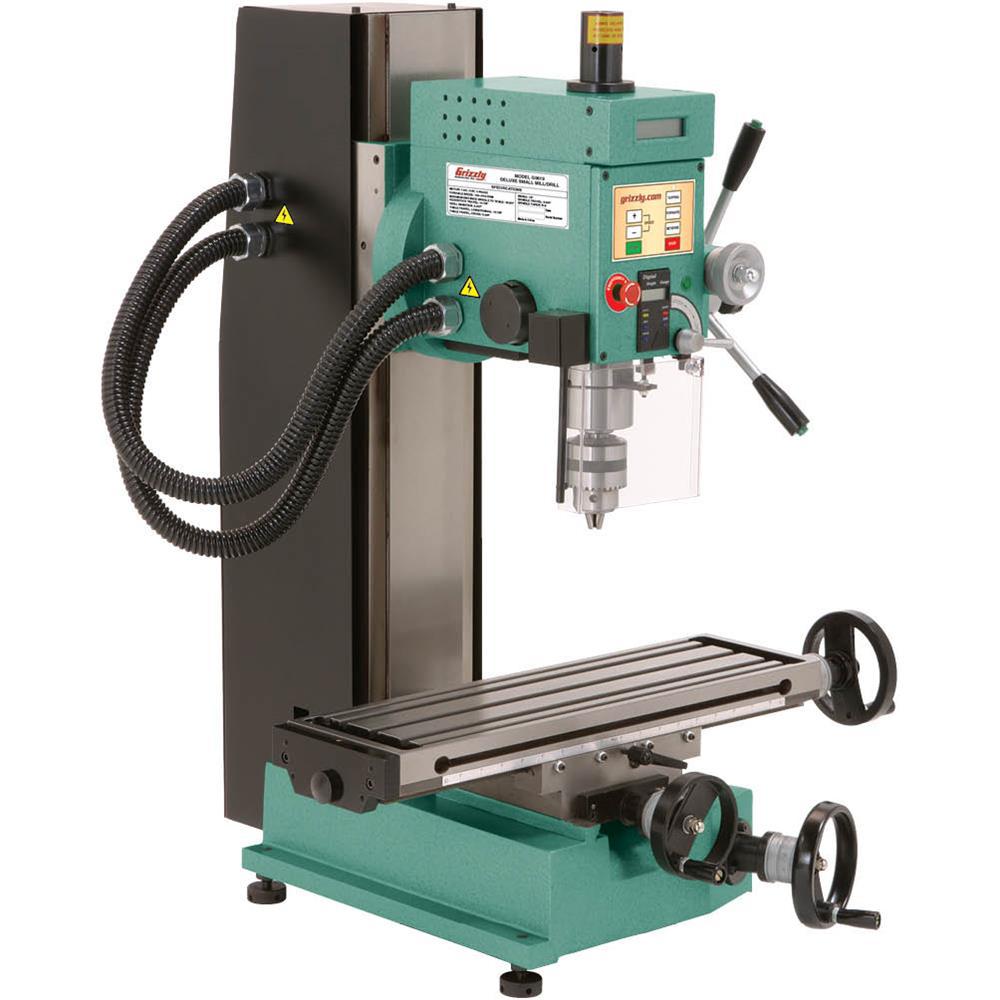

Electro-Magnetic Adjustable Position Drill Press with # 3 Morse Motor6 in. x 21 in. Mill/Drill
BrandDeltaMilwaukeeGrizzly Industrial
Name18 in. Floor Standing Drill Press with Worklight, Laser and 16-SpeedsElectro-Magnetic Adjustable Position Drill Press with # 3 Morse Motor6 in. x 21 in. Mill/Drill
Price
$137132
$159900
$237900
Ratings
(82)
(12)
(0)
Chuck Capacity5/8 In.1-1/4 In.5/8 In.
Number of Speeds16212
Voltage (volts)115120110
PortabilityStationaryBenchBench
Amperage (amps)9.812.512 A
Bench & Stationary Tool TypeDrill PressDrill PressDrill Press
ConditionNewNewNew
View ProductView ProductView Product

Specifications

Dimensions

Product Depth (in.)
59
Product Height (in.)
13
Product Width (in.)
30.5

Details

360- Degree Swivel
Yes
Amperage (amps)
9.8
Bench & Stationary Tool Type
Drill Press
Built-In Light
Yes
Chuck Capacity
5/8 In.
Chuck Key Storage
Yes
Color Family
Silver
Condition
New
Cord Length (ft.)
10
Lockout Power Switch
No
Magnetic
No
Maximum Speed (rpm)
3000
Minimum Speed (rpm)
170
Number of Speeds
16
Portability
Stationary
Product Weight (lb.)
261
Returnable
180-Day
Spindle Travel
6 in
Tools Product Type
Power Tool
Voltage (volts)
115
Work Light
Yes

Warranty / Certifications

Certifications and Listings
CSA Listed,CSA Listed
Manufacturer Warranty
5 Year Warranty Parts and Labor

Questions & Answers

18Questions42Answers

Why is this called an "18" laser drill press"? What spec is 18"?

Asked by Hooper January 20, 2019
5
Answers

It is 9" from the center of the chuck (bit) to the column so you can center drill a piece 18" in width or diameter. Two laser lines can be adjusted to cross to identify the center of the bit. I don't use the lasers because they would only remain accurate if you never moved the table. Even with the lasers you still have to mark the work where you want to drill so just align the work to the drill point. Twist drills do not have a sharp point so I often use a brad point bill to align the work, clamp the work in place, then switch to the twist drill for the actual drilling.

Will this unit drill 7/8" holes in conduit using a 7/8 bit with a 1/2" shank ? Our present will a...

Asked by Boone March 15, 2017
5
Answers

this unit has a 1-16mm chuck (0.040" to 5/8")

What size shank will it accommodate? 3/8", 1/2", 3/4"???

Asked by Boone March 15, 2017
6
Answers

has a 1-16mm chuck (0.040" to 5/8")

Does the depth stop on this model have a quick release feature to move the stop over longer dista...

Asked by Gary February 6, 2017
5
Answers

Yes it has a quick release

Will the chuck handle small bits such as 1/16"?

Asked by albe52 January 11, 2017
3
Answers

I have some tiny bits, never had a problem with using small bit with this DP.

Is Delta Drill press made in the USA

Asked by LK December 6, 2016
3
Answers

No. Made in China and it shows....

Does this drill press include a quill lock?

Asked by Woody September 7, 2016
5
Answers

No, but the dual depth stops allow you to lower the quill, set the stop to hold it down, then insert a tool into the spline groove to stop the quill from spinning. I use this method to get extra torque on the keyless chuck I added. Quick and easy.

What model chuck does it have? The chuck key supplied doesn't fit the chuck very well.

Asked by SAZ July 7, 2016
2
Answers

The chuck key has a built in spring loaded ejection pin to keep you from leaving it in the chuck. Mine fits without a problem, but requires you to apply pressure when tightening.

Portable Base

Asked by albe52 June 29, 2016
4
Answers

No. The machines shipping weight is 290 lbs. It's not easily moved but that's also a plus. The weight makes it very stable.

Is this a floor model drill press?

Asked by Mac June 29, 2016
4
Answers

It is a floor model drill press and because of it's weight it is very stable.

18 in. Floor Standing Drill Press with Worklight, Laser and 16-Speeds - page 2

Customer Reviews

  • 4.6
    out of 83 reviews
  • 92% recommend this product
5star-icon58
4star-icon19
3star-icon1
2star-icon1
1star-icon4
Filter by:
Showing 1-10 of 83 reviews
Delta 18” 16 spd Press
Received my Delta press via home delivery this evening. Consequently, this is an initial review and summary of my general impressions. First off, pretty fast shipping. Four days since placing my order. Once the container arrived, I had the press unpacked and assembled in exactly 45 minutes. Total time included opening the shipping container, parts separation for assembly, inspection of the motor, stand, frame, all moving parts, and assembly of the machine itself. Shipping box arrived in perfect condition. Machine was well packaged with all metal parts coated in a light oil/cosmoline. For anyone wondering about the instructions, they are well done. If you are mechanically inclined and/or familiar with drill presses, you probably will not need them. I referred to them a couple of times during the build since there are a few nuances with this unit (e.g. dialing in the laser). Still very intuitive, overall. Moreover, I want to stress this machine seems to be high-quality (at least higher quality than a lot of similar units in its class and price-range). Components are substantial. I was pleasantly surprised. Metal where you want it and plastic where it doesn’t matter so much. A very important point to note about the unit’s weight - it’s approximately 250 lbs. Motor is heavy as all get-out and a bit unweildy. To mount the motor, I tipped the assembled base, post and table on its side, placed the motor on the post (only had to lift it about 6” off the ground) and then walked it up into a standing position. I’m almost 48, 5’10” @ 270 lbs, and am a former competitive powerlifter. Still lift big, too. That said, in all honesty, this would have been a much, much easier step with two people. I highly recommend making it a two-person lift. I should have. Once completely assembled, I checked for chuck wobble. Nothing discernible. I then moved on to dial-in the laser and test the unit. Setting the belts/speed at 170, I drilled a precise hole in an old 11 gauge piece of steel tubing I had in the shop (used a titanium twist bit). I’ve attached a photo for anyone interested. Despite the very slow speed, I was through the steel in good fashion; relatively fast and clean. Again, pretty impressed. I’ll be using this press on different types of steel (varying thicknesses and compositions), aluminum, and hardwood. I don’t think the press is going to have any problem with any job I decide to use it for. I’ll update this review if/when I encounter any issue, positive or negative that prospective buyers/users might find helpful/of potential utility. Thanks for reading. Alexander R.
by Alexander
Very easy to assemble, really like the way the table tilts plus the light is awesome. I didn't kn...
Very easy to assemble, really like the way the table tilts plus the light is awesome. I didn't know how bad my eyes really were until I started using the light. This drill press is for a middle/high school and the students love it! We are using the press for a manufacturing and construction projects in our classroom. We have had the press for about two months and it is everything we had hoped for in a drill press.
by Wayne
3 people found this helpful
This Delta drill press is very versatile. The chuck is true and straight. The features that stand...
This Delta drill press is very versatile. The chuck is true and straight. The features that stands out the most is the ease to change the RPM's for different materials and the laser a quick setup on the material. I have a the drill press for about a year. A very great investment.
by DGNewton
1 person found this helpful
Outstanding piece of machinery. Runs quiet and smooth. Easy to set up, all parts fit well. I'd gi...
Outstanding piece of machinery. Runs quiet and smooth. Easy to set up, all parts fit well. I'd give it perfect rating but for some shortcomings with the table. The upper groove of the parallel t-slots was milled at 9mm, just shy of fitting a 3/8" bolt for my hold down clamps, but more play than I like for 5/16" hardware. I took the table to a machine shop and had the upper grooves milled to 10mm. The hex head of a 3/8" bolt is a perfect fit in the bottom grove, so no special t-nuts are needed. It's so much more versatile now. Also changed the chuck out to a keyless version with half the run out as the Delta chuck. It's really the best drill press I've ever seen.
by Hppydg
1 person found this helpful
I'd like to say that it exceeds my expectations, but from the reviews, I knew what to look forwar...
I'd like to say that it exceeds my expectations, but from the reviews, I knew what to look forward to! Well built and designed. Nothing flimsy or shortcuts on quality. Straight forward instructions and included allen wrenches to assemble. When my friends with banana republic tools come over, they'll know I stepped to the plate...no excuses needed.
by Walt
2 people found this helpful
One Great Drill Press !
The Delta 18" lazer drill press is one fantastic addition to any workshop. Easy assembly, well built with solid capabilties for any project. Home Depot beat all internet prices, and had free delivery to any store location for customer pickup. Just plain hard to beat . . . .
by Don
3 people found this helpful
Delta 18-900L Purchase and setup review
Good drill press. Did a lot of research and shopped around for a good heavy duty shop drill. I need a drill press that will work for both wood and metal and not take up a lot of floor space. This one will run at low enough speed to work for metal as well as wood and has a small footprint. The two axis tilt table, laser sight and bright LED light put it over the top on my list of choices. Drill showed up at my home depot store packaged very well with no shipping cost. It comes in a big box that measures 30 in. wide by 59 in. tall by 13 in. deep and weighs 260 lbs. I was able to wrestle it into my pickup, but I would recommend bringing a friend to help. It comes disassembled into its four main components. Base, vertical tube, motor with drill head assembly and the tilting drill plate. Everything went together easily and fit very well. Setup was pretty easy. However the drill head and motor are heavy. You may want the help of a friend to lift it onto the shaft if you assemble it in the standing up position. It even came with all the tools needed for assembly and adjustment. Instructions were clear and included plenty of pictures. I have no regrets with my choice or purchase. Home Depot had the best price I could find.
by Mark
11 people found this helpful
Great value for money and surprisingly well made
Probably the best drill press available for non commercial use at this price point. Assembly was very easy and I was able to get the drill press together in about an hour without any help. The dual axis tilting table is a really nice feature as is the replaceable block of wood beneath the chuck. The lasers are a useful addition to the press. I was pleasantly surprised by the quality of the press, particularly since it's made in China. Like any drill or drill press, using properly sharpened quality bits, a good cutting fluid, the correct rpm and the right amount of pressure for the material being drilled will produce excellent results while increasing the longevity of the drill/press and drill bits. I commonly need to put holes in steel plate ranging from 1/8" to 1/2" in thickness and this press has no problem doing this over and over again. So far I couldn't be happier with the press and feel that my $1,000 was very well spent.
by GH
6 people found this helpful
Well made, quality product
The drill arrives in a large styrofoam cube to protect the drill. 260 pounds. Delta recommends it be mounted on a 3/4" plywood board 29x24 for stability. I used 1/2" grade 8 bolts 3 1/2" long with 2 boards since I countersunk the bolt heads with fender washers on the floor side. Fit and finish is exc. Mounting the head should take 2 folks or you can mount the head with the unit on the floor then lift to vertical. Still very heavy. Assembly is simple. Although they include metric allen wrenches, I found long allen wrench sockets handy for tight places. You'll need a 10mm socket or wrench for the nut on the speed adjustment lever. I mounted the drill press on a HTC HD mobile base. The base works well, but assembly is slow.
by JImL
15 people found this helpful
Very nice and solid drill press. Easy to assemble...
Very nice and solid drill press. Easy to assemble bur you will need persons to get the head unit mounted. Worked smoothly and is at least powerful to do what I ask for.
by SvR
Showing 1-10 of 83 reviews
