GreenBuilder Series 100 CFM Ceiling Bathroom Exhaust Fan with LED Light and Humidity Sensor, ENERGY STAR

$13853
Apply Now
Pay $113.53 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Includes humidity sensor and adjustable, low speed controls

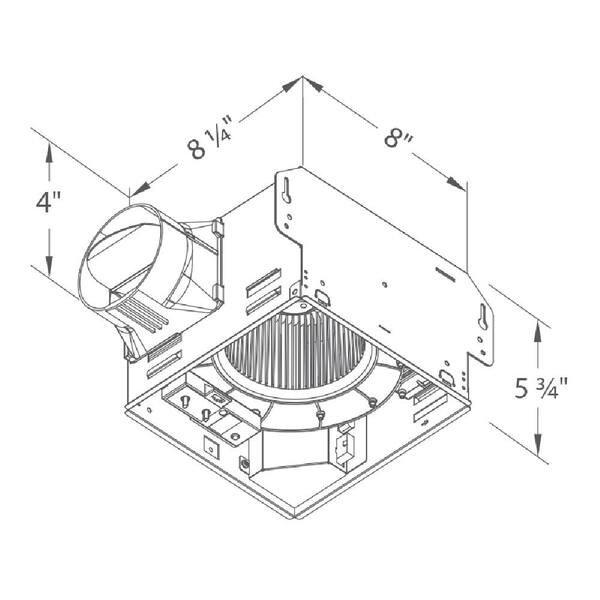

  • Flush mount design with 6.6 in. housing depth
  • Dimmable LED lasts a minimum of 30,000 hours - 3X longer than CFL
  • View More Details
Store
0 in stock
caret

Product Details

Delta Breez GreenBuilder ventilation fans mark a new achievement in bathroom ventilation for green construction. Built upon market leading energy efficiency, exceptionally low power consumption and quiet operation, the BreezGreenBuilder series offers a Dimmable LED Light option as well as humidity sensing option. BreezGreenBuilder stays true to what has made the GreenBuilder series a winning value proposition for builders and contractors: a super reliable Delta DC brushless motor, a compact lightweight design for quick installation coupled with sound and flow ratings that far surpass building requirements...all at an affordable price.
  • 100 CFM extracts air to properly vent bathrooms up to 100 sq. ft. while the brushless DC motor technology saves you energy with an efficiency rating of 7.3 CFM/Watt
  • Quiet operation at 1.5 Sones or less
  • The cutting-edge, long-lasting brushless DC motor is engineered to outlast traditional AC motor fans by 2.5 times (Minimum 70,000 hours)
  • Fan can operate in either full speed mode or humidity control mode by flipping a manual switch, adjustable humidity set points between ~50% to ~80% RH
  • For humidity control mode, the fan runs continuously at either full speed (100 CFM) or at a pre-set lower level (0 or 60 CFM) when the humidity is either above or below the user-adjustable set-point.
  • Features a Dimmable LED light for adjustable ambiance (dimmable switch not included), which has a lifespan of 30,000 hours (compared with 10,000-hours for CFL lights)
  • The integrated Dimmable LED Main Light outputs 850 Lumens, with a color temperature of 2700K, and a CRI value of 90 for high color accuracy and compliance with CEC JA8 Title 24 requirements
  • ENERGY STAR qualified for energy efficient operation
  • UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring, UL approved for ceiling and wall mount installation
  • Built-in soft start function to increase bearings' life, motor equipped with thermal cutoff fuse and automatically powers off when impeller is locked abnormally for safety
  • Power rating of 120 Volts/60Hz, Low power consumption at 13.6 Watts
  • Self-compensating motor speed for intended air flow when static pressure is encountered
  • Blue LED indicator light shows when Humidity Control Mode is active
  • Ceiling mount ventilating fan with Dimmable LED Light and Humidity Sensor
  • Green and amber LED indicator lights show when continuous low speed operation and full speed modes are active respectively
  • Included: (1x) Detachable 4 in. Duct Adapter; (1x) 13-Watt Dimmable LED light (equivalent to a 60-Watt incandescent bulb)
  • Return Policy
caret

Specifications

caret

Questions & Answers

270Questions
caret
Q:Can the light be connected to the same dimmer switch as the vanity light so there is one switch and one dimmer?
by|Mar 17, 2023
0 Answer
Answer This Question
caret
Q:Can this be installed in the shower
by|Feb 25, 2023
1 Answer
Answer This Question

A:  If this fan is on a GFI circuit, it can be installed in a shower enclosure. Be sure to study tye switching instructions as they’re quite confusing. This is not a direct replacement for an existing single switch vent fan. Basically, the light is wired to a separate switch and the fan wires to the supplied switch. Tip: Both fan switches off, no fan operation, humidify switch on, fan operates at pre-selected humidity level,(selection made before attaching bezel,) both fan switches on…immediate venting.

by|Feb 26, 2023
    caret
    Q:If the motor is replaceable, how does it come out? I do not see any screws securing it to the housing.
    by|Feb 14, 2023
    0 Answer
    Answer This Question
    caret
    Q:Can I get a new grill for this with a 4000K or 5000K light?
    by|Feb 11, 2023
    0 Answer
    Answer This Question
    Showing 1-4 of 270
    caret

    Customer Reviews

    4.5 out of 5
    (953)
    • 4.5
      out of 953 reviews
    • 88%recommend this product
    Filter by:
    Showing 1-10 of 953 reviews
    Large gaps
    The exhaust flap has huge gaps. Air will constantly leak.
    by
    Response from THD-CSJan 28, 2022
    Thanks for taking the time to share, Wes1776. We're sorry to hear that you're not happy with your purchase. Should you have any questions or further feedback, please reach out to us directly at 1+(888) 979-9889. We'd love to hear from you!
      • Recommended
      3 found this review helpful
      LOOK AT MY PHOTO FIRST! Their photo is fake.
      Attached you will see that the reason they are using a pasted over photo, which I wondered about on all the listings selling this. It is because the lamp does not cover the giant hole for the vent!! You see it everywhere except standing under it. Now I have to hire people to try to do something about covering part of it -- but that reduces the point of the vent! Poorly designed, lamp itself ooks great, but the gaping hole is ridiculous.
      by
      Response from THD-CSApr 1, 2021
      Dear Valued Home Depot Customer, We have reached out to the manufacturer and their reply is, We are very sorry to hear of your dissapointment. We are committed to providing the highest level of product quality and client satisfaction. We would love the opportunity to turn things around and encourage you to reach out to us at 1+(888) 979-9889, so we can have the opportunity to assist you further.
        3 found this review helpful
        Won't Keep the Cold Out
        During installation I noticed that the exhaust baffle does not close completely. There is a gap designed into it. The gap is about 1/4" around the bottom, and much larger on the top. This certainly will not prevent drafts in the bathroom during cold WI winters! Poor design! I called customer support to see if it was the wrong part and all they could say is "No, I think that's the way it's supposed to be. The metal ones do a bit better.". Not helpful.
        by
        Response from THD-CSFeb 22, 2021
        Dear Valued Home Depot Customer, We have reached out to the manufacturer and their reply is, We're sorry to hear that you're dissatisfied with your purchase. We appreciate you taking the time to share and we value your feedback!
          3 found this review helpful
          The light is bright. I was replacing a recessed lighting...
          The light is bright. I was replacing a recessed lighting fixture and was worried the light wouldn’t be bright enough - as if I was in a run down motel or sketchy alley. It’s definitely as bright as the recessed lighting fixture I replaced. I’m happy with the brightness. The fan adequately vents my 65 square foot bathroom of moisture and stink. My mirrors don’t fog up anymore. After a 15 foot run of semi-rigid duct (6ft) and PVC pipe (9ft), the fan is strong enough to easily open the gable wall vent flap. Highly recommend.
          by
          • Verified Purchase
          1 found this review helpful
          Fan was easy to install; ruggedly built and very quiet in operation. Plug-in light and fan wirin...
          Fan was easy to install; ruggedly built and very quiet in operation. Plug-in light and fan wiring is a nice feature.
          by
          • Verified Purchase
          • Recommended
          2 found this review helpful
          Soo quiet that no body noticed I'm done installing it and its running or working.
          Soo quiet that no body noticed I'm done installing it and its running or working.
          by
          • Verified Purchase
          2 found this review helpful
          Leaky Delta Breez GreenBuilder Series 80 CFM Ceiling Exhaust Bath Fan with LED Light
          This exhaust fan is no good because it leaks cold air into the bathroom. To keep from shivering while in the bathroom, I had to tape a bubble envelope over it and tell my wife not to use it. Guess I was wrong in following advice to replace the old fan to keep this exact same thing from happening!
          by
          Response from THD-CSJan 29, 2020
          Dear Homedepot Customer,We are sorry to hear that you’re not satisfied with your purchase. We want to ensure that you have the best possible experience with our products and would love for you to reach out to us directly so that we can have the opportunity to assist you further. Please contact us at 1+(888) 979-9889. We look forward to hearing from you!
            5 found this review helpful
            Quiet. But it is not white by any stretch of the imagination. I will have to paint them. I bought...
            Quiet. But it is not white by any stretch of the imagination. I will have to paint them. I bought 2. One is in the powder room, the other waiting to be installed. Have no idea how well it works yet. Have yet to touch up the paint around the hole. My ceilings are white-white.
            by
              2 found this review helpful
              Nice fan. Easy to install. Seems to work well. I would have given it a 5 star rating, but I am a ...
              Nice fan. Easy to install. Seems to work well. I would have given it a 5 star rating, but I am a little disappointed that it is not more quiet. It’s more quiet then most fans, but I expected to hardly be able to hear it, which is not the case.
              by
              • Verified Purchase
              • Recommended
              1 found this review helpful
              Purchased this fan for a basement bathroom construction. I needed to add rails to the housing to...
              Purchased this fan for a basement bathroom construction. I needed to add rails to the housing to fit it between a suspended ceiling. The end result looks very clean and the fan is very quiet. It takes about 3 seconds for the fan to reach full speed so when you first power it on you wonder if its working. And it is fairly quiet.
              by
                • Recommended
                2 found this review helpful
                Showing 1-10 of 953 reviews

                Compare Similar Bath Fans

                current product
                Top RatedGreenBuilder Series 100 CFM Ceiling Bathroom Exhaust Fan with LED Light and Humidity Sensor, ENERGY STAR
                Signature 110 CFM Ceiling Humidity Sensing Bathroom Exhaust Fan, ENERGY STARElite Series 110 CFM Ceiling Bathroom Exhaust Fan with Dimmable LED Light and Adjustable High Speed, ENERGY STARExclusiveQT Series 130 CFM Ceiling Bathroom Exhaust Fan with LED Light and Night Light, ENERGY STAR
                BrandDelta BreezDelta BreezDelta BreezBroan-NuTone
                NameGreenBuilder Series 100 CFM Ceiling Bathroom Exhaust Fan with LED Light and Humidity Sensor, ENERGY STARSignature 110 CFM Ceiling Humidity Sensing Bathroom Exhaust Fan, ENERGY STARElite Series 110 CFM Ceiling Bathroom Exhaust Fan with Dimmable LED Light and Adjustable High Speed, ENERGY STARQT Series 130 CFM Ceiling Bathroom Exhaust Fan with LED Light and Night Light, ENERGY STAR
                Price
                $13853
                $16579
                $17156
                $19400
                Ratings
                (952)
                (243)
                (0)
                (376)
                Air Volume (CFM)100110110,80130
                Fan Sound Level (Sones)1.51.00.5,0.71.5
                Housing Width (in.)89.625811.375
                Housing Length (in.)8.259.6258.2510.5
                Maximum Room Size (sq. ft.)100110110125
                FeaturesHumidity Sensing,LightHumidity SensingAdjustable Fan Speed,LightLight,Nightlight
                Grill ShapeSquareSquareRectangleRectangle
                Installation TypeCeiling,WallCeiling,WallCeiling,WallCeiling
                Mount TypeFlush Mount,Semi-Flush MountFlush Mount,Semi-Flush MountFlush Mount,Semi-Flush MountRecessed
                IncludedHardware,Light BulbHardwareHardware,Light BulbLight Bulb
