Internet #204505915

Model # SIG80L

0885917000905

Delta Breez Discontinued

Signature Series 80 CFM Ceiling Bathroom Exhaust Fan with Light

  • DC brushless motor consumes less power for energy conservation
  • Energy Star certified to provide energy efficient operation
  • 80 CFM airflow with 0.3 sones of ultra-quiet operation
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

  • DC brushless motor consumes less power for energy conservation
  • Energy Star certified to provide energy efficient operation
  • 80 CFM airflow with 0.3 sones of ultra-quiet operation
Combine tranquility and functionality with the Delta Breez signature SIG80L fan/light combo. Get all the benefits of a quiet, energy efficient bathroom fan, incorporated with a fluorescent bathroom light plus a night light. All bulbs are included.
  • Virtually silent less than 0.3 sones
  • An indicator light underneath the grille assures you that this quiet fan is running
  • Precision engineered with DC brushless motor for extended reliability, this fan will outlast many household appliances
  • Energy star qualified for efficient cost-saving operation
  • Galvanized steel construction resists corrosion, equipped with metal duct adapter
  • Fan impeller stops if obstructed, for safe worry-free operation
  • Peace of mind quality, performance and reliability from the world's largest DC brushless fan manufacturer
  • 3 year limited warranty

Product Overview

  • DC brushless motor consumes less power for energy conservation
  • Energy Star certified to provide energy efficient operation
  • 80 CFM airflow with 0.3 sones of ultra-quiet operation
Model #: SIG80L
Internet #: 204505915

Combine tranquility and functionality with the Delta Breez signature SIG80L fan/light combo. Get all the benefits of a quiet, energy efficient bathroom fan, incorporated with a fluorescent bathroom light plus a night light. All bulbs are included.

  • Virtually silent less than 0.3 sones
  • An indicator light underneath the grille assures you that this quiet fan is running
  • Precision engineered with DC brushless motor for extended reliability, this fan will outlast many household appliances
  • Energy star qualified for efficient cost-saving operation
  • Galvanized steel construction resists corrosion, equipped with metal duct adapter
  • Fan impeller stops if obstructed, for safe worry-free operation
  • Peace of mind quality, performance and reliability from the world's largest DC brushless fan manufacturer
  • 3 year limited warranty

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

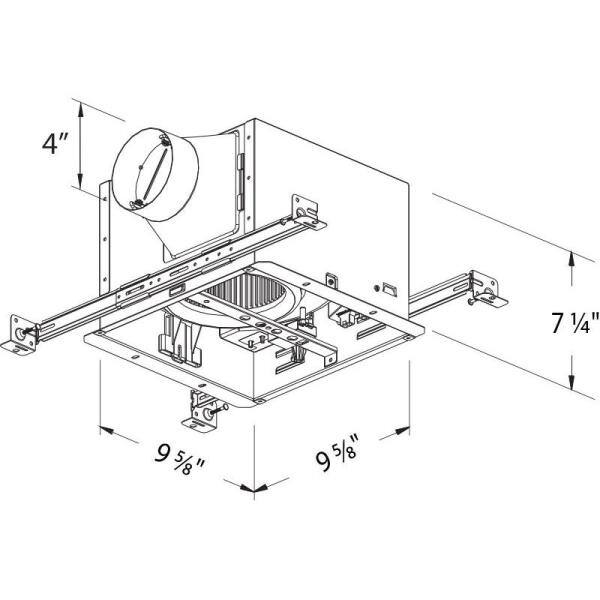

Dimensions

Housing Length (in.)
9.68
Housing Width (in.)
9.68
Maximum Room Size (sq. ft.)
80
Product Height (in.)
10.12
Product Length (in.)
14
Product Width (in.)
14

Details

Air Volume (CFM)
80
Amperage (amps)
0.74
Color/Finish
White
Duct Compatible Sizes
4 in
Fan Sound Level (Sones)
0.3
Features
Light,Nightlight
Grill Shape
Round
Housing Material
Galvanized Steel
Included
Light Bulb
Installation Type
Ceiling
Light Bulb Base Code
GU24
Light Bulb Type Allowed
CFL
Light Bulb Type Included
CFL
Maximum Light Bulb Wattage (watts)
26
Mount Type
Flush Mount
Number of Bulbs Required
2
Product Weight (lb.)
10lb
Returnable
90-Day
Room Size
Medium Room Fan
Voltage (volts)
120
Wattage (watts)
8.5

Warranty / Certifications

Certifications and Listings
1-UL Listed,HVI Certified
Manufacturer Warranty
3 year limited

Specifications

Dimensions

Housing Length (in.)
9.68
Housing Width (in.)
9.68
Maximum Room Size (sq. ft.)
80
Product Height (in.)
10.12
Product Length (in.)
14
Product Width (in.)
14

Details

Air Volume (CFM)
80
Amperage (amps)
0.74
Color/Finish
White
Duct Compatible Sizes
4 in
Fan Sound Level (Sones)
0.3
Features
Light,Nightlight
Grill Shape
Round
Housing Material
Galvanized Steel
Included
Light Bulb
Installation Type
Ceiling
Light Bulb Base Code
GU24
Light Bulb Type Allowed
CFL
Light Bulb Type Included
CFL
Maximum Light Bulb Wattage (watts)
26
Mount Type
Flush Mount
Number of Bulbs Required
2
Product Weight (lb.)
10lb
Returnable
90-Day
Room Size
Medium Room Fan
Voltage (volts)
120
Wattage (watts)
8.5

Warranty / Certifications

Certifications and Listings
1-UL Listed,HVI Certified
Manufacturer Warranty
3 year limited

Questions & Answers

What is the maximum amps it uses? Trying to figure out if circuit has enough capacity.

Asked by: Jane
This unit uses approximately 1.5 Amps with both fan and light operating at the same time.
Answered by: CommunityAnswer
Date published: 2016-02-07

Light bulb

Can LED Light bulb be used in this fan and what wattage? Thank you
Asked by: TheDucks
Perhaps if you can find an LED with bayonet fittings. Suggest you try to find an LED match to a GU 24 CFL bulb. Supplied bulb is MLS26GU, 2700K, 400mA, 82CRI, 26W, 120V, 60Hz, 1850Lm. For me the supplied CFL went out after a little over 1 year. $8 to replace. I would expect better.
Answered by: CPWF
Date published: 2018-04-26

The fan is blowing into the room instead of out. Is there a switch to make it blow out?

The fan is blowing into the room instead of out. Is there a switch to make it blow out?
Asked by: Rdicki
The wires are connected backwards.
Answered by: CommunityAnswer
Date published: 2017-05-21

what is the purpose of the mode switch

Asked by: moose
Hi, the functionality of the mode switch is to control the operation modes of the fan unit. For example, the mode switch in a Delta Breez dual speed fan allows the user to change between low and high speed mode. Omission of the mode switch is the same as having the mode switch in the off position.
Answered by: DeltaBreezCustomerService
Date published: 2015-09-20
  • y_2019, m_6, d_25, h_3CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_4
  • loc_, sid_204505915, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 90ms
  • QUESTIONS, PRODUCT

Customer Reviews

Signature Series 80 CFM Ceiling Bathroom Exhaust Fan with Light is rated 4.5 out of 5 by 2.
Rated 4 out of 5 by from Quiet. check the dimensions and electric connections This was a retro (access from below only) replacement of an old fan. Check the cut out. Directions, which cover 4 models, said 10.25. Should have been more like 9.75. When you install the support board hold up the grille and keep the screws inside the profile so that they do not show after you install the grille. "Long" wood screws looked short. Used 1 1/2 inch construction screws. Look at electrical connections. If you want the fan, light and night light to function individually, you need three switches/lines. I hooked this up with the fan and light together because I only had one line/switch. Bulb is a GU24 CFL. 100W equivalent. Bright enough to light a small (maybe 8x8) bathroom but not bright enough for shaving or makeup. Overall instructions were average and degree of difficulty was slightly above average which would lead me to say this might not be the best fan for a first-timer to install.
Date published: 2015-08-23
Rated 5 out of 5 by from The quietest Fan ever! It is not on a cheap side but it is amazingly quiet and does the job. Can’t say much more yet just have it for a month.
Date published: 2014-04-08
