Industrial PLUS 80 Gal. 10 HP Multi-Phase Electric Variable Speed Smart Air Compressor with Cooling Radiator

  • Noise suppression system reduces decibel rating up to 20%
  • Feates VFD programable Smart technology
  • Super-quiet low RPM with solid cast-iron construction
$ 6,789 03 (limit 3 per order)
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

  • Noise suppression system reduces decibel rating up to 20%
  • Feates VFD programable Smart technology
  • Super-quiet low RPM with solid cast-iron construction

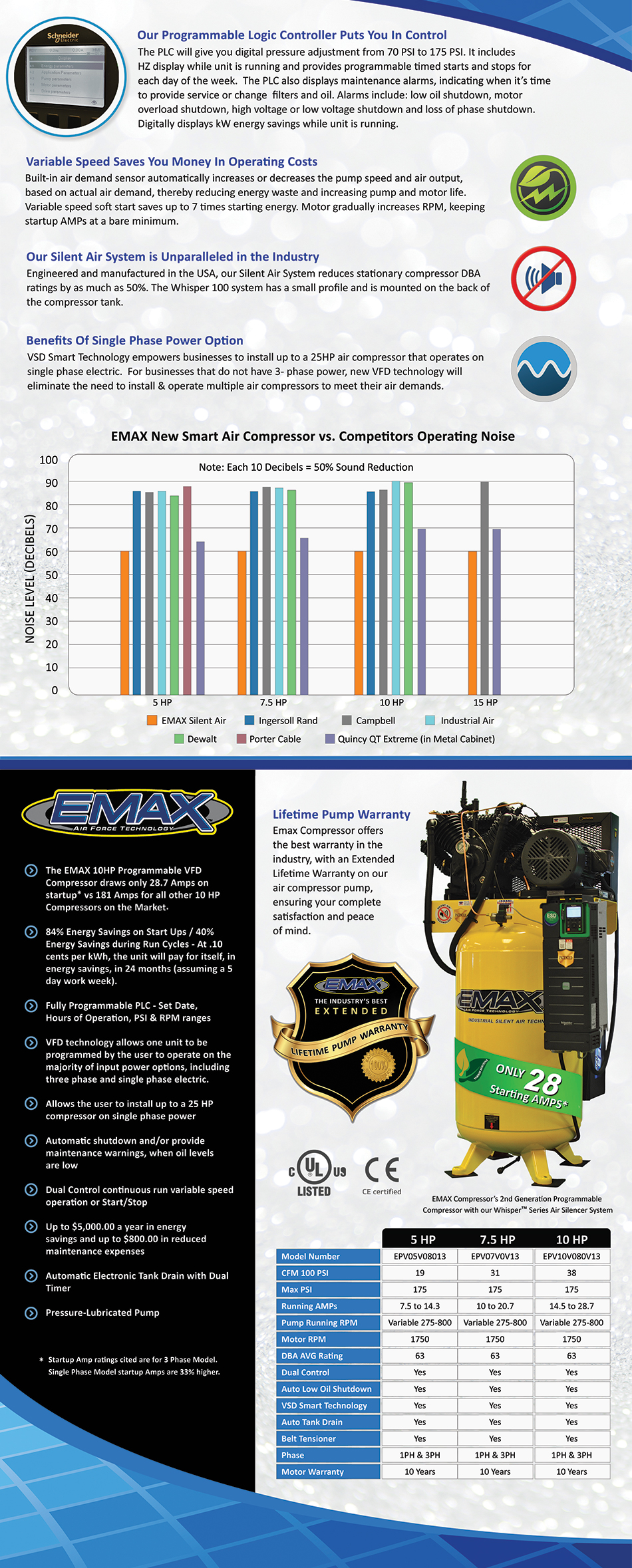

The Industrial PLUS Electrical Silent Variable Speed Smart Air Compressor features a Programmable Logic Controller that puts you in control. The PLC will give you digital pressure adjustment from 70 psi to 175 psi. it includes HZ display while unit is running and provides programmable timed starts and stops for each day of the week. The PLC also displays maintenance alarms including: low oil shutdown, motor overload shutdown, high voltage or low voltage shutdown and loss of phase shutdown. Digitally displays kW energy savings while unit is running. Built-in air demand sensor automatically regulates the pump speed and air output, based on actual air demand: reducing energy waste and increasing pump and motor life. Variable speed soft start saves up to 7 times starting energy. VSD Smart Technology empowers businesses to install up to a 25HP air compressor that operates on single phase electric. Our Silent Air System reduces stationary compressor DBA ratings by as much as 50%. To combat moisture issues, EMAX has added an after cooler to their Whisper100 Series. The after cooler goes between the compressor outlet and the tank and cools the air before it reaches the tank. It cools the air down to 10 degrees above ambient air temperature protecting the equipment from excessive heat and moisture. The after cooler will not remove all moisture, it is still recommended to install an air dryer to obtain moisture free air to keep your lines, air tools, machinery, etc. moisture free.
  • Only draws 28.7 Amp on startup for maximum energy savings (compare to 150 plus starting Amp on competitor products)
  • Save up to $5,000 a year in energy costs and up to $800 in reduced maintenance expenses
  • Built-in Silent Air system reduces the compressor dBA by as much as 50% resulting in a 63 dBA rating
  • Auto shut down and low oil shutdown extends compressor life
  • Programmable PLC, set date and hours of operation, set psi and RPM ranges
  • Variable speed saves you money on operating costs - the built-in air demand sensor automatically increases or decreases pump speed and air output, reducing energy waste and increasing pump and motor life
  • Variable speed soft start saves up to 7 times starting energy, the motor gradually increases RPM, keeping startup Amp at a bare minimum
  • Variable Frequency Drive (VFD) EMAX Smart Technology allows the unit to be programmed by the user to operate on either 3-phase or single-phase electric
  • For 3-phase applications, supported voltages include 208-Volt, 220-Volt and 240-Volt
  • Pressure lubricated pump with running RPM range of 275 to 800, motor RPM rating: 1750
  • Automatic electronic tank drain with dual timer
  • Totally enclosed fan-cooled motor
  • Integrated air cooling system passes air through a cooling radiator to reduces moisture
  • 10-year motor warranty, 5-year full parts warranty



Product Overview

  • Noise suppression system reduces decibel rating up to 20%
  • Feates VFD programable Smart technology
  • Super-quiet low RPM with solid cast-iron construction
Model #: EVR10V080V13
Internet #: 307488902

The Industrial PLUS Electrical Silent Variable Speed Smart Air Compressor features a Programmable Logic Controller that puts you in control. The PLC will give you digital pressure adjustment from 70 psi to 175 psi. it includes HZ display while unit is running and provides programmable timed starts and stops for each day of the week. The PLC also displays maintenance alarms including: low oil shutdown, motor overload shutdown, high voltage or low voltage shutdown and loss of phase shutdown. Digitally displays kW energy savings while unit is running. Built-in air demand sensor automatically regulates the pump speed and air output, based on actual air demand: reducing energy waste and increasing pump and motor life. Variable speed soft start saves up to 7 times starting energy. VSD Smart Technology empowers businesses to install up to a 25HP air compressor that operates on single phase electric. Our Silent Air System reduces stationary compressor DBA ratings by as much as 50%. To combat moisture issues, EMAX has added an after cooler to their Whisper100 Series. The after cooler goes between the compressor outlet and the tank and cools the air before it reaches the tank. It cools the air down to 10 degrees above ambient air temperature protecting the equipment from excessive heat and moisture. The after cooler will not remove all moisture, it is still recommended to install an air dryer to obtain moisture free air to keep your lines, air tools, machinery, etc. moisture free.

  • Only draws 28.7 Amp on startup for maximum energy savings (compare to 150 plus starting Amp on competitor products)
  • Save up to $5,000 a year in energy costs and up to $800 in reduced maintenance expenses
  • Built-in Silent Air system reduces the compressor dBA by as much as 50% resulting in a 63 dBA rating
  • Auto shut down and low oil shutdown extends compressor life
  • Programmable PLC, set date and hours of operation, set psi and RPM ranges
  • Variable speed saves you money on operating costs - the built-in air demand sensor automatically increases or decreases pump speed and air output, reducing energy waste and increasing pump and motor life
  • Variable speed soft start saves up to 7 times starting energy, the motor gradually increases RPM, keeping startup Amp at a bare minimum
  • Variable Frequency Drive (VFD) EMAX Smart Technology allows the unit to be programmed by the user to operate on either 3-phase or single-phase electric
  • For 3-phase applications, supported voltages include 208-Volt, 220-Volt and 240-Volt
  • Pressure lubricated pump with running RPM range of 275 to 800, motor RPM rating: 1750
  • Automatic electronic tank drain with dual timer
  • Totally enclosed fan-cooled motor
  • Integrated air cooling system passes air through a cooling radiator to reduces moisture
  • 10-year motor warranty, 5-year full parts warranty



Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Key Features

Product Overview
Key Features
  • Noise suppression system reduces decibel rating up to 20%
  • Feates VFD programable Smart technology
  • Super-quiet low RPM with solid cast-iron construction
The Industrial PLUS Electrical Silent Variable Speed Smart Air Compressor features a Programmable Logic Controller that puts you in control. The PLC will give you digital pressure adjustment from 70 psi to 175 psi. it includes HZ display while unit is running and provides programmable timed starts and stops for each day of the week. The PLC also displays maintenance alarms including: low oil shutdown, motor overload shutdown, high voltage or low voltage shutdown and loss of phase shutdown. Digitally displays kW energy savings while unit is running. Built-in air demand sensor automatically regulates the pump speed and air output, based on actual air demand: reducing energy waste and increasing pump and motor life. Variable speed soft start saves up to 7 times starting energy. VSD Smart Technology empowers businesses to install up to a 25HP air compressor that operates on single phase electric. Our Silent Air System reduces stationary compressor DBA ratings by as much as 50%. To combat moisture issues, EMAX has added an after cooler to their Whisper100 Series. The after cooler goes between the compressor outlet and the tank and cools the air before it reaches the tank. It cools the air down to 10 degrees above ambient air temperature protecting the equipment from excessive heat and moisture. The after cooler will not remove all moisture, it is still recommended to install an air dryer to obtain moisture free air to keep your lines, air tools, machinery, etc. moisture free.
  • Only draws 28.7 Amp on startup for maximum energy savings (compare to 150 plus starting Amp on competitor products)
  • Save up to $5,000 a year in energy costs and up to $800 in reduced maintenance expenses
  • Built-in Silent Air system reduces the compressor dBA by as much as 50% resulting in a 63 dBA rating
  • Auto shut down and low oil shutdown extends compressor life
  • Programmable PLC, set date and hours of operation, set psi and RPM ranges
  • Variable speed saves you money on operating costs - the built-in air demand sensor automatically increases or decreases pump speed and air output, reducing energy waste and increasing pump and motor life
  • Variable speed soft start saves up to 7 times starting energy, the motor gradually increases RPM, keeping startup Amp at a bare minimum
  • Variable Frequency Drive (VFD) EMAX Smart Technology allows the unit to be programmed by the user to operate on either 3-phase or single-phase electric
  • For 3-phase applications, supported voltages include 208-Volt, 220-Volt and 240-Volt
  • Pressure lubricated pump with running RPM range of 275 to 800, motor RPM rating: 1750
  • Automatic electronic tank drain with dual timer
  • Totally enclosed fan-cooled motor
  • Integrated air cooling system passes air through a cooling radiator to reduces moisture
  • 10-year motor warranty, 5-year full parts warranty



Product Overview

  • Noise suppression system reduces decibel rating up to 20%
  • Feates VFD programable Smart technology
  • Super-quiet low RPM with solid cast-iron construction
Model #: EVR10V080V13
Internet #: 307488902

The Industrial PLUS Electrical Silent Variable Speed Smart Air Compressor features a Programmable Logic Controller that puts you in control. The PLC will give you digital pressure adjustment from 70 psi to 175 psi. it includes HZ display while unit is running and provides programmable timed starts and stops for each day of the week. The PLC also displays maintenance alarms including: low oil shutdown, motor overload shutdown, high voltage or low voltage shutdown and loss of phase shutdown. Digitally displays kW energy savings while unit is running. Built-in air demand sensor automatically regulates the pump speed and air output, based on actual air demand: reducing energy waste and increasing pump and motor life. Variable speed soft start saves up to 7 times starting energy. VSD Smart Technology empowers businesses to install up to a 25HP air compressor that operates on single phase electric. Our Silent Air System reduces stationary compressor DBA ratings by as much as 50%. To combat moisture issues, EMAX has added an after cooler to their Whisper100 Series. The after cooler goes between the compressor outlet and the tank and cools the air before it reaches the tank. It cools the air down to 10 degrees above ambient air temperature protecting the equipment from excessive heat and moisture. The after cooler will not remove all moisture, it is still recommended to install an air dryer to obtain moisture free air to keep your lines, air tools, machinery, etc. moisture free.

  • Only draws 28.7 Amp on startup for maximum energy savings (compare to 150 plus starting Amp on competitor products)
  • Save up to $5,000 a year in energy costs and up to $800 in reduced maintenance expenses
  • Built-in Silent Air system reduces the compressor dBA by as much as 50% resulting in a 63 dBA rating
  • Auto shut down and low oil shutdown extends compressor life
  • Programmable PLC, set date and hours of operation, set psi and RPM ranges
  • Variable speed saves you money on operating costs - the built-in air demand sensor automatically increases or decreases pump speed and air output, reducing energy waste and increasing pump and motor life
  • Variable speed soft start saves up to 7 times starting energy, the motor gradually increases RPM, keeping startup Amp at a bare minimum
  • Variable Frequency Drive (VFD) EMAX Smart Technology allows the unit to be programmed by the user to operate on either 3-phase or single-phase electric
  • For 3-phase applications, supported voltages include 208-Volt, 220-Volt and 240-Volt
  • Pressure lubricated pump with running RPM range of 275 to 800, motor RPM rating: 1750
  • Automatic electronic tank drain with dual timer
  • Totally enclosed fan-cooled motor
  • Integrated air cooling system passes air through a cooling radiator to reduces moisture
  • 10-year motor warranty, 5-year full parts warranty



Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
38 in
Product Height (in.)
42 in
Product Width (in.)
72 in

Details

Air Delivery SCFM @ 40PSI
42.0
Air Delivery SCFM @ 90PSI
38.0
Amperage (amps)
28.7 A
Application Use
Air Brushing,Blow Cleaning,Bolting/Wrenching,Brad Nailing/Stapling,Drilling,Finish Nailing,Framing Nailing,Grinding,HVLP Painting,Inflation,Roof Nailing,Sanding,Spraying,Surface Prep
Battery Amp Hours
No Battery
Charger Included
Charger Not Included
Compressor Tank Capacity (Gallons)
80
Compressor Type
Garage & Industrial
Compressor/Air Tool Features
Automatic Start/Stop,Dual Control,Tank Pressure Gauge,Universal Quick Connectors
Condition
New
Decibel Rating (Outdoor)
63 dBA
Horsepower (hp)
10 hp
Included
No additional components or accessories are included
Lubrication Type
Oil-Lubricated
Maximum Pressure (psi)
175
Number of Batteries Included
0
Portable
No
Power Source
Electric
Product Weight (lb.)
810 lb
Reconditioned
No
Returnable
30-Day
Stage Count
Single Stage
Tank Material
Steel
Tank Style
Vertical
Tools Product Type
Air Compressor
Voltage (v)
208-230/460v
Voltage (volts)
208/240

Warranty / Certifications

Certifications and Listings
1-UL Listed,CE Certified
Manufacturer Warranty
10 Year Warranty on Motor; 5 Year Full Parts Warranty

Specifications

Dimensions

Product Depth (in.)
38 in
Product Height (in.)
42 in
Product Width (in.)
72 in

Details

Air Delivery SCFM @ 40PSI
42.0
Air Delivery SCFM @ 90PSI
38.0
Amperage (amps)
28.7 A
Application Use
Air Brushing,Blow Cleaning,Bolting/Wrenching,Brad Nailing/Stapling,Drilling,Finish Nailing,Framing Nailing,Grinding,HVLP Painting,Inflation,Roof Nailing,Sanding,Spraying,Surface Prep
Battery Amp Hours
No Battery
Charger Included
Charger Not Included
Compressor Tank Capacity (Gallons)
80
Compressor Type
Garage & Industrial
Compressor/Air Tool Features
Automatic Start/Stop,Dual Control,Tank Pressure Gauge,Universal Quick Connectors
Condition
New
Decibel Rating (Outdoor)
63 dBA
Horsepower (hp)
10 hp
Included
No additional components or accessories are included
Lubrication Type
Oil-Lubricated
Maximum Pressure (psi)
175
Number of Batteries Included
0
Portable
No
Power Source
Electric
Product Weight (lb.)
810 lb
Reconditioned
No
Returnable
30-Day
Stage Count
Single Stage
Tank Material
Steel
Tank Style
Vertical
Tools Product Type
Air Compressor
Voltage (v)
208-230/460v
Voltage (volts)
208/240

Warranty / Certifications

Certifications and Listings
1-UL Listed,CE Certified
Manufacturer Warranty
10 Year Warranty on Motor; 5 Year Full Parts Warranty
