BR 200 Amp 40-Space 50-Circuit Indoor Main Breaker Loadcenter with Cover Value Pack (3-BR120, 1-BR230, 2-BRCAF115)

$24167
Apply Now
Save up to $100 on your qualifying purchase.
Apply for a Home Depot Consumer Card
  • Commercial grade Main Breaker
  • Steel backpan for reliable breaker mounting
  • Twin neutral bars for ease of installation
  • View More Details
Store
0 in stock
Text to Me

Frequently Bought Together

+
+
Price:
$24167

Product Overview

Specially designed for easy installation, Eaton's BR load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. The panels serve as main breaker for service entrances. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. The BR4050B200VA1 is a 200 amp main breaker with 40 spaces and 50 circuits. It is a value pack for the cost conscious home owner or contractor. The value pack consists of the load center (and cover) plus 3-1P 20A, 1-30A 2P and 2-15A combination arc fault circuit breakers.
  • Amperage rating: 200A
  • Bus material: aluminum
  • Rated NEMA 1 for indoor use
  • Feed type: bottom or top which allows for straight-in wiring that saves labor and material
  • Interrupt rating: 25 kAIC
  • Mounting: combination
  • Number of circuits: 50
  • Number of spaces: 40
  • Phase: singel-phase

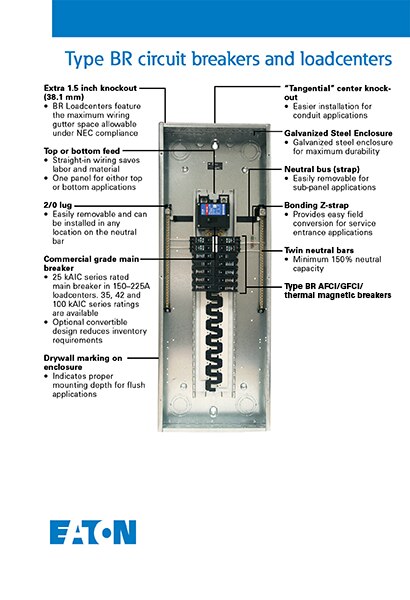

  • "Tangential" center knockout easier installation for conduit applications
  • 2/0 lug easily removable and can be installed in any location on the neutral bar
  • Neutral bus (Strap) is easily removable for sub-panel applications
  • Bonding Z-strap provides easy field conversion for service entrance applications
  • Twin neutral bars minimum 150% neutral capacity
  • Steel back pan provides solid and reliable breaker mounting-single piece design for stability and durability
  • Single keyhole mounting -one keyhole at the top and bottom provides easier mounting and leveling
  • Includes: 3-BR120s, 1-BR230 and 2-15 amp combination arc fault circuit breakers
  • Used with: type BR breakers
  • Learn More About Electrical Panels Here in our Buying Guide.



  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Load center depth (in.)
40
Load center height (in.)
5
Load center width (in.)
16

Details

Electrical Product Type
Load Center and Breaker Kit
Indoor/Outdoor
Indoor
Indoor/Outdoor
Indoor
Load Center Type
Main Breaker
Maximum Amperage (amps)
200
Mounting Type
Surface
NEMA Configuration
NEMA 1
Number of Circuits
50
Number of Phases
1
Number of Spaces
40
Phase Type
1 Phase
Product Weight (lb.)
42
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
ANSI Certified,CSA Listed,UL Listed
Manufacturer Warranty
10 years
