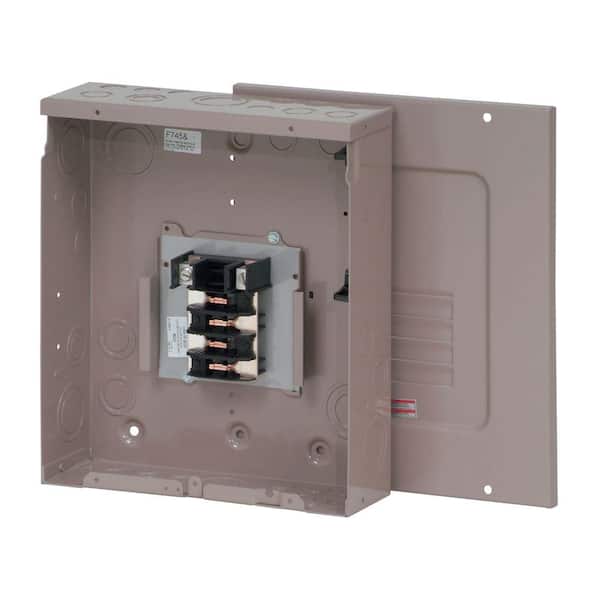

CH 125 Amp 8-Space 16-Circuit Indoor Main Lug Loadcenter with Cover

$3876
  • Limited lifetime warranty
  • Copper bus for excellent conductivity
  • For use as indoor main lug loadcenter w/ extra 1.5 in knockout
  • View More Details
Store
0 in stock
Text to Me
How to Get It

Frequently Bought Together

+
+
Price:
$3876

Product Overview

Specially designed for easy installation, Eaton's CH load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. This panel is a main lug panel which is used as sub-panel to add circuits to an existing main breaker panel. Sub panels are often used in a garage, home addition, barn or storage shed and/or workshop. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. The CH8L125SP is a 125 Amp main lug with 8 spaces and 8 circuits.
  • Amperage rating: 125
  • Bus material: copper
  • Rated NEMA 1 for indoor use
  • Feed type: overhead or underground
  • Number of circuits: 16
  • Number of spaces: 8
  • Phase: single-phase
  • Voltage rating: 120/240
  • Wire size: #6-1/0
  • Tangential center knockout easier installation for conduit applications
  • Steel back pan provides solid and reliable breaker mounting single piece design for stability and durability
  • Single keyhole mounting - 1 keyhole at the top provides easier mounting and leveling
  • Drywall marking on enclosure - indicates proper mounting depth for flush applications
  • Used with: type CH breakers
  • Learn More About Electrical Panels Here in our Buying Guide.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Individual Subpanels

QO 100 Amp 6-Space 12-Circuit Indoor Main Lug Load Center with Surface Mount Cover with Door
current product
CH 125 Amp 8-Space 16-Circuit Indoor Main Lug Loadcenter with Cover
BR 125 Amp 8-Space 16-Circuit Indoor Main Lug SurfaceEQ 125 Amp 8-Space 16-Circuit Indoor Main Lug Surface Mount Load Center
BrandSquare DEatonEatonSiemens
NameQO 100 Amp 6-Space 12-Circuit Indoor Main Lug Load Center with Surface Mount Cover with DoorCH 125 Amp 8-Space 16-Circuit Indoor Main Lug Loadcenter with CoverBR 125 Amp 8-Space 16-Circuit Indoor Main Lug SurfaceEQ 125 Amp 8-Space 16-Circuit Indoor Main Lug Surface Mount Load Center
Price
$3760
$3876
$4653
$4703
Ratings
(21)
(26)
(0)
(24)
Maximum Amperage (amps)100125125125
Indoor/OutdoorIndoorIndoorIndoorIndoor
Number of Spaces6888
Mounting TypeBolt OnBolt OnBolt OnBolt On
Number of Circuits12161616
Load Center TypeMain LugMain LugMain LugMain Lug
Load center width (in.)8.889.511.613
Load center height (in.)12.5717.14.615.50
View ProductView ProductView ProductView Product

Specifications

Dimensions

Load center depth (in.)
4.3
Load center height (in.)
17.1
Load center width (in.)
9.5

Details

Electrical Product Type
Main Lug/ Main Lug Kit
Indoor/Outdoor
Indoor
Load Center Mounting Type
Flush
Load Center Type
Main Lug
Maximum Amperage (amps)
125
Mounting Type
Bolt On
NEMA Configuration
NEMA 1
Number of Circuits
16
Number of Spaces
8
Phase Type
1 Phase
Product Weight (lb.)
15.1
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
ANSI Certified,UL Listed
Manufacturer Warranty
Limited Lifetime

Questions & Answers

Typical questions asked about products:

  • Is the product durable?
  • Is the product easy to use?
  • What are the dimensions of the product?

Customer Reviews

  • 4.9
    out of 26 reviews
  • 100%recommend this product
Filter by:
Showing 1-10 of 26 reviews
I've bought a couple of these to use as sub-panels. It comes with the cover w/door and a ground b...
I've bought a couple of these to use as sub-panels. It comes with the cover w/door and a ground bar as well. The quality is good with plenty of room for wiring inside the box. The cover screws line up well with the box which also has knockouts all over the top, bottom and sides. Would buy again.
by
  • Verified Purchase
  • Recommended
except that I had to have different Circuit breakers than...
except that I had to have different Circuit breakers than the one 3 weeks before. This one needed regular BR CB's! So I now have thin ones! Bah humbug!
by
  • Verified Purchase
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by
  • Verified Purchase
Everything worked out well....
Everything worked out well.
by
  • Verified Purchase
Did the job....
Did the job.
by
  • Verified Purchase
Works very well, easy to install, all my expectations met....
Works very well, easy to install, all my expectations met. Used as a sub-panel in my garage, sets me up for a few more tools in there in a small foot print.
by
  • Verified Purchase
5 Star Review
Rating provided by a verified purchaser
by
  • Verified Purchase
5 Star Review
Rating provided by a verified purchaser
by
  • Verified Purchase
5 Star Review
Rating provided by a verified purchaser
by
  • Verified Purchase
As ordered. Working as expected....
As ordered. Working as expected.
by
  • Verified Purchase
