Internet #100155072

Model # CH42B200V

Store SKU #788434

0782114810880

Eaton

CH 200 Amp 42-Space 84-Circuit Indoor Main Breaker Load Center with Cover Value Pack (5-CH120 and 1-CH230)

  • Limited lifetime warranty
  • Steel backpan for reliable breaker mounting
  • Twin neutral bars for ease of installation
$ 190 20
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

+
+

Product Overview

  • Limited lifetime warranty
  • Steel backpan for reliable breaker mounting
  • Twin neutral bars for ease of installation

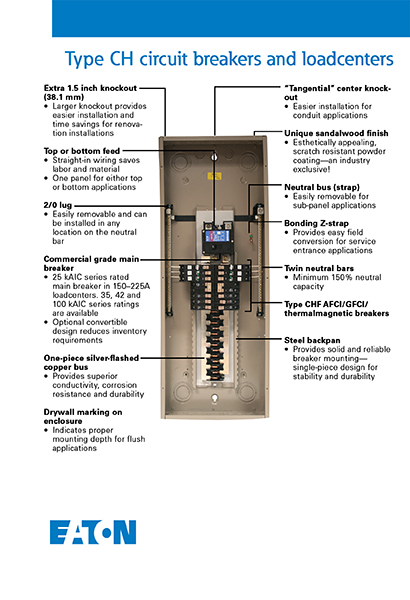

Specially designed for easy installation, Eaton's CH load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. The panels serve as main breaker for service entrances. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. The CH42B200V is a 200 Amp main breaker with 42 spaces and 42 circuits. It is a value pack for the cost conscious home owner or contractor. The value pack consists of the load center (and cover) plus 5-1P 20A, 1-30A 2P circuit breakers.
  • Amperage rating: 200A
  • Bus material: copper
  • Rated NEMA 1 for indoor use
  • Feed type: bottom or top which allows for straight-in wiring that saves labor and material
  • Interrupt rating: 25 kAIC
  • Mounting: combination
  • Number of spaces: 42
  • Phase: single-phase
  • “Tangential” center knockout easier installation for conduit applications
  • 2/0 lug easily removable and can be installed in any location on the neutral bar
  • Neutral bus (Strap) is easily removable for sub-panel applications
  • Bonding Z-strap provides easy field conversion for service entrance applications
  • Twin neutral bars minimum 150% neutral capacity
  • Steel back pan provides solid and reliable breaker mounting—single piece design for stability and durability
  • 1 piece silver-flashed copper bus - provides superior conductivity, corrosion resistance and durability
  • Single keyhole mounting -one keyhole at the top and bottom provides easier mounting and leveling
  • Includes 5-CH120 and 1-CH230 circuit breakers
  • Used with: type CH breakers
  • Learn More About Electrical Panels Here in our Buying Guide.



Product Overview

  • Limited lifetime warranty
  • Steel backpan for reliable breaker mounting
  • Twin neutral bars for ease of installation
Model #: CH42B200V
Sku #: 788434
Internet #: 100155072

Specially designed for easy installation, Eaton's CH load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. The panels serve as main breaker for service entrances. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. The CH42B200V is a 200 Amp main breaker with 42 spaces and 42 circuits. It is a value pack for the cost conscious home owner or contractor. The value pack consists of the load center (and cover) plus 5-1P 20A, 1-30A 2P circuit breakers.

  • Amperage rating: 200A
  • Bus material: copper
  • Rated NEMA 1 for indoor use
  • Feed type: bottom or top which allows for straight-in wiring that saves labor and material
  • Interrupt rating: 25 kAIC
  • Mounting: combination
  • Number of spaces: 42
  • Phase: single-phase
  • “Tangential” center knockout easier installation for conduit applications
  • 2/0 lug easily removable and can be installed in any location on the neutral bar
  • Neutral bus (Strap) is easily removable for sub-panel applications
  • Bonding Z-strap provides easy field conversion for service entrance applications
  • Twin neutral bars minimum 150% neutral capacity
  • Steel back pan provides solid and reliable breaker mounting—single piece design for stability and durability
  • 1 piece silver-flashed copper bus - provides superior conductivity, corrosion resistance and durability
  • Single keyhole mounting -one keyhole at the top and bottom provides easier mounting and leveling
  • Includes 5-CH120 and 1-CH230 circuit breakers
  • Used with: type CH breakers
  • Learn More About Electrical Panels Here in our Buying Guide.



Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Key Features

Product Overview
Key Features
  • Limited lifetime warranty
  • Steel backpan for reliable breaker mounting
  • Twin neutral bars for ease of installation
Specially designed for easy installation, Eaton's CH load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. The panels serve as main breaker for service entrances. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. The CH42B200V is a 200 Amp main breaker with 42 spaces and 42 circuits. It is a value pack for the cost conscious home owner or contractor. The value pack consists of the load center (and cover) plus 5-1P 20A, 1-30A 2P circuit breakers.
  • Amperage rating: 200A
  • Bus material: copper
  • Rated NEMA 1 for indoor use
  • Feed type: bottom or top which allows for straight-in wiring that saves labor and material
  • Interrupt rating: 25 kAIC
  • Mounting: combination
  • Number of spaces: 42
  • Phase: single-phase
  • “Tangential” center knockout easier installation for conduit applications
  • 2/0 lug easily removable and can be installed in any location on the neutral bar
  • Neutral bus (Strap) is easily removable for sub-panel applications
  • Bonding Z-strap provides easy field conversion for service entrance applications
  • Twin neutral bars minimum 150% neutral capacity
  • Steel back pan provides solid and reliable breaker mounting—single piece design for stability and durability
  • 1 piece silver-flashed copper bus - provides superior conductivity, corrosion resistance and durability
  • Single keyhole mounting -one keyhole at the top and bottom provides easier mounting and leveling
  • Includes 5-CH120 and 1-CH230 circuit breakers
  • Used with: type CH breakers
  • Learn More About Electrical Panels Here in our Buying Guide.



Product Overview

  • Limited lifetime warranty
  • Steel backpan for reliable breaker mounting
  • Twin neutral bars for ease of installation
Model #: CH42B200V
Sku #: 788434
Internet #: 100155072

Specially designed for easy installation, Eaton's CH load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. The panels serve as main breaker for service entrances. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. The CH42B200V is a 200 Amp main breaker with 42 spaces and 42 circuits. It is a value pack for the cost conscious home owner or contractor. The value pack consists of the load center (and cover) plus 5-1P 20A, 1-30A 2P circuit breakers.

  • Amperage rating: 200A
  • Bus material: copper
  • Rated NEMA 1 for indoor use
  • Feed type: bottom or top which allows for straight-in wiring that saves labor and material
  • Interrupt rating: 25 kAIC
  • Mounting: combination
  • Number of spaces: 42
  • Phase: single-phase
  • “Tangential” center knockout easier installation for conduit applications
  • 2/0 lug easily removable and can be installed in any location on the neutral bar
  • Neutral bus (Strap) is easily removable for sub-panel applications
  • Bonding Z-strap provides easy field conversion for service entrance applications
  • Twin neutral bars minimum 150% neutral capacity
  • Steel back pan provides solid and reliable breaker mounting—single piece design for stability and durability
  • 1 piece silver-flashed copper bus - provides superior conductivity, corrosion resistance and durability
  • Single keyhole mounting -one keyhole at the top and bottom provides easier mounting and leveling
  • Includes 5-CH120 and 1-CH230 circuit breakers
  • Used with: type CH breakers
  • Learn More About Electrical Panels Here in our Buying Guide.



Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand Square D Eaton Eaton Eaton
Name Homeline 200 Amp 40-Space 80-Circuit Indoor Main Breaker Qwik-Grip Plug-On Neutral Load Center with Cover - Value Pack BR 200 Amp 20 Space 40 Circuit Outdoor Main Breaker Loadcenter with Cover Value Pack (5-BR120, 1-BR230) CH 200 Amp 42-Space 84-Circuit Indoor Main Breaker Load Center with Cover Value Pack (5-CH120 and 1-CH230) CH 200 Amp 84-Circuit Main Breaker Indoor Plug On Neutral Load Center Contractor Kit ((2) CHF120 and (1) CHF230)
Price
$126.41
$180.34
$190.20
$192.06
Ratings (135) (6) (9) (1)
View Product View Product View Product View Product

Specifications

Dimensions

Load center depth (in.)
3.88
Load center height (in.)
37.0
Load center width (in.)
14.31

Details

Electrical Product Type
Load Center and Breaker Kit
Indoor/Outdoor
Indoor
Load Center Type
Main Breaker
Maximum Amperage (amps)
200
Mounting type
Surface
Number of Phases
1
Number of Spaces
42
Product Weight (lb.)
39.68lb
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
1-UL Listed,ANSI Certified,CSA Listed
Manufacturer Warranty
Lifetime

Specifications

Dimensions

Load center depth (in.)
3.88
Load center height (in.)
37.0
Load center width (in.)
14.31

Details

Electrical Product Type
Load Center and Breaker Kit
Indoor/Outdoor
Indoor
Load Center Type
Main Breaker
Maximum Amperage (amps)
200
Mounting type
Surface
Number of Phases
1
Number of Spaces
42
Product Weight (lb.)
39.68lb
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
1-UL Listed,ANSI Certified,CSA Listed
Manufacturer Warranty
Lifetime

Questions & Answers

Panel is installed but service entrance conductors enter the bottom and pass through gutters to t...

Panel is installed but service entrance conductors enter the bottom and pass through gutters to the top main breaker. I'd like to move the main breaker to the bottom. To do this, can I rotate just the bus and cover, or do I have to rotate the entire panel?
Asked by: werhat
Just turn the whole thing upside down.
Answered by: Tyler
Date published: 2019-07-29

I stripped a main lug set screw with the wrong size hex. Is there a replacement set screw available?

I stripped a main lug set screw with the wrong size hex. Is there a replacement set screw available?
Asked by: Aaron
A new lug screw should be available. Contact a local electrical supply house that deals with Eaton products and give them the complete catalog # off the main breaker. If you don't have any supply houses in your area, you might need to reach out to Eaton's customer service hotline (1-877-386-2273, option 2) and have them hook you up with the correct part and/or a supplier close enough to service you. Alternately, you could take the stripped lug screw to any electrical supply house and try to match the threads up with the lug screws used in various over-the-counter lugs that they will definitely stock. A screw from a 250MCM lug will probably be around the correct size and a complete lug in that size range should cost between $4 and $8. You might also want to contact local electricians in the event they have any used breakers with the same size lug screws and would be willing to sell you one.
Answered by: SparkySteve
Date published: 2018-09-05

Can the main feed enter from the bottom of the panel.

Can the main feed enter from the bottom of the panel.
Asked by: bob
Yes. See this manufacturer document: http://www.eaton.com/ecm/idcplg?IdcService=GET_FILE&allowInterrupt=1&RevisionSelectionMethod=LatestReleased&noSaveAs=0&Rendition=Primary&dDocName=BR003001EN
Answered by: HandyAndy
Date published: 2018-09-05

Can I buy this in white (true white)?

Asked by: MH
Eaton/Cutler-Hammer CH series loadcenters all come in tan, custom colors are not available, but you can paint yours if you wish.
Answered by: TomB2
Date published: 2018-04-26
  • y_2019, m_9, d_18, h_1CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.13
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_23
  • loc_, sid_100155072, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 19ms
  • QUESTIONS, PRODUCT

Customer Reviews

CH 200 Amp 42-Space 84-Circuit Indoor Main Breaker Load Center with Cover Value Pack (5-CH120 and 1-CH230) is rated 4.4 out of 5 by 9.
Rated 5 out of 5 by from Great price and quality The product is very well built. I liked that it has a copper bus bar. The grounding bar is separate from the neutral, so it makes the installation very clean. The CH breakers are easy to find and have ON/OFF written on them, which helps in the event of a trip. Installation was easy, but I had to cut a knockout in back to make it fit on the existing service connection. The knockouts provided in the top of the panel were plentiful enough for all 27 of my circuits and then some. The panel has a great warranty, but it's built so well that I doubt it will ever be needed.
Date published: 2011-08-30
Rated 5 out of 5 by from Great price on a great Load center! I researched a LOT of load centers looking for the best possible one to buy based on safety, quality, and performance. Customer reviews as well as testimonials from electricians sold me on the CH type by Cutler Hammer. This Cutler Hammer CH type appeared to be the number one choice for a lot of good reasons. Then I found it at the Home Depot Website for an incredible price! Thanks!
Date published: 2012-03-02
Rated 5 out of 5 by from Everything that I could need for now and the future. Product has a ton of space with 42 spaces. It is a big box so make sure you measure your space before you buy. I bought the CH style so all my existing breaker would fit in this new box.
Date published: 2014-01-21
Rated 5 out of 5 by from One of the best residential pannels you can buy. Easy to install with plenty of knockouts, has higher interrupting current capacity than many competitors, a silver plated copper bus vs aluminum, made in USA and switch duty rated breakers. These things just last.
Date published: 2016-10-11
Rated 5 out of 5 by from Very high-quality panel at an unbeatable price. ... Very high-quality panel at an unbeatable price.
Date published: 2018-10-16
Rated 5 out of 5 by from Seamless installation. Outstanding value!... Seamless installation. Outstanding value!
Date published: 2018-07-31
Rated 3 out of 5 by from Eaton 200 Amp Subpar Although I purchased this panel I had to return it. I was a nice panel but after realizing that I had 15 GFI breakers it was going to cost me an arm and a leg. In the end I went with a panel that the breakers were almost half the cost.
Date published: 2012-02-14
Rated 2 out of 5 by from Panel covers arrived bent... Panel covers arrived bent
Date published: 2018-01-23
