Internet #206668144

Model #DL-N14A9FR1-50

Store SKU #1001654149

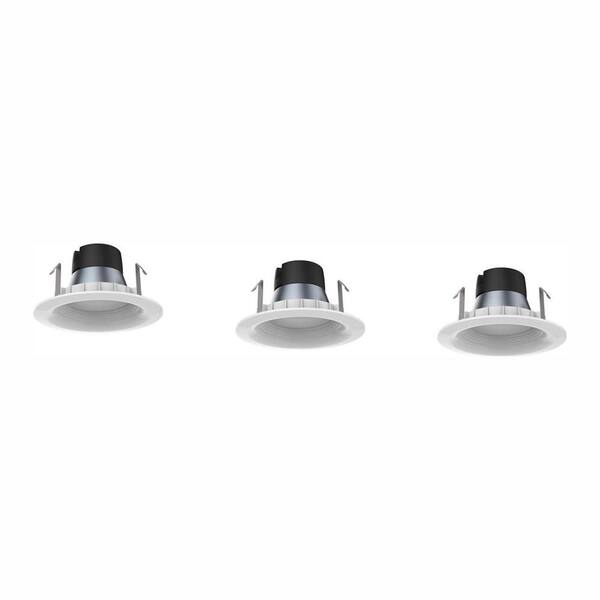

4in. White Integrated LED Recessed Trim (3-Pack)

  • Light is dimmable, check "Info & guides" for dimmer models
  • Built in LEDs no need to ever use bulbs
  • Simple installation, can be screwed in just like a light bulb
  • See More Details

Frequently Bought Together

+
+
Price:
$3197

Product Overview

EcoSmart recessed lighting
Product Trim Width
Product Compatible Housing Size
Integrated LED Light Source
Color Temperature of Light
Watt equivalence and Lumen brightness
Color Accuracy CRI Rating
Damp/Wet Rating
Product feature, Dimmable
Package Quantity
The EcoSmart 4 in. Dimmable LED Downlight has an innovative and concealed LED lighting technique. This allows for flawless distribution of light with no glare or dark spot. It has a seamless look without showing a bulb or a light source. It is easy to install, which saves time and frustration for our DIY’s and PRO customers.
  • Brightness: 600 Lumens
  • Estimated yearly energy cost: $1.08 (based on 3 hours/day, 11¢/kWh. cost depend on rates and use)
  • Life: 31.9 years (based on 3 hours/day)
  • Light appearance: 5000K daylight
  • Energy used: 9-Watt (equivalent to a 65-Watt standard incandescent light bulb)
  • Lumens per watt: 66.67
  • Uses 86% less energy compared to a standard incandescent light bulb
  • Dimming range between 10% to 100% and compatible with most household dimmers
  • Rated for damp locations
  • Ideal for use with most 4 in. recessed cans
  • Shatter resistant
  • Contains mercury: no
  • Click here to learn more about Eco Options and Energy Efficiency

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Actual Aperture Width (in.)
3.11
Assembled Depth (in.)
5.30 in
Assembled Height (in.)
2.89 in
Assembled Width (in.)
5.30 in
Housing Height (in.)
5.6
Maximum Cutout Size (in.)
4
Nominal Lens Aperture Size
4 in.
Trim Size (Width)
4 in.

Details

Actual Color Temperature (K)
5000
Color Family
White
Color Rendering Index (CRI)
90
Color Temperature
Daylight
Commercial/Residential
Residential
Compatible Bulb Type
Integrated LED
Damp/Wet Rating
Damp Rated
Features
Dimmable,Low Glare,Retrofit
Fixture Color/Finish
Baffle
Fixture Material
Plastic
IC Rating
IC Rated
Included
Light Bulb(s),Mounting Brackets,Wiring Connectors
Indoor/Outdoor
Indoor
Integrated LED Type
Standard
Lumens
600
Maximum Bulb Wattage
9
New Construction or Remodel
New Construction,Remodel
Package Quantity
3
Product Weight (lb.)
.35
Recessed Lighting Type
Housing Required
Returnable
180-Day
Style
Classic,Modern
Trim Type
Baffle
Voltage
Line Voltage
Watt Equivalence
65

Warranty / Certifications

Manufacturer Warranty
5 years

Questions & Answers

48Questions20Answers

will these fit into a 3 in cutout?

Asked by skip August 19, 2020
1
Answer

it best fits for the 4 inch, the 3 inch will not fit completely.

Will this replace an existing SKU 1001-236-903, Model ECS KN6 W27 120?

Asked by Laurie August 11, 2020
1
Answer

Please contact customerservice@leedarson.com.

I have these throughout my home and all work great. But I have one bulb that when it's turned on,...

Asked by olivia June 1, 2020
1
Answer

Please reach out to customerservice@leedarson.com for further assistance.

I bought the new recessed light with wrong socket adapter can I buy the old style screw in adapter or is it not compatib

Asked by Robert May 7, 2020
1
Answer

It depends on your situation. The most common screw in base size is E26. You can reach out to 1800HOMEDEPOT and they can put you in touch with the manufacturer for advice.

Does the wire have the correct clip to mount into an LED housing or are these meant for Edison ba...

Asked by John January 16, 2020
3
Answers

These lights are built as “retro fit” lights to an existing can for both interior or exterior use.

what is the color of the bulb

Asked by Levanche January 3, 2020
1
Answer

Love this product makes old recessed light fixtures look brand new. Great way to modernize an update old recessed lighting. The LED light is a bright white color offering great lighting. Great for lighting dimly lit kitchens

Do you have to use a can?

Asked by Ronney August 26, 2019
4
Answers

no need for a can, that matches with the ceiling, you can connect the cables right to the power network

Will it work with a Wemo wifi dimmer switch? Thanks

Asked by Sanjay December 30, 2018
3
Answers

The fixture would need a "dimmable" LED bulb, with any dimmer switch that has "for LED" on the package. Then it should work fine. There different types of bulbs, the key here is "dimmable" on the package.

Being a GU24 connection implies I can remove my GU24 CFL bulb and simple replace with this GU24 c...

Asked by JimK December 4, 2018
4
Answers

Please ignore the well meaning, but uninformed answer above that says “not sure what you mean...”. Recessed “can” lights designed for CFL bulbs with a 3 or 4 pin plug in connector or a 2 post twist in connector (like the one shown), each have a ballast located above the ceiling in a built in electrical box located on the side of the can. Normal LED retrofit lights cannot be wired into these CFL type cans without removing the ballast. This special LED retrofit light is designed to be connected without removing the ballast. So if you do have a CFL only designed can, you need to either use a specialty retrofit kit made for CFL fixtures like the one shown, or remove the ballast from the electrical circuit. But if your your recessed can light will accept a twist in incandescent light bulb, you DO NOT have a ballast and you do not want to use this LED retrofit light.

Trying to figure out if my housing will accept this trim. I have an Elco Lighting EL 99 housing.

Asked by Bmf September 22, 2018
1
Answer

The housing needs to be at least 5.6 inches in order for this downlight to install correctly.

4in. White Integrated LED Recessed Trim (3-Pack) - page 2

Customer Reviews

  • 215 Customer Reviews
  • 4.5 out of 5 stars overall
89% of customers recommended.
Overall Ratings
5star-icon(163)
4star-icon(29)
3star-icon(7)
2star-icon(7)
1star-icon(9)
Sort By:
Ecosmart does an excellent job building a light weight, compact, easy to install product for inte...
Ecosmart does an excellent job building a light weight, compact, easy to install product for interior/exterior use. I chose daylight white which are ultra white lights for our soffit lights. They are very energy efficient LED. Price was easy also!!
Was this helpful?
1
0
Very easy to install. Taking down the parts of the old light that you don't need was harder than...
Very easy to install. Taking down the parts of the old light that you don't need was harder than the installation of the new light. LED is the way to go. No more changing out bulbs in recessed lights on a cathedral ceiling. I should have taken a before picture but I was in such a hurry to get these in, the shower is probably 4 times brighter than it was with a regular 100 bulb. The 4" lights were replacements for two lights that were over a part of the kitchen counter/bar. If you don't mind bright lights, especially as we get older, the extra illumination helps.
Was this helpful?
0
0
I used this light to replace a semi-flush "boob" light in a mudroom. Installation was simple and...
I used this light to replace a semi-flush "boob" light in a mudroom. Installation was simple and the light output was as expected. I wish that the bezel could be separated from the lens to make paining easier. The lens is about the same size as the cap on a can of spray paint so it all worked out well.
Was this helpful?
0
0
Simple to replace the old 4 inch can trims it with these.
Simple to replace the old 4 inch can trims it with these.
Was this helpful?
0
0
No tools required for installation. Looks great and works great. Love that there is soft white an...
No tools required for installation. Looks great and works great. Love that there is soft white and bright white so that I can pick what works best for the space.
Was this helpful?
0
0
Look very good, and very bright
Look very good, and very bright
Was this helpful?
0
0
Easy to put in and very bright
Easy to put in and very bright
Was this helpful?
0
0
Good quality -price ...
Good quality -price
Was this helpful?
0
0
I hope it last 35 years . What it say on box .
I hope it last 35 years . What it say on box .
Was this helpful?
0
0
Needed replacement bulbs, found these and worked great. Easy to...
Needed replacement bulbs, found these and worked great. Easy to install!
Was this helpful?
0
0
Review this Product
Share your thoughts with other customers
