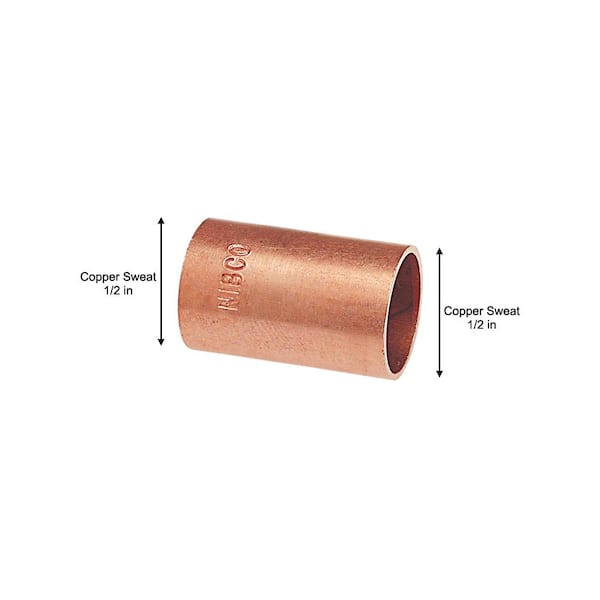

This Copper Pressure Slip Coupling is designed for hot and cold water pressure distribution systems. It features solder cups, no center stop and is typically used to connect two lengths of piping. Each coupling is suitable for both commercial and residential treatments.
Double Fitting Size | 1/2" x 1/2" |
|---|---|
Fitting 1 size | 1/2" |
Fitting 2 size | 1/2" |
Fitting Size Dimensions | 1/2" x 1/2" |
Single Fitting Size | 1/2" |
Application | Air Conditioning, Potable Water, Refrigeration |
|---|---|
Color Family | Copper |
Compatible Pipe Material | Copper |
Connection | Copper Sweat x Copper Sweat |
Connection 1 | Copper Sweat |
Connection 2 | Copper Sweat |
Connectivity | Solder |
Features | Corrosion Resistant, Lead Free |
Fitting or Connector Type | Coupling |
Fitting/ Connector Collection | Copper |
Material | Copper |
Maximum working pressure (psi) | 722 |
Maximum Working Temperature (F) | 400 |
Pack Size | 1 |
Pipe or Fitting Product Type | Fittings & Connectors |
Product Weight (lb.) | 0.025 lb |
Returnable | 90-Day |
Manufacturer Warranty | The Manufacturer warrants to the Owner, for a period of 50 years from the date the warranty begins, that its properly installed Product will be free of failure as a result of defects in material or workmanship in manufacturing the Product. |
|---|
Thank you for your inquiry on the Everbilt 3/4 in. Copper Pressure Slip Coupling Fitting. This fitting is designed to accept 3/4 in. pipe. The size in the name of the fitting reflects the size pipe it works with, not the actual size of the fitting itself. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.
This is a 3/4 in. coupling. If you are joining two 3/4 in. copper pipes together, this is what you would use. The pipe itself slips into the coupling, which you would then solder.
Thank you for your inquiry on the Everbilt 1/2 in. Copper Pressure Slip Coupling Fitting. As long as the ends of both pipe connections are properly deburred on the inner diameter and the line velocity is properly set for copper piping based on water temperature, the differences in wall thickness will not appreciably cause a velocity increase sufficient to damage the piping, in most cases. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.
Thank you for your inquiry on the Everbilt 1/2 in. Copper Pressure Slip Coupling Fitting. The outside diameter of the coupling is .69 in. The tubing that it will accept is 1/2 nominal or 5/8 OD L/K/M copper tubing. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.
11/16”
There are obviously a few redknecks out there who don't understand the difference between inner diameter and outer diameter. The difference will be 2x the wall thickness. So the question could also be "what is the wall thickness?"
The 1/2 inch coupling has an inside diameter of 5/8 inch.
The diameter is 1 inch.
Thank you for your inquiry on the Everbilt 1 in. Copper Pressure Slip Coupling Fitting. Our copper fittings on the 1 in. pressure rated fittings will measure 1.122 in. – 1.127 in. on the ID of the solder cup by standard ASME B16.22. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.
The inside diameter of this 1/2" coupling is 5/8".
Thank you for your inquiry on the Everbilt 1-1/2 in. Copper Pressure Slip Coupling Fitting. The cup is 1.628 in. to 1.633 in. The minimum inside diameter of any of our CTS 1-1/2 fittings will be 1.47 in. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.
I don' t think so. It would most likely split.
Thank you for your inquiry on the Everbilt 3/4 in. Copper Pressure Slip Coupling Fitting. The fit you are suggesting is not recommended and doing what is being asked will thin the wall or possibly crack the fitting. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.
It might work ... but it was not designed for this. Consider cutting away the extra coupler and rebuilding the section with standard parts and techniques.
Yes
Thank you for your inquiry on a fitting to be used to replace this application and avoid the sweating and soldering. By “Shark” type we would assume they are referring to SharkBite which would be NIBCO Push or for the Push coupling the P700. This can be used in the place of a wrot copper coupling if the temperatures and pressure are within the push fittings rating which is 200 psi up to 200°F and the media is compatible (Water). If you need further assistance, you can reach a NIBCO Technical Services Advisor, M-F 8am - 6pm EST, by phone at (888) 446-4226. Thank you!
5/8” made to slide down 1/2 “copper
obviously, some people do not understand when someone asks if they measure by ID or OD Plumbing always measures ID refrigeration always measures OD. so if someone is doing AC and looking for a 3/4 " copper 90 they are looking for a 3/4" OD 90. not3/4PLBG
.625 or 5/8" to match the od of copper tubing. Or in lay mans terms "who cares" as long as it fits over the copper pipe you have.
5/8"
