- Aluminum housing enables efficient motor cooling
- Designed with thermal overload protection for safety
- Submersible design allows for quiet operation
- View More Details
Free & Easy Returns In Store or Online
Return this item within 7 days of purchase.
Ask about this product
Get an answer now with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product

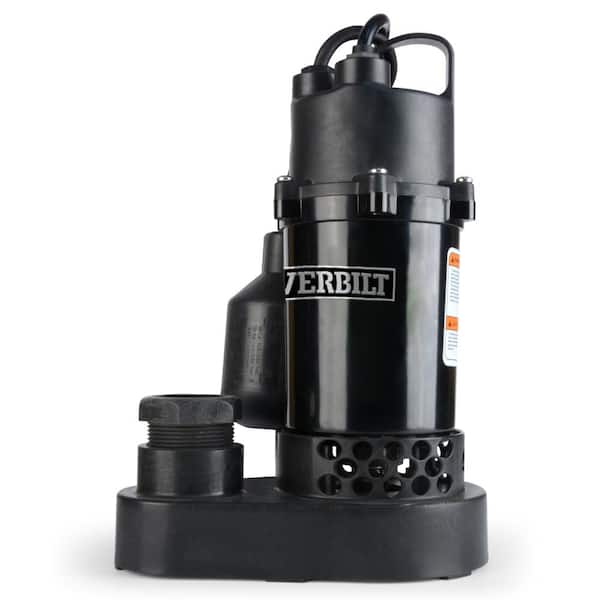

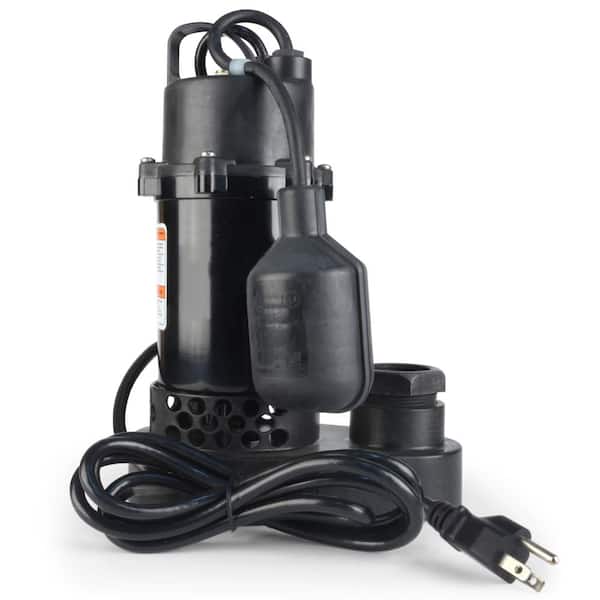

The Everbilt 1/4 HP submersible sump pump is built with an aluminum motor housing for efficient motor cooling. The pump is available with a tethered float switch requiring an 18 in. minimum diameter wide sump basin. The motor is built with thermal overload protection. The pump comes with a 1-year limited warranty.
Highlights
- Aluminum motor housing for efficient motor cooling
- Continuous duty, efficient 115-Volt PSC motor for lower carbon footprint, higher efficiency using less energy to operate

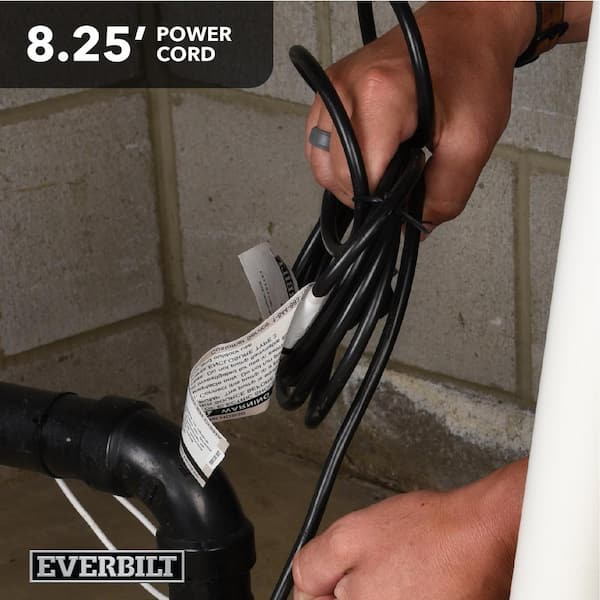

- 8.25 ft. cord length
- Submersible for quiet operation
- 1-1/2 in. FNPT discharge

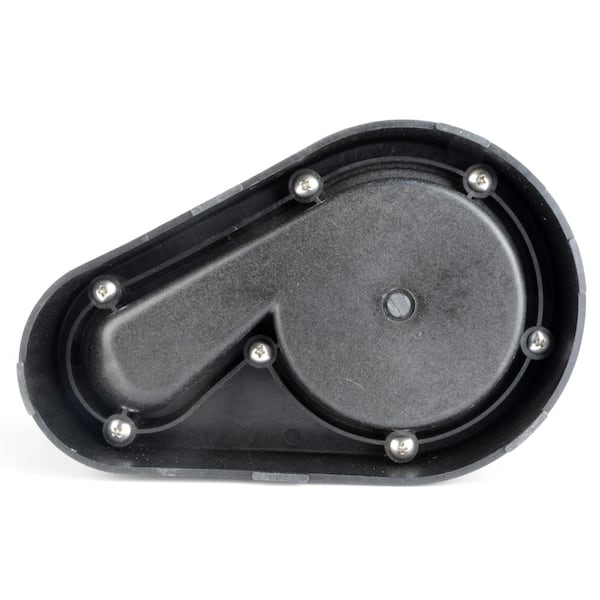

- Semi-open thermoplastic impeller passes 3/8 in. solids
- Pumps up to 37 GPM at 10 ft., outperforms the competition
- Shop All Everbilt Sump Pumps Here
- Click here for more information on Electronic Recycling Programs
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Additional Resources
Shop All EverbiltSpecifications

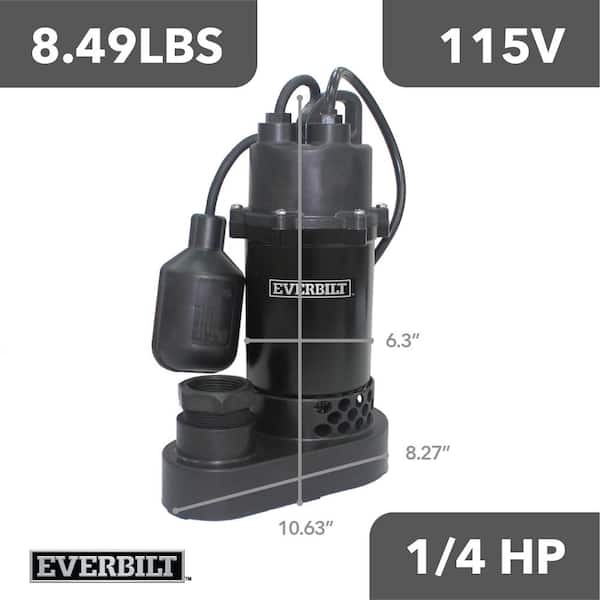

Dimensions: H 10.63 in, W 8.27 in, D 6.3 in
Dimensions
Product Depth (in.) | 6.3 in |
|---|---|
Product Height (in.) | 10.63 in |
Product Width (in.) | 8.27 in |
Details
Amperage (A) | 4.5 A |
|---|---|
Cord Length (ft.) | 8.25 |
Discharge Flow @ 0 ft. (gallons/hour) | 3000 |
Discharge Flow @ 0 ft. (gallons/min) | 50 |
Discharge Flow @ 10 ft. (gallons/hour) | 2220 |
Discharge Flow @ 10 ft. (gallons/min) | 37 |
Discharge Flow @ 15 ft. (gallons/min) | 27 |
Features | Bottom/End Suction, Non-Clogging, Self-Priming, Thermal Overload Protection |
Housing Material | Aluminum |
Impeller Material | Plastic |
Maximum Horsepower (hp) | 1/4 |
Maximum Pressure (PSI) | 8.66 |
Maximum Working Temperature (F) | 100 |
Minimum Sump Basin Diameter | 18 or More |
Minimum working temperature (F) | 35 |
Outlet Diameter Connection (in.) | 1-1/2 FPT |
Pack Size | 1 |
Product Weight (lb.) | 8.49 lb |
Pump Switch Type | Tethered |
Returnable | 7-Day |
Switch-On Height (in.) | High (14+ in.) |
Vertical Lift (ft.) | 20 |
Voltage | 115v |
Warranty / Certifications
Certifications and Listings | CSA Certified |
|---|---|
Manufacturer Warranty | 1 year |
Questions & Answers
Can this be used in 5 gallon bucket
NO, the minimum basin size for this pump is 18" diameter by 24" depth. The tethered float switch needs sufficient room to swing up and down on its tethered cord without hitting the basin walls and potentially hanging up, which would risk the pump not turning on and/or off correctly. This condition could lead to a flooded basement. The minimum basin size is critical to proper installation and operation! Thanks, Everbilt Customer Service
Is good for septic tank
Hello Carlos, This pump is not suitable for a septic tank. This pump is designed for home sump applications, pumping water. Thank You, Everbilt Customer Service, 844-833-1872

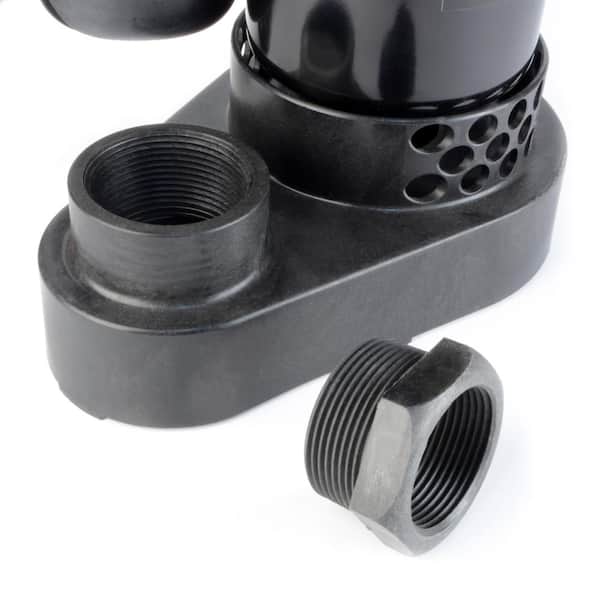

what size are the discharge threads
Hello, The discharge thread is 1-1/2 NPT or 1-1/4 NPT. If you want the larger thread simply remove the adapter that is assembled with the new pump. Thank You, Everbilt Customer Service, 844-833-1872

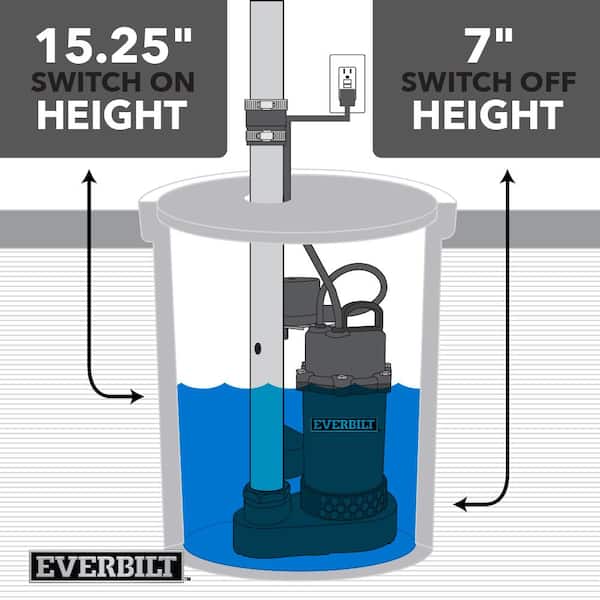

This pump activates at 15.25" of water. Shouldn't it be less?
Sung Thank you for your question. Pump on height is 15.25" and off is 7". We recommend a 18x24" basin for this pump. Regards Everbilt Customer Service.
What is the length of the power cord?
Sparky Thank you for your question. The power cord is 8' in length. Regards, Everbilt Customer Service
Can this pump be used in a septic tank
AWhite Thank you for your question. No, this is a sump pump and not designed to pump solids. You will need a pump that passes at minimum a 1/2" solid size and we would recommend a pump that can handle 3/4" solid size for a septic application. Regards, Everbilt Customer Service
What size outlet pipe connects to this this sump pump
Henry Thank you for your question. This pump has an 1 1/2" connection. Regards, Everbilt Customer Service
How deep should your pit be for this pump
minimum basin depth is 24" per the installation manual at this URL: https://images.thdstatic.com/catalog/pdfImages/d9/d95229d9-6c25-4eff-8a0e-0fa507483adb.pdf Thanks, Everbilt Customer Service
