Internet #202088377

Model # 5020S14

Store SKU #707965

0099713033634

Everbilt

140 lbs. Extension Springs (2-Pack)

$ 29 48

Overview

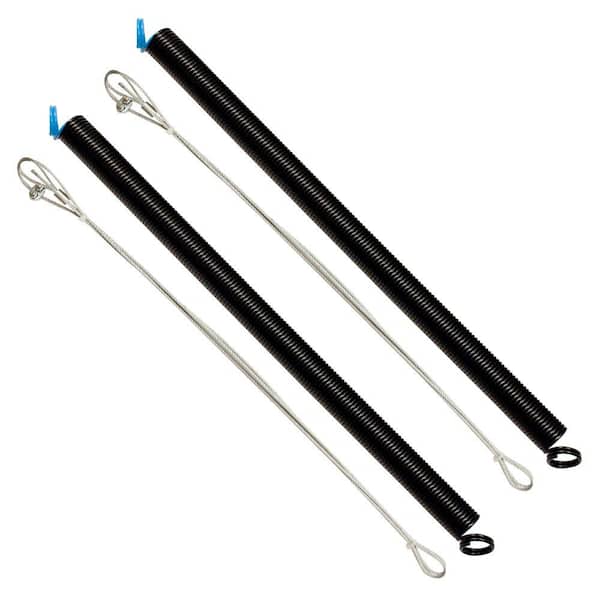

The Overbuilt 140 lbs. Extension Springs (2-Pack) are made of spring steel and designed to be mounted perpendicular above the horizontal track of the garage door. They stretch to provide lifting power for the garage door. The springs have a safety cable inside to prevent injury in case of accidental breakage.
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

The Overbuilt 140 lbs. Extension Springs (2-Pack) are made of spring steel and designed to be mounted perpendicular above the horizontal track of the garage door. They stretch to provide lifting power for the garage door. The springs have a safety cable inside to prevent injury in case of accidental breakage.
  • Suitable for 2-car garage doors
  • Safe length when stretched of 67 in. according to ansi/dasma 103
  • Able to lift garage doors up to 140 lbs.
  • Color-coded blue to indicate weight-bearing capacity
  • Durable and tested to open and close the door at least 10,000 times
  • Installation guidelines and hardware included

Product Overview

Model #: 5020S14
Sku #: 707965
Internet #: 202088377

The Overbuilt 140 lbs. Extension Springs (2-Pack) are made of spring steel and designed to be mounted perpendicular above the horizontal track of the garage door. They stretch to provide lifting power for the garage door. The springs have a safety cable inside to prevent injury in case of accidental breakage.

  • Suitable for 2-car garage doors
  • Safe length when stretched of 67 in. according to ansi/dasma 103
  • Able to lift garage doors up to 140 lbs.
  • Color-coded blue to indicate weight-bearing capacity
  • Durable and tested to open and close the door at least 10,000 times
  • Installation guidelines and hardware included

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand Everbilt Everbilt E900 HARDWARE Everbilt
Name 90 lbs. Extension Springs (2-Pack) 110 lbs. Extension Springs (2-Pack) P728 28 in. Plug-End Extension Spring (0.177 in. No. 7 Wire) 140 lbs. Extension Springs (2-Pack)
Price
$17.58
$19.98
$22.81
$29.48
Ratings (82) (63) (14) (71)
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
2.2
Product Height (in.)
2.2
Product Width (in.)
25

Details

Garage Door Part/Accessory Type
Extension Spring
Product Weight (lb.)
8.5lb
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
N/A

Specifications

Dimensions

Product Depth (in.)
2.2
Product Height (in.)
2.2
Product Width (in.)
25

Details

Garage Door Part/Accessory Type
Extension Spring
Product Weight (lb.)
8.5lb
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
N/A

Questions & Answers

Are these similar in size and strength as those from 40 years ago? I need a 2" diameter x 22" uns...

Are these similar in size and strength as those from 40 years ago? I need a 2" diameter x 22" unstretched.
Asked by: Ed
Probably no guarantee they are the same. You need to weigh the door, then review required spring needed at an on-line spring manufacturers site before you order. Before attempting your replacement, inspect your lifting cables to see if they are frayed anywhere and especially at the point attached to the frame. Mine were and because my door was very old I had to buy new cable (same diameter/safe weight limit) and make my own lifting cable. This was primarily because my door tracks did not provide the required anchor points and standard lifting cable lengths that you can buy at a hardware store were too short.
Answered by: turboslobo
Date published: 2018-05-16

cant tell color is light blue or blue so old

the color is light blue or blue cant tell light blue is for 90 lbs blue is for 140 lbs can you put the 140 on if you cant tell
Asked by: tasman
If it's a standard single-car 7 ft high WOOD sectional door, it's probably the 140 lb springs. If it's a single-car 7 ft high STEEL (the thin stuff) sectional door, it's probably 90 lb springs. The only absolute way to get the proper springs is to weigh the door. My advice: Weigh the door, look up the door specs online, or get a professional.
Answered by: Gmrad
Date published: 2018-06-11

Can I use 140 LB extension springs instead of 130 LB springs as long as I change both for a single car garage

The current spring (broken) is color coded yellow for 130 LB springs. I see that the local store has the 140lb in stock. Is the 140LB spring better for a single car garage door than 130LB Thanks
Asked by: Ravi
Yes - but it maybe more spring than you need. If a spring is too strong you will have to pull your door down and it may not want to stay down.
Answered by: Poncho
Date published: 2018-12-19

Can this unit be used with an 8ft tall garage door?

Asked by: St
You need to weigh the door, then review required spring needed at an on-line spring manufacturers site before you order. Alternatively, if your old spring has a color code and the door opener worked fine, order a spring with the same color markings. I reviewed install videos on Youtube, they are numerous. Before attempting your replacement, inspect your lifting cables to see if they are frayed anywhere and especially at the point attached to the frame. Mine were and because my door was very old I had to buy new cable (same diameter/safe weight limit) and make my own lifting cable. This was primarily because my door tracks did not provide the required anchor points and standard lifting cable lengths that you can buy at a hardware store were too short.
Answered by: turboslobo
Date published: 2018-05-16
  • y_2019, m_6, d_15, h_3CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_7
  • loc_, sid_202088377, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 101ms
  • QUESTIONS, PRODUCT

Customer Reviews

140 lbs. Extension Springs (2-Pack) is rated 4.5 out of 5 by 71.
Rated 5 out of 5 by from 140 Lb. Extension Springs The weight rating on these springs is accurate. I have a single car wood garage door that is over 50 years old but still in good shape on the outside. I weighed the door with a bathroom scale with the door down and disconnected from the springs and cables, and the weight came to 140 lbs. I bought these 140 lb. springs. They work great once you get the cable tension properly and evenly adjusted, which can take a bit of fine tuning so that the door will stay down when you close it while also not requiring effort to raise the door. The key to good results is that you must get an accurate weight on your door. Don't go by some chart that claims to estimate weight by number of sections and panels, since some doors are fiberglass and others are wood. You also definitely need two good sized "C" clamps to hold the door up from each side when working on the installation and adjustments. Always replace both springs together. Buying the pack of two is definitely more economical than buying single springs.
Date published: 2016-05-20
Rated 5 out of 5 by from Excellent springs Springs are excellent replacement springs. I weighed my door before purchasing springs and it weighed exactly 143.7 lbs. So I purchased these 140lb springs. And guess what? They were a perfect match. I can 1/2 or 3/4 close the door and it will stay exactly in place. It only takes light pressure to open or close the door. Im impressed. I'm using it with a garage door opener, but tested it by hand after install to make sure it was adjusted correctly. As for the other 3 star review, I wouldn't mark it a 3 star product as you don't know how to install a spring. All newer springs have the double coils at the end, so it requires a hook or clasp of some sort on the mounting sides. If you are replacing an open ended spring with this, buy a hook or clasp at store while there. Lastly, this is the best price around. The other competitors sell the exact same spring's for twice the price. You pay ~$25 for two springs with saftey cables where at the other stores, it is ~$20-25 for a single spring with saftey cable.
Date published: 2016-04-07
Rated 5 out of 5 by from Easy to install and very well and strong built spring Easy to install and very well and strong built spring
Date published: 2019-05-21
Rated 4 out of 5 by from 4 Star Review Rating provided by a verified purchaser
Date published: 2019-05-15
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2019-04-27
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2019-03-27
Rated 4 out of 5 by from Had to do a little research to figure out which springs to buy for my door. The paint was so fad... Had to do a little research to figure out which springs to buy for my door. The paint was so faded on them I couldn't tell what color code they might have been. It came down to weighing the door on the bathroom scale where it came in at 139.5 pounds. These 140 pound rated springs were adequate to the task and maybe the heft of the door is required for proper operation of an electric opener but it is still pretty hefty to get started for manual operation. I used 150 pound springs on the other identical door and it operates much easier yet still closes properly.
Date published: 2018-02-13
Rated 5 out of 5 by from They are too strong for my door. Returned for the... They are too strong for my door. Returned for the 90 lbs ones (light blue coded), which work perfectly.
Date published: 2019-02-12
