Internet #204620132

Model #C600HD38

Store SKU #505036

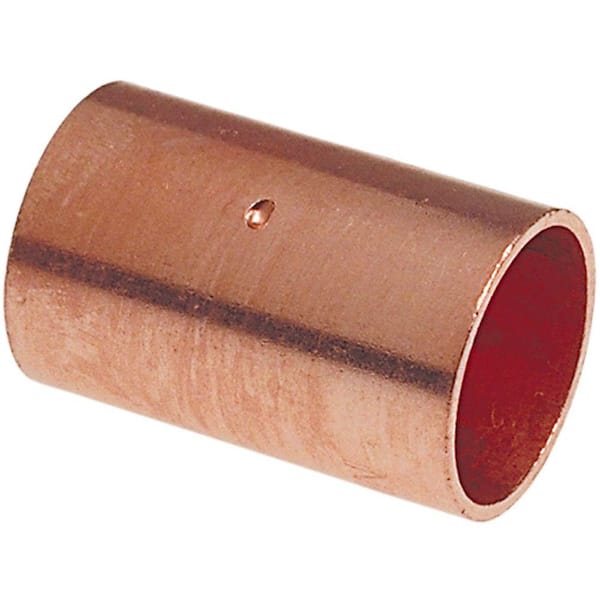

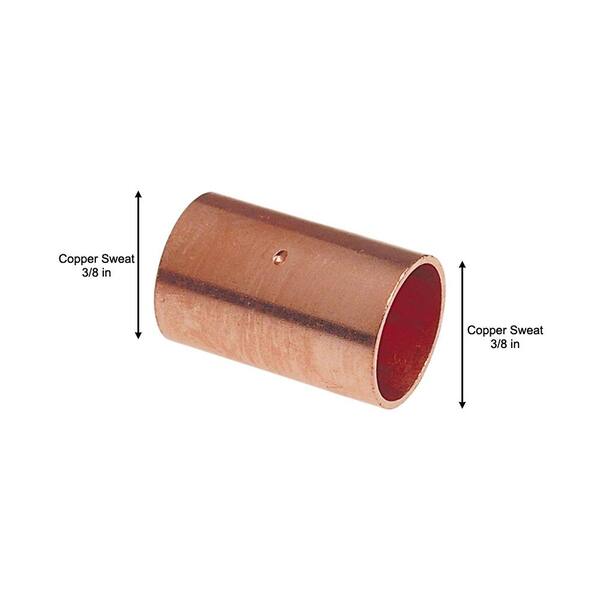

3/8 in. Copper Pressure Cup x Cup Coupling Fitting with Stop

  • Designed for use with aboveground water supply piping
  • Ideal for potable water, air conditioning and refrigeration
  • Dezincification resistant
  • See More Details
98¢

Frequently Bought Together

+
+
Price:
98¢

Product Overview

The lead-free wrought copper solder pressure coupling is used in residential and commercial systems such as potable water, air conditioning and refrigeration. The coupling features solder cups and a dimple stop. The fitting provides a means of connecting 2 lengths of tube together. In addition to its inherent qualities of beauty, durability and low maintenance, copper’s reusability makes it an ideal application in sustainable projects.
  • Copper construction
  • For aboveground use
  • Used to join straight lengths of tubing
  • Dezincification resistant
  • Features solder cups and a dimple stop
  • Ideal for potable water, air conditioning and refrigeration

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Copper Fittings

1/4 in. Copper Pressure Cup x Cup Coupling Fitting with Stop
current product
3/8 in. Copper Pressure Cup x Cup Coupling Fitting with Stop
3/4 in. Copper Pressure Cup x Cup Coupling With Stop Fitting3/4 in. Copper Pressure Slip Coupling Fitting
BrandEverbiltEverbiltEverbiltEverbilt
Name1/4 in. Copper Pressure Cup x Cup Coupling Fitting with Stop3/8 in. Copper Pressure Cup x Cup Coupling Fitting with Stop3/4 in. Copper Pressure Cup x Cup Coupling With Stop Fitting3/4 in. Copper Pressure Slip Coupling Fitting
Price
72¢
98¢
$123
$199
Ratings
(40)
(40)
(40)
(31)
Fitting 1 size1/4"3/8"3/4"3/4"
Fitting or Connector TypeCouplingCouplingCouplingCoupling
ConnectivitySolderSolderSolderSolder
ApplicationNon-Potable Water,Potable WaterNon-Potable Water,Potable WaterNon-Potable Water,Potable WaterNon-Potable Water,Potable Water
Pack Size1111
FeaturesLead FreeLead FreeCorrosion ResistantUnderground Rated
MaterialCopperCopperCopperCopper
View ProductView ProductView ProductView Product

Specifications

Dimensions

Double Fitting Size
3/8" x 3/8"
Fitting 1 size
3/8"
Fitting 2 size
3/8"
Product Length (in.)
0.950

Details

Application
Non-Potable Water,Potable Water
Color Family
Copper
Color/Finish
Copper
Compatible Pipe Material
Copper
Connection 1
Copper Sweat
Connection 2
Copper Sweat
Connectivity
Solder
Features
Lead Free
Fitting or Connector Type
Coupling
Fitting/ Connector Collection
Copper
Material
Copper
Maximum working pressure (psi)
779
Maximum Working Temperature (F)
400
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
0.014
Reducing Fitting
No
Returnable
180-Day

Warranty / Certifications

Manufacturer Warranty
The Manufacturer warrants to the Owner, for a period of 50 years from the date the warranty begins, that its properly installed Product will be free of failure as a result of defects in material or workmanship in manufacturing the Product.

Questions & Answers

9Questions17Answers

Would this work for a 1.125" circumference pipe or do I need to find a larger coupling?

Asked by Nick October 25, 2018
1
Answer

1 inch copper has an outer diameter of 1.125 and an inner diameter of 1 inch. This coupling is designed to couple two 1" copper pipes over the outside of those pipes. Hopefully you meant diameter and not circumference which is defined as 2*pi*r or d*pi. If you have a standard 1" copper pipe (not tubing) then this should work for you.

What is the ID of this coupler please?

Asked by James July 7, 2018
1
Answer

This is model number W00690DHDE.

Can this coupling be used to fit over a 1/2 copper pipe. That needs to extend with the new shut off valve reach the cold water hose.

Asked by Tina May 2, 2018
5
Answers

The cheapest and best route as stated would be to get a longer braided line. You can cut off the copper pipe or Dremel tool cut off the copper supply line fitting's brass ring, respectively. Be very careful cutting off the old brass compression ring on the old pipe, now exposed. Do not nick the copper pipe. Solder sweat on a 1/2" elbow. Install a short 1/2" copper pipe piece needed to reach the braided line area. Install another copper 1/2" elbow pointing up. Install a short piece of 1/2" copper pipe. Sweat on or compression ring (yuk) install a new Quarter Turn *leak proof* Teflon stem valve, that is a sweat 1/2" pipe to 3/8" compression ring valve. The best wetting sweating solder to use is any old 50:50 Lead-Tin solid solder you might have. It is not sold for plumbing anymore. It is used as stain glass solid solder. The new solders do not wet copper even if you use the best Nokarode brand self cleaning acid flux, IMO. If you don't have old 50-50 solder, go the longer braided line route or try antimony solder. Practice using antimony based solder on loose fittings to make sure you can get it to flow. I can't. The joint lead in pipes builds up overnight when water is standing. You have old solder looking pipes in the picture. The first thing you do in the morning when you get up is flush the lines using a toilet. New lower or no metals city water is run into the lines. Always run the kitchen branch cold water for 30 second before making coffee to flush the overnight standing water in old 50-50 soldered joints and lines not cleared by the toilet flush. HTH

OD?

Asked by LV January 28, 2018
4
Answers

Actual vernier caliper values for these one inch copper pieces are: Couple length: 1.980", 50.29 mm Coupling ID: 1.125", 28.58 mm Coupling OD: 1.232", 31.29 mm L 1" Pipe OD: 1.927", 16.10 mm L 1" Pipe ID: 1.128", 28.50 mm Fitting to copper L type pipe clearance? Three thousandths of an inch, 0.003"

Will this coupling work with 1/4" copper tubing like used for refrigerator ice makers?

Asked by Caneman July 3, 2017
2
Answers

No, it will not work with typical refrigerator soft copper tubing that measures 1/4" outside diameter (OD). Nominal diameter for 1/4" pipe is an internal measurement meaning that the outside of the pipe (and the inside of this 1/4" couple) will be larger than 1/4." I think I've used nominal 1/8" couples to join 1/4" OD pipe, but it was a long time ago so caution to verify fit before you buy.

how much contractor pack

Asked by Duke April 1, 2017
1
Answer

Hi Duke, for this 1/2 in. Copper Pressure Cup x Cup Coupling with Stop, if ordered on Homedepot.com, will be shipped and purchased as it is displayed on Homedepot.com when localized to your area. I would suggest contacting your local Home Depot Store's Prodesk and speak to them about your inquiry. We appreciate your business and look forward to serving you in the future. Thank you for shopping Home Depot!

How much mm is this

Asked by nick February 4, 2017
1
Answer

Thank you for your inquiry on the 1/2 in. Copper Pressure Cup x Cup Coupling with Stop. This material is 25.4 mm. If you need further assistance, you can reach a NIBCO Technical Services Advisor, M-F 8am - 6pm EST, by phone at (888) 446-4226. Thank you!

Can this be used to join copper cooling tube with an OD of 3/8 "

Asked by Tom January 8, 2017
1
Answer

Thank you for your inquiry on the 3/8 in. Copper Pressure C x C Coupling with Stop. This can be used to join copper cooling tube with an OD of 3/8 in. If you need further assistance, you can reach a NIBCO Technical Services Advisor, M-F 8am - 6pm EST, by phone at (888) 446-4226. Thank you!

Is the copper fittings you sell varnished or unvarnished? Manufacturer is everbilt.

Asked by Kat16 November 9, 2016
1
Answer

Thank you for your inquiry on the 3/4 in. Copper Pressure C x C Coupling with Stop. NIBCO Copper fittings are Polished Varnished. If you need further assistance, you can reach a NIBCO Technical Services Advisor, M-F 8am - 6pm EST, by phone at (888) 446-4226. Thank you!

Customer Reviews

  • 40 Customer Reviews
  • 4.5 out of 5 stars overall
83% of customers recommended.
Overall Ratings
5star-icon(31)
4star-icon(4)
3star-icon(0)
2star-icon(1)
1star-icon(4)
Sort By:
This 1" copper coupling has an ID of one inch. It is used to connect two pieces of one inch copp...
Ease of installation :
5
Quality :
5
Value :
5
Seeds Program Review
(What's this)
This 1" copper coupling has an ID of one inch. It is used to connect two pieces of one inch copper pipe together. It has a stop dimple in the center to prevent inserting either pipe in too far. This coupling can be used in residential or commercial applications for water service or A/C and refrigerating systems. Sweat soldering is the required method of connection with this item.
Was this helpful?
1
0
This coupler with a nice stop, is of high quality, and seamless. What I liked about this coupler ...
Ease of installation :
5
Quality :
5
Value :
5
Seeds Program Review
(What's this)
This coupler with a nice stop, is of high quality, and seamless. What I liked about this coupler is that it has good girth. That written, when the situation comes where you need to slide the coupler over, on to a pipe, the stop can be sanded/filed down without compromising the intergrity of the Coupler...............................................
Was this helpful?
1
0
Too tight on old pipe and new. Maybe could have knocked it in place with a mallet but there wasn'...
Too tight on old pipe and new. Maybe could have knocked it in place with a mallet but there wasn't enough room. Picked some up at my local hardware store for about a dime more and they fit fine. It's interesting that the manufacturer shown in the review submittal says Everbuilt but the actual ad and item indicate they are made by Nibco. Also the ends were rough like someone just cut up a bunch of couplings with a hacksaw from a piece of pipe.
Was this helpful?
6
0
Was this helpful?
0
0
Excellent item at an excellent price
Excellent item at an excellent price
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
the fittings were a perfect fit for my needs and very economical.
the fittings were a perfect fit for my needs and very economical.
Was this helpful?
0
0
Perfect!...
Perfect!
Was this helpful?
0
0
solder flow was great and no leaks...
solder flow was great and no leaks
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
Review this Product
Share your thoughts with other customers
