PowerMark Gold 200 Amp 20-Space 40-Circuit Indoor Main Lug Circuit Breaker Panel
- Indoor NEMA 1 enclosure
- Main lugs are factory installed; convertible to main breaker
- Use with equipment ground kit TGK32 (order separately)
- See More Details
Frequently Bought Together
Price:
$8984
Product Overview
The load center includes a sturdy tin-plated copper buss bar and a galvanized box for increased durability and reliability. The one-piece interior removes and re-installs easily. Indoor NEMA 1 enclosure with combination surface/flush front. This load center is UL listed and ANSI Certified.
- Use as a main lug load center or convert to a main breaker
- Galvanized box for rust resistance with a self-adjusting dead-front cover
- Copper bus for increased conduction
- Full-length neutral bars for faster and easier wiring
- 100% split neutral holes on each side are rated for #14-4 wire
- Top or bottom feed

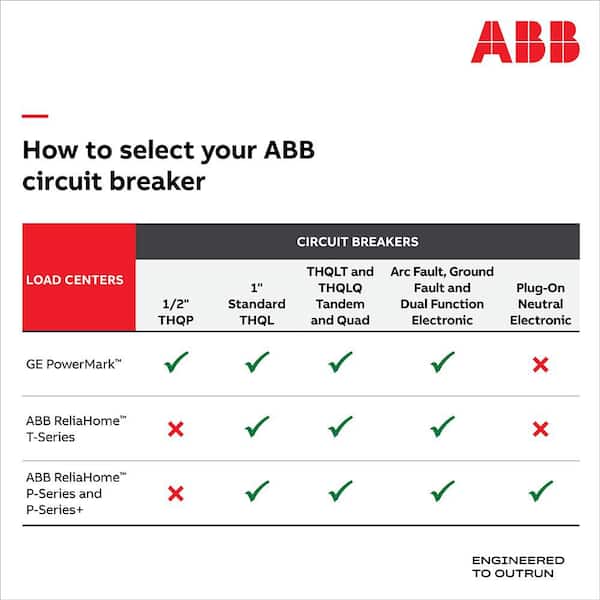

- Compatible with GE THQL, THQP, DFCI, GFCI and AFCI circuit breakers
- ANSI certified and UL listed
- Learn More About Electrical Panels Here in our Buying Guide.
- Click here for more information on Electronic Recycling Programs
Info & Guides
Product Overview
- Indoor NEMA 1 enclosure
- Main lugs are factory installed; convertible to main breaker
- Use with equipment ground kit TGK32 (order separately)
Compare Similar Individual Subpanels
 |  | |  | |
| Brand | GE | GE | GE | GE |
| Name | PowerMark Gold 200 Amp 12-Space 24-Circuit Outdoor Main Lug Circuit Breaker Panel | PowerMark Gold 200 Amp 24-Space 42-Circuit Indoor Main Lug Circuit Breaker Panel | PowerMark Gold 200 Amp 20-Space 40-Circuit Indoor Main Lug Circuit Breaker Panel | PowerMark Gold 200 Amp 30-Space 30-Circuit 3-Phase Indoor Main Lug Circuit Breaker Panel |
| Price | $6926 | $8420 | $8984 | $17909 |
| Ratings | (92) | (1) | (112) | (9) |
| Maximum Amperage (amps) | 200 | 200 | 200 | 200 |
| Indoor/Outdoor | Outdoor | Indoor | Indoor | Indoor |
| Number of Spaces | 12 | 24 | 20 | 30 |
| Mounting Type | Plug-On | Plug-On | Plug-On | Plug-On |
| Number of Circuits | 24 | 42 | 40 | 30 |
| Load Center Type | Main Lug | Main Lug | Main Lug | Main Lug |
| Load center width (in.) | 13 | 14.38 | 14.38 | 14.38 |
| Load center height (in.) | 29 | 28.56 | 26.56 | 33.32 |
| View Product | View Product | View Product | View Product |
Compare Similar Individual Subpanels
| | | | |
| Brand | GE | GE | GE | GE |
| Name | PowerMark Gold 200 Amp 12-Space 24-Circuit Outdoor Main Lug Circuit Breaker Panel | PowerMark Gold 200 Amp 24-Space 42-Circuit Indoor Main Lug Circuit Breaker Panel | PowerMark Gold 200 Amp 20-Space 40-Circuit Indoor Main Lug Circuit Breaker Panel | PowerMark Gold 200 Amp 30-Space 30-Circuit 3-Phase Indoor Main Lug Circuit Breaker Panel |
| Price | $6926 | $8420 | $8984 | $17909 |
| Ratings | (92) | (1) | (112) | (9) |
| Maximum Amperage (amps) | ||||
| Indoor/Outdoor | ||||
| Number of Spaces | ||||
| Mounting Type | ||||
| Number of Circuits | ||||
| Load Center Type | ||||
| Load center width (in.) | ||||
| Load center height (in.) | ||||
| View Product | View Product | View Product | View Product |
Specifications
Dimensions
Load center depth (in.)
3.75
Load center height (in.)
26.56
Load center width (in.)
14.38
Details
Electrical Product Type
Main Lug/ Main Lug Kit
Indoor/Outdoor
Indoor
Load Center Mounting Type
Surface
Load Center Type
Main Lug
Maximum Amperage (amps)
200
Mounting Type
Plug-On
Number of Circuits
40
Number of Spaces
20
Phase Type
1 Phase
Product Weight (lb.)
26.9
Returnable
180-Day
Voltage (volts)
240
Warranty / Certifications
Certifications and Listings
UL Listed
Manufacturer Warranty
One year warranty from first use
Questions & Answers
67Questions16Answers
Box claims 8 circuit. For distributing 230 V it supports only 3 circuits. I was expecting 4 circ...
Asked by Katz February 8, 20210
AnswersI have a 100 amp main will this supply my new 125 amp lug box
Asked by JJ September 3, 20202
AnswersYes when a main lug panel is rated for 125A it means you can use it to control from 0 up to 125A. Thanks for the question
What type of wire shlould i use to feed sub pannel from the main breaker
Asked by Charles August 21, 20200
Answers16 spaces, 32 circuit, how do get to 32 circuits?
Asked by Sparky August 1, 20201
AnswerHi Sparky, you would just select the 32 circuit option. It is currently in stock.We appreciate your business and look forward to serving you in the future. Thank you for shopping Home Depot!
Can I use double pole breakers in this box? Also will heavier gauge wire such as 6 gauge fit in t...
Asked by TIMT April 16, 20204
Answersyes you can use 2 pole breakers. and the neutral and grounding bars do take 6 gauge wire stranded or solid
What grounding wire do I need for this panel
Asked by Chris November 19, 20191
AnswerIt depends on the wire and breaker you're feeding the panel with and there is an nec table to go off of
Main lugs are factory installed; convertible to main breaker. What does this mean if you can't in...
Asked by Art October 27, 20192
AnswersYou can use this panel as a sub and feed with the main lugs from a breaker in the main panel. If using this one as a main it'll need a 2 pole breaker and a main breaker hold down kit.
Will this fit in the walls for a trailer?
Asked by Daniel October 27, 20192
AnswersIt is designed for a standard stud wall on 16” centers.
How to install a main breaker
Asked by Mdpalma44 October 14, 20192
AnswersHi, This should be powered by a 2 pole breaker from a main panel somewhere else. Is this being powered right from your utility company??
Which grounding bar do I need for this panel...
Asked by Chris August 8, 20192
AnswersDo I need a grounding lug for this panel if I need one which one is it?
Customer Reviews
Mar 20, 2019
Because the price was so affordable, I was able to overlook a couple of things: The screw holes ...
Because the price was so affordable, I was able to overlook a couple of things: The screw holes in the cover didn't align with the ones in the box. I had to do a bit of "hammer adjustment"! Also the bus contact didn't quite line up with one the breakers, so a little more "alignment" required. The knock-outs in the box required more than a little "knocking" to get them out, but like I said, I didn't pay a lot for it and after adding a ground buss, it did the job I wanted, a small sub-panel in my garage to support a welder, for not a lot of cash outlay!
On the plus side, the breakers aligned well with the cover opening and the finish is good. I was able to install two (2) single breakers (120VAC) for my lights and receptacles and a double breaker (240VAC) for the welder and compressor. It fit in the same small footprint of the previous box.
If you are on a budget, and don't mind a bit of "adjusting", I recommend this box as a small, low priced alternative. Once it's mounted and working, you'll be glad you did!
by MustangMan
Mar 27, 2014
Pictured style discontinued
The TLM1212CCU has undergone a design revision in which it has 1/2" knockouts, and no main breaker knockout up top (and is notably smaller). I, too, went to purchase one to match my existing subpanel and found the item pictured is not what is sold in stores (nor is it at the blue box competitor). Based on GE's current catalog, if you're looking for what is pictured above, you will need to seek a TM1212CCU (note the absence of the "L")... Or find old stock somewhere. Boxes with red amperage labels are the newer revisions (which don't match the picture, and usually have a "P" at the end of the model number).
by Hugh
