Internet #305878664

Model # OAC-DT-0501

0080083579228

Greengate

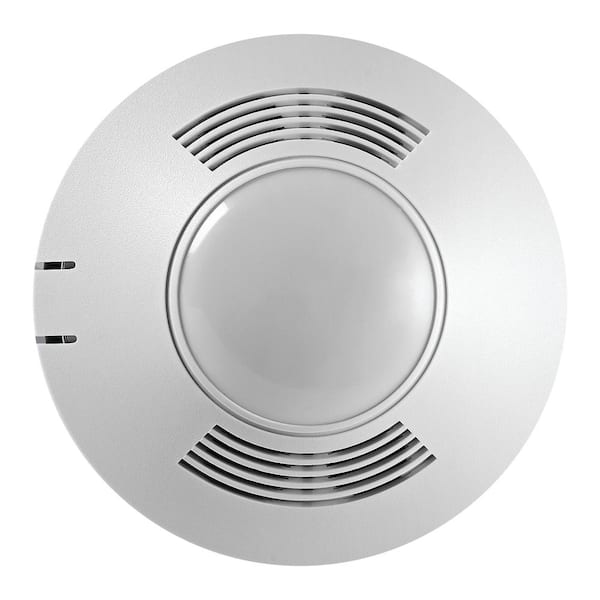

120-347-Volt AC at 50/60Hz 500 sq. ft. MicroSet Dual Tech Passive Ultrasonic Infrared 180-Degree Occupancy Sensor

$ 110 95

Overview

The Micro Set self-adjusting technology continuously monitors multiple sub-frequencies in the event that if a continuous Doppler shift occurs, such as those created by airflow from an air duct, the sensor will identify the noise as continuous and then block it out of view at a select sub- frequency. It will continue to monitor other sub frequencies for human motion. This avoids false-activation, while still maintaining the high level of sensitivity that is necessary for sensing minor motion in a changing environment. Separate concurrent time delays for both Passive Infrared and Ultrasonic technologies avoid false activations or deactivations. In Automatic on Mode, the lights turn ON when a person enters the room. In Manual on Mode (R model only), the lights are turned ON by activating a momentary switch (model # GMDS) that is connected to the sensor. When enabled, the daylighting feature (-R models only) prevents lights from turning ON when the room is adequately illuminated by natural light.
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

The Micro Set self-adjusting technology continuously monitors multiple sub-frequencies in the event that if a continuous Doppler shift occurs, such as those created by airflow from an air duct, the sensor will identify the noise as continuous and then block it out of view at a select sub- frequency. It will continue to monitor other sub frequencies for human motion. This avoids false-activation, while still maintaining the high level of sensitivity that is necessary for sensing minor motion in a changing environment. Separate concurrent time delays for both Passive Infrared and Ultrasonic technologies avoid false activations or deactivations. In Automatic on Mode, the lights turn ON when a person enters the room. In Manual on Mode (R model only), the lights are turned ON by activating a momentary switch (model # GMDS) that is connected to the sensor. When enabled, the daylighting feature (-R models only) prevents lights from turning ON when the room is adequately illuminated by natural light.

Product Overview

Model #: OAC-DT-0501
Internet #: 305878664

The Micro Set self-adjusting technology continuously monitors multiple sub-frequencies in the event that if a continuous Doppler shift occurs, such as those created by airflow from an air duct, the sensor will identify the noise as continuous and then block it out of view at a select sub- frequency. It will continue to monitor other sub frequencies for human motion. This avoids false-activation, while still maintaining the high level of sensitivity that is necessary for sensing minor motion in a changing environment. Separate concurrent time delays for both Passive Infrared and Ultrasonic technologies avoid false activations or deactivations. In Automatic on Mode, the lights turn ON when a person enters the room. In Manual on Mode (R model only), the lights are turned ON by activating a momentary switch (model # GMDS) that is connected to the sensor. When enabled, the daylighting feature (-R models only) prevents lights from turning ON when the room is adequately illuminated by natural light.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand Lithonia Lighting Greengate Greengate Greengate
Name Ceiling Mount 360° Passive Infrared Motion Sensor - White 500 sq. ft. MicroSet Passive Infrared Low Voltage Occupancy Sensor with BAS Relay and Daylight Sensor 120-347-Volt AC at 50/60Hz 500 sq. ft. MicroSet Dual Tech Passive Ultrasonic Infrared 180-Degree Occupancy Sensor 1000 sq. ft. 10/30-Volt DC 32kHz MicroSet Ceiling Sensor Dual Technology Passive Infrared and Ultrasonic
Price
$52.62
$77.22
$110.95
$129.43
Ratings (31) (0) (0) (0)
Wattage (watts) 800 0 W 0 0 W
Electrical Features Illuminated Indicator Light Indicator Light Indicator Light
View Product View Product View Product View Product

Specifications

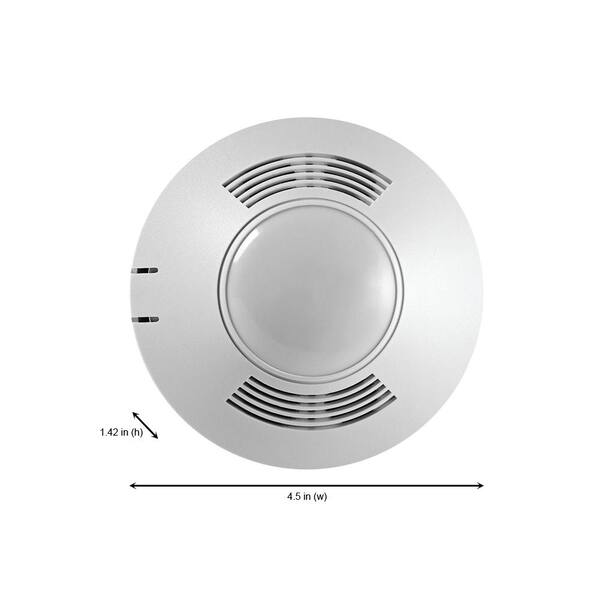

Dimensions

Product Depth (in.)
4.5 in
Product Height (in.)
1.42 in
Product Width (in.)
4.5 in

Details

Amperage (amps)
.025 A
Color Family
White
Color/Finish
White
Commercial/Residential
Commercial
Compatible Bulb Type
CFL,Halogen,Incandescent,LED
Coverage Area (sq. ft.)
500
Electrical Features
Indicator Light
Electrical Product Type
Motion Sensor
Field of View
180 Degrees
Indoor/Outdoor
Indoor
Maximum Distance (ft.)
20
Motion Sense Type
Occupancy
Mounting Type
Ceiling Mounted
Pack Size
1
Rating
General Purpose
Returnable
90-Day
Voltage
120 volt,347 volt
Wall Plate Included
No
Wattage (watts)
0

Warranty / Certifications

Certifications and Listings
FCC Listed,cULus Listed
Manufacturer Warranty
5 Year

Specifications

Dimensions

Product Depth (in.)
4.5 in
Product Height (in.)
1.42 in
Product Width (in.)
4.5 in

Details

Amperage (amps)
.025 A
Color Family
White
Color/Finish
White
Commercial/Residential
Commercial
Compatible Bulb Type
CFL,Halogen,Incandescent,LED
Coverage Area (sq. ft.)
500
Electrical Features
Indicator Light
Electrical Product Type
Motion Sensor
Field of View
180 Degrees
Indoor/Outdoor
Indoor
Maximum Distance (ft.)
20
Motion Sense Type
Occupancy
Mounting Type
Ceiling Mounted
Pack Size
1
Rating
General Purpose
Returnable
90-Day
Voltage
120 volt,347 volt
Wall Plate Included
No
Wattage (watts)
0

Warranty / Certifications

Certifications and Listings
FCC Listed,cULus Listed
Manufacturer Warranty
5 Year

Questions & Answers

This Sensor, input power is 120-347V AC? any Details specification on it? may I have a copy of sp...

This Sensor, input power is 120-347V AC? any Details specification on it? may I have a copy of specification on it?
Asked by: JEFF
Input power requirement is 10-30 VDC. Please use the below link to get the specification sheet. https://images.homedepot-static.com/catalog/pdfImages/56/562fc3b8-9c5c-4510-9912-ce876a7e3e42.pdf
Answered by: Eaton's Cooper
Date published: 2019-05-22
