#1 Home Improvement Retailer

Internet #203073902

Model #11-464-005

Store SKU #658616

Store SO SKU #1000475980

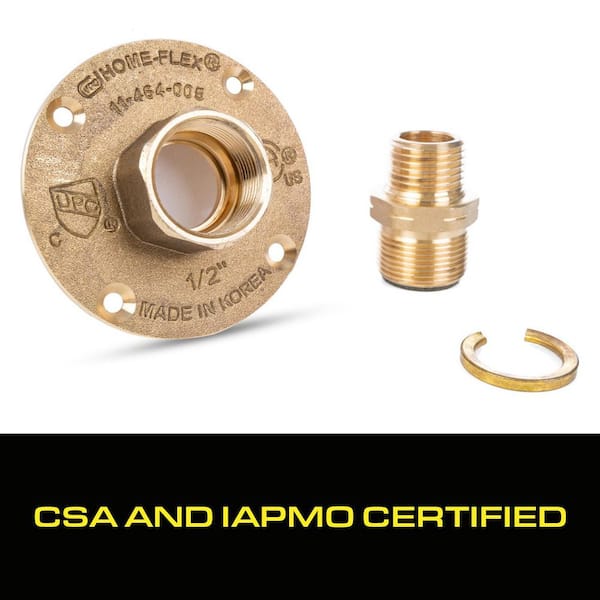

1/2 in. CSST x 1/2 in. MIPT Brass Termination Flange

  • Only compatible with HOME-FLEX CSST pipe
  • Easily install on your own with no special tools required
  • Includes retainer ring and sealing gasket needed for install
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

Easy to use fittings

Easy to Use Fittings

With the fewest parts on the market the CSST fittings are a breeze to install

Image of pipes packaged for easy transport

Easy to Transport

HOME-FLEX CSST comes in coils, so it takes up less space and is easier to transport than black pipe

Image of hand holding a pipe that easily bends

Easily Bend Around Corners

Simply bend around corner without cutting, threading, or additional fittings

Image of male and female fitting

Male & Female Fittings

Standard Male and Female Pipe Threads for easy connections

Image of termination flange

Termination Flange

Provides a smooth transition between csst and standard pipe

Image of brass union

Union Fittings

Easily extend your run of CSST

Image of bonding clamp

Bonding Clamp

Bond or ground CSST or rigid pipe

Image of flexible CSST that eliminates need for elbow fittings to turn corners

Easily Bends Around Corners

Flexible CSST eliminates need for elbow fittings to turn corners

Image of scale to show that CSST pipe is 80% lighter than steel pipe

Lighter than Steel Pipe

CSST pipe is 80% lighter than steel pipe

Image of timer to show that pipe is 65% faster to install than black pipe

Faster Installation

Over 65% faster to install than black pipe, with no need to cut or thread

Image of a pipe with line through it to show that you need fewer fittings to install

Fewer Fitting Connections

With fewer fittings needed your install will be faster and safer

Image of earthquake icon to show that CSST pipe is safer than black pipe in an earthquake

Seismically Qualified

Due to the flexible nature CSST is much safer than black pipe in an earthquake

Image of screwdriver and wrench to indicate the tools you need to complete the project

Complete the Project

See HOME-FLEX CSST Collection for all the tools you need to complete the project

The HOME-FLEX Termination Flange provides a smooth transition between CSST and standard pipe. Tool-less flare design; no special tools are required. Metal-to-metal seal, with no split rings, o-rings or gaskets. Self-guiding assembly to ensure a perfectly even flare.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar CSST Fittings

current product
Exclusive1/2 in. CSST x 1/2 in. MIPT Brass Termination Flange
Top Rated3/4 in. CSST x 3/4 in. MIPT Brass Termination FlangeTop Rated1 in. CSST x 1 in. MIPT Brass Male AdapterExclusive1 in. x 1 in. x 3/4 in. CSST Stainless Steel FIPT Manifold
BrandHOME-FLEXHOME-FLEXHOME-FLEXHOME-FLEX
Name1/2 in. CSST x 1/2 in. MIPT Brass Termination Flange3/4 in. CSST x 3/4 in. MIPT Brass Termination Flange1 in. CSST x 1 in. MIPT Brass Male Adapter1 in. x 1 in. x 3/4 in. CSST Stainless Steel FIPT Manifold
Price
Ratings
(83)
(83)
(143)
(33)
Fitting 1 size1/2"3/4"1"1"
Fitting or Connector TypeFlangeFlangeCouplingManifold
ConnectivityThreadedThreadedThreadedThreaded
ApplicationNatural Gas,PropaneNatural Gas,PropaneNatural Gas,PropaneNatural Gas,Propane
FeaturesThreadedThreadedFlexible,UV Resistant,WrappedSide Inlet
MaterialBrassBrassBrassStainless Steel
View ProductView ProductView ProductView Product

Specifications

Dimensions

Face size
7"
Fitting 1 size
1/2"
Product Height (in.)
3
Single Fitting Size
1/2"

Details

Application
Natural Gas,Propane
Color Family
Brass
Color/Finish
Brass
Compatible Pipe Material
Steel
Connectivity
Threaded
Features
Threaded
Fitting or Connector Type
Flange
Fitting/ Connector Collection
Specialty
Material
Brass
Maximum working pressure (psi)
5
Maximum Working Temperature (F)
200
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
.75
Reducing Fitting
No
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
30 Days

Questions & Answers

7Questions15Answers

Safe for fire place termination

Asked by Mick October 21, 2020
1
Answer

Hi, Mick - Thanks for the question. Both may be ok based on your particular installation. CSST can be used inside the fireplace in certain applications but we usually recommend terminating it outside the firebox and finishing the install with black iron pipe. Check out pages 33 and 34 of our HomeFlex CSST Design & Installation Manual at this link for details. It should address any questions or concerns you may have. http://homeflex.com/downloads/HOME-FLEX_Installation_Manual.pdf

We are installing a Jen Air counter top cook top on a base cabinet. Can the line be ran into the...

Asked by JJK April 18, 2019
2
Answers

It is possible to do what you are describing as long as you follow all of the instructions in the HOME-FLEX System Design and Installation Manual and all of your local codes. Copy and paste this link into your browser. It will take you to our HOME-FLEX System Design and Installation Manual which is available on our website. http://homeflex.com/downloads/HOME-FLEX_Installation_Manual.pdf Give me a call if I can answer your questions. (661) 257-3923 I am here from 8-5 Los Angeles time M-F. Ask for Jon.

Why did home depot stop selling in stores?

Asked by Bud January 10, 2019
2
Answers

I purchased in the store

Can I screw a piece of black pipe into the bottom and a gas valve on top.

Asked by WeedhighWillie September 20, 2018
3
Answers

The gas valve is installed to the treads of the compression nut after it (the nut) is installed into the flange. The yellow pipe you attached to the flange can then be attached to a black pipe fifing with the proper fittings.

Can this be used on the exterior?

Asked by keith September 21, 2016
2
Answers

Yes

Does there need to be a rubber O-ring?

Asked by BDDFC September 9, 2016
3
Answers

No rubber o-ring required. There is a flat rubber seal included. But, be very careful when installing to not tear the rubber seal. The correct procedure to rotate the flange body while tightening. This implies a connection must be completed to the flange before final mounting. Instructions are included.

does the yellow gas line fit on the back of the flange

Asked by Thomas June 7, 2015
2
Answers

No. The yellow gas line is fed from the back (the smooth side) toward the front. The keeper ring is then installed into the first valley of the pipe and the compression nut tightened.

Customer Reviews

  • 4.4
    out of 83 reviews
  • 58% recommend this product
Filter by:
Showing 1-10 of 83 reviews
A little bit expensive but well worth it. Allows almost impossible installation to occur. Previ...
A little bit expensive but well worth it. Allows almost impossible installation to occur. Previous homeowner had installed black iron to stove but due to duct work and plumbing could not put in wall so the stove was 4" out from wall thus 4" beyond lip of counter. Two hours after purchasing my problem was resolved
by MooseMulligan
Worked 1st time; no leaks
I ran 45 feet of 3/4" CSST to my new gas range from a 1-1/4" black pipe feed. I read all the directions and meticulously prepared each end of the home-flex pipe to receive the fittings. I tightened the flange to the fitting, holding the fitting still while turning only the flange. I believe this allows the bare csst pipe to pull up and scrunch against the fitting gasket. If the fitting is turned against the flange, it will only shred the gasket rather than pull the bare pipe tight to the gasket. Anyway, it all worked great the first time without any leaks. Also, be careful when squeezing the brass retainer ring onto the pipe. The metal nicks easily and I took a good chunk out of the 1st ring I used. Luckily I did buy an extra pack of rings so I could try with another one.
by BDDFC
3 people found this helpful
Excellant for transition from CSST to black pipe
I recently re-piped my entire basement. Even though the instructions show dropping the CSST to the water heater - I used this instead. I mounted a support 2 x 6 with a 1.5 inch hole to the floor joists above the basement (water heater located in basement) and brought the flex line through the hole to the termination plate - connected the termination plate to the CSST then secured the termination plate to the 2 x 6. Then I attach a threaded coupler 18 inch black pipe, shut-off valve, 48 inch black pipe and drip tee (code required) at the end of the termination plate. Gas inspector was impressed during final inspection.
by GDiaz
4 people found this helpful
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
This part worked perfect for my gas line to feed...
This part worked perfect for my gas line to feed my stove
by Rich
Met my expectations. They use a single ring feral...
Met my expectations. They use a single ring feral versus the two ring style that's sold at the plumbing supply houses. Nevertheless, it held pressure and passed inspection.
by BKP
