- Operates as a shutoff for irrigation systems with FIP connections
- Lead free bronze stop valve drains line when in the off position
- Compatible with PVC pipe
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product

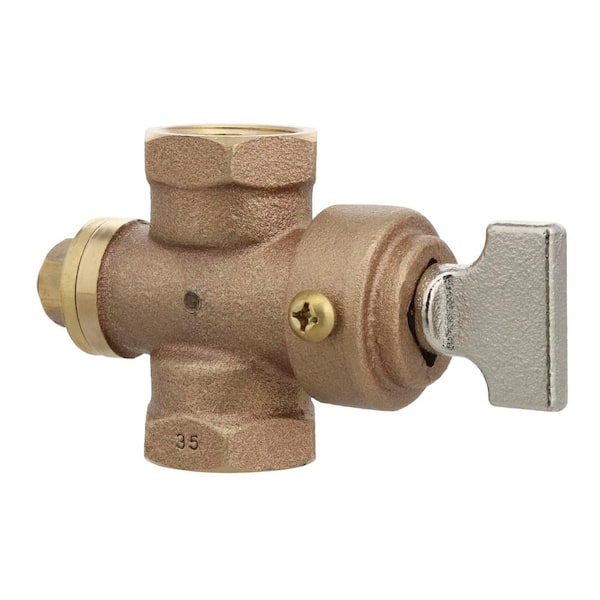

This Homewerks Worldwide 1 in. Brass FPT x FPT Underground Stop and Waste Valve prevents buildup in your sprinklers. This valve can be used as the main shutoff for your sprinkler system and it automatically drains when it is off. It includes no more than 0.25% weighted average lead on welted surfaces and it features a loose iron tee-handle and dust cap for additional protection. It is compatible with PVC pipe.
Highlights
- Lead free bronze construction
- Ideal as a main shutoff for sprinkler systems
- 1 in. female NPT connections
- Compatible with PVC pipe (not included)
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Specifications
Dimensions
Inlet Diameter (In.) | 1 |
|---|---|
Outlet Diameter (In.) | 1 |
Product Length (in.) | 5.75 in |
Details
Application | Non-Potable Water |
|---|---|
Color/Finish | Bronze |
Compatible Pipe Material | Steel |
Compatible Product | Other |
Connection | FIP x FIP |
Features | Lead Free, Quarter Turn, Threaded, Underground Use |
Indoor/Outdoor | Outdoor |
Material | Bronze |
Maximum Pressure (PSI) | 315 PSI |
Maximum Working Temperature (F) | 180 |
Pack Size | 1 |
Returnable | 90-Day |
Valve Configuration | Straight |
Warranty / Certifications
Manufacturer Warranty | 1 year |
|---|
Questions & Answers
Is there a water flow direction to install the valve? I saw a small arrow like engraving on the side. Does this indicate flow direction?
Hello, yes, the arrow indicates the water flow direction. Thank you
can this be used for potable water supply?
How do you shout it off if it is in the ground
This valve is designed as a stop and waste valve, meaning it shuts off the water supply and drains any remaining water in the line. If it's installed underground for your sprinkler system, you'll need a valve key to operate it. The valve key inserts into the top of the valve, which should be accessible above ground. Turning the key clockwise closes the valve and shuts off the water, while also opening the drain. Turning it counter-clockwise opens the valve and allows water to flow.
Can you use this as a main shut off valve for outside your home?
Yes, this can be used as a main shutoff valve for outdoor sprinkler systems. It automatically drains when turned off to prevent water buildup and potential damage.
Can you advise me if this valve is threaded going into and out of the valve? The stop and waste I have currently has a leak.
Yes, this valve has threaded connections both into and out of the valve. It is described as having 1 in. female NPT (National Pipe Thread) connections. This means the valve has internal threads that accept male pipe threads.
I just put this new valve on. i have not hooked my sprinkler line to it yet. it is connected to main line. it is off, but it is dripping from the bottom. is this normal?
This dripping issue isn't typical for a newly installed stop and waste valve. When the valve is in the off position, it should automatically drain any remaining water in the line on the non-pressure side, preventing drips. Since you haven't connected the sprinkler line yet, any dripping suggests a potential problem with the valve itself. Double-check the installation to ensure all connections are tight and that the valve is fully closed. If the dripping persists, it's best to contact Homewerks customer service at 1-877-319-3757 for warranty assistance.
Can this be buried underground? Or does it need to be above ground?
Yes, this can be buried underground. It is designed for underground use and can function as the main shutoff for your sprinkler system. It automatically drains when it is off to prevent water buildup and potential damage during freezing temperatures.
when the stop and drain valve is shut and a toilet in the house has a stuck flush valve, will the water continue drainin
Hello Chuck, we are not clear on the application you are using. This drain valve is for outdoor use, ideal for the main shutoff for sprinkler systems.
