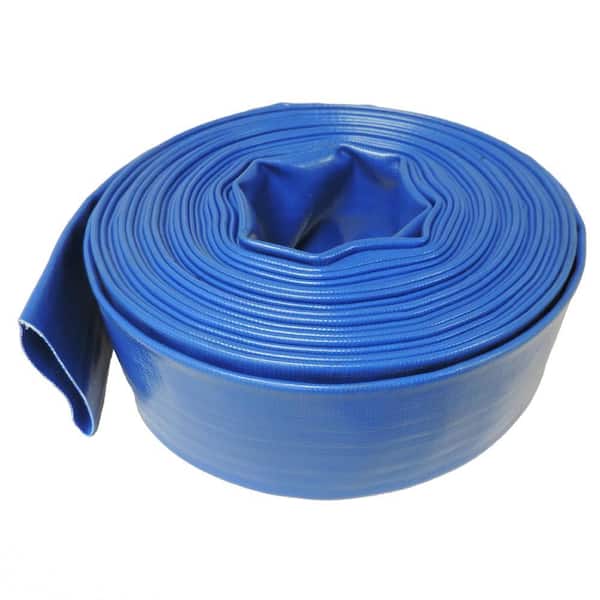

6 in. Dia x 100 ft. Blue 4 Bar Heavy-Duty Reinforced PVC Lay Flat Discharge and Backwash Hose

Includes 100 ft. ($4.03 /ft.)
$402.85
Apply Now
$undefined.00 /mo* suggested payments with months* financingApply Now
  • Inside diameters are listed when the tubing is expanded
  • Use in pool, spa & other open-end water discharge applications
  • Hose is resistant to grease, oil and many chemicals and acids
  • View More Details
Store
0 in stock
Text to Me
How to Get It

Product Overview

Our 6 Bar, Standard Duty Lay Flat Discharge Hose, commonly referred to as lay flat hose, discharge hose, backwash hose, construction hose, pool discharge hose, pump hose, and flat hose is perfect for use with water, light chemicals and other industrial, agricultural, irrigation, mining and construction fluids. Manufactured with a continuous high tensile strength polyester fiber circularly woven to provide reinforcement, it is one of the most durable lay flat hoses in the industry and is designed as a standard duty hose in residential, industrial and construction applications. Formulated with UV protectant, it is able to withstand outdoor conditions, and is ideally suited for use in pool, spa and other general open-end water discharge applications, greenhouses, nurseries, agricultural use, farm use, construction use, oil and gas exploration and extraction use and for mining discharge.
  • PVC tube and the cover of the hose are extruded simultaneously to ensure maximum bonding and high quality
  • Manufactured with a continuous high tensile strength polyester fiber circularly woven to provide reinforcement
  • Formulated with UV protectors, working temperatures - 5°F to 149°F
  • Hose is very strong, yet relatively light-weight and it resists twisting and kinking
  • Lay flat discharge hose is resistant to grease, oil and many chemicals and acids
  • Hose is reinforced with spiral plies and longitudinal synthetic cords for strength, flexibility and burst resistance

Additional Resources

From the Manufacturer

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar PVC Schedule 40 Pipe

8 in. Dia x 50 ft. Blue 4 Bar Heavy-Duty Reinforced PVC Lay Flat Discharge and Backwash Hose
current product
6 in. Dia x 100 ft. Blue 4 Bar Heavy-Duty Reinforced PVC Lay Flat Discharge and Backwash Hose
3 in. Dia x 50 ft. Green Heavy-Duty Flexible PVC Suction and Discharge Hose3 in. Dia x 300 ft. Blue 6 Bar Heavy-Duty Reinforced PVC Lay Flat Discharge and Backwash Hose
BrandHYDROMAXXHYDROMAXXHYDROMAXXHYDROMAXX
Name8 in. Dia x 50 ft. Blue 4 Bar Heavy-Duty Reinforced PVC Lay Flat Discharge and Backwash Hose6 in. Dia x 100 ft. Blue 4 Bar Heavy-Duty Reinforced PVC Lay Flat Discharge and Backwash Hose3 in. Dia x 50 ft. Green Heavy-Duty Flexible PVC Suction and Discharge Hose3 in. Dia x 300 ft. Blue 6 Bar Heavy-Duty Reinforced PVC Lay Flat Discharge and Backwash Hose
Price
$30890
$40285
$50273
$57319
Ratings
(1)
(0)
(0)
(0)
Nominal Inside Pipe Diameter (In.)8"6"3"3"
Product Length (ft.)5010050300
ApplicationNon-Potable WaterNon-Potable WaterNon-Potable WaterNon-Potable Water
MaterialPVCPVCPVCPVC
Actual inside diameter (in.)7.9135.92532.937
Actual outside diameter (in.)863.463
DWVPressurePressurePressurePressure
Pack Size1111
View ProductView ProductView ProductView Product

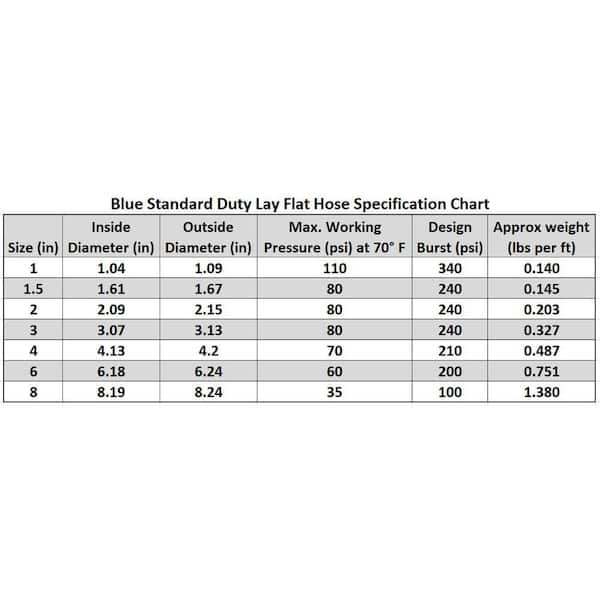

Specifications

Dimensions

Actual inside diameter (in.)5.925Actual outside diameter (in.)6
Nominal Inside Pipe Diameter (In.)6"Pipe Wall Thickness (In.).075
Product Length (ft.)100

Details

ApplicationNon-Potable WaterColor FamilyBlue
Color/FinishBlueConnectivityPress
Core TypeSolid CoreDWVPressure
End TypePlain EndMaterialPVC
Maximum Flow Rate (gallons per minute)30Maximum working pressure (psi)60
Maximum Working Temperature (F)170Minimum working temperature (F)-5
Pack Size1Pipe FeaturesChemical Resistant,Corrosion Resistant,Flexible
Pipe or Fitting Product TypePipe & TubingProduct Weight (lb.)74
PVC TypeRigid PVCReturnable90-Day
Schedule TypeSchedule 40

Warranty / Certifications

Certifications and ListingsNo Certifications or ListingsManufacturer WarrantyTD Holdings LLC warrants all of our products to be free from defects due to workmanship and materials contained therein
