Model # RL560WH-R

Internet #203310667

Store SKU #308819

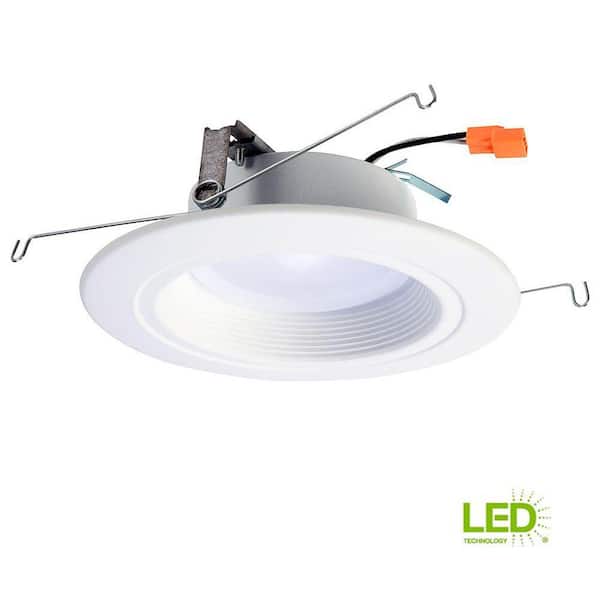

Halo 5 in. and 6 in. 3000K Matte White Recessed LED Retrofit Baffle-Trim Module 80 CRI
0080083629022

Halo

5 in. and 6 in. 3000K Matte White Recessed LED Retrofit Baffle-Trim Module 80 CRI

  • 3000K white light, 600 Lumens, 80 CRI
  • Light equivalent to a 65-Watt bulb yet uses just 7.3 watts
  • Fits for both for 5 in. and 6 in. housings
$ 23 97 /each

Choose Your Options

Actual Color Temperature (K) - Color Temperature
3000K - Soft White
Package Quantity
1
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

  • 3000K white light, 600 Lumens, 80 CRI
  • Light equivalent to a 65-Watt bulb yet uses just 7.3 watts
  • Fits for both for 5 in. and 6 in. housings
The Halo RL56 Series is a complete LED Baffle-Trim Module for 5 in. and 6 in. aperture recessed downlights. RL56 is designed for use in new construction, remodel and retrofit installation with Halo, All-Pro and other compatible 5 in. and 6 in. housings. The RL56 Series integral LED driver offers 120-Volt dimming capability. The RL56 lens provides uniform illumination and wet location listing. The die-cast construction makes any housing AIR-TITE for added HVAC savings and code compliance. Each unit produces a standard 600 Lumen light output.
  • Rated for damp and wet location
  • 3000K white light, 600 Lumens, 80 CRI
  • Produces light equivalent to a 65-Watt bulb yet uses just 7.3-Watt
  • Dimmable- standard 120-Volt electronic low-voltage dimmer is recommended for best performance
  • Fits for both for 5 in. and 6 in. housings
  • Fits standard and shallow recessed housings
  • E26 Edison screw base adapter for retrofit into existing 5 in. and 6 in. housings
  • Rated for use with IC and non-IC housings
  • Last 50,000 hours with 70% maintained Lumens
  • California title 24 compliant

Product Overview

  • 3000K white light, 600 Lumens, 80 CRI
  • Light equivalent to a 65-Watt bulb yet uses just 7.3 watts
  • Fits for both for 5 in. and 6 in. housings
Model #: RL560WH-R
Sku #: 308819
Internet #: 203310667

The Halo RL56 Series is a complete LED Baffle-Trim Module for 5 in. and 6 in. aperture recessed downlights. RL56 is designed for use in new construction, remodel and retrofit installation with Halo, All-Pro and other compatible 5 in. and 6 in. housings. The RL56 Series integral LED driver offers 120-Volt dimming capability. The RL56 lens provides uniform illumination and wet location listing. The die-cast construction makes any housing AIR-TITE for added HVAC savings and code compliance. Each unit produces a standard 600 Lumen light output.

  • Rated for damp and wet location
  • 3000K white light, 600 Lumens, 80 CRI
  • Produces light equivalent to a 65-Watt bulb yet uses just 7.3-Watt
  • Dimmable- standard 120-Volt electronic low-voltage dimmer is recommended for best performance
  • Fits for both for 5 in. and 6 in. housings
  • Fits standard and shallow recessed housings
  • E26 Edison screw base adapter for retrofit into existing 5 in. and 6 in. housings
  • Rated for use with IC and non-IC housings
  • Last 50,000 hours with 70% maintained Lumens
  • California title 24 compliant

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Actual Aperture Width (in.)
6.0
Assembled Depth (in.)
7.25 in
Assembled Height (in.)
2.33 in
Assembled Width (in.)
7.25 in
Nominal Lens Aperture Size
5 in.,6 in.

Details

Actual Color Temperature (K)
3000
Actual Color Temperature (K) - Color Temperature
3000K - Soft White
Color Rendering Index (CRI)
80
Color Temperature
Soft White
Color Temperature
Soft White
Fixture Color/Finish
Matte White
Fixture Material
Aluminum
Lumens
650
Package Quantity
1
Product Weight (lb.)
1lb
Returnable
90-Day
Watt Equivalence
65

Warranty / Certifications

Certifications and Listings
1-UL Listed,cUL Listed
Manufacturer Warranty
5 yr limited warranty

Specifications

Dimensions

Actual Aperture Width (in.)
6.0
Assembled Depth (in.)
7.25 in
Assembled Height (in.)
2.33 in
Assembled Width (in.)
7.25 in
Nominal Lens Aperture Size
5 in.,6 in.

Details

Actual Color Temperature (K)
3000
Actual Color Temperature (K) - Color Temperature
3000K - Soft White
Color Rendering Index (CRI)
80
Color Temperature
Soft White
Color Temperature
Soft White
Fixture Color/Finish
Matte White
Fixture Material
Aluminum
Lumens
650
Package Quantity
1
Product Weight (lb.)
1lb
Returnable
90-Day
Watt Equivalence
65

Warranty / Certifications

Certifications and Listings
1-UL Listed,cUL Listed
Manufacturer Warranty
5 yr limited warranty

Questions & Answers

Does this unit make a buzzing sound as a couple of the reviews stated?

Asked by: MLK
Mine works noise-free with using the appropriate dimmer. Perhaps they used the wrong dimmer?
Answered by: BlueHeron
Date published: 2018-07-01

Does this come with the socket part. its not shown.

Does this come with the socket part. its not shown.
Asked by: john
It comes with an adapter that screws into the existing socket of the existing fixture.
Answered by: Terry
Date published: 2018-02-03

Are these dimmable

Asked by: Davelowe
Be careful with the selection of dimmer / test / test / test before buying in bulk. They flicker on dimmers.
Answered by: Michael
Date published: 2018-08-10

could you replace the trim on this?

Asked by: Rania
No, the trim is built in. That's the beauty of the system.
Answered by: remodeler5
Date published: 2018-02-28
  • y_2018, m_10, d_16, h_24CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_42
  • loc_, sid_203310667, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 104ms
  • QUESTIONS, PRODUCT

Customer Reviews

5 in. and 6 in. 3000K Matte White Recessed LED Retrofit Baffle-Trim Module 80 CRI is rated 5.0 out of 5 by 5.
Rated 5 out of 5 by from too easy! Just bought these to replace 2 old frog-eye halogen lights from the 80's. I already had j-sockets in place, so using the torsion spring method it literally took less than 5 minutes per light to remove the old and replace with this. Produces great light and looks a lot better!
Date published: 2017-09-07
Rated 5 out of 5 by from Lights look beautiful! Great replacement for my halogen recessed... Lights look beautiful! Great replacement for my halogen recessed lighting. Installed throughout the house and added dimmers to customize brightness level.
Date published: 2018-06-06
Rated 5 out of 5 by from Great light. Easy to install. Looking forward to long life. Great light. Easy to install. Looking forward to long life.
Date published: 2017-09-26
Rated 5 out of 5 by from Super easy install. Looks great.... Super easy install. Looks great.
Date published: 2017-08-15
Rated 5 out of 5 by from Easy to install. Dimmable too! ... Easy to install. Dimmable too!
Date published: 2017-10-28
