5 in. and 6 in. 3000K White Integrated LED Adjustable Gimbal Recessed Trim Module 90 CRI CCT Title 20 Compliant

  • Title 20 Compliant, can be shipped to California locations
  • HALO recessed LED light is dimmable with select dimmer models
  • Adjustable tilt and up to 360-degree rotation provide flexibility
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

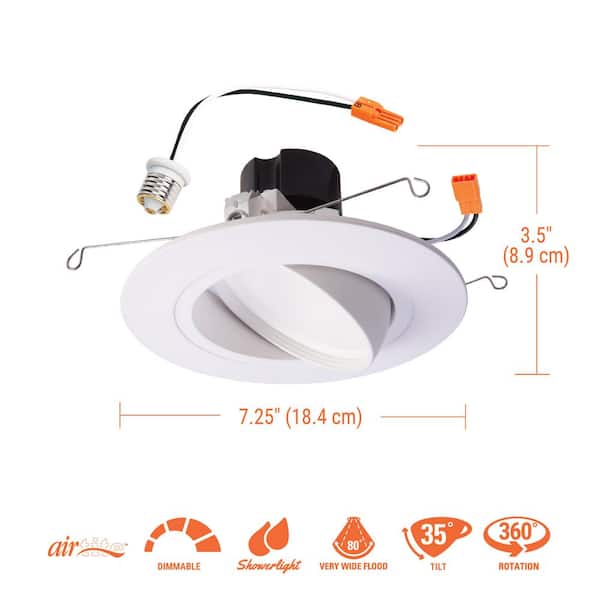

The Halo RA56 LED is a complete Adjustable Gimbal LED Module for 5 in. and 6 in. aperture recessed downlights; suitable for new construction, remodel and retrofit installation. The RA56 adjustable gimbal offers 35° tilt and up to 360° rotation. The RA56 is designed for use with 5 in. and 6 in. housings including Halo H550, H750, H5 and H7 series, and other compatible 5 in. and 6 in. housings. This Halo LED retrofit eyeball trim is ideal for accent and wall wash lighting. This unit features a diffusing, impact resistant polycarbonate lens.
  • Title 20 compliant, can be shipped to California locations
  • Energy Star qualified for energy conservation and savings
  • Fixture is built to last with maintenance-free energy efficient LEDs with 50,000 hours of life (equivalent to 22 years of life at 6 hours per day or 45 years at 3 hours per day), eliminating your need to use and replace bulbs
  • Good brightness at 670 Lumens to provide illumination to any room, great for 8-9 ft. ceilings
  • 90 CRI title 24 compliant technology provides near sunlight quality light for true color rendering and consistency inside your home
  • Produces light equivalent to a 65-Watt bulb yet uses just 9.4-Watt
  • Dimmable- standard 120-Volt electronic low-voltage dimmer is recommended for best performance (see buying guide for dimmer compatibility chart)
  • Fits both standard and shallow housings
  • Flexible mounting options, torsion springs or friction blades (included)
  • Rated for damp location
  • E26 Edison screw base adapter for retrofit into existing incandescent bulb 5 and 6 in. housings just like a light bulb
  • Rated for use with IC and non-IC rated housings
  • See "buying guide" for dimmer compatibility
  • Click here to learn more about Eco Options and Energy Efficiency



  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Recessed Lighting Trims

current product
5 in. and 6 in. 3000K White Integrated LED Adjustable Gimbal Recessed Trim Module 90 CRI CCT Title 20 Compliant
Low Profile 3 in. Selectable CCT Canless Integrated LED Recessed Light Trim 550 Lumens Dimmable (4-Pack)5 in./6 in. 2700K-5000K White Integrated LED Recessed Adjustable Gimbal Retrofit Trim with Selectable CCT (4-Pack)
BrandHaloETiHalo
Name5 in. and 6 in. 3000K White Integrated LED Adjustable Gimbal Recessed Trim Module 90 CRI CCT Title 20 CompliantLow Profile 3 in. Selectable CCT Canless Integrated LED Recessed Light Trim 550 Lumens Dimmable (4-Pack)5 in./6 in. 2700K-5000K White Integrated LED Recessed Adjustable Gimbal Retrofit Trim with Selectable CCT (4-Pack)
Price
Ratings
(2)
(8)
(16)
Nominal Lens Aperture Size5 in.,6 in.3 in.6 in.
Trim TypeGimbalUltra-ThinGimbal
Recessed Lighting TypeCanlessCanlessCanless
Indoor/OutdoorIndoorIndoor,OutdoorIndoor
Damp/Wet RatingDamp Rated,Dry RatedWet RatedDamp Rated
New Construction or RemodelNew Construction,RemodelNew Construction,RemodelNew Construction,Remodel
Compatible Bulb TypeIntegrated LEDIntegrated LEDIntegrated LED
IC RatingIC RatedIC RatedIC Rated
FeaturesAdjustable,Dimmable,RetrofitColor Changing,Dimmable,Retrofit,Shallow,Sloped CeilingAdjustable,Dimmable,Retrofit
View ProductView ProductView Product

Specifications

Dimensions

Actual Aperture Width (in.)
7.25
Assembled Depth (in.)
7.25 in
Assembled Height (in.)
3.5 in
Assembled Width (in.)
7.25 in
Housing Height (in.)
7
Maximum Cutout Size (in.)
5.75
Nominal Lens Aperture Size
5 in.,6 in.
Trim Size (Width)
7.25 in.

Details

Actual Color Temperature (K)
3000
Color Family
White
Color Rendering Index (CRI)
90
Color Temperature
Soft White
Commercial/Residential
Commercial,Residential
Compatible Bulb Type
Integrated LED
Damp/Wet Rating
Damp Rated,Dry Rated
Features
Adjustable,Dimmable,Retrofit
Fixture Color/Finish
White
Fixture Material
Aluminum
IC Rating
IC Rated
Included
Mounting Brackets,Wiring Connectors
Indoor/Outdoor
Indoor
Integrated LED Type
Standard
Lumens
670
Maximum Bulb Wattage
10
New Construction or Remodel
New Construction,Remodel
Package Quantity
1
Product Weight (lb.)
1
Recessed Lighting Type
Canless
Returnable
90-Day
Style
Modern
Trim Type
Gimbal
Voltage
Line Voltage
Watt Equivalence
65

Warranty / Certifications

Certifications and Listings
Title 20,UL Listed,cUL Listed
Manufacturer Warranty
5 Year Limited

Questions & Answers

1Questions1Answers

If the light stops working (which has happened to me), do I have to replace the whole thing?

Asked by Frank August 26, 2020
1
Answer

It could be an issue with the driver. Recommend you to return the unit to point of purchase for replacement.
