Model # H550ICAT

Internet #203310670

Store SKU #288205

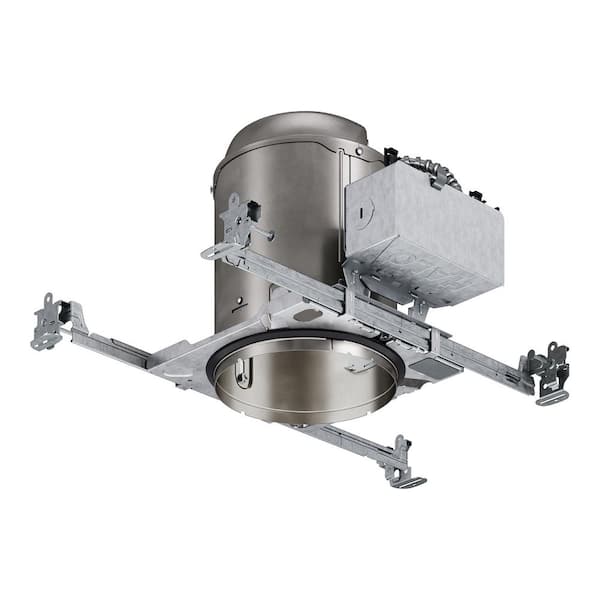

Halo H550 5 in. Aluminum LED Recessed Lighting Housing for New Construction Ceiling, T24, Insulation Contact, Air-Tite
0080083626533

Halo

H550 5 in. Aluminum LED Recessed Lighting Housing for New Construction Ceiling, T24, Insulation Contact, Air-Tite

  • New construction, for installations with open ceiling access
  • Housing can touch and be covered with insulation
  • Wet location approved, when used with select showerlight trims
$ 11 97
Loading Options
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

  • New construction, for installations with open ceiling access
  • Housing can touch and be covered with insulation
  • Wet location approved, when used with select showerlight trims
The Halo H550ICAT is a dedicated 5 in. aperture LED new construction IC, AIR-TITE housing for use with Halo RL56 and RL7 LED retrofit modules, and ML56 LED Downlighting System of LED Light Modules and LED Trims. H550ICAT is designed for use in insulated ceilings where it will be in direct contact with insulation. It is an AIR-TITE, certified ASTM-E283 housing designed to prevent air flow between occupied spaces and unconditioned areas. The LED connection is non-screw base to preserve the high efficacy rating of the luminaire as used with the compatible Halo or All-Pro LED modules, lighting engines and trims.
  • Air-Tite rated design meets restricted air flow code requirements which prevents airflow between attic and living areas and saves on both heating and air conditioning costs
  • Die-formed housing and plaster frame
  • Compatible with a wide variety of 5 in. LED retrofit trims but is best with Halo quality RL, RA, SLD, LT, SMD and ML series models (Bulb free with some having a 45 year LED lifespan)
  • LED module connection: this non-screw-base LED connection preserves the high efficacy rating of the luminaire
  • Energy star, title 24 and IECC qualified when used with select LED Halo trim modules
  • Slide-N-side junction box: connectors allow non-metallic sheathed cable for both U.S. and Canada to be installed without tools
  • Pass-N-Thru bar hangers: fixture has pre-installed nails that easily installs in regular lumber, engineered lumber and laminated beams
  • Listed for damp location when used with dedicated wet rated recessed lights
  • New construction recessed can, ideal for those who have easy access to their ceilings
  • Insulation contact rated: designed for insulated ceilings where contact is necessary
  • Features an integral thermal protector to guard against misuse of insulation materials and improper lamping

Product Overview

  • New construction, for installations with open ceiling access
  • Housing can touch and be covered with insulation
  • Wet location approved, when used with select showerlight trims
Model #: H550ICAT
Sku #: 288205
Internet #: 203310670

The Halo H550ICAT is a dedicated 5 in. aperture LED new construction IC, AIR-TITE housing for use with Halo RL56 and RL7 LED retrofit modules, and ML56 LED Downlighting System of LED Light Modules and LED Trims. H550ICAT is designed for use in insulated ceilings where it will be in direct contact with insulation. It is an AIR-TITE, certified ASTM-E283 housing designed to prevent air flow between occupied spaces and unconditioned areas. The LED connection is non-screw base to preserve the high efficacy rating of the luminaire as used with the compatible Halo or All-Pro LED modules, lighting engines and trims.

  • Air-Tite rated design meets restricted air flow code requirements which prevents airflow between attic and living areas and saves on both heating and air conditioning costs
  • Die-formed housing and plaster frame
  • Compatible with a wide variety of 5 in. LED retrofit trims but is best with Halo quality RL, RA, SLD, LT, SMD and ML series models (Bulb free with some having a 45 year LED lifespan)
  • LED module connection: this non-screw-base LED connection preserves the high efficacy rating of the luminaire
  • Energy star, title 24 and IECC qualified when used with select LED Halo trim modules
  • Slide-N-side junction box: connectors allow non-metallic sheathed cable for both U.S. and Canada to be installed without tools
  • Pass-N-Thru bar hangers: fixture has pre-installed nails that easily installs in regular lumber, engineered lumber and laminated beams
  • Listed for damp location when used with dedicated wet rated recessed lights
  • New construction recessed can, ideal for those who have easy access to their ceilings
  • Insulation contact rated: designed for insulated ceilings where contact is necessary
  • Features an integral thermal protector to guard against misuse of insulation materials and improper lamping

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

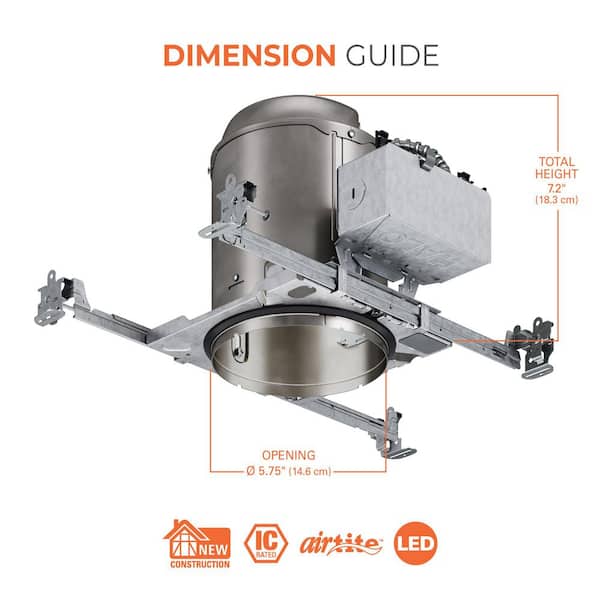

Dimensions

Actual Aperture Width (in.)
5.75
Housing Height (in.)
7.5
Housing Width (in.)
5.75
Maximum Cutout Size (in.)
5.74
Nominal Lens Aperture Size
5 in.

Details

Compatible Bulb Type
LED
Damp/Wet Rating
Damp Rated,Wet Rated
Features
Air Tight
IC Rating
IC Rated
Included
Mounting Brackets
Indoor/Outdoor
Indoor,Outdoor
Light Bulb Base Code
LED
Maximum Bulb Wattage
20
New Construction or Remodel
Remodel
Number of Housings Included
1
Product Weight (lb.)
2.0lb
Reflector Finish Family
Aluminum
Returnable
90-Day
Voltage
Line Voltage

Warranty / Certifications

Certifications and Listings
1-UL Listed,IC Rated,cUL Listed
Manufacturer Warranty
1 year limited

Specifications

Dimensions

Actual Aperture Width (in.)
5.75
Housing Height (in.)
7.5
Housing Width (in.)
5.75
Maximum Cutout Size (in.)
5.74
Nominal Lens Aperture Size
5 in.

Details

Compatible Bulb Type
LED
Damp/Wet Rating
Damp Rated,Wet Rated
Features
Air Tight
IC Rating
IC Rated
Included
Mounting Brackets
Indoor/Outdoor
Indoor,Outdoor
Light Bulb Base Code
LED
Maximum Bulb Wattage
20
New Construction or Remodel
Remodel
Number of Housings Included
1
Product Weight (lb.)
2.0lb
Reflector Finish Family
Aluminum
Returnable
90-Day
Voltage
Line Voltage

Warranty / Certifications

Certifications and Listings
1-UL Listed,IC Rated,cUL Listed
Manufacturer Warranty
1 year limited

Questions & Answers

what is the maximum distance between ceiling joists? I have 21', will that work?

what is the maximum distance between ceiling joists? I have 21', will that work?
Asked by: Steve
Yes. You can position the housing at any point within a 24 inch joist span.
Answered by: EATON - Lighting
Date published: 2017-08-02

Can this housing be put on a dimmer swich?

Asked by: beau
Dear valued consumer, the housing itself does not matter, it depends on what type of light option you choose. Since this is an LED housing, it does not accept screw base light options. You would need to use an LED retrofit with this housing and all of the Halo RL56 LED retrofits are dimmable.
Answered by: EATON - Lighting
Date published: 2018-02-21
  • y_2019, m_2, d_15, h_3CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.11
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_2
  • loc_, sid_203310670, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 29ms
  • QUESTIONS, PRODUCT

Customer Reviews

H550 5 in. Aluminum LED Recessed Lighting Housing for New Construction Ceiling, T24, Insulation Contact, Air-Tite is rated 4.2 out of 5 by 6.
Rated 5 out of 5 by from The romex connector tabs save a lot of time with the install The romex connector tabs save a lot of time with the install
Date published: 2018-11-27
Rated 4 out of 5 by from LED specific housings I purchased these for Halo RL560WH led lights. They use a quick connect plug to connect them. These housings have all the adjustments you need. Although you can use 6" housings for these led lights, the trim ring will not cover the hole by much, so the 5" housing is a better choice. The only reason I downgraded the rating to 4 stars is that these are a few dollars more than the standard housings.
Date published: 2013-03-13
Rated 1 out of 5 by from Not air tite...if the meant air tight. Blown ... Not air tite...if the meant air tight. Blown in sulation leaked through the housing every time there is a wind.
Date published: 2018-10-09
Rated 5 out of 5 by from Great product has plug for led bulb setup Great product has plug for led bulb setup
Date published: 2018-02-20
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2017-04-22
Rated 5 out of 5 by from Halo recessed light. Can I purchased this for a bathroom remodel and it was a breeze to install.
Date published: 2016-10-04
