H750 6 in. Aluminum LED Recessed Lighting Housing for New Construction Ceiling, T24 Rated, Insulation Contact, Air-Tite

  • New construction, for installations with open ceiling access
  • Housing can touch and be covered with insulation
  • Wet location approved, when used with select showerlight trims
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

Add an energy-efficient LED lighting feature to your new construction project with this Halo 6 in. Aluminum Recessed Lighting Housing. This housing features an air-tight construction and may be installed with direct contact to insulation. This housing must be paired with the Halo ML706830 LED module (sold separately) and the 494-Watt B06 or 493-Watt BS06 LED trims (sold separately) for a complete LED system.
  • Air-Tite rated design meets restricted air flow code requirements which prevents airflow between attic and living areas and saves on both heating and air conditioning costs
  • 6 in. aperture provides illumination for your ceiling lighting needs
  • Compatible with a wide variety of 6 in. LED retrofit trims but is best with Halo quality RL, RA, SLD, LT, SMD and ML series models (Bulb free with some having a 45 year LED lifespan)
  • LED module connection: this non-screw-base LED connection preserves the high efficacy rating of the luminaire
  • Energy star, title 24 and IECC qualified when used with select LED Halo trim modules
  • Pass-N-Thru bar hangers: fixture has pre-installed nails that easily installs in regular lumber, engineered lumber and laminated beams
  • Slide-N-side junction box: connectors allow non-metallic sheathed cable for both U.S. and Canada to be installed without tools
  • New construction recessed can, ideal for those who have easy access to their ceilings
  • Insulation contact rated: designed for insulated ceilings where contact is necessary
  • Listed for damp location when used with dedicated wet rated recessed lights
  • 3 "Quick Connect" connectors eliminate the need for separate wire nuts - simply strip supply wires and push in
  • Features an integral thermal protector to guard against misuse of insulation materials and improper lamping
  • Click here to learn more about Eco Options and Energy Efficiency

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Recessed Lighting Housings

current product
H750 6 in. Aluminum LED Recessed Lighting Housing for New Construction Ceiling, T24 Rated, Insulation Contact, Air-Tite
H550 5 in. Aluminum LED Recessed Lighting Housing for Remodel Ceiling, T24 Compliant, Insulation Contact, Air-TiteH550 5 in. Aluminum LED Recessed Lighting Housing for New Construction Ceiling, T24, Insulation Contact, Air-TiteH995 4 in. Aluminum LED Recessed Lighting Housing for New Construction Ceiling, T24, Insulation Contact, Air-Tite
BrandHaloHaloHaloHalo
NameH750 6 in. Aluminum LED Recessed Lighting Housing for New Construction Ceiling, T24 Rated, Insulation Contact, Air-TiteH550 5 in. Aluminum LED Recessed Lighting Housing for Remodel Ceiling, T24 Compliant, Insulation Contact, Air-TiteH550 5 in. Aluminum LED Recessed Lighting Housing for New Construction Ceiling, T24, Insulation Contact, Air-TiteH995 4 in. Aluminum LED Recessed Lighting Housing for New Construction Ceiling, T24, Insulation Contact, Air-Tite
Price
Ratings
(158)
(290)
(127)
(127)
Nominal Lens Aperture Size6 in.5 in.5 in.4 in.
New Construction or RemodelNew Construction,RemodelNew ConstructionRemodelRemodel
Compatible Bulb TypeLEDLEDLEDLED
IC RatingIC RatedIC RatedIC RatedIC Rated
FeaturesAir TightAir TightAir TightAir Tight
Indoor/OutdoorIndoor,OutdoorIndoor,OutdoorIndoor,OutdoorIndoor,Outdoor
Damp/Wet RatingDamp Rated,Wet RatedDamp Rated,Wet RatedDamp Rated,Wet RatedDamp Rated,Wet Rated
View ProductView ProductView ProductView Product

Specifications

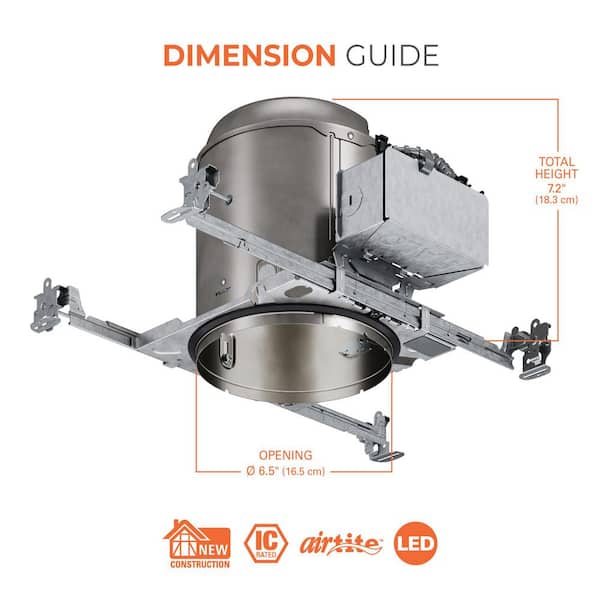

Dimensions

Actual Aperture Width (in.)
6.5
Housing Height (in.)
7.5
Housing Width (in.)
6.5
Maximum Cutout Size (in.)
6
Nominal Lens Aperture Size
6 in.

Details

Compatible Bulb Type
LED
Damp/Wet Rating
Damp Rated,Wet Rated
Features
Air Tight
IC Rating
IC Rated
Included
Mounting Brackets
Indoor/Outdoor
Indoor,Outdoor
Maximum Bulb Wattage
20
New Construction or Remodel
New Construction,Remodel
Number of Housings Included
1
Package Quantity
1
Product Weight (lb.)
3 lb
Reflector Finish Family
Aluminum
Returnable
90-Day
Voltage
Line Voltage

Warranty / Certifications

Certifications and Listings
UL Listed,cUL Listed
Manufacturer Warranty
1 year limited

Questions & Answers

98Questions14Answers

Can these be spray painted?

Asked by Lili May 21, 2021
1
Answer

No, Painting fixture will void warranty.

Can i get square trim plates

Asked by Rabbit March 2, 2021
1
Answer

H995ICAT is only compatible with LED modules with integrated trim and list of suitable LED modules are listed on the specification sheet. If you need a square trim, You may go for ML4 LED module which is having square trim as option. Please refer the specification sheet for ML4 using the below link. https://www.cooperlighting.com/global/brands/halo/ml4-led-4-recessed-downlight-system.html

Are these title 24 compliant for california high efficacy standards?

Asked by Jeff February 26, 2021
1
Answer

Yes, these are listed for Title 24 State of California.

Thinking about box fill: can I use the junction box to both daisy-chain lights (14/2 wire in from...

Asked by throughwire January 18, 2021
1
Answer

All wiring should be per local and NEC code. The wire rating of the box does not include ground. 8 wires plus ground is acceptable.

Will a 6" hole cut in the ceiling for an attic mount be ok for this 5" housing?

Asked by Scott December 30, 2020
1
Answer

It will be ok but ceiling cutout is 5-3/4 [146mm].

Can these be used for old construction where the attic is accessable?

Asked by Matt December 2, 2020
2
Answers

Yes, if you have good access, and you can still secure it via the nails or screws.

Are these housings compatible with other brands of 4" cans? Envirolite for example?

Asked by MV November 23, 2020
1
Answer

No, these cans are compatible with only cooper trims. Others are not tested to recommend.

are these dimable

Asked by Josh May 17, 2020
2
Answers

This is just a housing. Dimming capability depends on the LED fixture which will be used in this housing. You can go for our dimming LED fixtures RL56/LT56/RA56 fixtures.

Burn time? County inspector is asking

Asked by King May 11, 2020
1
Answer

This is just a housing an in general we list life for LED fixtures not for housing.

How can I get to the junction box once the light is hung? I can't find this info. in the directi...

Asked by Mo January 12, 2020
3
Answers

Only way to access the junction box after it’s hung would be if you have access to the ceiling above like an attic. If you need this access, there are other types of cans, but this one would not fit your needs.
