#1 Home Improvement Retailer

Internet #202507555

Model #H750RICAT

Store SKU #795261

H750 6 in. Aluminum Recessed Lighting Housing for Remodel Ceiling LEDT24 CompliantConnectors, InsulationContact, AirTite

  • Remodel housing, for installations below the ceiling
  • Housing can touch and be covered with insulation
  • Wet location approved, when used with select showerlight trims
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

This Halo LED Remodel Housing may be used with Halo LED Module ML706830, RL's, RA's, ML's, LT's, BLD's also, some SLDs are compatible as well and Halo LED Trims. The Halo LED collection offers the widest selection of performance-designed recessed LED down lights. With Halo the benefits of LED technology are fully realized for general lighting applications. Excellent color rendering and superior optical design with smooth beam distribution. Use the H750RICAT for remodel applications. This item is also Air-tite and saves energy by restricting airflow from living spaces to unconditioned attic or plenum.
  • Can be installed from below the ceiling in home remodel applications, ideal for those who have limited or no access to their ceiling
  • Insulation contact rated: Designed for insulated ceilings where contact is necessary
  • Air-Tite rated design meets restricted air flow code requirements which prevents airflow between attic and living areas and saves on both heating and air conditioning costs
  • Has four remodel clips which secure the recessed housing and accommodates 1/2" and 5/8" ceiling material
  • Compatible with a wide variety of 6 inch LED retrofit trims but is best with Halo quality RL, RA, SLD, LT, SMD, and ML series models (Bulb free with some having a 45 year LED lifespan)
  • LED Module Connection: This non-screw-base LED connection preserves the high efficacy rating of the luminaire
  • Listed for damp location when used with dedicated wet rated LED recessed lights
  • Rated for 20-Watt maximum
  • Three "Quick Connect" connectors eliminate the need for separate wire nuts - simply strip supply wires and push in
  • Features an integral thermal protector to guard against misuse of insulation materials and improper lamping
  • Click here to learn more about Eco Options and Energy Efficiency

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

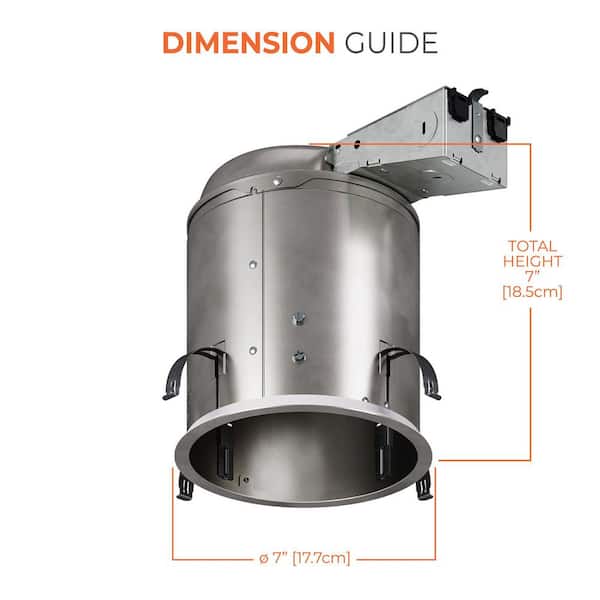

Dimensions

Actual Aperture Width (in.)
6.25
Housing Height (in.)
7.5
Housing Width (in.)
6.125
Maximum Cutout Size (in.)
6
Nominal Lens Aperture Size
6 in.

Details

Compatible Bulb Type
LED
Damp/Wet Rating
Damp Rated,Wet Rated
Features
Air Tight
IC Rating
IC Rated
Included
Mounting Brackets
Indoor/Outdoor
Indoor,Outdoor
Maximum Bulb Wattage
20
New Construction or Remodel
New Construction,Remodel
Number of Housings Included
1
Package Quantity
1
Product Weight (lb.)
2.5 lb
Reflector Finish Family
Aluminum
Returnable
90-Day
Voltage
Line Voltage

Warranty / Certifications

Certifications and Listings
UL Listed,cUL Listed
Manufacturer Warranty
3 year limited

Questions & Answers

57Questions30Answers

These items say they are IC Rated, so I bought some. I can't find the stamp/mark on them showing ...

Asked by Charlie June 11, 2021
1
Answer

The IC included in fixture model# H750RICAT and also you can see IC marking on the label of fixture. https://www.cooperlighting.com/api/assets/v1/file/CLS/content/halo-h750ricat-adv141507-sss/halo-h750ricat-adv141507-sss.pdf

Can these somehow be installed in 7/8 inch lath plaster ceiling

Asked by RD June 10, 2021
1
Answer

No, This can be used in 2”x 8” joist construction (with 1/2” or 5/8” ceiling material).

Will these work with Philips Recessed Lights? https://www.homedepot.com/p/Philips-Color-and-Tunab...

Asked by JT June 8, 2021
0
Answers

I bought these, but I am having a hard time locking the 4 tabs. They do not hold. I am using 1/2...

Asked by Dave May 16, 2020
5
Answers

I agree!

Can I run 4 separate 14/2 Romex wires into the junction box?

Asked by riverrat April 8, 2020
6
Answers

You could if you cut off the quick connect and spiced like you would normally do. There are more then enough knock outs to bring several runs of wire in and out.

Will this fixture work with plaster and lathe ceiling?

Asked by Daryl March 7, 2020
2
Answers

The lights are very poor quality. The can itself is like aluminum foil and the clips do not snap easily. Most of the time the clip damage the can.

Does this connector match the Nicor LED downlight (DLR56-SD-1007-WH-BF) connector?

Asked by Fourleggedfish January 31, 2020
2
Answers

From what I've researched, yes it should fit.

Whats the max ceiling width you can have and still be able to use this housing?

Asked by Rick September 25, 2019
3
Answers

I think you could but the install would be difficult. The metal arms would need to be bent a bit before installing. Trial and error would eventually get you where you need to be.

The carton says “For Use With Halo LED Modules Only.” I’m a novice, what does that exactly mean?

Asked by Ken August 14, 2019
5
Answers

A contractor put it in. I hv no idea what other options are possible, but I like the led halo brightness

Can these be used on ceiling tile that are a grid ceiling

Asked by Jim April 29, 2019
5
Answers

You would want to use the new construction style cans that have sliding brackets arms. The brackets will have clips on the end keeping them secured to the grid. These remodel style are meant to be used in drywall or fixed ceilings where the ceiling material supports the can housing. Ceiling tiles are not fixed and not proper for support by themselves.

H750 6 in. Aluminum Recessed Lighting Housing for Remodel Ceiling LEDT24 CompliantConnectors, InsulationContact, AirTite - page 2

Customer Reviews

  • 4.1
    out of 290 reviews
  • 81% recommend this product
Filter by:
Showing 1-10 of 290 reviews
The build quality of each of the housing cans is sturdy, and plugs were easy to use. Negatives i...
The build quality of each of the housing cans is sturdy, and plugs were easy to use. Negatives include the very rigid clips which make it very difficult to press in and lock. I highly recommend before installing to pull and stretch out each of the 4 clips so it makes it easier to lock in. When inserting the electrical wires into the junction box make sure to add plugs which will prevent the wires from fraying against the edges of the junction box over time.
by Kunjiklub
Cut the hole, insert, hammer the tabs up, wire it add a led and transform your space with light. ...
Cut the hole, insert, hammer the tabs up, wire it add a led and transform your space with light. One note, pay attention to the sealing tape along the bottom of the can. A few of them in the store had the tape on the vertical part of the can it really needs to be along the rims horizontal curved to the vertical or it will not seal. 4 stars because of this. Good product though.
by burkeys
The Halo H995 Remodel Can worked great for our installation where we wanted to match the look of ...
The Halo H995 Remodel Can worked great for our installation where we wanted to match the look of the existing cans with a new one in a nearby location. We could have mounted one of many self-contained units, but this one has the same look and feel as the other 10 in the room, so we went with this. Installation was a breeze. Of course, we bought a compatible Halo LED fixture with a matching plug to mate with the contact provided. The unit does not have an Edison base, so a compatible lamp is needed. Interestingly, the ground wire is not part of the socket, requiring that the lamp's ground be screwed into the provided hole in the inside wall of the can. The attached wiring box has a typical snap-on cover on both the top and the bottom. It also has some slick strain reliefs that make running Romex into it super simple. Standard small knockouts are also available., As many cans now have, this has the very simple push in wiring connectors that make wiring and daisy-chaining as simple as possible (see picture). No wire nuts needed for most installations. The push-in feet were pretty typical of most cans and worked very well. Once snapped or tapped in, they pulled the unit up nicely to hug the ceiling evenly and tightly. The unit can be easily dismounted as well, if additional wiring is needed. Multiple lamp trim kits are available - we went with a rotating gimbal trim kit. Installation took only a few minutes and it's looks and performance are great - Highly recommended.
by BuckeyeDIY
2 people found this helpful
I used these cans with Philips 532969 Full Spectrum White PAR38 Grow lights in our master BR suit...
I used these cans with Philips 532969 Full Spectrum White PAR38 Grow lights in our master BR suite, near a couch and over a tall Alocasia plant (and in our living room too). This is an old work situation, and had to do most of it from below in the room. There is an attic, but an HVAC unit mostly blocks access. I will tell you a valuable trick or two for installing these cans, I learned from an electrician buddy. Trick #1--Pick the location, but don't cut the big hole yet!! Cut a 12" section of straightened coat hanger wire and put it in a battery powered drill. In the center of the chosen location, carefully drill the coat hanger up through the ceiling, remove it from the drill chuck, and leave it in the hole. In the attic, look for the coat hanger and make certain it is at least 4" from a joist all around. Move and re-drill the coat hanger as required to find a safe location. Yes, you can't put cans just anywhere, you MUST allow for the diameter of the can AND the clips that pop out the side. Once you have a good location, place the template (provided with the fixture) on the coat hanger stub sticking out of the ceiling, and flat against the ceiling, and mark with a pencil around the template periphery. Cut the hole with your sheet-rock hand saw, on the line or JUST on the outer edge of the line. Bigger and the trim won't hide the cut. Pull your Romex or BX wire down through the hole 2-3 feet and choose a knock-out to remove in the fixture electrical box. Stick a screwdriver in it and bend back and forth. You MUST install a box-connector for the wire used - ALWAYS use the ground too. Trick #2-- If your ceiling is plaster over blueboard as mine was, the ceiling is thicker than the 1/2" or 5/8" the fixture can accommodate. Push the fixture clips through and bend them a little (don't go too far or they will snap or be too loose) so they will still hold the fixture tight when you install it per the manufacturer's instructions. If you don't do this in a thick ceiling, you will struggle to get it in. I speak from experience! Job is done and notice in just a few days the leaves which were hanging down, are now reaching up for the light, giving the plant a really nice shape. I use a switch for this light because we don’t want it waking us up on the weekends and turning it on and off in the bedroom is not a big deal. There is NO UV (the spectrum on the box shows this) to fade our furniture so it is a great fit for this location.corners of my bedroom and living room. This fixture is perfect for adding grow lights (this one draws only 16 watts) to your home to brighten up gloomy winter days.
by LEDman
7 people found this helpful
Easy to install and feels solid, easy to link together, I would use this again.
Easy to install and feels solid, easy to link together, I would use this again.
by Yeehicowboy
Retrofit is the best housing after drywall installation. I have used this product for years never...
Retrofit is the best housing after drywall installation. I have used this product for years never a complain
by Jt
This works just wonderfully. I couldn't get the springs to fit as described in the instructions,...
This works just wonderfully. I couldn't get the springs to fit as described in the instructions, but I was able to press them through the hole and they held the fixture in place. Painted the ceiling, and installed the lights and things looked beautiful.
by HomeDepotCustomer
Very quick and easy to install. The quick connectors are awesome 2
Very quick and easy to install. The quick connectors are awesome 2
by Mess
1 person found this helpful
Awesome product needs better instructions
This housing only cost me $10. I was fixing a mickey moused job where someone tried to install an led can light with no can! This product needs better instructions though. I wasnt able to get the tabs to lock by pushing them. They only locked after shoving the little upside down "T" part of the tab straight up. After that its solid and im glad I can remove the can to service the wires if need be. My picture shows the can's electrical box, you dont wire nut on mine, you just press the wires in. Also this is with the 2 covers off.
by Nkeeter
1 person found this helpful
It's a really elegant design, very quick and easy to install, until you try to connect the ML56 L...
It's a really elegant design, very quick and easy to install, until you try to connect the ML56 LED lighting module. There's a wiring harness from the top of the housing that plugs right in to the top of the module, really easy. However, the module also has a separate ground wire which is supposed to be connected separately to the housing, but there's simply no way to do it with supplied parts. The instructions say to use the supplied machine screw and nut to connect the ground wire to an existing hole on the housing, or use the nut on an existing post in the housing. But the H550RICAT housing has no holes (it's supposedly air-tight) or posts. You could do it with a self-tapping sheet metal screw, but none are supplied. There's simply no way to do it. Even if you have a self-tapping sheet metal screw, it's really hard to connect the ground wire because it's too short and you don't have enough hands to hold the module up and screw it in. Everything else about this system seems so well designed... I contacted Halo/Eaton customer support, who could only offer an apology. Well, except that it's supposed to be air-tight, which is achieved with some foam tape. But the tape fails to seal on all six of my housings around where the wire comes through, and the lack of actual packaging failed to protect the foam tape on the top of the housing which seals some holes (those holes are too big and too far for the ground screw). So they're not actually air-tight. You can easily fix this yourself with more foam tape and/or silicone sealant, but you shouldn't have to. So find another brand. One which actually tries to install their products before selling them. BTW, Home Depot also fell down on the packaging. They threw six housings and a couple of the modules in a massively oversized box with a token amount of air bag padding. The housings came in dented, with the clips loose in the bottom of the box, and much of the foam sealing tape on the outsides of the housings ripped. But my local store doesn't stock these housings... Get 'em elsewhere where you can inspect them in person.
by Disappointed
1 person found this helpful
