Model # 693SNB

Internet #203310680

Store SKU #286588

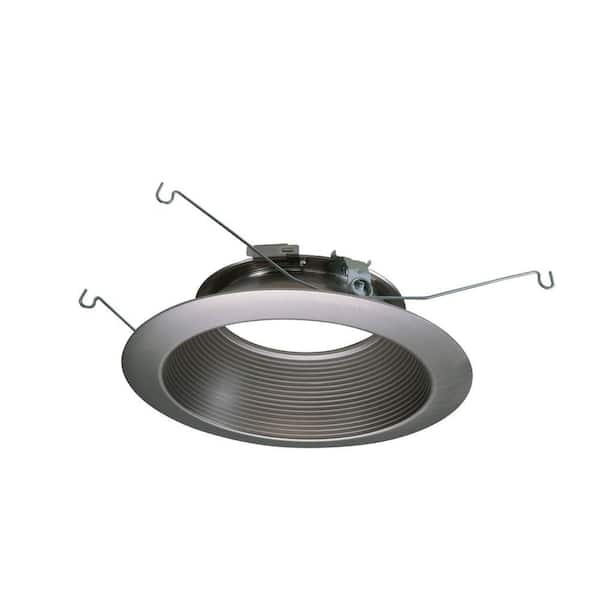

Halo ML 6 in. Satin Nickel LED Recessed Ceiling Light Attachable Module Baffle Trim
0080083624102

Halo

ML 6 in. Satin Nickel LED Recessed Ceiling Light Attachable Module Baffle Trim

  • Wet rated, can be used as a showerlight with ML recessed modules
  • Compatible with dedicated Halo ML56 series recessed light modules
  • 6 in trim Baffle in place to reduce ceiling light glare
$2412 /each

Choose Your Options

store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Installation Options

Product Overview

  • Wet rated, can be used as a showerlight with ML recessed modules
  • Compatible with dedicated Halo ML56 series recessed light modules
  • 6 in trim Baffle in place to reduce ceiling light glare
693 Series of 6 in. aperture baffles with self-flange. The 693 series baffles may be used in most standard height 6 in. aperture recessed housings with ML56 LED Light Modules. 693 Series LED Trims are an integral element in the Halo ML56 LED Downlighting System. ML56 LED System is a series of modular LED Light Modules for use with dedicated 5 in. or 6 in. ML56 LED trims. The ML56 LED trims in 5 in. and 6 in. aperture sizes are designed to fit Halo, All-Pro and others 5 in. or 6 in. recessed housings.
  • For 6 in. apertures
  • Satin nickel finish
  • Reflector and baffle trims make ML56 air-tite for compliance to applicable state and local codes, and make any housing air-tite
  • Wet location shower listed with ML56 LED light modules
  • For use with Halo ML56 LED modules (sold separately)
  • Aluminum construction
  • ML56 downlight trims and modules make housings air-tite

Product Overview

  • Wet rated, can be used as a showerlight with ML recessed modules
  • Compatible with dedicated Halo ML56 series recessed light modules
  • 6 in trim Baffle in place to reduce ceiling light glare
Model #: 693SNB
Sku #: 286588
Internet #: 203310680

693 Series of 6 in. aperture baffles with self-flange. The 693 series baffles may be used in most standard height 6 in. aperture recessed housings with ML56 LED Light Modules. 693 Series LED Trims are an integral element in the Halo ML56 LED Downlighting System. ML56 LED System is a series of modular LED Light Modules for use with dedicated 5 in. or 6 in. ML56 LED trims. The ML56 LED trims in 5 in. and 6 in. aperture sizes are designed to fit Halo, All-Pro and others 5 in. or 6 in. recessed housings.

  • For 6 in. apertures
  • Satin nickel finish
  • Reflector and baffle trims make ML56 air-tite for compliance to applicable state and local codes, and make any housing air-tite
  • Wet location shower listed with ML56 LED light modules
  • For use with Halo ML56 LED modules (sold separately)
  • Aluminum construction
  • ML56 downlight trims and modules make housings air-tite

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Price
$21.86 /each
$24.12 /each
$29.00 /each
$33.97 /each
Name 993 Series 4 in. Satin Nickel Recessed Trim with Black Coilex Baffle ML 6 in. Satin Nickel LED Recessed Ceiling Light Attachable Module Baffle Trim 5054 Series 5 in. Satin Nickel Recessed Ceiling Light Dome Trim, Wet Rated Shower Light 426 Series 6 in. Satin Nickel Recessed Ceiling Light Reflector Cone Trim
Brand Halo Halo Halo Halo
Ratings (4) (2) (6) (17)
Fixture finish family Silver metallic Silver metallic Silver metallic Silver metallic
Size 4 in. 6 in. 5 in. 6 in.
Light Bulb Type Included No Bulbs Included No Bulbs Included No Bulbs Included No Bulbs Included
View Product View Product View Product View Product

Specifications

Dimensions

Aperture width (in.)
6.0
Assembled Depth (in.)
2 in
Assembled Height (in.)
6 in
Assembled Width (in.)
6 in
Size
6 in.

Details

Adjustable Lamp Head
No
Fixture Finish
Satin Nickel
Fixture Material
Aluminum
Fixture finish family
Silver metallic
Light Bulb Type Included
No Bulbs Included
Product Weight (lb.)
0.5lb
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
1-UL Listed,CSA Listed
Manufacturer Warranty
1 year

Specifications

Dimensions

Aperture width (in.)
6.0
Assembled Depth (in.)
2 in
Assembled Height (in.)
6 in
Assembled Width (in.)
6 in
Size
6 in.

Details

Adjustable Lamp Head
No
Fixture Finish
Satin Nickel
Fixture Material
Aluminum
Fixture finish family
Silver metallic
Light Bulb Type Included
No Bulbs Included
Product Weight (lb.)
0.5lb
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
1-UL Listed,CSA Listed
Manufacturer Warranty
1 year

Questions & Answers

What is the color temperature of the led's ?

What is the color temperature of the led's ?
Asked by: Larry
This is just the trim that attaches to the ML56 LED module, which will attach to a 5" or 6" recessed housing. The ML56 LED module is available in a range of color temperatures (2700K; 3000K; 3500K; 4000K), as well as several lumen outputs.
Answered by: Cooper Lighting
Date published: 2017-10-16

COLOR

What color is this light? Soft White, Bright White???? Also, what do I need for installation in addition to this light. Also, how far apart should they be set. My ceilings are 9 feet highI
Asked by: Pooh
Dear valued consumer, this is just the trim. It is compatible with our ML56 series of LED modules which come in a variety of color temps and are also on homedepot.com. You would need one of the LED modules, the trim piece above, and a recessed housing if one is not already installed.
Answered by: Cooper Lighting
Date published: 2016-01-16

Color

Can you tell me if this is a soft white, bright white, etc. lighting. Also what parts do I need to purchase with this for installation.
Asked by: Pooh
Dear valued consumer, this is just the trim. It is compatible with our ML56 series of LED modules which come in a variety of color temps and are also on homedepot.com. You would need one of the LED modules, the trim piece above, and a recessed housing if one is not already installed.
Answered by: Cooper Lighting
Date published: 2016-01-16
  • y_2018, m_1, d_22, h_6CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.6
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_3
  • loc_, sid_203310680, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 163ms
  • QUESTIONS, PRODUCT

Customer Reviews

ML 6 in. Satin Nickel LED Recessed Ceiling Light Attachable Module Baffle Trim is rated 5.0 out of 5 by 2.
Rated 5 out of 5 by from the attachment to my recessed cans we simple, better than in store product the attachment to my recessed cans we simple, better than in store product
Date published: 2017-04-11
Rated 5 out of 5 by from Looks great! Easy install! Use with the Halo LED light module. White baffles always look too stark. Black baffles are too much of a statement in the other direction. This satin nickel material is just right. It looks professional and buttoned up. From the side it does not glare. It attaches flawlessly and solidly to the related Halo LED light module with three tangs. Otherwise, it mounts just like any other trim ring.
Date published: 2013-10-08
