Model #HZ-5316-WH

240-Degree White Replacement Outdoor Motion Sensing Flood Light Sensor

  • 2-level lighting for your convenience
  • 240 degree motion sensor for up to 100 ft.
  • Weatherproof construction for longevity
  • See More Details

Frequently Bought Together


Product Overview

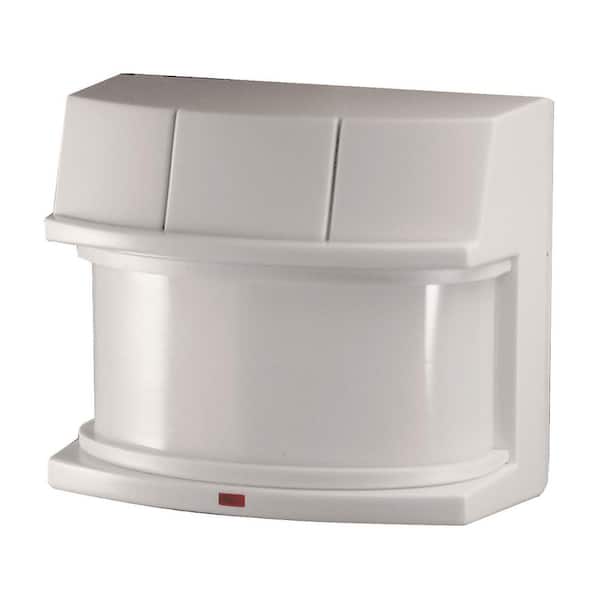

The 240° Universal Replacement Sensor has a white weather resistant housing. It has an adjustable range of up to 100 ft. with a 240° range of motion detection. It has a selectable light timer and patented DualBrite 2-level lighting technology for energy efficiency.

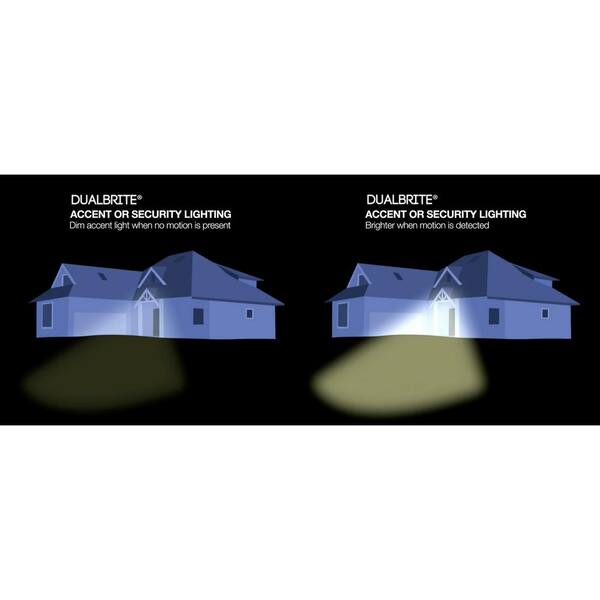

  • DualBrite 2-level lighting which offers accent lighting for selected time when no motion present and full bright light for security purpose when motion is detected
  • Selectable motion timer of (test, 1, 5, 20 minutes) to optimize energy usage when motion is detected
  • Button/snap for easy installation
  • Photo cell ensures night time operation only for efficient energy usage
  • Manual override option allows light to operate constantly for selected period of time
  • White finish
  • Weather resistant housing
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Flood Lights

180-Degree Bronze Motion Activated Outdoor Flood Light Replacement Sensor
current product
240-Degree White Replacement Outdoor Motion Sensing Flood Light Sensor
240° Bronze Motion Activated Outdoor Flood Light270° Replacement Sensor, Black
BrandHeath ZenithHeath ZenithHeath ZenithDefiant
Name180-Degree Bronze Motion Activated Outdoor Flood Light Replacement Sensor240-Degree White Replacement Outdoor Motion Sensing Flood Light Sensor240° Bronze Motion Activated Outdoor Flood Light270° Replacement Sensor, Black
Outdoor Lighting FeaturesAdjustable Detection Sensitivity,Motion Sensing,Weather ResistantMotion Sensing,Weather ResistantAdjustable Detection Sensitivity,Adjustable Lamp Head,Motion Sensing,Weather ResistantAdjustable Detection Sensitivity,Motion Sensing,Weather Resistant
Power TypeHardwiredHardwiredHardwiredHardwired
Compatible Bulb TypeHalogenHalogenHalogenHalogen
Voltage TypeLine VoltageLine VoltageLine VoltageLine Voltage
IncludedNo additional accessoriesNo additional accessoriesHardware IncludedNo additional accessories
View ProductView ProductView ProductView Product



Product Depth (in.)
Product Height (in.)
Product Length (in.)
Product Width (in.)


Compatible Bulb Type
Detection Range (ft.)
Exterior Lighting Product Type
Fixture Color/Finish
Fixture Material
Glass/Lens Type
No Glass/Lens
No additional accessories
Light Beam Angle
Light Bulb Base Code
Maximum Bulb Wattage
Maximum Wattage (watts)
Number of Bulbs Required
Number of Lights
2 Lights
Outdoor Lighting Features
Motion Sensing,Weather Resistant
Pack Size
1 Pack
Power Type
Product Weight (lb.)
Recommended Light Bulb Shape Code
Voltage Type
Line Voltage

Warranty / Certifications

Certifications and Listings
UL Listed,cUL Listed
Manufacturer Warranty
2 Year

Questions & Answers


Why does this sensor need a "switched circuit"? I hardwired it into an unswitched circuit and it ...

Asked by Patrick November 11, 2020

the sensor is the switch, providing you with a switched circuit to your lamps. power to the lamps has to be connected to one end of the sensor and when the sensor turns on, power comes out the other sensor wire and goes to the lamps.

Does it thread into a box or fixture to be hard wired,

Asked by Peter June 11, 2020

It threads into an existing fixture. I used this to replace a faulty sensor so it was a simple swap.

The problem I am having, is after PROPER installation, the outside light will not come on. I have...

Asked by RJRICE February 26, 2020

I had a problem like that and found out that heat will not let light to turn on. I had a cam too close to the light. Check for heat sources around light could be a vent. I also setup the light in the house and tested it and it worked fine so you know the light is good. Hope this helps.

Will this work with model SH-5512?

Asked by Neener October 29, 2019


Can this sensor work with LED light bulb Fixture?

Asked by Sofia September 9, 2019

Only if the led bulb is dime able

What is the output voltage on the switched circuit (red wire)? Is it the same as the input voltag...

Asked by Nigel July 4, 2019

It is actually slightly less due to the circuitry of the sensor.

I know this product states it is a universal replacement. I recently purchased a Heath Zenith mo...

Asked by Raceway June 23, 2019

Absolutely. No problem. After removing the cover, unscrew the old sensor and screw in the 240 degree sensor. The wiring is the same. Reinstall the cover onto the box. Make sure the power is turned off while performing this operation.

will this sensor replace SH-5597 sensor?

Asked by Dawn June 21, 2019

It should

Can you adjust the sensitivity of the motion sensor?

Asked by Jim April 22, 2019

The degree of the field of sight is adjustable from a wide field (240°) down to a narrow field.

Does this motion sensor have to be attached/wired directly to the light fixture it controls? My l...

Asked by FM April 11, 2019

Yes, you can install the sensor any distance from the lights you want to control. Be aware that you will also need to have a single-pole switch installed in the circuit for proper operation (as stated in the sensor's instructions). I used the sensor to control 2 wall mounted light fixtures on my storage building with the sensor mounted between them above the door. The easiest way would be to start at the wall switch that has the incoming feed from the power source (you need to have a neutral present). From the switch run 14/2 (UF-B cable if exposed to sunlight/weather or NM-B cable if enclosed in dry conditions within a building structure) to the light, then run 14/3 from the light to the sensor.

240-Degree White Replacement Outdoor Motion Sensing Flood Light Sensor - page 2

Customer Reviews

  • 4.2
    out of 101 reviews
  • 72% recommend this product
Filter by:
Showing 1-10 of 101 reviews
I ordered 3 and only 1 of 3 actually worked....
I ordered 3 and only 1 of 3 actually worked. The dimmable LED lights did not go off as I tested them with the first sensor I installed that worked with all the other lights so I could problem shoot that it was the sensor. I returned the other two sensors and bought another brand. The one that did work is awesome, but I really wish that the other two worked as I can’t easily exchange them at HD since they don’t carry them in stock and I would have to reorder them. I really liked how the red light sensor would light up during the day to tell me if the sensor would work as the other two did not - this was a pain as I was going up and down the ladder all day, wasting time on something that should not happen with quality control actually doing their job.
by John
Installed two dual-bright lamps on one line. Don't seem to...
Installed two dual-bright lamps on one line. Don't seem to have any problems with this arrangement. The low light is moody, giving out sufficient light and probably looks good when approaching and before the motion detects and changes to bright. Save the planet and use original lamp parts!
by floj
good for the price. good delivery....
good for the price. good delivery.
by norbert
by HomeDepotCustomer
nothing special but works great...
nothing special but works great
Easy to swap out defective unit, as these sensors often...
Easy to swap out defective unit, as these sensors often stop working after many years in the rain and snow. Light is now as good a new.
The unit was great...however it would be really great if...
The unit was great...however it would be really great if Home Depot would still carry this product in the stores.....
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
The sensor works great and I setup to cover more...
The sensor works great and I setup to cover more area than it did before
Not the soft on version I thought it was. ...
Not the soft on version I thought it was. Sensitivity not as good as my old one even cranked up. It will do for now.
by HomeDepotCustomer
