Model # DLHDG

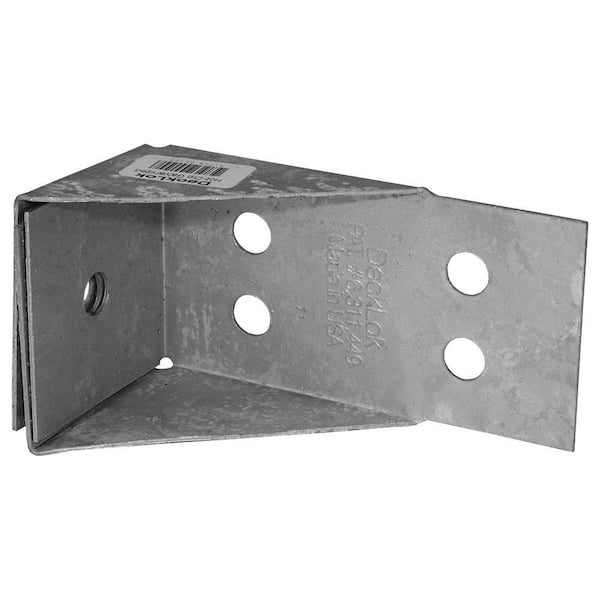

Hot Dipped Galvanized Steel Lateral Anchor System for Deck to Ledger Connections and Stair Stringers

$12.57
  • Two-DeckLok brackets provide 4000 lbs. of pull out resistance
  • Protects structural integrity of the wood with its bolt design
  • Built to be compatible with all standard 1/2 in. bolts
  • View More Details
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

The patented DeckLok Advanced Lateral Anchor is revolutionizing the deck industry. Providing a bolted connection at all critical structural locations. This system achieves the strength required to meet or exceed existing building codes for lateral pullout and guardrail post stability using standard construction designs and techniques.

Highlights

  • Use with standard 1/2 in. bolts
  • ICC-ES 2114 - Exceeds 2006, 2009 and 2012 IBC and IRC codes
  • A single pair of DeckLok brackets provides up to 4000 lbs. of pull out resistance
  • Provides support against lateral and horizontal movement
  • Offset bolt pattern preserves the structural integrity of the wood's end grain
  • Easy to install on existing structures or new construction
  • Return Policy

Product Information

Internet # 206515896

Model # DLHDG

Specifications

Dimensions: H 2.98 in, W 3.145 in, D 6 in

Dimensions

Individual Product Height (in.)

6

Individual product length (in.)

2.98 in

Individual Product Width (in.)

3.145 in

Product Depth (in.)

6 in

Product Height (in.)

2.98 in

Product Width (in.)

3.145 in

Details

Color Family

Grey

Decking Hardware Type

Other Deck Hardware

Fastener Material

Steel

Number in Package

1

Returnable

90-Day

Total Product Weight (lb.)

1

Warranty / Certifications

Manufacturer Warranty

Screw Products, Inc. guarantees the structural integrity of the DeckLok Lateral Anchor covering materials, labor, and medical expenses up to $100, 000 resulting from a failure of this product

Questions & Answers

5Questions
caret
Q:Would this function as a hold-down tie to bolt a beam to a concrete pier to resist uplift forces forces in-lieu of a hard-to-set and inflexible strap?
by|Aug 30, 2023
1 Answer
Answer This Question

A:  Yes

by|Mar 12, 2024
    caret
    Q:What are the hole sizes?
    by|May 26, 2023
    0 Answer
    Answer This Question
    caret
    Q:Is this item for hanging stair stringers to fascia (board)?
    by|Jun 3, 2019
    1 Answer
    Answer This Question

    A:  Yes, this item can be used for stair stringers. Stair Stringers If Your Stairs Have Only Two Stringers Installation requires 2 DeckLok Brackets, one per stringer. Place a Bracket against the deck band board and the inside surface of one of the stair stringers. Mark the center hole on the band board and drill a ½” hole. Place the bracket back into position against the stair stringer and place a min. ¼” spacer between the bracket and the band board. Install a 1/2” bolt, w/ flat washer, through bracket, spacer, and deck band board. Ma rk and drill for two diagonally opposed holes on the stair stringer. Install 1/2” diameter bolts, flat washers, lock washers, and nuts. Tighten. Repeat for the second stringer. If Your Stairs Have A Center Or More Than Three Stringers Sandwich the center stringer between two DeckLok Brackets. Mark and drill the center bolt hole for one of the brackets, drilling through the deck band board. Place the bracket back into position against the stair stringer and place a min. ¼” spacer between the bracket and the band board. Install a 1/2” bolt, w/ flat washer, through bracket, spacer, and deck band board. Select two diagonally opposed bolt holes on the stringer; mark and drill through the stringer, and install two, 1/2” diameter bolts, slide the other DeckLok Bracket onto the two protruding 1/2” bolts, then drill center bolt hole in band board. Add spacer, flat washers, lock washers, and nuts. Tighten. Instructions For Use With Engineered Lumber; I-Joists I-Joists must be reinforced with web stiffeners. (See joist manufacturer’s guide for recommended details on modifying or strengthening product.) Using construction adhesive, affix and screw block to each side of the web. Follow the general instructions above to install DeckLok Brackets to the reinforced I-Joist. Instructions For Use With Engineered Trusses Wood 2” x 4” Trusses must be reinforced with plates made from 1/2” Plywood, cut to the overall height of the truss. (See truss manufacturer's guide for recommended details on modifying or strengthening product.) Using construction adhesive and fasteners, affix and screw a plate to each side of the truss. Follow the instructions above to install DeckLok Brackets to the reinforced truss. Installation Notes Use 1/2” diameter hardware; bolts, flat washers on each side, lock washers, and nuts. Triple layer side of bracket mounts towards lateral force. Always read and follow the Product Recommendations provided by Treated Lumber Producers. Railings - Brackets must always be installed on upper post mounting bolt.

    by|Nov 22, 2020
      2 found this answer helpful
      caret
      Q:can i use this item to connect 2 stair stringers?
      by|Jun 5, 2016
      1 Answer
      Answer This Question

      A:  Absolutely!

      by|Aug 25, 2023
        Showing 1-4 of 5

        Customer Reviews

        4.4 out of 5

        • 4.4 out of 10 reviews
        • 100% recommend this product
        Filter by:
        Showing 1-10 of 10 reviews
        by
        • Verified Purchase
        by
        • Verified Purchase
        Just what we needed and when they said it was...
        Just what we needed and when they said it was coming.
        by
          Rating provided by a verified purchaser...
          Rating provided by a verified purchaser
          by
          • Verified Purchase
          seems to work well but not a lot in terms...
          seems to work well but not a lot in terms of instruction or technical details hope I installed them correctly
          by
          • Verified Purchase
          Not the product I was looking for. Will be returning.
          Not the product I was looking for. Will be returning.
          by
          • Verified Purchase
          strong support for step stringers
          strong support for step stringers
          by
          • Verified Purchase
          • Recommended
          These were great for specific need I had, which was...
          These were great for specific need I had, which was to reinforce the point with stair stringers attach to my deck. Minor issue I had was that the holes take 1/2" bolts, but I had to file out the one hole that consists of a 3 layers folder over since they didn't line up. Terrific product otherwise.
          by
          • Verified Purchase
          They do a great job of stiffening up the railing...
          They do a great job of stiffening up the railing posts on my deck.
          by
          • Verified Purchase
          1 found this review helpful
          They work every well. They hold the post very securely....
          They work every well. They hold the post very securely.
          by
