- Feed-Thru modular plug
- For insulated conductors of 0.040 in. - 0.048 in. diameter
- CAT6A/6 shielded UTP cable compatible
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product

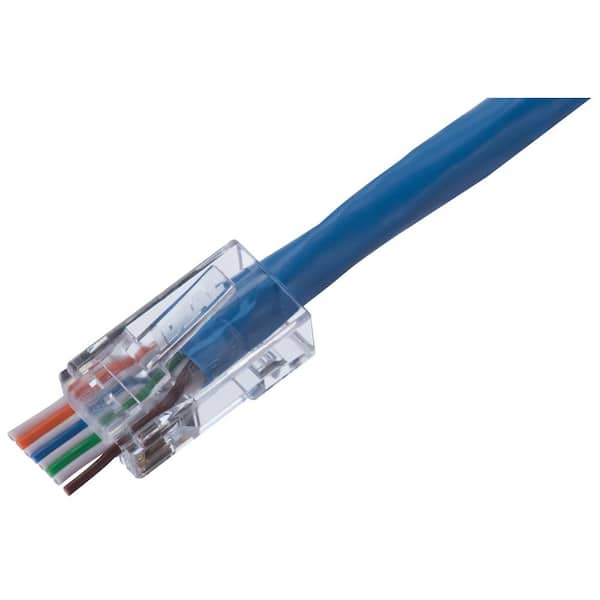

The IDEAL family of Feed-Thru products has expanded to include a new unshielded modular plug connector. This single piece 8P8C RJ-45 connector is designed to work with cable conductors ranging from 22 AWG to 24 AWG solid with an overall insulated 0.040 in. DIa to 0.048 in. per conductor, typically found in unshielded CAT6A/6 cables. The single piece Feed-Thru design simplifies the challenges faced when assembling and terminating twisted pair cables with larger diameter conductors, over 0.041 in., when use of a standard in-line connector is not an option.
Highlights
- Un-shielded feed-thru modular plug
- Insulated conductors of 0.040 in. Dia to 0.048 in. Dia
- CAT6A/6 unshielded cable compatible for above diameter range
- Staggered pin and conductor design
- Crimp with FT-45 30-495 tool
- 50 micron gold plated contact area
- UL Listed
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Specifications
Details
Connector Type | RJ45 |
|---|---|
Number of Outputs | 0 |
Package Quantity | 25 |
Returnable | 90-Day |
Warranty / Certifications
Manufacturer Warranty | LIMITED WARRANTY IDEAL Datacomm Products are guaranteed to be free from defects in material and workmanship for a period of one (1) year from date of purchase. |
|---|
Questions & Answers
Will this work with solid core wire
Yes, these modular plugs are designed to work with both solid core and stranded core wire - Andrew
Will these work with the Klein Tools VDV226-110 Crimper?
Hi zoom38 I have not tried using them with that tool but would assume they will work with the tool god luck Ron at ron.kipper@idealindustries.com
Can I use these with Cat 6A cable?
No Cat 6A is too big IDEAL has a new 85-385 connector for large diameter Cat 6/6A cables you might look for that should work. Hope that helped Ron at ron.kipper@idealindustries.com
What is the difference between Cat 6 Feed-Thru RJ-45 Modular Plug model #85-375 and Model #85-377?
Hi ANG same connector the 85-375 is a 25 pack and the 85-377 is a bag of 100. have fun Ron at ron.kipper@idealindustries.com
Viewing 1-4 of 4
Customer Reviews
4.4 out of 5
Loading Recommendations
Compare Key Features
Product Snapshot | |||
|---|---|---|---|
Ideal for high-bandwidth applications, this CAT6A/6 connector ensures secure, reliable connections with gold-plated contacts and easy feed-thru design. | Ideal for reliable network connections with 50 micro-inch gold-plated contacts ensuring long-term durability. | Ideal for data applications, ensuring consistent and secure terminations with 50µ-inch gold-plated contacts. | Ideal for data applications, ensuring consistent, secure terminations with its pass-through design and gold-plated contacts. |
Connector Type | |||
RJ45 | RJ45 | RJ45 | RJ45 |
Signal Quality | |||
Supported Data Rate | |||
100 MHz | CAT6 | ||
Shielding | |||
Gold-Plated Contacts | |||
Related Products
CAT 6 Single Piece Modular Plug (25-Pack)
Ideal Single Piece CAT6 modular plug connectors simplify cable to connector assembly by eliminating the traditional sled and liner 3 piece connector design. An open body design allows CAT6 conductors to be untwisted, aligned and trimmed down to 1/4 in. - 1/2 in. for insertion into the connector. A standard RJ-45 style crimp tool is used to attach the connector to the cable.
Shielded Feed-Thru CAT6A/6/5e Modular Plugs, 25/Card
The IDEAL family of Feed-Thru products has expanded to include a new shielded modular plug connector. This single piece 8P8C RJ-45 connector is designed to work with cable conductors ranging from 22 to 24 AWG solid with an overall insulated diameter of 0.040 in. Dia - 0.048 in. per conductor, typically found in shielded CAT6A/6/5e cables. The single piece Feed-Thru design simplifies the challenges faced when assembling and terminating twisted pair cables with larger diameter conductors, over 0.041 in., when use of a standard in-line connector is not an option.
Cat6 Feed-Thru Modular Plug (50-Pack)
IDEAL Feed-Thru CAT6 modular plug connectors simplify cable termination by having the conductors feed-thru the end of the connector to verify they are in the correct order and the wires are fully inserted before crimping the connector. A Feed-Thru style tool crimps the connector and cuts off the excess conductor. This eliminates wasted connectors, saves time in assembly, and reduces the chances of finding an error during a wire map test of the cable.
RJ-45 8-Position 8-Contact Category 5e Modular Plugs (50 per Pack)
Cat 5e 8P8C (eight position/eight contact) modular plug connectors which support TIA/EIA standards for twisted pair cabling up to 100MHz. Plugs are designed and manufactured to support all 100Ω cable wiring schemes including the widely used TIA-568A and TIA-568B configurations. Ideal modular plugs are manufactured to strict industry standards and tolerances that utilize traditional preparation and termination methods. These proven and preferred methods allow for improved compatibility among manufacturers and devices around the world without the need for special tooling or preparation methods.
