8 Gal. 135 PSI Portable Wheelbarrow 5.5 HP Gas Honda Engine Air Compressor
- 5.5hp Honda Engine, 135 Max PSI, 11.8cfm@90psi, 48x27x31 22lbs
- 89.7 dba, .25"NPT outlet, 10.7cfm @ 135psi, dual quick connects
- Idle control saves fuel and allows for a quieter operation
- View More Details
Free & Easy Returns In Store or Online
Return this item within 30 days of purchase.
Ask about this product
Get an answer now with AI
Magic Apron Assistant is an AI virtual assistant. By proceeding, you consent to the recording and use of your information by The Home Depot (and authorized third parties). More information
Product Details
About This Product
Ingersoll Rand utilizes over 140 years of experience to bring you the best quality in compressed air. The Ingersoll Rand 8 Gallon Honda single stage, gas-driven wheelbarrow air compressor with 5.5 HP Honda Engine is lightweight with a low profile design providing maximum portability. Built to last, this cast-iron, oil-lube compressor is designed for the toughest 100% continuous use applications. Includes pressure switch, regulator and gauge.
Highlights
- 100% continuous duty for tough applications
- Hose quick connects (couplings) already included
- Includes Pneumatic tire
- Safety relief valve
- 0.825 Gal. fuel tank capacity
- Discharge pressure regulator with gauge
- Drain system manual
- Drive belt
- Don't forget to purchase an Ingersoll Rand 2yr Warranty Startup Kit *Sold Separately* Home Depot # 331959951
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Specifications
Dimensions: H 25 in, W 18 in, D 43 in
Dimensions
Product Depth (in.) | 43 in |
|---|---|
Product Height (in.) | 25 in |
Product Width (in.) | 18 in |
Details
Air Delivery SCFM @ 40PSI | 12.2 |
|---|---|
Air Delivery SCFM @ 90PSI | 11.8 |
Application Use | Air Brushing, Blow Cleaning, Bolting, Brad Nailing, Cutting, Drilling, Finish Nailing, Framing Nailing, Grinding, HVLP Painting, Hobby Nailing, Hobby Painting, Roof Nailing, Sanding, Spraying, Stapling, Surface Prep, Wrenching |
Compressor Tank Capacity (gal.) | 8 gal |
Compressor Type | Contractor |
Compressor Volume Rating | Standard |
Compressor/Air Tool Features | Handle, Tank Pressure Gauge |
Decibel Rating (Outdoor) | 91 dBA |
Horsepower (hp) | 5.5 hp |
Lubrication Type | Oil |
Maximum Pressure (PSI) | 135 PSI |
Portable | Yes |
Power Source | Gas |
Power Type | Gas |
Product Weight (lb.) | 175 lb |
Returnable | 30-Day |
Stage Count | Single Stage |
Tank Style | Wheelbarrow |
Tools Product Type | Air Compressor |
Warranty / Certifications
Manufacturer Warranty | 12 month parts and labor |
|---|
Questions & Answers
I am looking at setting up a lube skid with air driven oil pumps, graco fireball 5:1 for dispensing and graco 1050 1" diaphragm pump for recovery. Does this compressor have enough beans to run these pumps 1 at a time?
You would need to compare the equipment's CFM requirements to the CFM capabilities of this unit. This unit does 11.8 @ 90 psi with a max PSI of 135. It is probably to small. Something like our Kohler Truckmount compressor would probably be more suitable. This unit can do 24cfm @ 175 psi with a max of 175 psi. https://www.homedepot.com/p/Ingersoll-Rand-Type-30-Reciprocating-30-Gal-14-HP-Gas-Truck-Mount-Air-Compressor-2475F14G/203738178
Will this handle a 4 gallon Binks pressure pot need to find compressor that continues to output consistent pressure when applying stains and sealers on concrete. Thanks
You will need to compare the pressure pot CFM requirement and compare it to this units specs. This will do 11.8cfm @ 90psi with a MAX PSI of 135
Would this run 6-8 numatic roofing nailers for 8 hours?
Most likely not that many. You would need to add up the CFM requirements for all the nailers and compare it to the CFM of this unit. This unit produces 11.8cfm @ 90 psi. The 2475F14G Truck Mount compressor is probably a better choice this unit produces 24cfm @ 175psi below is the link to this unit on the Home Depot Website. https://www.homedepot.com/p/Ingersoll-Rand-Type-30-Reciprocating-30-Gal-14-HP-Gas-Truck-Mount-Air-Compressor-2475F14G/203738178
where can u buy the wheel assembly for a gas powered air compressor. it is the wheel barrow type without the wheel kit.
This can be special ordered by Home Depot. The part numbers are: Replacement wheel / tire 47755763001 The axel is 54389572
Would this compressor be good for continuous media blasting at 90psi?
No, a better suited unit would be either Home Depot OMSID# 202889695 (SS3L3) which produces 11.3 CFM @ 90 psi or Home Depot OMSID# 202889756 (SS5L5) which produces 18.1 cfm @ 90 psi
what are the over all dimensions on this unit? I need to know how tall, long and wide it is.
The product dimensions are: 25" H x 18" W x 43" D.
What is the scfm
Standard Cubic Feet Per Minute
My compressor keeps turning off. It will be running then it makes explosive sounds then it turns off. Why
Is it the preasure safety valve? When it gets to max allowable preasure the valve releases the extra preasure then shuts the compressor down to keep from over pressurizing the tank.
It has reached maximum pressure in the tank. The explosive sound is the pressure relief valve opening . The compressor then shuts down until the pressure drops below a preset value , and then will turn back on and the cycle continues/
Viewing 1-8 of 8
Customer Reviews
3.6 out of 5
Loading Recommendations
Compare Key Features
Product Snapshot | |||
|---|---|---|---|
Ideal for heavy-duty jobs, this compressor ensures continuous operation with its powerful Honda engine and durable build. Its portability makes it easy to move around any job site. | Suitable for both professionals and home users seeking powerful performance with its high 170 Max PSI output. This 8-gallon wheelbarrow air compressor offers easy transport and convenient features. | Suitable for both professionals and home users seeking powerful performance with 170 Max PSI. This compressor features a high-flow 3-piston pump and a 25-gallon ASME tank for demanding tasks. | Ideal for professionals needing reliable power, this truck mount compressor features a Honda GX160 engine, 30-gallon tank, and 175 PSI for demanding jobs. |
Tank Capacity | |||
8 gal | 8 gal | 25 gal | 30 gal |
Maximum PSI | |||
135 PSI | 170 PSI | 170 PSI | 175 PSI |
CFM Rating | |||
18.5 CFM | 18.5 CFM | ||
Portability | |||
Yes | Yes | Yes | Yes |
Oil-Free Pump | |||
Related Products
8 Gal. 175 PSI Honda GX160 Gas Powered Wheelbarrow Air Compressor
The DEWALT Honda GX160 8 Gal. Wheelbarrow Air Compressor has a 163cc Honda GX160 engine. The air compressor features an overhead valve (OHV) for increased efficiency and optimal power transfer, as well as a twin wheelbarrow tank design with 10 in. pneumatic wheel. It has a center mount turf tread tire for easy maneuverability over rough terrain and job sites. There is a ball bearing supported crankshaft for greater stability and an aluminum head and valve plate to maximize heat dissipation. The cast iron, oil lubricated twin cylinder pump features oil level sight glass and durable Swedish stainless steel reed valves.
8 Gal. 135 PSI Portable Wheelbarrow 5.5 HP Gas Kohler Engine Air Compressor
Ingersoll Rand gas engine wheelbarrow air compressors are lightweight with a low-profile design providing maximum maneuverability on the job site. Quiet and portable air source provides convenience and power. Built to last, these cast-iron, oil-lube compressors are designed for the toughest 100% continuous-duty applications. Includes pressure switch, regulator and gauge.
Wheelbarrow Premium Industrial 10-Gal. 5.5 HP Gas Honda Air Compressor
The Maxair Premium Industrial 5.5 HP Gas (Honda) Electric Start, 10-Gal. Wheelbarrow Style has a High flow cast iron "V" style pump that generated 12.5 CFM at 100 PSI and max 170 PSI. This compressor is equipped with a Honda GX190, high efficiency reed valves for longer life, all metal belt guard for maximum cooling, liquid filled non vibrating pressure gauge for easy read, auto drop premium air filters. High Flow "V" style Cast Iron Pump for Market Leading CFM Out-put, high efficiency reed valves for longer life.

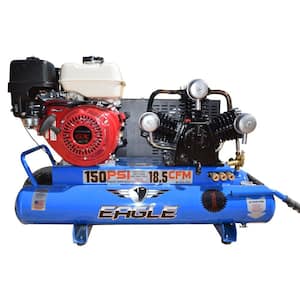

10 Gal. Honda Gas Wheelbarrow Air Compressor
