Model #2545K10-V

Type 30 Reciprocating 120 Gal. 10 HP Electric 200-Volt 3 Phase Vertical Air Compressor

Product Overview

Ingersoll Rand utilizes over 140 years of experience to bring you the best quality in compressed air. The Ingersoll Rand 120 Gal. two-stage, electric air compressor with 10 HP is designed for heavy shop or industrial use (requires industrial 3 phase power supply). The reliability and performance is ideal for most applications and users including automotive services and body shops, fleet maintenance, machine shops, production and manufacturing lines, woodworking shops, dry cleaners, car washes, general maintenance, repair shops and farms.
  • Requires 200-Volt, industrial 3 phase power supply
  • Recommend professional licensed electrical installation
  • High efficiency stainless steel valves
  • Oversized industrial-grade bearings for extended pump life
  • High-efficiency intercooler
  • 100% cast iron pump, including cylinder head with deep-groove directional cooling fins
  • High-efficiency inlet air filter with sound attenuation (lessening) baffles
  • Balanced pistons for maximized efficiency and minimized vibration
  • Oversized cast iron balanced belt wheel to allow continuous-duty operation
  • Mounted magnetic starter included
  • 1 in. ball valve customer connection
  • Need help? CLICK HERE to view our Air Compressor Buying Guide
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Stationary Air Compressors

Type 30 Reciprocating 80 Gal. 7.5 HP Electric 200-Volt 3 Phase Air Compressor
current product
Type 30 Reciprocating 120 Gal. 10 HP Electric 200-Volt 3 Phase Vertical Air Compressor
Type 30 Reciprocating 120 Gal. 10 HP Electric 230-Volt 3 Phase Air CompressorType 30 Reciprocating 120 Gal. 10 HP Electric 460-Volt 3 Phase Air Compressor
BrandIngersoll RandIngersoll RandIngersoll RandIngersoll Rand
NameType 30 Reciprocating 80 Gal. 7.5 HP Electric 200-Volt 3 Phase Air CompressorType 30 Reciprocating 120 Gal. 10 HP Electric 200-Volt 3 Phase Vertical Air CompressorType 30 Reciprocating 120 Gal. 10 HP Electric 230-Volt 3 Phase Air CompressorType 30 Reciprocating 120 Gal. 10 HP Electric 460-Volt 3 Phase Air Compressor
Price
Ratings
(21)
(3)
(3)
(3)
Compressor Tank Capacity (Gal.)80 Gal.120 Gal.120 Gal.120 Gal.
Tank StyleVerticalVerticalVerticalVertical
Voltage (v)200v200v230v460v
Air Delivery SCFM @ 90PSI24.335.435.435.4
Power SourceElectricElectricElectricElectric
Horsepower (hp)7.5 hp10 hp10 hp10 hp
Stage CountTwo StageTwo StageTwo StageTwo Stage
Maximum Pressure (psi)175175175175
Compressor Volume RatingStandardStandardStandardStandard
Lubrication TypeOil-LubricatedOil-LubricatedOil-LubricatedOil-Lubricated
View ProductView ProductView ProductView Product

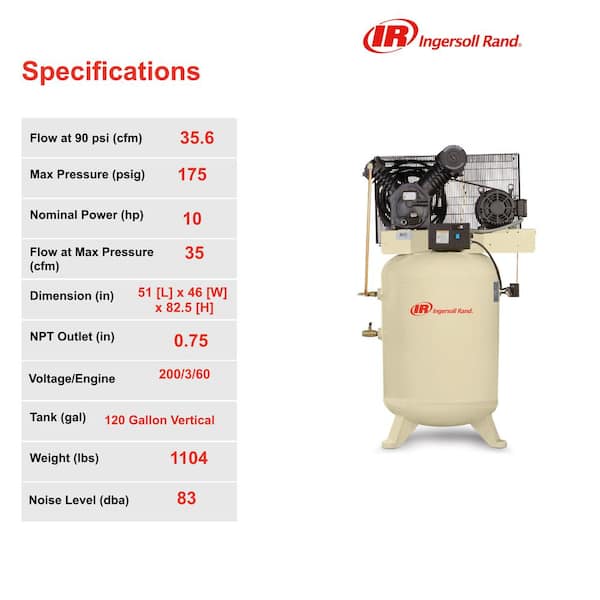

Specifications

Dimensions

Product Depth (in.)
51
Product Height (in.)
83
Product Width (in.)
46

Details

Air Delivery SCFM @ 40PSI
36.7
Air Delivery SCFM @ 90PSI
35.4
Amperage (amps)
32.2
Application Use
Air Brushing,Blow Cleaning,Bolting/Wrenching,Brad Nailing/Stapling,Cutting,Drilling,Finish Nailing,Framing Nailing,Grinding,HVLP Painting,Hobby Nailing,Hobby Painting,Inflation,Roof Nailing,Sanding,Spraying,Surface Prep
Battery Amp Hours
No Battery
Battery/Charger
Tool Only
Charger Included
Charger Not Included
Compressor Tank Capacity (Gal.)
120 Gal.
Compressor Tank Capacity (Gallons)
120
Compressor Type
Garage & Industrial
Compressor Volume Rating
Standard
Compressor/Air Tool Features
Tank Pressure Gauge
Condition
New
Decibel Rating (Outdoor)
85 dBA
Horsepower (hp)
10 hp
Included
Valve Adaptor
Lubrication Type
Oil-Lubricated
Maximum Pressure (psi)
175
Number of Total Batteries Included
0
Phase Type
3 Phase
Portable
No
Power Source
Electric
Power Type
Corded Electric
Product Weight (lb.)
800
Reconditioned
No
Returnable
90-Day
Stage Count
Two Stage
Tank Material
Steel
Tank Style
Vertical
Tools Product Type
Air Compressor
Voltage (v)
200v
Voltage (volts)
200

Warranty / Certifications

Certifications and Listings
ANSI Certified,CARB Compliant,CSA Listed,OSHA Compliant,UL Listed,cUL Listed
Manufacturer Warranty
1 year or 2 years with use of Ingersoll Rand All Season Select Synthetic Lubricant

Questions & Answers

2Questions2Answers

Does this come with electric tank drain valve?

Asked by Rockdriilman June 5, 2019
1
Answer

No, it does not come with an electric tank drain valve.

Is there free delivery to my business?

Asked by Mike January 12, 2016
1
Answer

Hi Mike, unfortunately, this item is one item on Homedepot.com that does not qualify for free shipping to your home, business, or local Home Depot store. We appreciate your business and look forward to serving you in the future. Thank you for shopping Home Depot!

Customer Reviews

  • 3.7
    out of 3 reviews
  • 50% recommend this product
Filter by:
Showing 1-3 of 3 reviews
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Came Damaged, they sent part hooked it up 2 on Saturday and it still doesnt work, dont try callin...
Came Damaged, they sent part hooked it up 2 on Saturday and it still doesnt work, dont try calling ingersol rand they take forever, and didnt get a return call. I spent over $4000. and still doesnt work MY SHOP HAS BEEN DOWN for 2 days now!!!!!!
by Doug
2 people found this helpful
Awesome Compressor will last forever
This is definitely an industrial compressor. Full cast iron. Put together in USA. Makes plenty of air for me.
by ILcarguy145
