13 in. 450-Watt Equivalent Integrated LED Dimmable Black UFO High Bay Light, Selectable CCT 2700K/4000K/5000K
- LED UFO high bay light with selectable wattage 80W/120W/150W
- Delivers up to 20,250 lumens for warehouse lighting
- IP65 rated high bay light with 0-10V dimming control
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product

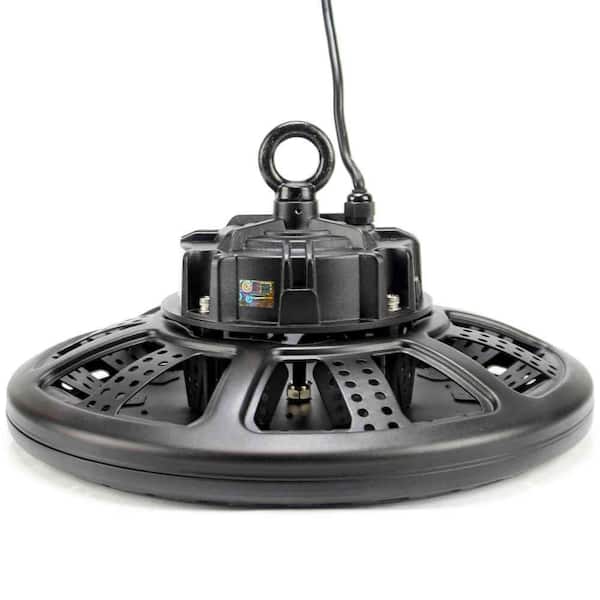

The J&H LED Round UFO High Bay Light is a high performance LED high bay light designed for warehouse lighting, industrial lighting, commercial lighting, shop lighting, garage lighting, and gymnasium applications. This LED high bay replaces traditional HID, metal halide, and fluorescent fixtures with energy efficient, long lasting LED technology.This UFO high bay light features selectable wattage 80W, 120W, and 150W, delivering lumen outputs of 10,800, 16,200, and 20,250 lumens. It is ideal for high ceiling warehouse lighting, factory lighting, workshop lighting, storage facilities, and retail spaces where bright, uniform illumination is required.Selectable CCT 2700K, 4000K, and 5000K provides warm, neutral, and daylight lighting options for flexible commercial and industrial use. Built for durability, this LED high bay includes a rugged housing with an IP65 rating for dust and moisture resistance, suitable for indoor and semi-outdoor environments.The fixture is ETL listed and features a 0-10V dimmable driver for adjustable light output and energy efficient lighting control. Designed for quick installation, this round high bay includes a hook mount and safety cable for fast setup and easy replacement of existing fixtures.With a 50,000-hour lifespan and a 5-year warranty, this LED UFO high bay light delivers reliable, low maintenance performance for commercial and industrial lighting applications.
Highlights
- LED high bay light ideal for warehouse, industrial, factory, and commercial lighting applications
- Delivers 10,800, 16,200, and 20,250 lumens for high ceiling lighting applications
- Selectable CCT 2700K, 4000K, and 5000K for warm, neutral, and daylight lighting
- 0-10V dimmable driver allows adjustable light output and energy efficient control
- Energy efficient LED high bay lighting reduces electricity costs and long term maintenance
- Durable die cast aluminum high bay fixture provides excellent heat dissipation and reliability
- L70 rated 60,000 hour LED high bay light lifespan for long lasting commercial lighting performance
- ETL listed LED high bay light ensures safe and reliable industrial lighting use
- Includes mounting hook and safety cable for secure high bay light installation
- IP65 rated LED high bay lighting fixture for dust and moisture resistance in industrial environments
- 120-277V line voltage supports commercial and industrial electrical installations
- UFO high bay light design delivers efficient overhead lighting for warehouses and large areas
- Provides bright, uniform high bay lighting with reduced shadows across large indoor spaces
- Backed by a 5 year manufacturer warranty for reliable LED high bay lighting performance
- Click here for more information on Electronic Recycling Programs
- Return Policy
Product Information
Specifications
Dimensions
Product Height (in) | 7.36 |
|---|---|
Product Length (in) | 13.18 |
Product Width (in) | 13.18 |
Details
Actual Color Temperature (K) | 3000, 4000, 5000 |
|---|---|
Color Temperature | Adjustable White |
Color/Finish | Black |
Color/Finish Family | Black |
Damp/Wet Rating | Damp Rated (Covered Outdoor),Dry Rated (Indoor) |
Dimmable Capability | 0-10-Volt Dimming |
Features | No Additional Features |
Fixture Shape | UFO |
Included | Mounting Hardware |
Light Bulb Type Included | Integrated LED |
Location Use | Garage, Warehouse |
Lumens | 20250 |
Material | Aluminum |
Package Quantity | 1 |
Power Source | Hardwired |
Product Length (ft) | 1.1 ft |
Product Weight (lb.) | 9 lb |
Product Width (ft) | 1.1 ft |
Recommended Mounting Height (ft.) | 25 ft |
Returnable | 90-Day |
Voltage (V) | 120/277 V |
Wattage (W) | 150 W |
Warranty / Certifications
Certifications and Listings | ETL Listed |
|---|---|
Manufacturer Warranty | 5 Years |
Questions & Answers
My shop is 40’x80’ and about 20’ tall. Which fixture do you recommend for a single row down the middle of the 40’ running the 80’ length of the shop? I want the entire floor lit up.
Thank you for your question! For a shop measuring 40′ × 80′ with 20′ ceilings, the 13 in. Round 450-Watt Equivalent Integrated LED High Bay Light (5000K) is a great choice. Each fixture provides around 21,000 lumens, which works well for this ceiling height. For a single center row layout, we recommend spacing the fixtures about 20 to 24 feet apart along the 80′ length — approximately 4 to 5 fixtures total. This setup will deliver even, bright lighting across the floor, ideal for general work or shop applications. If you’d like more balanced lighting near the walls, consider using two rows (about 8 fixtures total) for improved uniformity.
How many for a 40?x60?x16?? How long are the cords for plugging in?
Not knowing the desired foot candles or if there are rows of racks, I would suggest starting with 2 rows of 3, so 6. You can always add 2 if needed. The chords are about 1', but they are hardwired. A lot of people add a plug if they want to easily move it later.
There are aisles 25’ tall with boxes stacked. Current lighting are the 4’ 5 bulb T8 and the light doesnt make it to the floor.
240w are good for 25'. For the peak of 40', I would suggest hanging them on a chain so the bottom of the light is 30-35'. These are extremely bright lights and I wouldn't recommend them for less that 25'.
Order the J&H LED UFO 240-Watt Black Integrated LED High Bay. It will solve your problem.
does this have a standard male plug on the end of the electric cord
No these need to be hard wired.
What exactly do you consider high bay? My lights would be about 12' of the ground
100W will be ok for 12'.
Can i intall this outside my backyard
It can be installed in damp locations but no direct rain or water. There are some installed in a few different car washes without problems.
Doesn't say exterior grade on it. Also this is a high bay light, not a flood or spot
I have a new metal building 30'wide x 50' length x 14' height with a slight pitch. How many light fixtures do you recommend for this size of shop. Do you recommend the 150 Watt, 200 Watt or 240 Watt for this size shop? Thank you. Rh
It really depends on what you are doing there and the amount of foot candles desired. For sure, don't go above 150w. That will be fine for 14' and the others will be too bright. I would start with either 6 or 8.... 2x3 or 2x4. You can always add more if it is not enough for what you need.
The large eye bolt to hang the light has a threaded hole for a set screw but the set screw is not included. What is the thread size for the set screw? Also how is the lanyard intended to be used?
The set screws are not needed for that model driver. The eye bolt is pretty snug. The lanyard goes through the eye bolt and hangs around the rafter. It's a very strong wire. Some people prefer to use chains to have more length.
