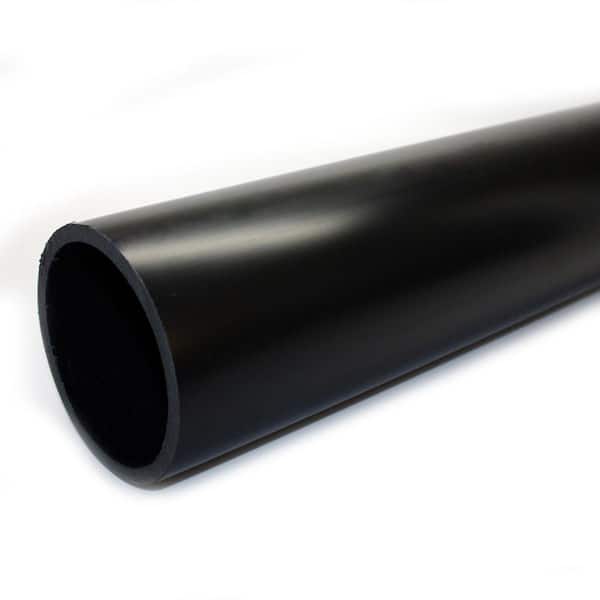

3 in. x 10 ft. ABS Sch. 40 Foamcore Pipe

  • Helps complete the installation of a DWV piping system
  • Use for draining household sanitary waste, ground water and more
  • Pipe is not for use in pressure applications
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

Use JM eagle 3 in. x 10 ft. ABS Sch. 40 Foam Core Pipe to help you complete the installation of your above ground DWV piping system. Common applications include drain household sanitary waste (kitchen and bathroom), sanitary sewer and drain ground water. This pipe is not for pressure applications.
  • ABS Sch. 40 foamcore construction
  • Solvent-weld joints provide a rigid connection
  • 180°F maximum working temperature
  • Resistant to tuberculation, corrosion and external galvanic soil conditions without lining, wrapping, coating or cathodic protection
  • For ideal use in DWV systems
  • Meets ASTM F 628 specifications and listed to NSF-DWV, standard 61, standard 14 and IAPMO specifications
  • Install in accordance with J-M publication TR-407B, solvent weld pipe installation guide, and TR-410A, pressure pipe tapping guide (publications not included)
  • Website address: www.jmm.com
  • Note: product may vary by store

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Actual inside diameter (in.)
3.042
Actual outside diameter (in.)
3.5
Nominal Inside Pipe Diameter (In.)
3"
Pipe Wall Thickness (In.)
0.216
Product Length (ft.)
10 ft

Details

Application
Non-Potable Water,Sewage
Color Family
Black
Color/Finish
Black
Connectivity
Solvent Cemented
Core Type
Cellular Core
Material
Acrylonitrile Butadiene Styrene (ABS)
Maximum Flow Rate (gallons per minute)
140
Maximum working pressure (psi)
0
Maximum Working Temperature (F)
140
Minimum working temperature (F)
32
Pack Size
75
Pipe Features
Corrosion Resistant
Pipe or Fitting Product Type
Pipe & Tubing
Product Weight (lb.)
7.37 lb

Warranty / Certifications

Certifications and Listings
IAPMO Certified,NSF Listed
Manufacturer Warranty
1 year

Questions & Answers

8Questions22Answers

Does this meet ASTM F891-1

Asked by doug March 26, 2021
1
Answer

Meets ASTM F 628 specifications and listed to NSF-DWV, standard 61, standard 14 and IAPMO specifications.

Does it meet the specifications for Schedule 40, ASTM D-2661?

Asked by Sandy March 23, 2021
3
Answers

Yes the abbreviation "Sch. 40" means schedule 40

does it meet ASTM D1527 ?

Asked by Josef June 11, 2020
1
Answer

ASTM withdrawn in 2014. Pipe use intent is for sanitary sewer and drain ground water. This pipe is not for pressure applications. Color: Black.

Product Overview says: 180°F maximum working temperature Specification, Details says: Maximum Wor...

Asked by GC May 19, 2020
2
Answers

The Uniform Plumbing Code prohibits the induction of wastewater in excess of 140 degrees Fahrenheit without a cooling tank.

Will this work on a RV outside sewer, up in Big Bear Lake, Ca.? I'm trying to install sewer to my...

Asked by Terrence June 23, 2018
4
Answers

yes this should be fine, I do recommend installing below ground to protect it from the damage from the sun. I f this is not possible I suggest painting it white. It would take several years to break it down from sunlight, but it will eventually oxidize, turn grey, and become brittle after years of exposure to direct sunlight, and the heat can cause it to warp.

What do I need for repairing a crack in my suer pipe

Asked by Jose April 11, 2017
3
Answers

I suggest you cut the pipe on each side of crack and couple and replace it. you will not be able to properly repair the crack. If your sewer pipe is already buried you can use Fernco couplings which are rubber and will slide back and forth on the pipe untill you tighten the clamps.

What is the ID in inches of 3 inch ABS DWV pipe?

Asked by Jeff February 26, 2017
3
Answers

The ID is 3" The OD is 3.5 inches ABS and PVC is iron pipe size therefore the nominal pipe size is the interior dimension.CPVC, copper, and PEX are tube size which is a different thing altogether.

Can this be Easily bent or is it just solid?

Asked by hi January 15, 2016
5
Answers

Solid

Customer Reviews

  • 4.7
    out of 57 reviews
  • 94% recommend this product
Filter by:
Showing 1-10 of 57 reviews
Great product wish they had them in 20' sticks
Great product wish they had them in 20' sticks
by Bonezz
Nice and straight.
Nice and straight.
by gkplumbing8
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
5 Star Review
Rating provided by a verified purchaser
by HomeDepotCustomer
5 Star Review
Rating provided by a verified purchaser
by Emilio
Good quality ...
Good quality
by HomeDepotCustomer
Purchased because it is more Durable than the lasst PVC...
Purchased because it is more Durable than the lasst PVC Piping I purchase Fourteen Years ago. That was made Thinner. This Pipe is Made Thicker and is used for my Gutter Down Spout Run Off Line Under Ground so not to fill my lawn with puddles out the the Curb had it run.
by RD
Good...
Good
by Chino34
I have been a professional plumber for 20 years and highly recommend this product.
I have been a professional plumber for 20 years and highly recommend this product.
by dk12
The field inspectors here in the Valley of the Sun...
The field inspectors here in the Valley of the Sun all love these pipes when they are installed properly.
by HandyManiacs
