Internet #100161921

Model #531095

Store SKU #193860

Store SO SKU #136293

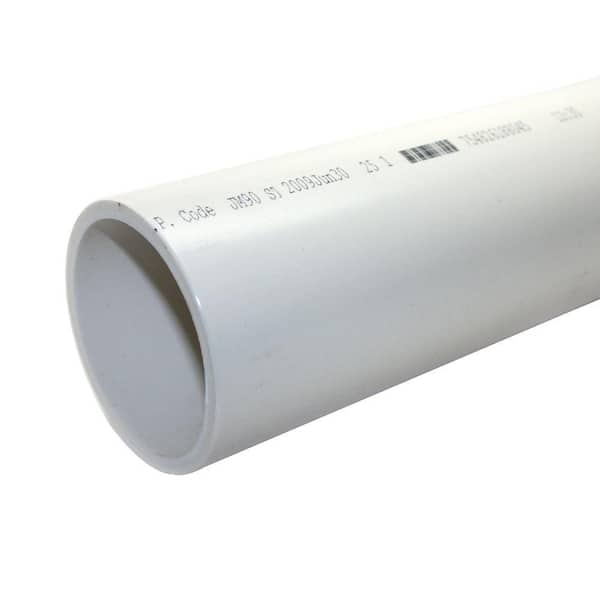

3 in. x 10 ft. PVC Schedule 40 DWV Plain-End Pipe

  • Completes the installation of your aboveground DWV piping system
  • Constructed of durable PVC for a long-lasting use
  • Pipe is corrosion-resistant
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

Use JM eagle 3 in. x 10 ft. PVC Sch. 40 DWV Plain-End Pipe to help you complete the installation of your aboveground DWV piping system. The pipe features PVC Sch. 40 construction and is corrosion-resistant.
  • PVC Sch. 40 construction for durability
  • Resists electrolytic and galvanic corrosion
  • For use with DWV piping
  • Use with aboveground partial-support systems
  • Plain ends for convenient solvent weld connections
  • Meets or exceeds NSF-PW, NSF-DWV, standard 61, standard 14 and IAPMO standards and ASTM D1785 and ASTM D2665 specifications
  • Dual marking for both pressure and drain, waste, vent (DWV) applications
  • Note: product may vary by store

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Actual inside diameter (in.)
3.042
Actual outside diameter (in.)
3.5
Nominal Inside Pipe Diameter (In.)
3"
Pipe Wall Thickness (In.)
0.216
Product Length (ft.)
10 ft

Details

Application
Non-Potable Water,Potable Water,Sewage
Color Family
White
Color/Finish
White
Connectivity
Solvent Cemented
Core Type
Solid Core
End Type
Plain End
Material
PVC
Maximum Flow Rate (gallons per minute)
115
Maximum working pressure (psi)
260
Maximum Working Temperature (F)
140
Minimum working temperature (F)
32
Pack Size
75
Pipe Features
Corrosion Resistant
Pipe or Fitting Product Type
Pipe & Tubing
Product Weight (lb.)
14.625
Schedule Type
Schedule 40

Warranty / Certifications

Certifications and Listings
ASTM Compliant,IAPMO Certified,NSF Listed
Manufacturer Warranty
1 Year

Questions & Answers

26Questions25Answers

Can this pipe be used to vent the tankless water heaters?

Asked by Turbo April 6, 2020
4
Answers

Yes. That is exactly what I used it for

Can it be used for electrical and data cable/ line?

Asked by Barracuda April 24, 2019
4
Answers

Yes, it will work for both data and cable/line. You can also get the same size CPVC for less, and both will work.

Does this pipe have a Matte finish or a gloss finish?

Asked by Froghead October 13, 2019
3
Answers

More matte than gloss

do they have couplings that are around 8 or 9 inches long because I want to connect 2=3" pvc pipes together and i want strong stability?

Asked by aero July 18, 2016
2
Answers

The length of the coupling has no bearing on the strength of the joint s the joint can only be as strong as the pipe itself. Generally speaking, PVC when having a strain placed on it at the joint, tends to fracture at the pipe. I personally can not recall ever having seen a coupling fracture, OMHO. If installed properly I would see no problem with standard couplings and to be honest I am unaware as to whether non standard coupling are available for Schedule 40.

What fittings work with this? The 3" white PVC tee and elbows don't fit over this pipe, they're t...

Asked by jamigls October 31, 2016
2
Answers

Tlee, thanks for the reply! Possibly? I eventually went to the store and learned that they didn't (at least in store) carry white fittings for this pipe, only black. So there's where the first part of my search went wrong!

OK for water

Asked by happgarden October 19, 2015
2
Answers

This is a two part question. The pipe is OK for water, the most common use is to carry waste water from the dwelling to the septic tank or equivalent. I would not use it for potable water. It could be used for storing water above ground, but most people have a 65 to 300 gallon tank which collects rainwater and water is used as needed through a much smaller (1" or less) pipe to the garden.

Is this good for my entire drain system under my foundation??

Asked by Osar March 28, 2017
2
Answers

I would choose the 4", (not 3"), pipe. I would also check that this is in compliance with local laws. If you plan to have no crawl space, bear in mind that any repair or change in the drain setup will be very hard. Also, do not neglect a heavy-duty vapor barrier above the crushed rock substrate (but below the reinforced concrete) .If you go with crawl space, allow enough height for plumbing, heating and air conditioning installation. If you choose to go with the latter, do not neglect weeping tiles around and below the lowest point of your foundation, covered by 3/4" rock extending from the foundation to about a foot, thus draining surface water away from your house.

Is the 3" the outside or inside diameter?

Asked by Gunner January 8, 2017
2
Answers

Inside diameter

What is the max pressure this pipe can withstand?

Asked by hobbiest October 18, 2017
2
Answers

300 PSI at 70F

Is this solid core PVC, foam core or cell core>

Asked by JackBob December 31, 2015
2
Answers

find a supplier that handles schedule 80 pipe if you're concerned with crushing exposures

3 in. x 10 ft. PVC Schedule 40 DWV Plain-End Pipe - page 2

Customer Reviews

  • 106 Customer Reviews
  • 4.7 out of 5 stars overall
96% of customers recommended.
Overall Ratings
5star-icon(81)
4star-icon(19)
3star-icon(1)
2star-icon(2)
1star-icon(3)
Sort By:
Alternative use of pipe like this
This pipe was bought as a part of a hand operated well digging tool build, intended to relieve hydraulic force in soil at our foundation wall from -5 ft of ground 0, and bridge it to a level where the drain pipe network is. The well will be cased by a 4" perforated pipe or sulply filled with gravel which ever least expensive. Attached photo illustrates an alternative use.
