Internet #304087028

Model #505552

Store SO SKU #1002927633

3/16 in. x 1/4 in. x 250 ft. Vinyl-Coated Galvanized Aircraft Cable, 7x19 Construction - 850 lbs Safe Work Load - Reeled

$8051

Frequently Bought Together

+
+
Price:
$8051

Product Overview

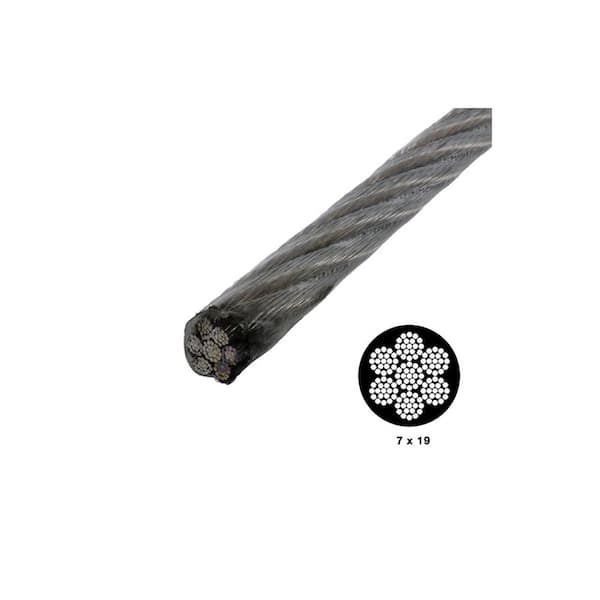

KingChain vinyl-coated galvanized aircraft cables are used for many material handling applications and have typical home uses for garage door cables, winch lines, tie-downs, dog runs, hanging signs, and guy wires for flagpoles. KingChain aircraft cable is made in accordance with US Federal Specification RR-W-410D. The cable is hot-dipped galvanized for long lasting durability and moderate corrosion resistance. The 7x19 construction consists of 19 individual wires laid in a spiral around a center King wire to form a strand. Seven strands are then wound together to form a cable. The cable is then coated in a clear sheath of vinyl for added weather resistance. This construction provides superior strength, flexibility and abrasion resistance compared to 7x7 cable. Remove sections of the vinyl coating when using cable accessories, like sleeves, clips or thimbles. The steel cable must be in contact with the accessory to ensure a secure grip. This cable has a Safe Working Load (SWL) of 850 lbs. (386 kg). Its breaking strength is 5 times the SWL (design factor 5:1). Any breaking strength ratings are listed for comparison purposes only. Actual operating loads may vary but should not exceed the recommended design factor of 20% of the products breaking strength. Not intended for aircraft use.
  • California residents
  • 3/16 in. cable diameter, 1/4 in. overall diameter, 7x19 construction
  • 250 ft. Length
  • 850 lbs. (386 kg) safe work load (SWL)
  • Vinyl coated, high-strength cable
  • Galvanized finish provides good corrosion and rust resistance
  • 7x19 construction provides more flexibility and higher strength compared to 7x7 cable

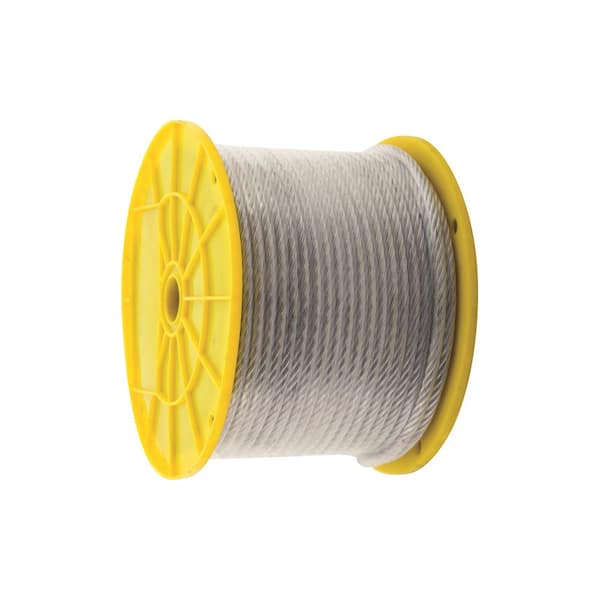

  • Reeled (8 in. diameter reel)

Compare Similar Wire Rope

1/8 in. x 3/16 in. x 250 ft. Vinyl-Coated Galvanized Aircraft Cable, 7x7 Construction - 340 lbs Safe Work Load - Reeled
current product
3/16 in. x 1/4 in. x 250 ft. Vinyl-Coated Galvanized Aircraft Cable, 7x19 Construction - 850 lbs Safe Work Load - Reeled
3/16 in. x 250 ft. Galvanized Steel Uncoated Wire Rope3/16 in. x 250 ft. Galvanized Vinyl Coated Steel Wire Rope
BrandKingChainKingChainEverbiltEverbilt
Name1/8 in. x 3/16 in. x 250 ft. Vinyl-Coated Galvanized Aircraft Cable, 7x7 Construction - 340 lbs Safe Work Load - Reeled3/16 in. x 1/4 in. x 250 ft. Vinyl-Coated Galvanized Aircraft Cable, 7x19 Construction - 850 lbs Safe Work Load - Reeled3/16 in. x 250 ft. Galvanized Steel Uncoated Wire Rope3/16 in. x 250 ft. Galvanized Vinyl Coated Steel Wire Rope
Price
$4950
$8051
$10100
/roll
$11700
/roll
Ratings
(5)
(3)
(13)
(10)
Rope Diameter (in.)3/161/43/163/16
Product Length (ft.)250250 ft250 ft250 ft
Finish FamilyMetallicMetallicGalvanizedGalvanized
Working Load Limit (lbs.)340850840840
FeaturesAbrasion ResistantAbrasion Resistant,Weather ResistantWeather ResistantWeather Resistant
Strand Construction7x77x197x197x19
MaterialGalvanized SteelGalvanized SteelSteelSteel
View ProductView ProductView ProductView Product

Specifications

Dimensions

Product Depth (in.)
8 in
Product Height (in.)
5.50 in
Product Length (ft.)
250 ft
Product Width (in.)
8 in
Rope Diameter (in.)
1/4

Details

Coating Material
Vinyl Coated
Color Family
Metallics
Fastener Type
Wire Rope
Features
Abrasion Resistant,Weather Resistant
Finish Family
Metallic
Gauge
0.25
Material
Galvanized Steel
Package Quantity
1
Product Weight (lb.)
19.05 lb
Returnable
180-Day
Rope Configuration
Twisted
Strand Construction
7x19
Working Load Limit (lbs.)
850

Warranty / Certifications

Manufacturer Warranty
Guaranteed against defects in workmanship and material or product replaced free of charge

Questions & Answers

2Questions2Answers

Can I use a 3/16" size pulley? If not then what size pulley needs to be used?

Asked by Garageguy June 17, 2019
1
Answer

We do not recommend using coated cable to travel over a pulley. The plastic coating will be damaged very quickly (depending on the load) as it travels over the pulley. Depending on the load make sure that the pulley is rated to carry the load. A 3/16” cable is pretty thick and has a SWL of 850 lbs so the pulley will need to be very robust and should at least be a Heavy Duty pulley – again it all depends on the load.

What size ferrules should I buy for this cable?

Asked by SLR March 18, 2019
1
Answer

Dear Customer, Thank you for your interest. Use the smaller size (3/16) – and be sure to remove the plastic coating when installing the ferrule. There needs to be metal to metal contact NOT metal to plastic. Hope this helps. Sincerely, MIBRO Customer Care

Customer Reviews

  • 3 Customer Reviews
  • 4.7 out of 5 stars overall
0% of customers recommended.
Overall Ratings
5star-icon(2)
4star-icon(1)
3star-icon(0)
2star-icon(0)
1star-icon(0)
Sort By:
good and strong...
good and strong
Was this helpful?
0
0
4 Star Review
Rating provided by a verified purchaser
Was this helpful?
0
0
The cable was of very good quality and performed excellent....
The cable was of very good quality and performed excellent.
Was this helpful?
1
