Internet #205540502

Model #KVWB606DSS

Store SKU #1003152107

Store SO SKU #1000999570

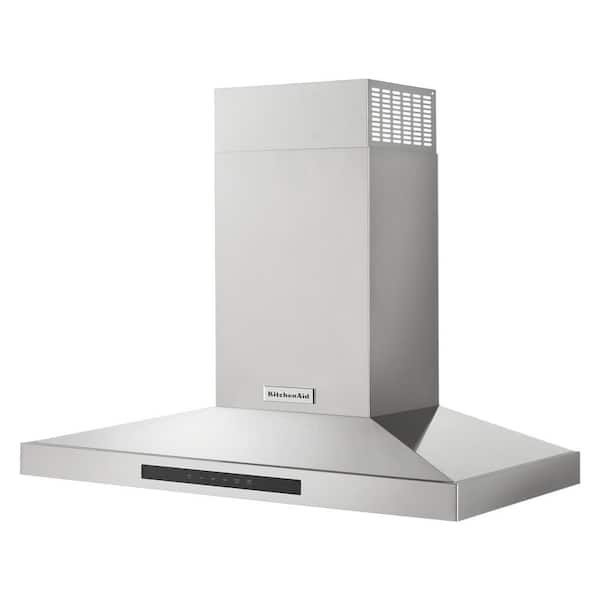

36 in. Wall Mount Convertible Canopy Range Hood in Stainless Steel

  • 600 CFM/65K BTU Threshold
  • Perimeter Ventilation
  • Contact your local store with Order # to schedule installation
  • See More Details

Product Overview

This 3-speed, 36 in., KitchenAid vent hood has power to effectively vent an output of up to 65000-BTUs. The powerful motor handles your most aromatic ingredients with a Whisper Quiet System that operates at levels that allow you to carry on a conversation: just 49 dBA (1.5 sones) at Low Speed, is 65 dBA (5.4 sones) at Maximum Speed. Plus Auto Sense allows the range hood fan to turn on automatically when it senses heat higher than its allowable temperature limit. When Auto Sense is On, the fan speed will increase or decrease based on the temperature Auto Sense is measuring.
  • Perimeter ventilation increases ventilation system efficiency by pulling air from the edges of the hood and speeding up the movement of air at the center, allowing it to efficiently handle up to a 65000-BTU total output
  • Electronic Touch Control with Boost Function (10 Min.). Enhances performance by providing a timed, short burst of high-speed ventilation to effectively filter steam, grease, and odors from the air
  • 3-speed settings so you can match the ventilation to the need
  • 600 CFM quickly clears the air
  • Easy In-line Conversion. Converts from a traditional set-up to an in-line blower installation for an even more quiet operation with separately purchased In-Line Smart Kit, manufactured by Whirlpool, Part Number W10692945
  • Dishwasher safe grease filters reduces steam, grease, and odor to help avoid contact with ceilings and countertops
  • LED task lights provide extra lighting over the cooking surface to help in the cooking process. Halogen night lights provide soft, accent lighting in the kitchen
  • The range hood is factory set for venting through the roof. For non-vented (recirculating) installation order Recirculation Kit Part Number W10692908
  • Recommended for use with cooktops with a maximum total rating of 65000-BTUs or less
  • Sleep mode: the range hood automatically enters Sleep Mode when not in use. After 10 minutes of no range hood activity, all of the control button lights will turn Off
  • Limited 1-year warranty
  • Product available for home delivery only. Installation is not offered at time of delivery; check with your local The Home Depot store for installation options
  • Please call your local store with your Order # to schedule installation for this item
  • Click here for more information on Electronic Recycling Programs
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
19.69
Product Height (in.)
24.63
Product Width (in.)
36
Range Hood Size (Width)
36 in.

Details

Amperage (amps)
15
Appliance Type
Range Hood
Color/Finish
Stainless Steel
Color/Finish Family
Stainless Steel
Commercial/Residential
Residential
Control Type
Touch pad
Exhaust Vent Location
Top
Features
Dishwasher Safe Metal Mesh Filter,Lighted,Temperature Sensor
Included
Hardware
Maximum Air Flow Capacity (CFM)
600 CFM
Minimum Air Flow Capacity (CFM)
190
Mounting Type
Wall Mount
Product Weight (lb.)
60
Returnable
Non-Returnable
Vent Install Type
Convertible
Vent Material
Metal
Voltage (volts)
120
Wattage (watts)
0 W

Warranty / Certifications

Certifications and Listings
UL Listed
Manufacturer Warranty
Limited 1-year

Compare Similar Wall Mount Range Hoods

36 in. Convertible Wall Mount Range Hood in Stainless Steel
current product
36 in. Wall Mount Convertible Canopy Range Hood in Stainless Steel
36 in. Commercial Style Wall Mount Canopy Range Hood with LED Light in Stainless Steel
BrandKitchenAidKitchenAidKitchenAid
Name36 in. Convertible Wall Mount Range Hood in Stainless Steel36 in. Wall Mount Convertible Canopy Range Hood in Stainless Steel36 in. Commercial Style Wall Mount Canopy Range Hood with LED Light in Stainless Steel
Price
$119900
$164900
$199900
Ratings
(100)
(101)
(3)
Maximum Air Flow Capacity (CFM)600 CFM600 CFM1140 CFM
Range Hood Size (Width)36 in.36 in.36 in.
Vent Install TypeConvertibleConvertibleDucted
Amperage (amps)15156.53 A
Product Depth (in.)2019.6925
Product Width (in.)363636
Product Weight (lb.)4860
Commercial/ResidentialResidentialResidentialResidential
View ProductView ProductView Product

Questions & Answers

10Questions14Answers

what size duct is required 6'' or larger ?

Asked by Joe July 21, 2020
1
Answer

Joe, for non vented and recirculating installation we recommend 6" (15.2 cm) diameter round metal vent duct - length required is determined by ceiling height. Hopefully this information is beneficial to you. Thank you for your inquiry regarding our KitchenAid appliances!

Can this be vented through the wall?

Asked by ChrisB February 17, 2020
1
Answer

Chris, the Range Hood can be vented through the wall per page 6 of the Installation Instructions. We've included the link below for the instructions. Hopefully, this information is beneficial to you. Thank you for your inquiry regarding our KitchenAid appliances! https://bit.ly/37yaoG0

What is the decibel level of this hood at the highest speed?

Asked by KP October 21, 2019
2
Answers

Hello kristen, the decibel level of this hood at Max speed is 65 dB(A) Hopefully this information is beneficial to you. Thank you for your inquiry regarding our KitchenAid appliances!

What is the width of the Chimnay? I have an cabinet and half the chimnay goes from there.

Asked by Ash September 12, 2019
2
Answers

Hello Ash! The width is around 13 3/16". We are providing a link to the Installation Instructions. This will provide the dimensions for you on page 5. https://images.homedepot-static.com/catalog/pdfImages/ef/ef191033-efc8-4337-8414-7989c1b0d96e.pdf Thank you for your inquiry on our KitchenAid appliances.

Will this work with a 9 foot ceiling or do I need to purchase an extension kit for the chimney?

Asked by Mark November 2, 2018
1
Answer

Mark, you will need to purchase extension kit W10272075 for this KitchenAid® Canopy Range Hood to extend to 9 feet. We hope this helps!

Do you offer an extension kit for the 36" Wall Mount Canopy Range Hood in Stainless Steel?

Asked by George October 11, 2017
1
Answer

George, the part number is EXTKIT12ES for the Wall Hood Chimney Extension Kit. Hopefully this information is beneficial to you. Thank you for your inquiry regarding our KitchenAid appliances!

What size Chimney does it comes with? Somewhat adjustable or fixed?

Asked by Jeff September 19, 2017
2
Answers

Hi Jeff, please look at the specification guide below for dimensions. Hopefully this information is beneficial to you. Thank you for your inquiry regarding our KitchenAid appliances! http://www.homedepot.com/catalog/pdfImages/b0/b06cde97-04c3-4736-9d05-104ce11465bd.pdf

Location of the electrical connection

Asked by Terry July 20, 2017
1
Answer

Hi Terry, please click on the link below to view the installation instructions and reference page7. Thank you for your inquiry regarding our KitchenAid appliances! http://bit.ly/2sZF570

Is this unit plug in?

Asked by Gito26 February 5, 2017
1
Answer

Gito26, you are able to purchase a power cord for this hood.

Materials Inside this Range Hood

Asked by Amber September 10, 2015
2
Answers

Sorry I can't send a pic since mine is installed already. I cannot imagine a range hood with parts that would melt. There is some plastic in there, just like plastic stuff that makes my electric stove work: plastic coating the electric wires and plastic control covers. I am comfortable that all parts are made to withstand the heat. Remember that you must follow installation guidelines as to distance above your cooking surface. Hope this helps.

36 in. Wall Mount Convertible Canopy Range Hood in Stainless Steel - page 2

Customer Reviews

  • 4.4
    out of 101 reviews
  • 89% recommend this product
5star-icon69
4star-icon20
3star-icon3
2star-icon0
1star-icon9
Filter by:
Showing 1-10 of 101 reviews
Range Hood- Elegant looking
(This review was collected as part of a promotion.) Excellent Hood. Very quiet and excellent extraction
by KSgeneral
Looks nice, works great!
[This review was collected as part of a promotion.] The lights are great - can see what I’m cooking. Love the sleek, modern look.
by Swharv
Beautiful! Straight Edges - Just what we wanted!
[This review was collected as part of a promotion.] Was super excited to add this to our KitchenAid package. The vent piece that came with it was a little short, but had some stainless fabricated locally and was able to utilize the piece it came with as a wrap-around to cover the seam and keep the "branding" on the vent. The lighting is much better than I've had on past vents and the vent settings work wonderfully! The style of it goes perfectly in our modern-style kitchen!
by matma
Custom home
[This review was collected as part of a promotion.] Awaiting to use. Love this suite. Can’t wait to move in.
by Julant
Get a professional
My wife and I remodelled our kitchen in April 2017 and wanted the best appliances possible. I did my homework and read a number of reviews and decided that a KitchenAid range hood was the way to go. We currently have a 30 inch stove and was advised by the sales clerk to purchase a 36 inch range hood that will look aesthetically pleasing and ensure that no fumes escape. We did not regret that decision. Also, the supplier recommended a professional installer, who does all their installations. The range hood was installed but the installer realised that the chimney was too short for our 10 Foot ceiling. He promised to come back to us with a solution, but never did. So we used it without the chimney extension but to our disappointment the noise level was extremely high, even on low speed. We did not know better and thought this was normal, even though the reviews described it as Whisper Quiet. My wife refused to use it, because it was so noisy and did not remove any fumes. I called an electrician to check the polarity just in case the motor was hooked up in the reverse. This was not the case, so we continued to bear and cope with the noise, until yesterday 13th August 2017. AHHH ! We asked a friend to help install the chimney extension and to his horror, he discovered the air duct damper was installed upside down totally blocking the exhaust air flow, the ducting joints were also not sealed thus allowing fumes to escape. We were shocked to know that a professional did this. It took us all day to rectify all these issues and to install the chimney extension. The final note is that we are pleased with our purchase. Even on boost, the noise level is minimal and on low it is absolutely Whisper Quiet. The vents are sealed and we are very happy. I advise that if something sounds or feel wrong, get a second professional opinion. See our modified range hood below. We used the same chimney extension that was supplied with the Range Hood making allowances for
by Kitchen Police
Love it!
[This review was collected as part of a promotion.] This is an amazing feature to our newly remodeled kitchen. We love the black stainless steel finish. The light has two options and we use both settings. I recommend KitchenAid appliances!
by Bobbie
Installation nightmare
Had replaced 3x--every time there has been a defect....still waiting for 4th replacement. It's going on a year now. Save yourself the $$, time, & aggravation!
by J
It makes the Kitchen looks like a Professional Ki
(This review was collected as part of a promotion.) I replaced an older Kitchen Aid Exhaust fan with a newer model . Since installation I am very happy with this model
by BBBS
great working with good power
i bought this one a month ago and totally satisfied with this ..it worked awesome and specially we cooked a lot deep fried food so glad we bought this with power motor. recommended to other for sure
by nick1984
Love the look
(This review was collected as part of a promotion.) This new hood fan inspired me to make other changes in my kitchen. I love the two lighting options and the fan is quiet and very efficient.
by Deb J R
Showing 1-10 of 101 reviews
